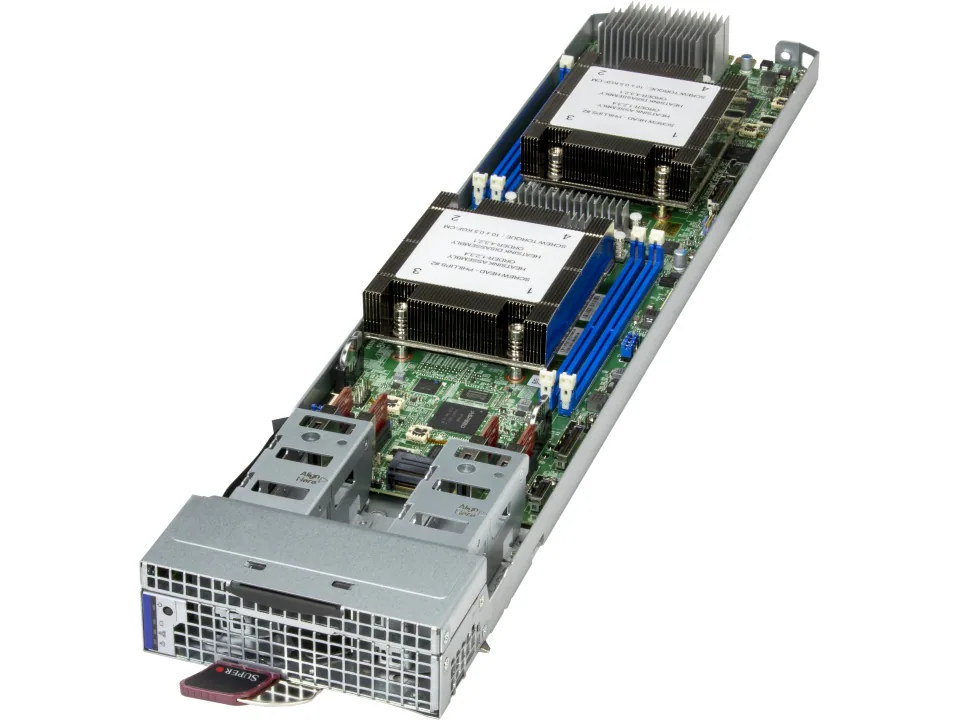

Supermicro Dual-Node MicroBlade MBA-315R-1DE12
, , ,

Supermicro Dual-Node MicroBlade MBA-315R-1DE12

Favorite
Compara
Pretul afisat contine TVA (21%).

Dual-Node MicroBlade MBA-315R-1DE12

Specifications

Product SKUs
MicroBlade Sled
  • MBA-315R-1DE12
Motherboard
  • MBD-BH4SR2-25G
Processor (per Node)
CPU
  • Single Socket AM5 (LGA-1718)
  • AMD EPYC™ 4005/4004 Series Processor
Core Count
  • Up to 16C/32T; Up to 128MB Cache
Note
  • Supports up to 110W TDP CPUs
System Memory (per Node)
Memory Capacity
  • 2 DIMM slots/2 Channels
  • Max Memory (1DPC): Up to 128GB 5600MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage
  • 1.1V
On-Board Devices (per Node)
Network Controllers
  • Dual 25GbE LAN Ports
IPMI
  • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Graphics
  • Aspeed AST2600 BMC
System BIOS
BIOS Type
  • 256Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • BIOS Feature: ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Dimensions
Height
  • 1.2″ (30.48mm)
Width
  • 4.94″ (125.48mm)
Depth
  • 23.2″ (589.28mm)
Weight
  • Gross Weight: 3.3 lbs (1.5 kg)
Available Colors
  • Silver Grey
Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Fault LED
  • Network Activity LED
  • UID / KVM LED
Drive Bays / Storage (per Node)
M.2
  • 1 M.2 NVMe SSD slot
EDSFF
  • 2 E1.S drive bays
Input / Output (per Node)
TPM
  • 1 Onboard TPM
  • 1 TPM Header
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Electromagnetic Compatibility (EMC)
United States / Canada
  • FCC- Emissions (US) Verification
Europe
  • N55022 – Emissions
  • EN55024 – Immunity
  • EN61000-3-2 – Harmonics
  • EN61000-3-3 – Voltage Flicker
  • CE – EMC Directive 89/336/EEC
Parts List – (Items Included)
Optional Parts List
