NVIDIA GH200 Grace Hopper Superchip system supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7

Pretul afisat contine TVA (21%).

SuperServer ARS-111GL-SHR

NVIDIA GH200 Grace Hopper Superchip system supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7

Key Features

  1. NVIDIA GH200 Grace Hopper™ Superchip, up to 72 cores
  2. Up to 480GB ECC LPDDR5X embedded on the NVIDIA Superchip
  3. Up to 3 PCIe 5.0 x16 FHFL slots
  4. Up to 8 front hot-swap E1.S NVMe drive baysSupports 8 E1.S Drives as opposed to NHR version which supports 2.
  5. Up to 8 front hot-swap E1.S NVMe drive bays
  6. Supports 8 E1.S Drives as opposed to NHR version which supports 2.
  7. 2 Redundant 2000W Titanium Level power supplies
  8. Support for up to 1 embedded on the NVIDIA Grace Hopper Superchip:qty string GPU accelerator cardsSupports 8 E1.S DrivesDC-SCM Support
  9. Support for up to 1 embedded on the NVIDIA Grace Hopper Superchip:qty string GPU accelerator cards
  10. Supports 8 E1.S Drives
  11. DC-SCM Support
  12. 1U Rackmount chassis with 37″ (940mm) depth

Specifications

Product SKUs
  • ARS-111GL-SHR

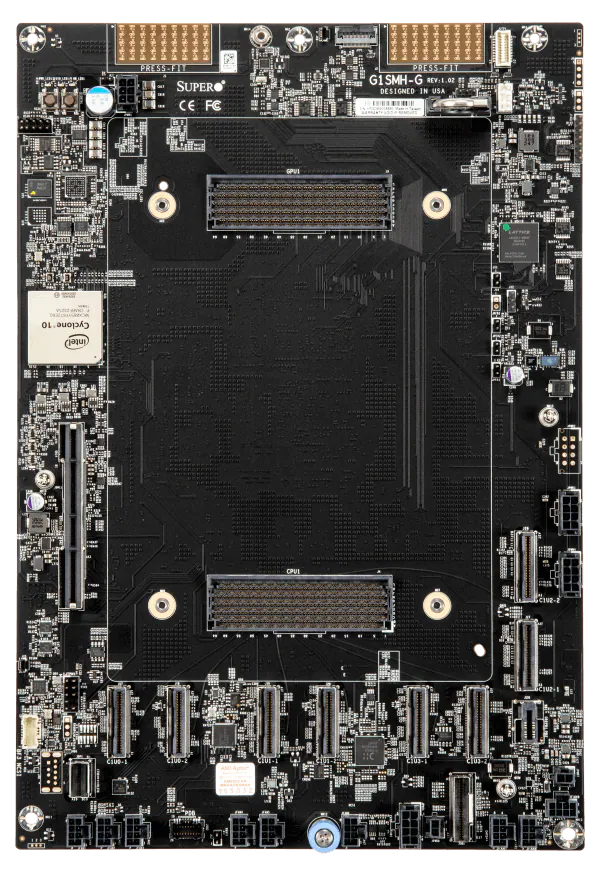

Motherboard
  • Super G1SMH-G
Processor
CPU
  • NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip
Note
  • Supports up to 1000W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • 1 onboard GPU
Supported GPU
  • NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Air-cooled)
CPU-GPU Interconnect
  • NVIDIA NVLink®-C2C
System Memory
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 480GB ECC LPDDR5X
  • Additional GPU Memory: Up to 96GB ECC HBM3
On-Board Devices
Input / Output
LAN

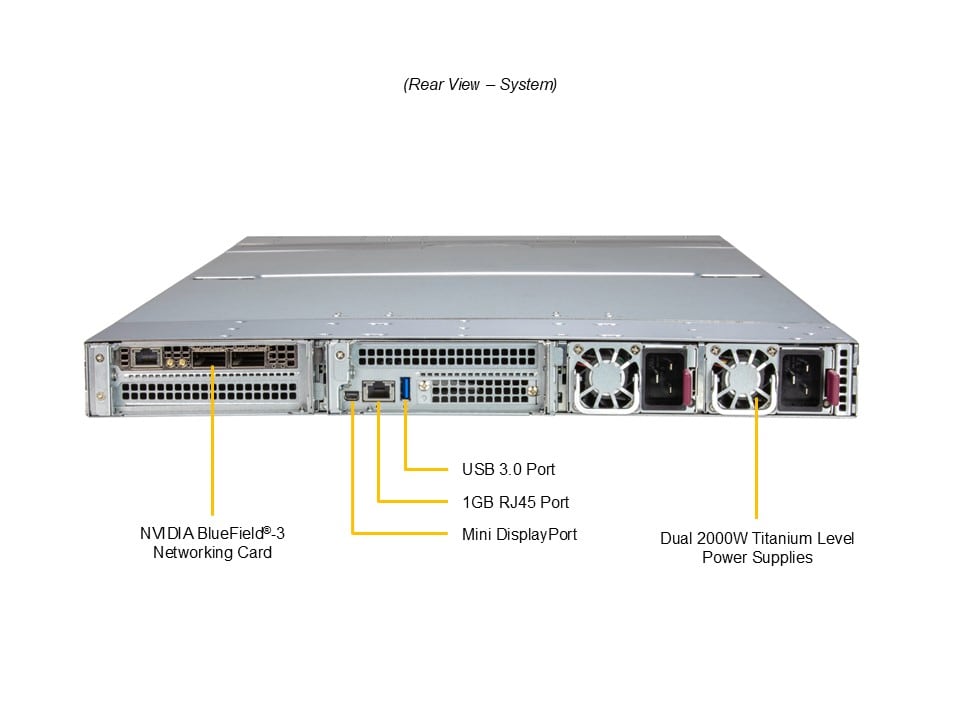

  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 1 USB 3.0 port(Rear)
Video
  • 1 mini-DP port
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • ARS-111GL-SHR
  • Super G1SMH-G
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-MG102TS-R000NDFP
Dimensions and Weight
Height
  • 1.7″ (43.6 mm)
Width
  • 17.26″ (438.4 mm)
Depth
  • 35.4″ (900 mm)
Package
  • 9.05″ (H) x 27.36″ (W) x 46.06″ (D)
Weight
  • Gross Weight: 49.49 lbs (22.45 kg)
  • Net Weight: 33.84 lbs (15.35 kg)
Available Color
  • Silver

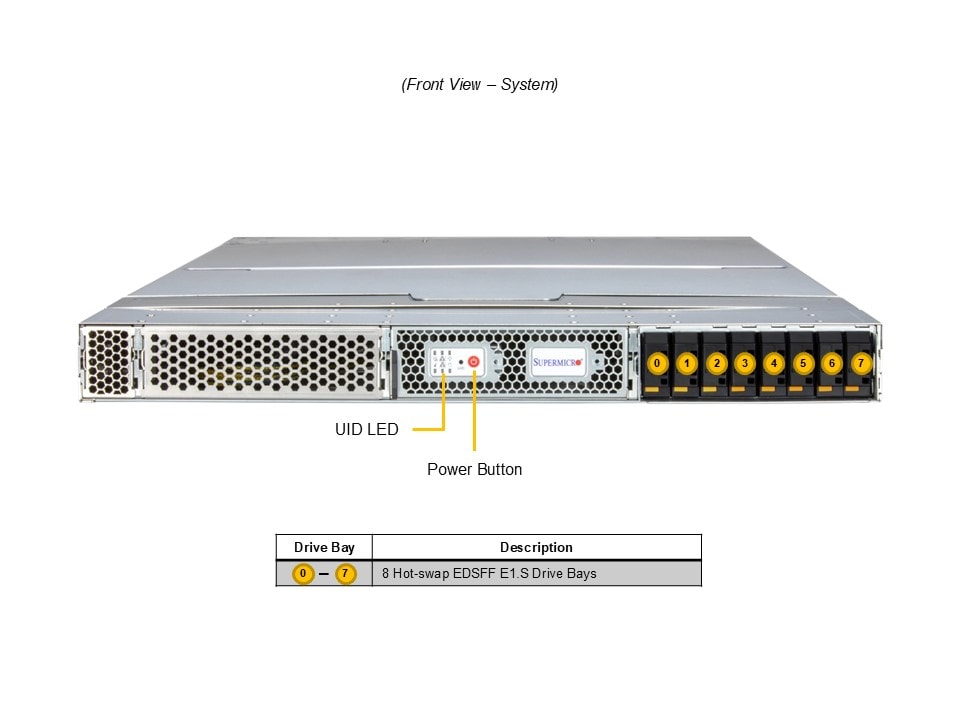

Front Panel
Buttons
  • Power On/Off button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default3 PCIe 5.0 x16 FHFL slots
  • 3 PCIe 5.0 x16 FHFL slots
Drive Bays / Storage
Drive Bays Configuration

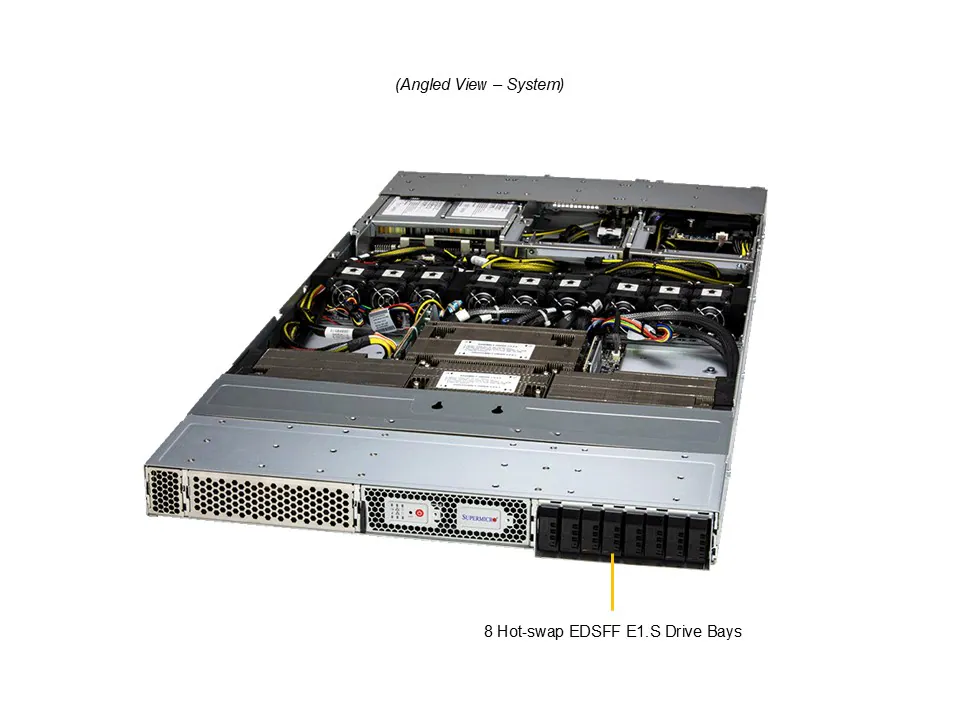

  • Default: Total 8 bays8 front hot-swap E1.S NVMe drive bays
  • 8 front hot-swap E1.S NVMe drive bays
M.2
  • 2 M.2 NVMe slots (M-key)
  • View M.2 Options

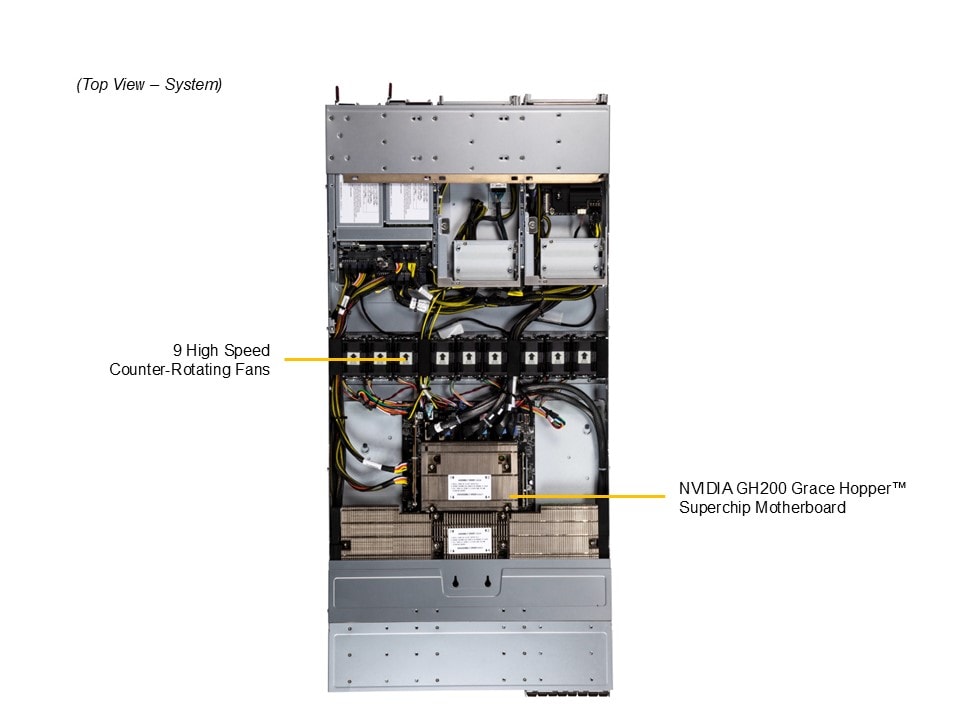

System Cooling
Fans
  • Up to 9 Removable heavy-duty 4cm Fan(s)
Power Supply
  • 2x 2000W 2x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Input
  • 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 2000W 2x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
