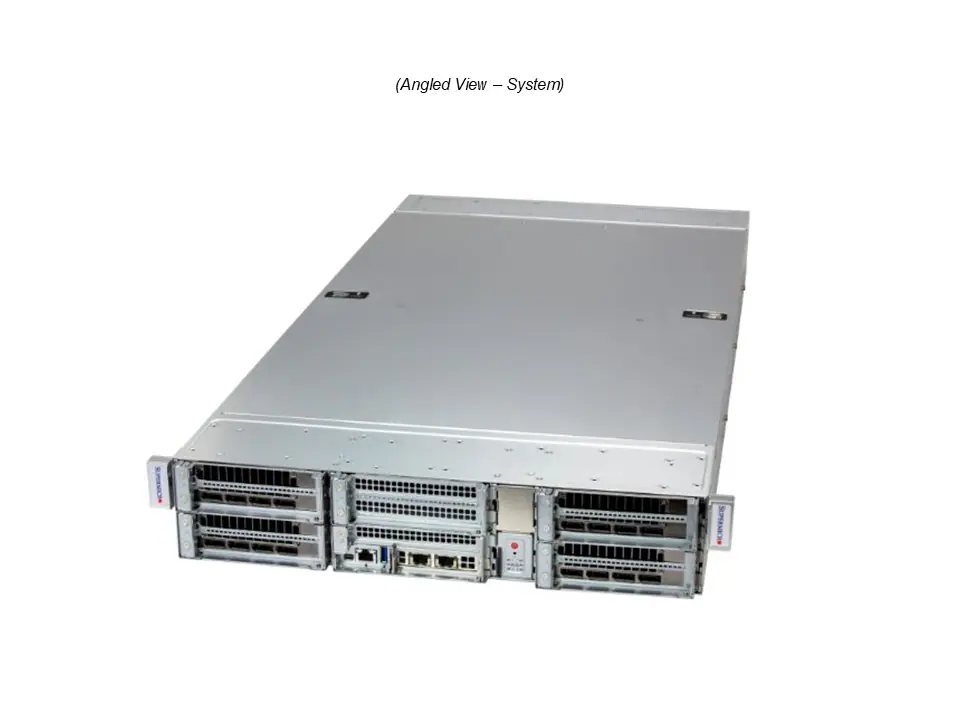

Supermicro SuperServer ARS-222GL-NR
Supermicro SuperServer ARS-222GL-NR - imagine 2
Supermicro SuperServer ARS-222GL-NR - imagine 3
, , ,

Supermicro SuperServer ARS-222GL-NR

Favorite
Compara

2U air-cooled system with dual NVIDIA Vera CPUs

Pretul afisat contine TVA (21%).

SuperServer ARS-222GL-NR

2U air-cooled system with dual NVIDIA Vera CPUs

Key Features

  1. NVIDIA Vera C2 CPU featuring 176 cores, 352 threads with spatial multithreading
  2. Support for up to 4 double-width GPU accelerator cards. Support for up to 4 NVIDIA RTX PRO™ 6000 Blackwell Server Edition or up to 6 NVIDIA RTX PRO™ 4500 Blackwell Server Edition GPUs
  3. Supports up to 1.5TB SOCAMM2 LPDDR5X per CPU
  4. Up to 3 PCIe 6.0
  5. Up to 8 hot-swap E1.S drive bays +2 M.2 NVMe
  6. 4 Redundant 3000W (3+1) Titanium Power Supply
  7. 2U Rackmount chassis with 35.43″ (900mm) depth

Specifications

Product SKUs
  • ARS-222GL-NR
Motherboard
  • Super G3DBV
Processor
CPU
  • Dual processor(s)
  • NVIDIA Vera CPU C2 (88-core)
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width GPUs
Supported GPU
  • NVIDIA PCIe: NVIDIA RTX PRO™ 4500 Blackwell Server Edition, NVIDIA RTX PRO™ 6000 Blackwell Server Edition
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™ Bridge (optional)
System Memory
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 1.5TB ECC LPDDR5X
On-Board Devices
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 1 port(Rear)
Video
  • 1 mini-DP port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • Redfish API
  • Supermicro Server Manager (SSM)
  • Supermicro Power Manager (SPM)
  • Supermicro SuperDoctor® 5 (SD5)
  • KVM with dedicated LAN
  • IPMI 2.0
  • OOB Management Package (SFT-OOB-LIC )
  • SMCIPMITool
  • IPMIView
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • ARS-222GL-NR
  • Super G3DBV
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-MG204-R000NDFP
Dimensions and Weight
Height
  • 3.43″ (87 mm)
Width
  • 17.3″ (438.4 mm)
Depth
  • 35.43″ (900 mm)
Package
  • 11.02″ (H) x 27.56″ (W) x 47.24″ (D)
Weight
  • Gross Weight: 103 lbs (46.8 kg)
  • Net Weight: 88 lbs (40 kg)
Available Color
  • Silver

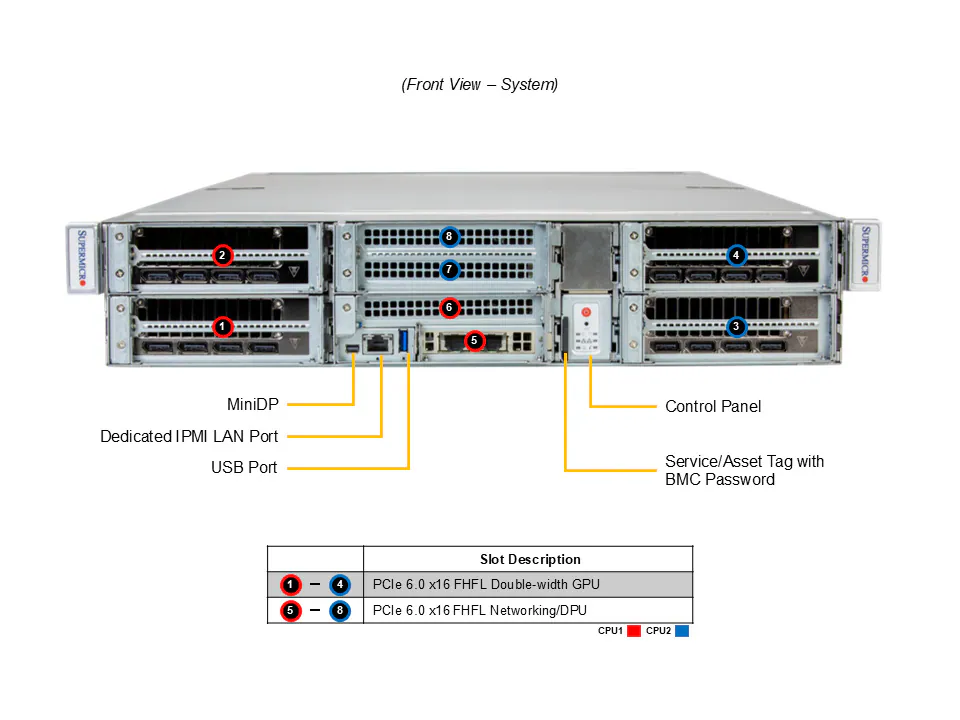

Front Panel
Buttons
  • Power On/Off
LED
  • HDD activity
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default3 PCIe 6.0 x16 FHFL double-width slots
  • 3 PCIe 6.0 x16 FHFL double-width slots
CXL Support
  • Up to 1 CXL 2.0 x16 devices
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap E1.S NVMe drive bays
  • 8 front hot-swap E1.S NVMe drive bays
M.2
  • 2 M.2 NVMe/SATA slots (M-key)
System Cooling
Fans
  • Up to 5x 8cm heavy duty fans with optimal fan speed control
Power Supply
  • 4x 3000W 4x 3000W Redundant (3 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207-220Vac / 50-60Hz 3200W: 220-240Vac / 50-60Hz 3200W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 82A / Min: 0A (100Vac-127Vac)Max: 237.7A / Min: 0A (200Vac-207Vac)Max: 245.9A / Min: 0A (207Vac-220Vac)Max: 262.3A / Min: 0A (220Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Input
  • 1000W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207-220Vac / 50-60Hz 3200W: 220-240Vac / 50-60Hz 3200W: 0240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 82A / Min: 0A (100Vac-127Vac)Max: 237.7A / Min: 0A (200Vac-207Vac)Max: 245.9A / Min: 0A (207Vac-220Vac)Max: 262.3A / Min: 0A (220Vac-240Vac)
12V SB
  • Max: 3A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
Environmental / Recycling
Recycle
  • Return Server-End of Life Product
  • 4x 3000W 4x 3000W Redundant (3 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207-220Vac / 50-60Hz 3200W: 220-240Vac / 50-60Hz 3200W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 82A / Min: 0A (100Vac-127Vac)Max: 237.7A / Min: 0A (200Vac-207Vac)Max: 245.9A / Min: 0A (207Vac-220Vac)Max: 262.3A / Min: 0A (220Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
