Supermicro SuperServer ARS-511GD-NB-LCC

Favorite
Compara

Super AI Station with NVIDIA GB300 Grace Blackwell Ultra Desktop Superchip

Pretul afisat contine TVA (21%).

SuperServer ARS-511GD-NB-LCC

Super AI Station with NVIDIA GB300 Grace Blackwell Ultra Desktop Superchip

Key Features

  1. NVIDIA Grace™ CPU Superchip, 72 Core
  2. NVIDIA Blackwell B300 GPU, up to 252GB HBM3e (Onboard)
  3. 4x 128GB LPDDR5x SOCAMM (Total 496GB total memory per NVIDIA Grace™ CPU)Up to 748GB of coherent memory
  4. NVIDIA ConnectX®-8 SuperNIC™
  5. Up to 20 PFLOPS of AI PerformanceClosed loop liquid coolingSupported OS: Ubuntu with NVIDIA AI Developer Tools

Specifications

Product SKUs
  • ARS-511GD-NB-LCC

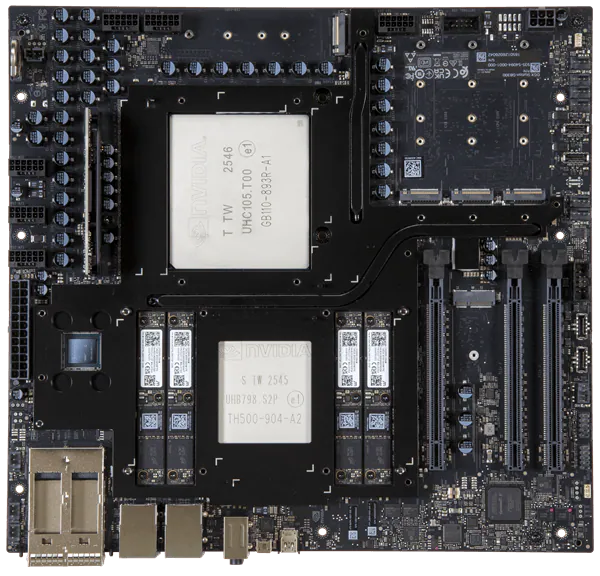

Motherboard
  • Super GPU-NVGB300-WSHPM
Processor
CPU
  • Single processor(s)
  • NVIDIA 72-core NVIDIA Grace CPU on NVIDIA GB300 Grace Blackwell Ultra Superchip
Note
  • Supports up to 300W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • 1 onboard GPU
Supported GPU
  • NVIDIA: B300 GPU on NVIDIA GB300 Grace Blackwell Ultra Superchip
CPU-GPU Interconnect
  • NVIDIA NVLink®-C2C
System Memory
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 496GB ECC LPDDR5X
On-Board Devices
Network Connectivity
  • 2 QSFP 400GbE with NVIDIA ConnectX®-8 SuperNIC

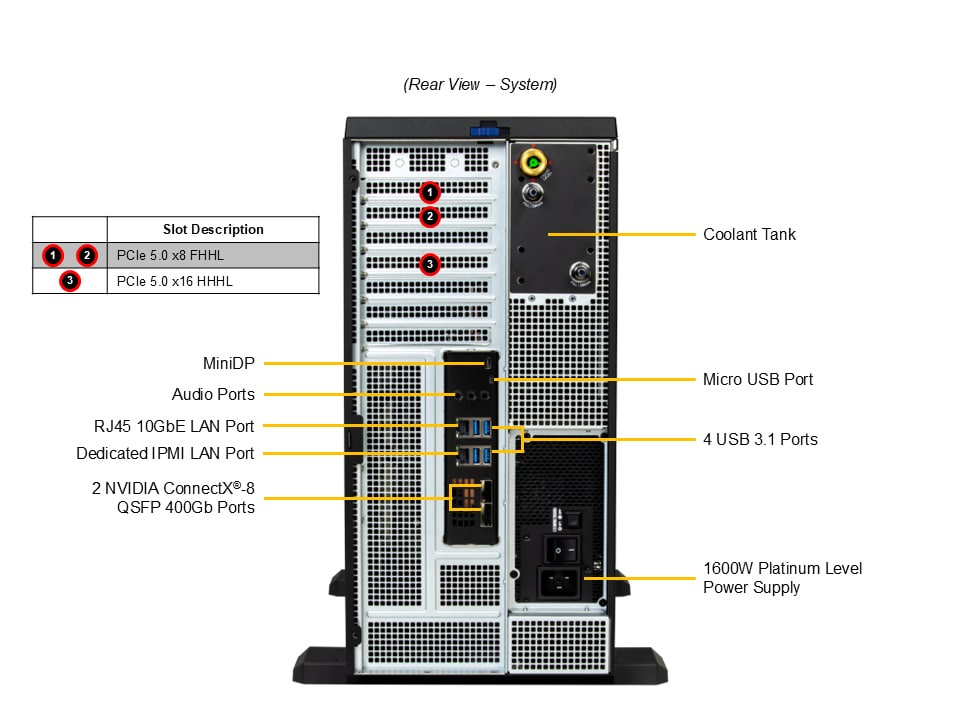

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 1 RJ45 10 GbE LAN port
  • 2 QSFP28 400 GbE LAN ports (NVIDIA ConnectX®-8 SuperNIC)
USB
  • 2 USB 2.0 Type-A ports(front)
  • 4 USB 3.0 Gen2 Type-A ports(Rear)
Video
  • 1 mini-DP port
Audio
  • Rear Audio
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Power configurations
  • ATX Power connector
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • ARS-511GD-NB-LCC
  • Super GPU-NVGB300-WSHPM

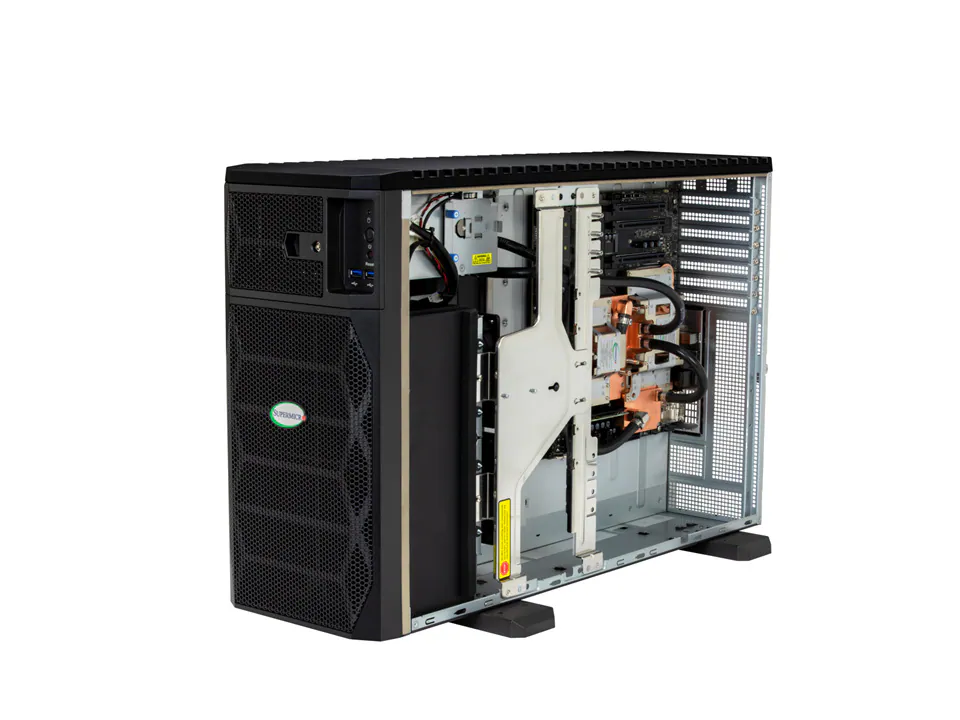

Chassis
Form Factor
  • Tower or 5U
Model
  • CSE-759TS-R0CNBP
Dimensions and Weight
Height
  • 8.6″ (218.4 mm)
Width
  • 17.9″ (454.7 mm)
Depth
  • 27.6″ (701 mm)
Package
  • 25.8″ (H) x 15.3″ (W) x 37.6″ (D)
Weight
  • Gross Weight: 112.4 lbs (51 kg)
  • Net Weight: 88 lbs (40 kg)
Available Color
  • Black Front & Black Body

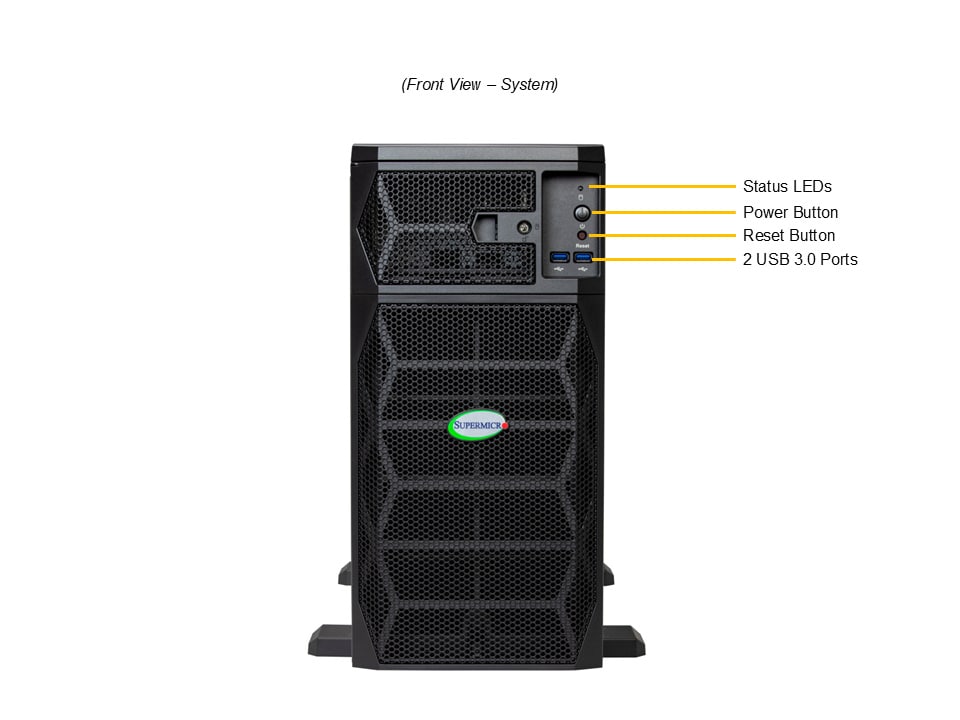

Front Panel
Buttons
  • Power On/Off button
  • Reset button
LED
  • HDD activity LED
  • Power status LED
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default1 PCIe 5.0 x16 FHFL double-width slot 2 PCIe 5.0 x8 (in x16) FHHL slots
  • 1 PCIe 5.0 x16 FHFL double-width slot
  • 2 PCIe 5.0 x8 (in x16) FHHL slots
M.2
  • 1 M.2 PCIe 5.0 x4 slot (E-key 2230(default))
Drive Bays / Storage
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280(default))
  • 2 M.2 PCIe 6.0 x4 NVMe slots (M-key 2280(default))

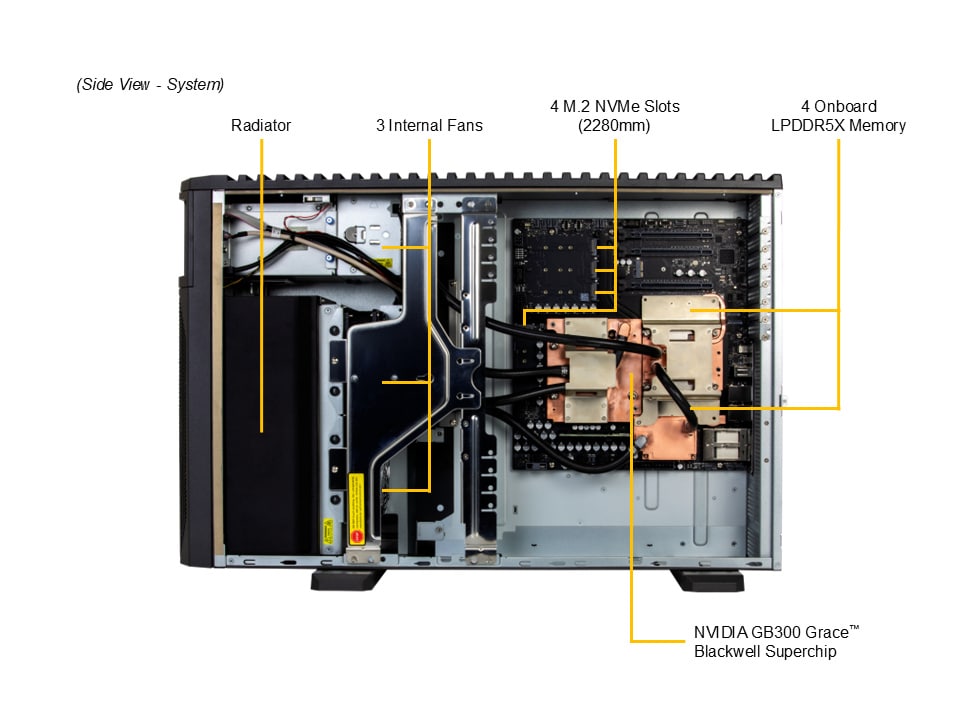

System Cooling
Fans
  • 2x 120mm Fan(s)
  • 1x 80mm Fan(s)
  • 1x 60mm Fan(s)
  • 1x 40mm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate
Power Supply
  • 1x 1600W 1x 1600W Titanium Level (94%) power supply Dimension (WxHxL)150 x 86 x 210 mm Input1300W: 100-114Vac / 50-60Hz 1600W: 115-240Vac / 50-60Hz +12VMax: 108.3A / Min: 0.1A (100Vac-114Vac)Max: 133.3A / Min: 0.1A (115Vac-240Vac) 5V SBMax: 3A / Min: 0A Output Type24pin ATX Certification Titanium Level
Dimension (WxHxL)
  • 150 x 86 x 210 mm
Input
  • 1300W: 100-114Vac / 50-60Hz 1600W: 115-240Vac / 50-60Hz
+12V
  • Max: 108.3A / Min: 0.1A (100Vac-114Vac)Max: 133.3A / Min: 0.1A (115Vac-240Vac)
5V SB
  • Max: 3A / Min: 0A
Output Type
  • 24pin ATX
Certification
  • Titanium Level
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 25°C (50°F to 77°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 1600W 1x 1600W Titanium Level (94%) power supply Dimension (WxHxL)150 x 86 x 210 mm Input1300W: 100-114Vac / 50-60Hz 1600W: 115-240Vac / 50-60Hz +12VMax: 108.3A / Min: 0.1A (100Vac-114Vac)Max: 133.3A / Min: 0.1A (115Vac-240Vac) 5V SBMax: 3A / Min: 0A Output Type24pin ATX Certification Titanium Level
