Supermicro SuperServer AS -4124GQ-TNMI

Favorite
Compara

DP AMD Universal GPU System with AMD Instinct MI250 OAM

Pretul afisat contine TVA (21%).

SuperServer AS -4124GQ-TNMI

DP AMD Universal GPU System with AMD Instinct MI250 OAM

Key Features

  1. Supports AMD Instinct™ MI200 Series Accelerators with AMD Infinity™ Fabric™ GPU-GPU Interconnect, 1:1 GPU-to-NIC ratio
  2. Dual AMD EPYC™ 7003 Series Processors
  3. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
  4. 8 PCIe 4.0 x16 via PLX2 PCIe 4.0 x16 LP via CPUs (for 5U SKU)

Specifications

Product SKUs
  • A+ Server AS -4124GQ-TNMI
Motherboard

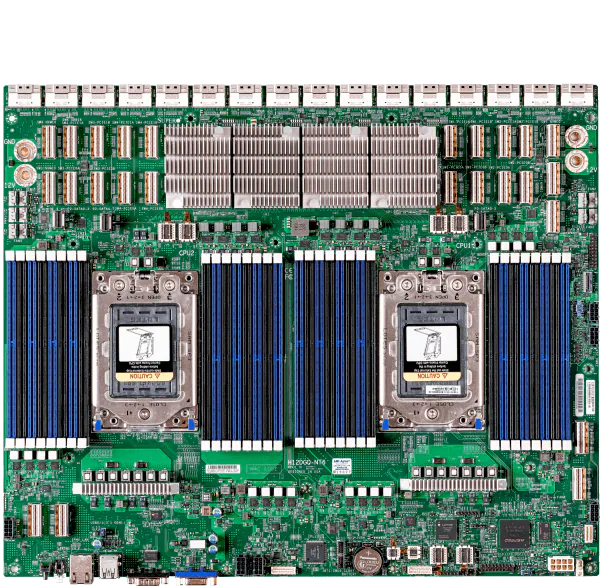

  • Super H12DGQ-NT6
Processor
CPU
  • Dual Socket SP3
  • AMD EPYC™ 7003 Series
Core Count
  • Up to 128C/256T
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • 4 onboard GPUs
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • AMD Infinity Fabric™ Link
System Memory
Memory
  • Slot Count: 32 DIMM slots/8 Channels
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • Via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(front)
Video
  • 1 VGA port(Front)
Serial
  • 1 COM port
System BIOS
BIOS Type
  • AMI 256MB SPI Flash ROM
Management
Software
  • Supermicro Server Manager (SSM)
  • Supermicro Power Manager (SPM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • KVM with dedicated LAN
  • IPMI 2.0
  • Watch Dog
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
  • A+ Server AS -4124GQ-TNMI
  • Super H12DGQ-NT6
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-458GTS-R3K06P
Dimensions and Weight
Height
  • 7″ (175.6 mm)
Width
  • 17.67″ (449 mm)
Depth
  • 32.79″ (833 mm)
Package
  • 14.57″ (H) x 27.55″ (W) x 49.6″ (D)
Weight
  • Gross Weight: 140 lbs (64 kg)
  • Net Weight: 105 lbs (48 kg)
Available Color
  • Black Front & Silver Body

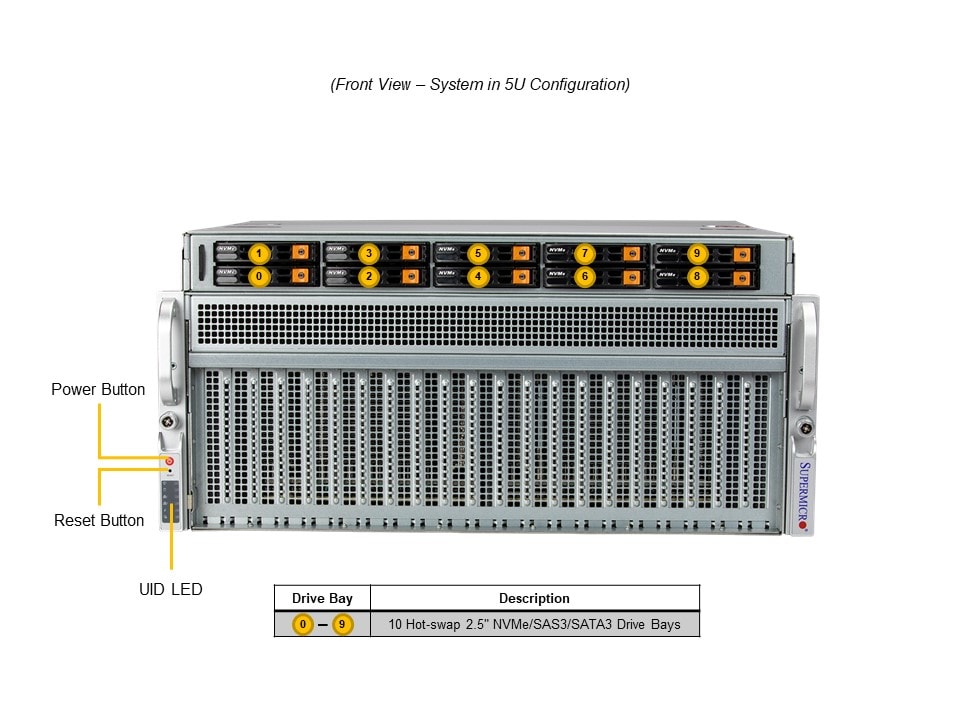

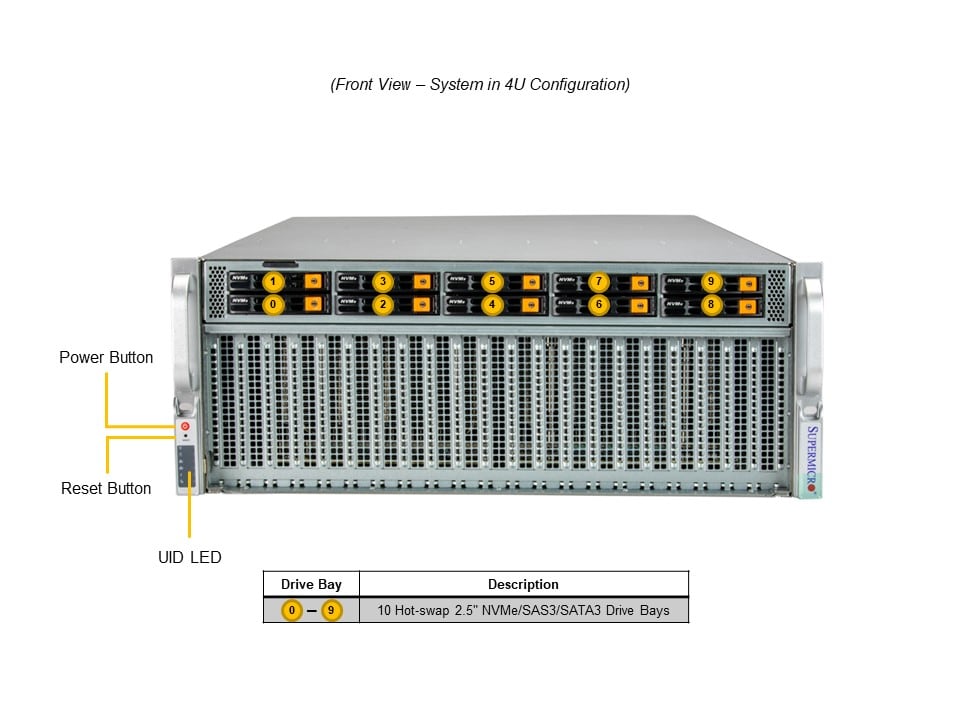

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED

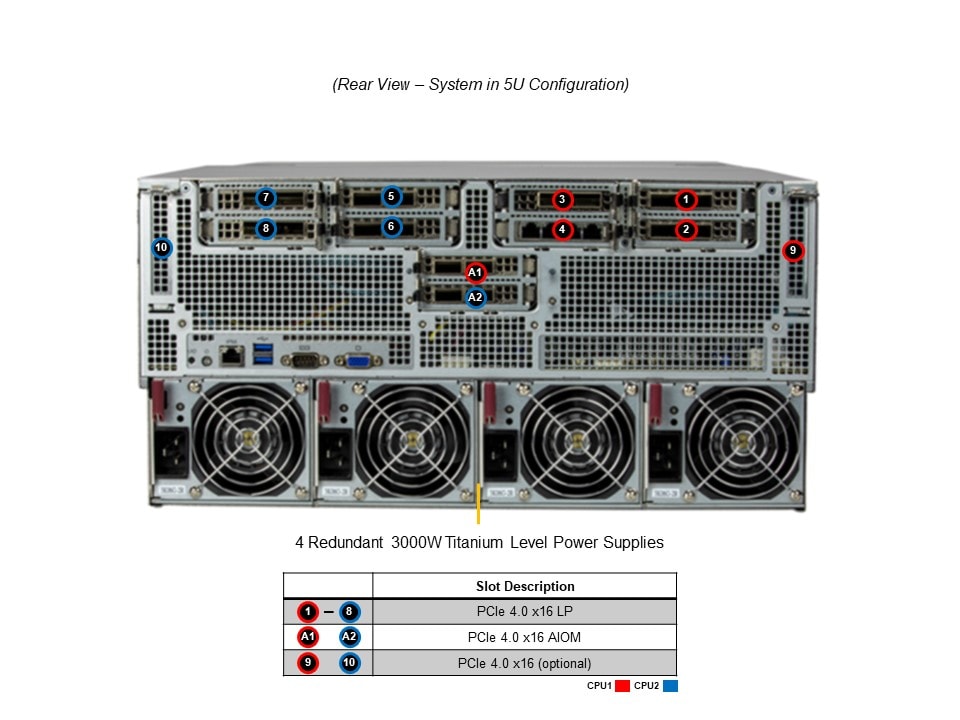

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default8 PCIe 4.0 x16 via PLX slots
  • 8 PCIe 4.0 x16 via PLX slots
  • Option A*8 PCIe 4.0 x16 via PLX slots 2 PCIe 4.0 x16 LP slots
  • 8 PCIe 4.0 x16 via PLX slots
  • 2 PCIe 4.0 x16 LP slots
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Drive Bays / Storage
Drive Bays Configuration

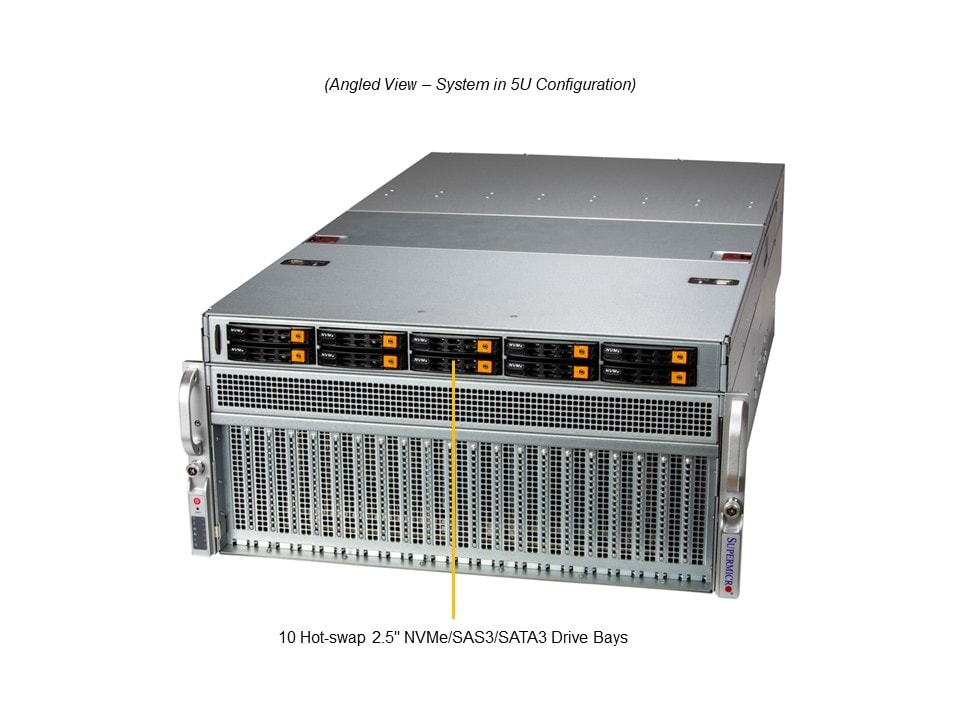

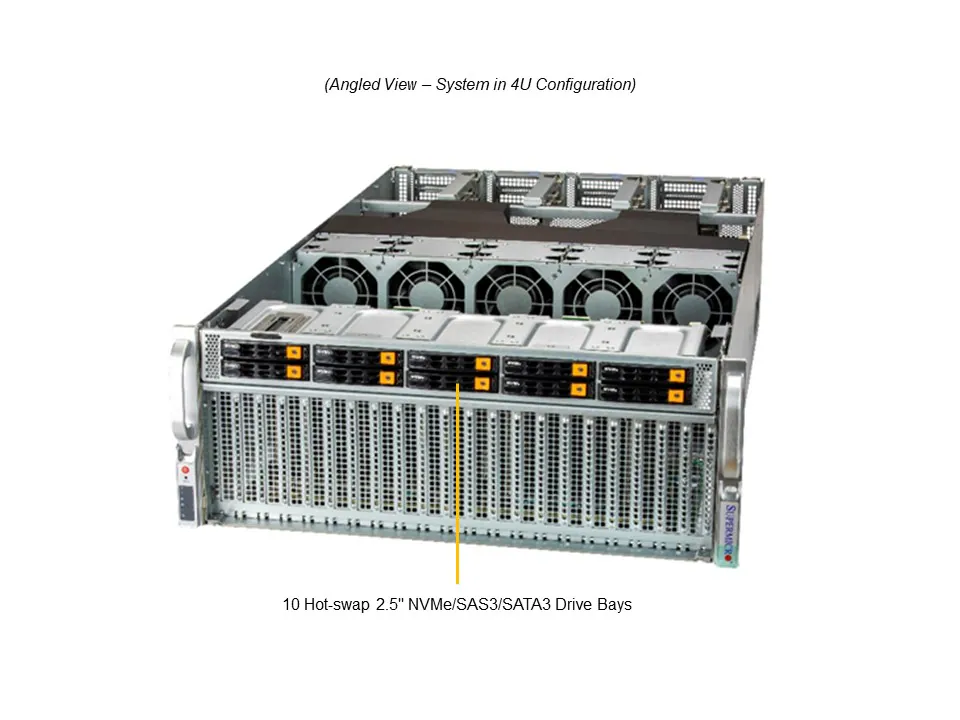

  • Default: Total 10 bays10 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
  • 10 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
System Cooling
Fans

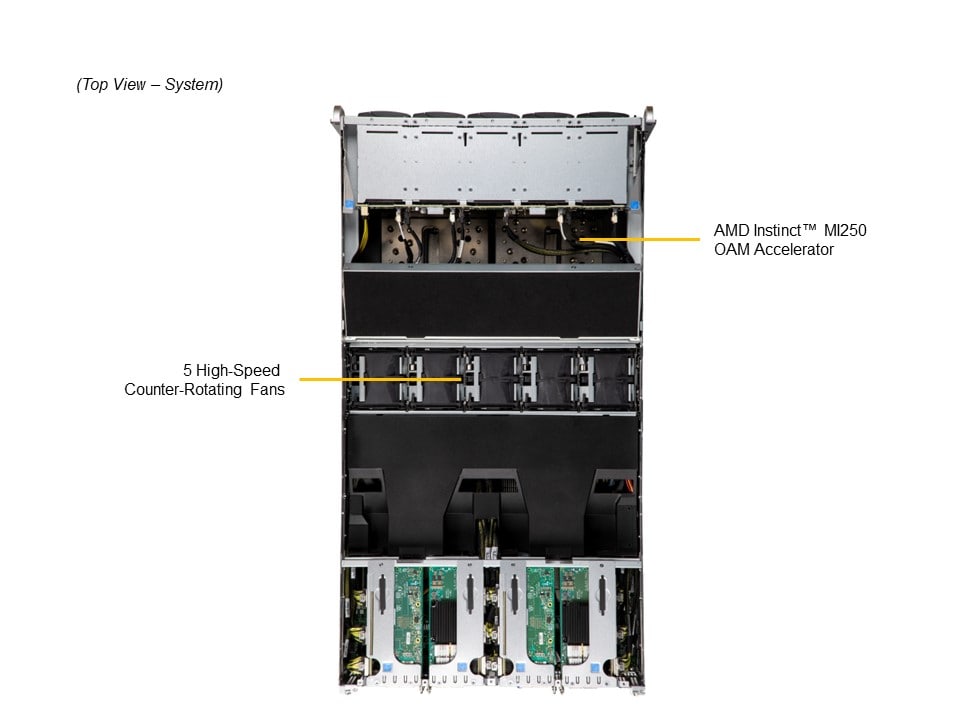

  • Up to 5 x hot-swap 11.5K RPM heavy duty Fan(s)
Power Supply

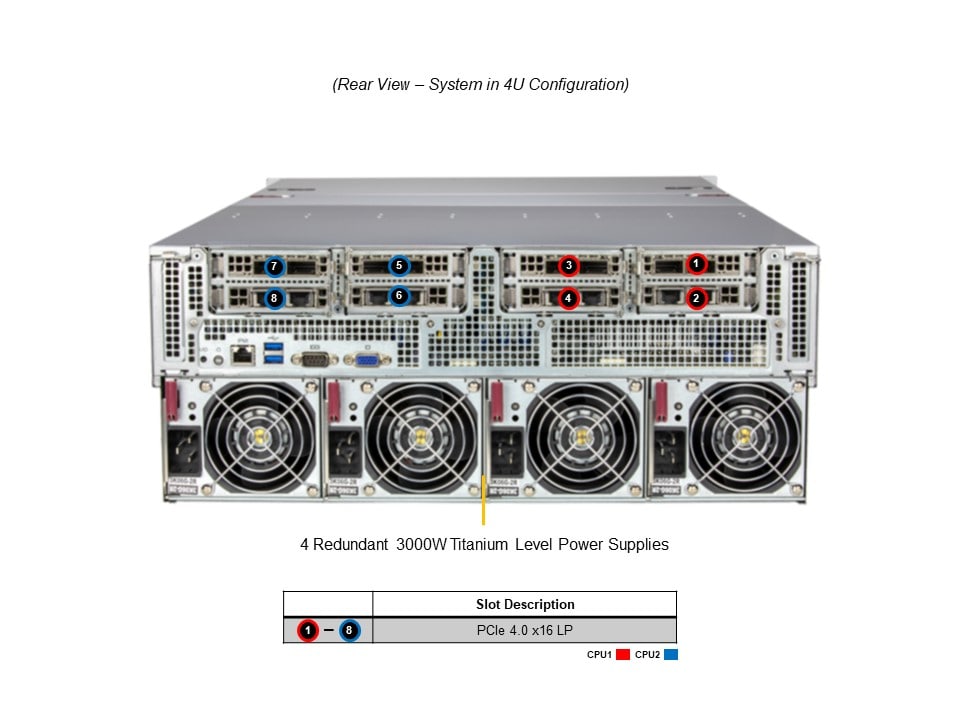

  • 4x 3000W 4x 3000W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.5 mm Input2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 106.5 x 82.1 x 245.5 mm
Input
  • 2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 4x 3000W 4x 3000W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.5 mm Input2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
