DP AMD, Dual-Root System with 8 GPUs

Pretul afisat contine TVA (21%).

SuperServer AS -4124GS-TNR+

DP AMD, Dual-Root System with 8 GPUs

Key Features

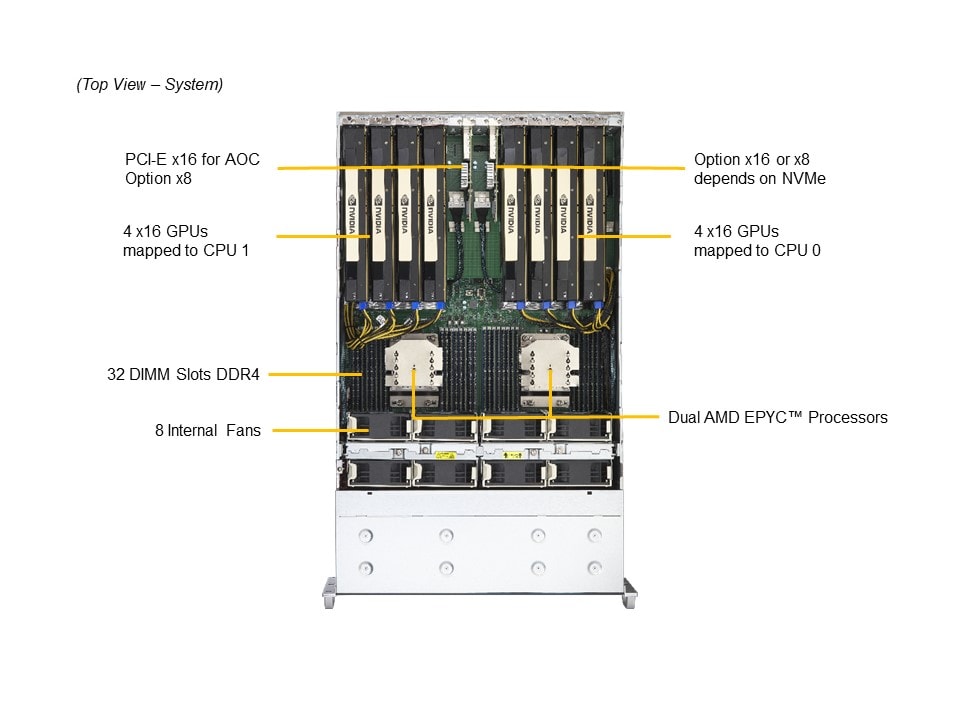

  1. Supports up to 8 double-width GPUs Direct connect for maximum performance
  2. Dual AMD EPYC™ 7003/7002 Series Processors
  3. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
  4. 9 PCIe 4.0 x16 (option: 10 PCIe 4.0 x16 slots without NVMe devices)
  5. Up to 24 hot-swap 2.5″ drive baysDual 2.5″ SATA in RAID 1 via onboard Marvell 9230Quad 2.5″ PCIe4.0 NVMe (depends on PCIe quantity based on #4) RAID controller, option available for 24 HDDs

Specifications

Product SKUs
  • A+ Server AS -4124GS-TNR+
Motherboard

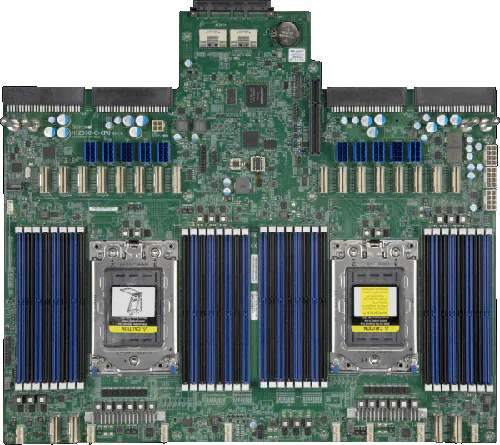

  • Super H12DSG-O-CPU
Processor
CPU
  • Dual Socket SP3
  • AMD EPYC™ 7002/7003 Series Processors
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 8 double-width or 8 single-width GPUs
Supported GPU
  • NVIDIA PCIe: H100, A10, A100, A16, A2, A30, A40, L40, L40S, RTX 4000, RTX 6000, RTX 6000 Ada Generation, RTX A4500, RTX A6000, T4, V100
  • AMD PCIe: Instinct™ MI150
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™ with NVSwitch™
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • 2 RJ45 1GbE
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 1 GbE LAN ports
USB
  • 2 USB 3.0 ports(front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • A+ Server AS -4124GS-TNR+
  • Super H12DSG-O-CPU
Chassis
Form Factor
  • 4U
Model
  • CSE-418GTS-R4016BP
Dimensions and Weight
Height
  • 7″ (178 mm)
Width
  • 17.2″ (437 mm)
Depth

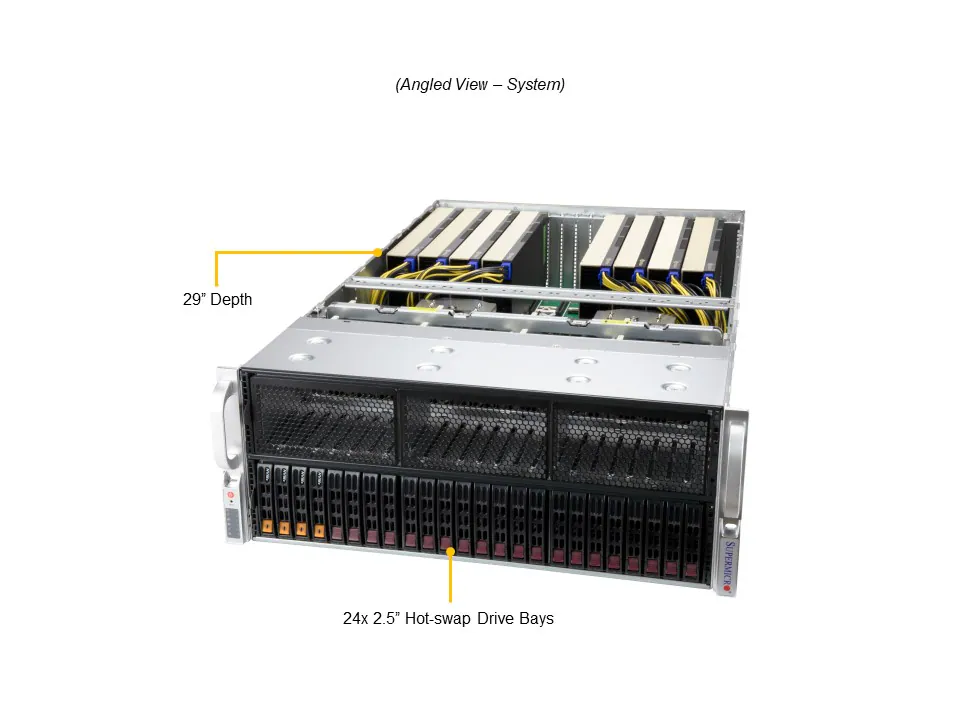

  • 29″ (737 mm)
Package
  • 26.57″ (H) x 27″ (W) x 41″ (D)
Weight
  • Gross Weight: 100 lbs (45.3 kg)
  • Net Weight: 65.5 lbs (29.7 kg)
Available Color
  • Black
Expansion Slots
PCI-Express (PCIe) Configuration

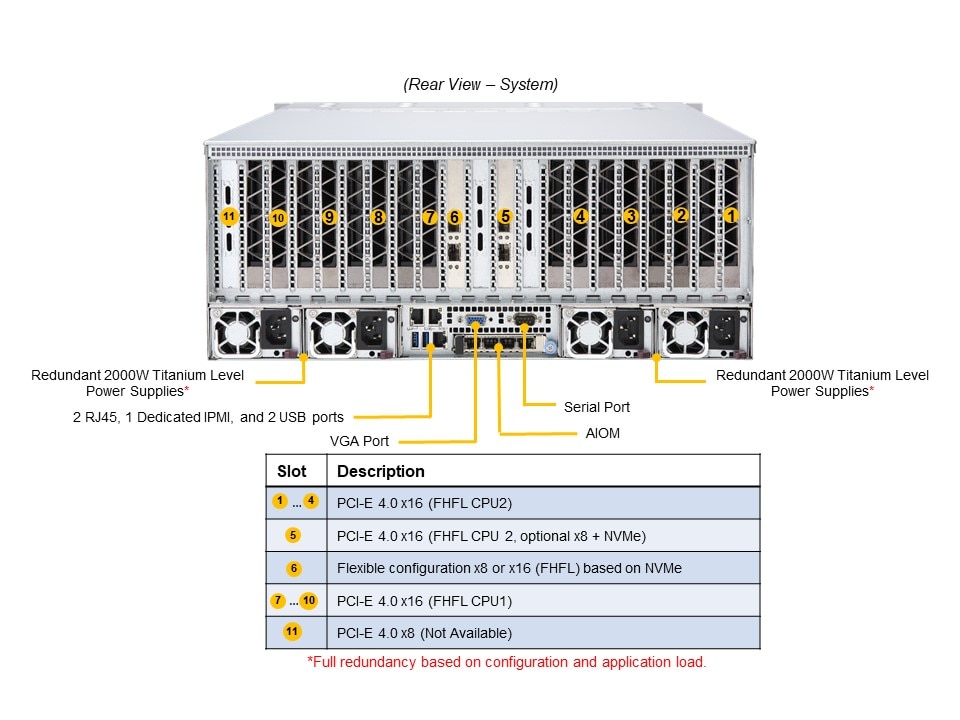

  • Default9 PCIe 4.0 x16 FHFL slots
  • 9 PCIe 4.0 x16 FHFL slots
  • Option A10 PCIe 4.0 x16 FHFL slots
  • 10 PCIe 4.0 x16 FHFL slots
Drive Bays / Storage
Drive Bays Configuration

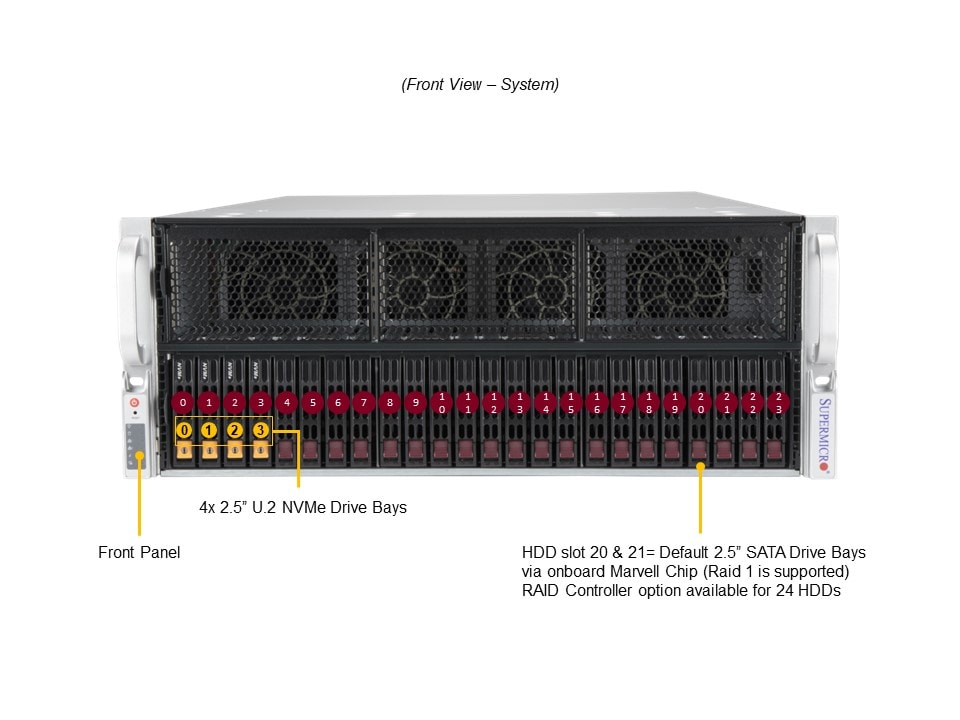

  • Default: Total 24 bays20 front hot-swap 2.5″ SATA drive bays 4 front hot-swap 2.5″ NVMe drive bays
  • 20 front hot-swap 2.5″ SATA drive bays
  • 4 front hot-swap 2.5″ NVMe drive bays
  • Option A: Total 24 bays24 front hot-swap 2.5″ SATA drive bays
  • 24 front hot-swap 2.5″ SATA drive bays
System Cooling
Fans
  • Up to 8x 11.5K RPM 92mm Fan(s)
Power Supply
  • 4x 2000W 4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A Max: 3.5A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 4x 2000W 4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
