BRAND, gpu, Server&Storage, SUPERMICRO

Supermicro SuperServer AS -4125GS-TNHR2-LCC

Favorite

Compara

DP AMD 4U Liquid-Cooled System with NVIDIA HGX H100/H200 8-GPU (onsite service is required for liquid-cooling)

Pretul afisat contine TVA (21%).

SuperServer AS -4125GS-TNHR2-LCC

DP AMD 4U Liquid-Cooled System with NVIDIA HGX H100/H200 8-GPU (onsite service is required for liquid-cooling)

Key Features

High density 4U system with NVIDIA® HGX™ H100/H200 8-GPU8x NVMe for NVIDIA GPUDirect Storage8x NIC for NVIDIA GPUDirect RDMA (1:1 GPU Ratio)Highest GPU communication using NVIDIA® NVLink®
High density 4U system with NVIDIA® HGX™ H100/H200 8-GPU
8x NVMe for NVIDIA GPUDirect Storage
8x NIC for NVIDIA GPUDirect RDMA (1:1 GPU Ratio)
Highest GPU communication using NVIDIA® NVLink®
Dual-Socket, AMD EPYC™ 9004/9005 Series Processors
Supports up to 24 DIMMs slots, 6000 MT/s 6TB DDR5 memory(Please check System Memory Section for detail)
Supports up to 24 DIMMs slots, 6000 MT/s 6TB DDR5 memory
(Please check System Memory Section for detail)
8x PCIe 5.0 x16 LP slots2x PCIe 5.0 x16 FHHL slots, 2 PCIe 5.0 x16 FHHL slots (optional)
8x PCIe 5.0 x16 LP slots
2x PCIe 5.0 x16 FHHL slots, 2 PCIe 5.0 x16 FHHL slots (optional)
Total of 4x 5250W (2+2) Redundant Titanium Level power supplies(Power supply full redundancy based on configuration and application load)
Total of 4x 5250W (2+2) Redundant Titanium Level power supplies
(Power supply full redundancy based on configuration and application load)

Specifications

Product SKUs
A+ Server AS -4125GS-TNHR2-LCC
Motherboard

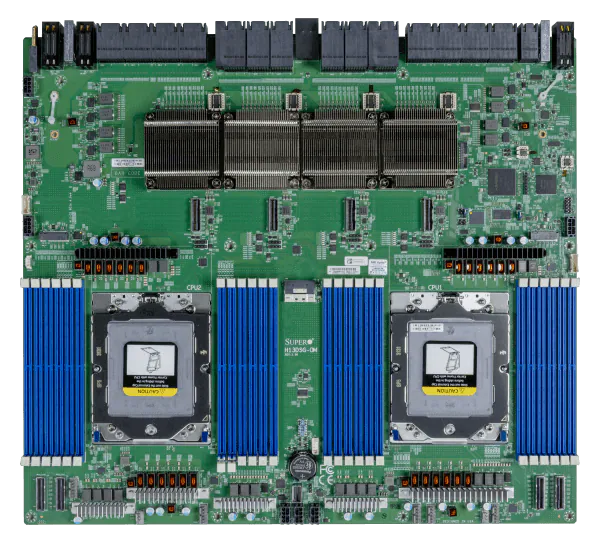

Super H13DSG-OM
Processor
CPU	Dual processor(s) AMD EPYC™ 9004/9005 Series Processors(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Core Count	Up to 128C/256T
Note	Supports up to 400W TDP CPUs (Liquid Cooled)
GPU
Max GPU Count	8 onboard GPUs

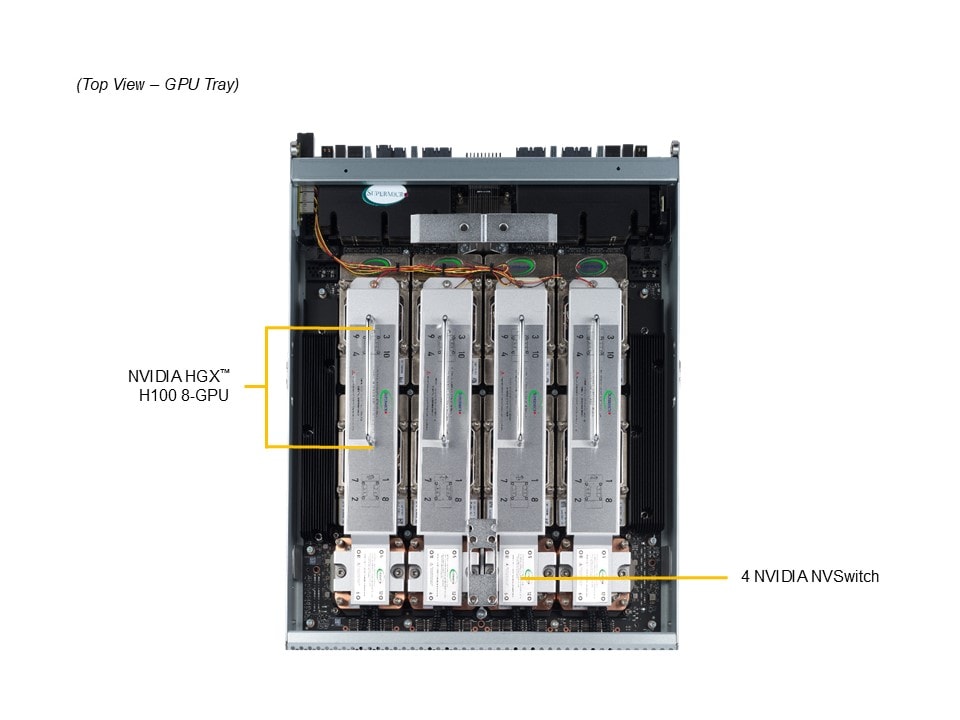

Supported GPU	NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink™ with NVSwitch™
System Memory

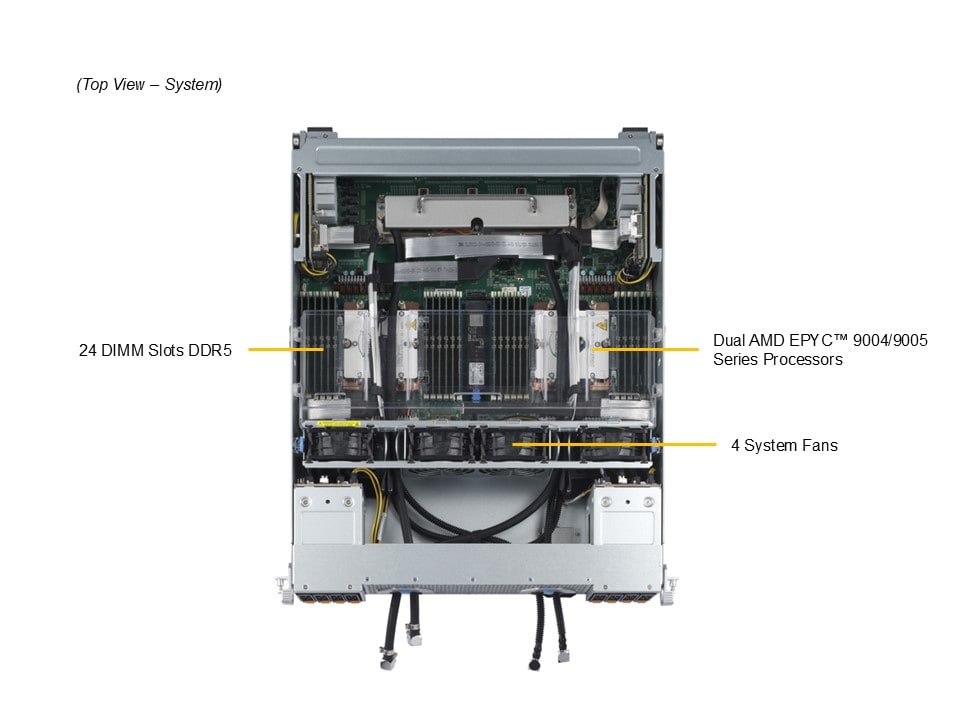

Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Memory Voltage	1.1V
On-Board Devices
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 Type-A ports(Rear)
Video	1 VGA port
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	7 +1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
A+ Server AS -4125GS-TNHR2-LCC
Super H13DSG-OM
Chassis
Form Factor	4U Rackmount
Model	CSE-GP401TS-R000NP
Dimensions and Weight
Height	6.85″ (174 mm)
Width	17.6″ (449 mm)
Depth	33.2″ (842 mm)
Package	16.14″ (H) x 28.7″ (W) x 50.39″ (D)
Weight	Gross Weight: 138.89 lbs (63 kg) Net Weight: 80.03 lbs (53 kg)
Available Color	Silver
Front Panel
Buttons	UID button
Expansion Slots

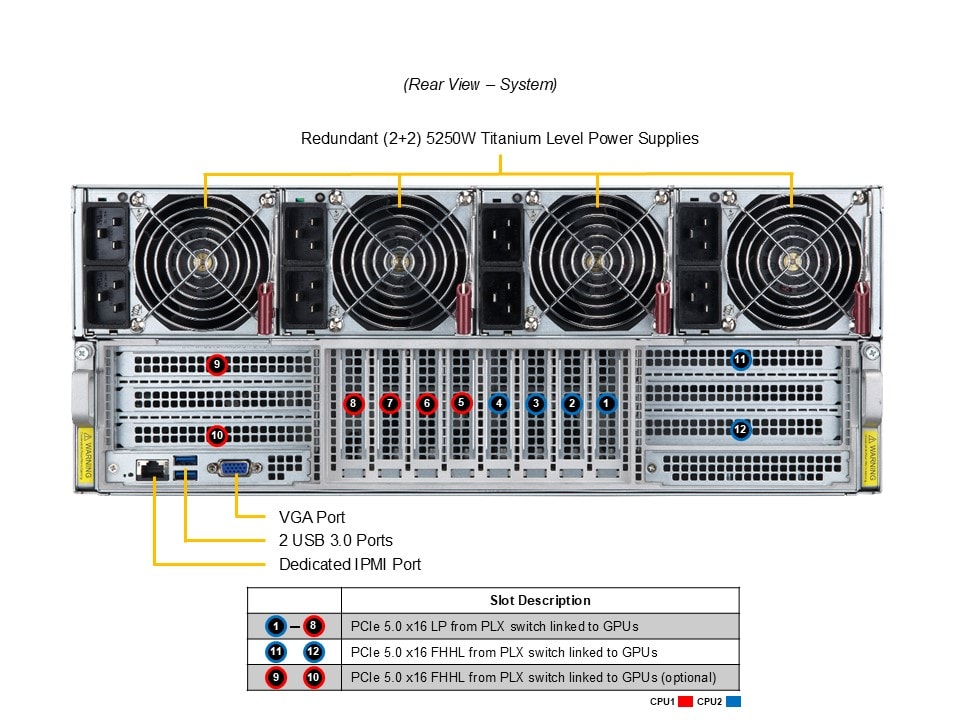

PCI-Express (PCIe) Configuration	Default8 PCIe 5.0 x16 (in x16) LP slots 2 PCIe 5.0 x16 (in x16) FHHL slots 8 PCIe 5.0 x16 (in x16) LP slots 2 PCIe 5.0 x16 (in x16) FHHL slots Option A8 PCIe 5.0 x16 (in x16) LP slots 4 PCIe 5.0 x16 (in x16) FHHL slots 8 PCIe 5.0 x16 (in x16) LP slots 4 PCIe 5.0 x16 (in x16) FHHL slots (Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Drive Bays / Storage

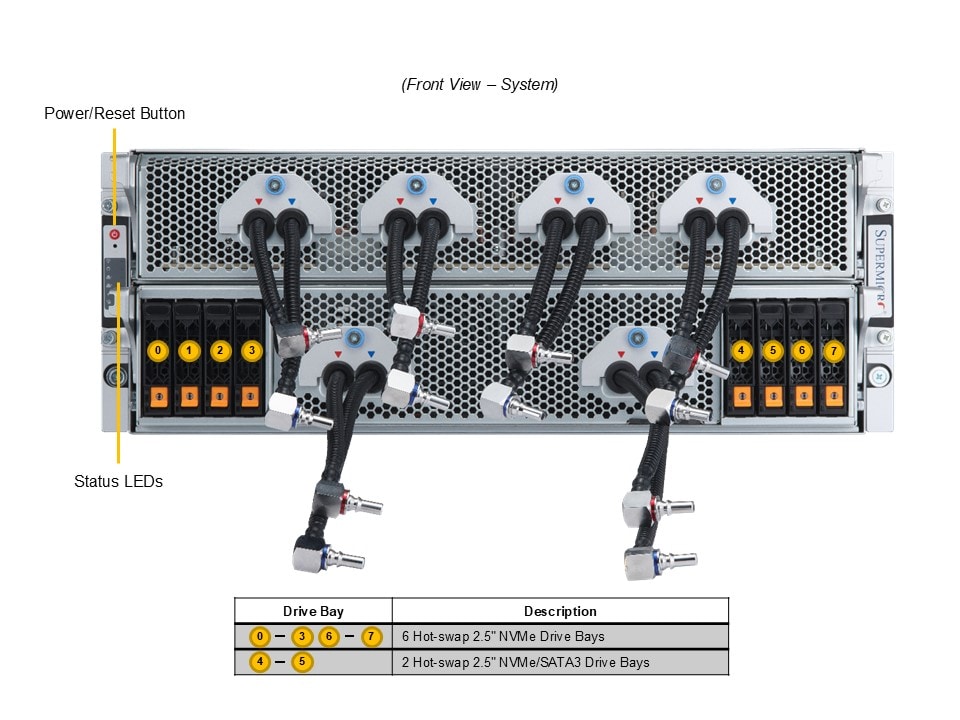

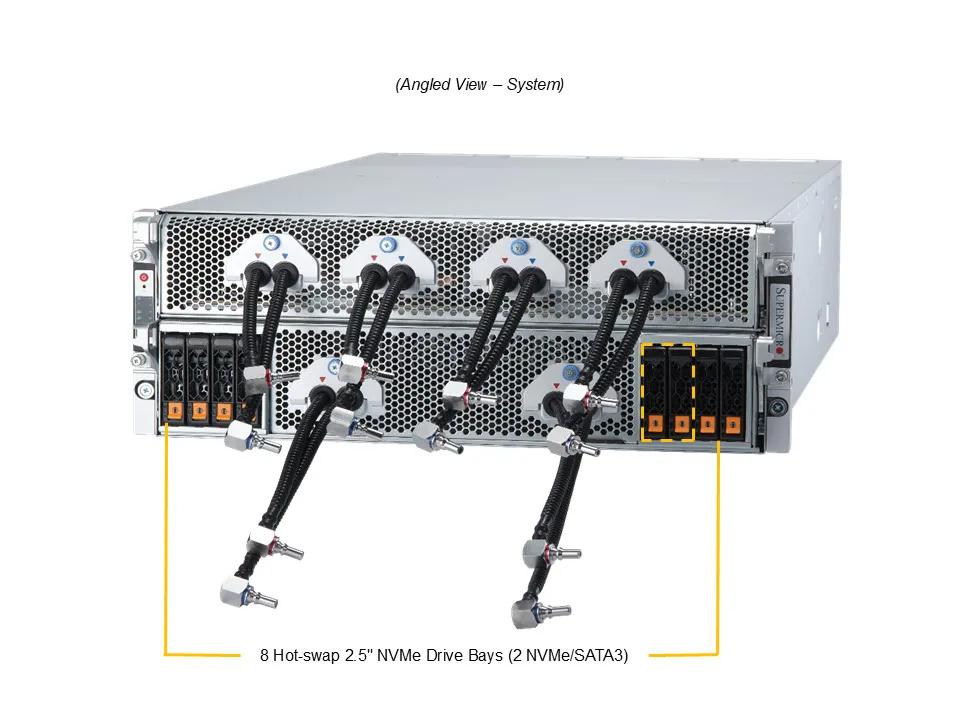

Drive Bays Configuration	Default: Total 8 bays8 front hot-swap 2.5″ NVMe drive bays 8 front hot-swap 2.5″ NVMe drive bays
M.2	2 M.2 NVMe slots (M-key) View M.2 Options
System Cooling
Fans	Up to 4x 8cm heavy duty fans with optimal fan speed control
Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)
Power Supply
4x 5250W 4x 5250W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5250W: 200-240Vac / 50-60Hz +12VMax: 125A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)	106.5 x 82.1 x 245.3 mm
Input	5250W: 200-240Vac / 50-60Hz
+12V	Max: 125A / Min: 0A (200Vac-240Vac)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
4x 5250W 4x 5250W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5250W: 200-240Vac / 50-60Hz +12VMax: 125A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]

SKU: as-4125gs-tnhr2-lcc Categorii: BRAND, gpu, Server&Storage, SUPERMICRO

Product SKUs
A+ Server AS -4125GS-TNHR2-LCC
Motherboard
Super H13DSG-OM
Processor
CPU	Dual processor(s) AMD EPYC™ 9004/9005 Series Processors(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Core Count	Up to 128C/256T
Note	Supports up to 400W TDP CPUs (Liquid Cooled)
GPU
Max GPU Count	8 onboard GPUs
Supported GPU	NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink™ with NVSwitch™
System Memory
Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Memory Voltage	1.1V
On-Board Devices
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 Type-A ports(Rear)
Video	1 VGA port
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	7 +1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
A+ Server AS -4125GS-TNHR2-LCC
Super H13DSG-OM
Chassis
Form Factor	4U Rackmount
Model	CSE-GP401TS-R000NP
Dimensions and Weight
Height	6.85″ (174 mm)
Width	17.6″ (449 mm)
Depth	33.2″ (842 mm)
Package	16.14″ (H) x 28.7″ (W) x 50.39″ (D)
Weight	Gross Weight: 138.89 lbs (63 kg) Net Weight: 80.03 lbs (53 kg)
Available Color	Silver
Front Panel
Buttons	UID button
Expansion Slots
PCI-Express (PCIe) Configuration	Default8 PCIe 5.0 x16 (in x16) LP slots 2 PCIe 5.0 x16 (in x16) FHHL slots 8 PCIe 5.0 x16 (in x16) LP slots 2 PCIe 5.0 x16 (in x16) FHHL slots Option A8 PCIe 5.0 x16 (in x16) LP slots 4 PCIe 5.0 x16 (in x16) FHHL slots 8 PCIe 5.0 x16 (in x16) LP slots 4 PCIe 5.0 x16 (in x16) FHHL slots (Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Drive Bays / Storage
Drive Bays Configuration	Default: Total 8 bays8 front hot-swap 2.5″ NVMe drive bays 8 front hot-swap 2.5″ NVMe drive bays
M.2	2 M.2 NVMe slots (M-key) View M.2 Options
System Cooling
Fans	Up to 4x 8cm heavy duty fans with optimal fan speed control
Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)
Power Supply
4x 5250W 4x 5250W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5250W: 200-240Vac / 50-60Hz +12VMax: 125A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)	106.5 x 82.1 x 245.3 mm
Input	5250W: 200-240Vac / 50-60Hz
+12V	Max: 125A / Min: 0A (200Vac-240Vac)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
4x 5250W 4x 5250W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5250W: 200-240Vac / 50-60Hz +12VMax: 125A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
