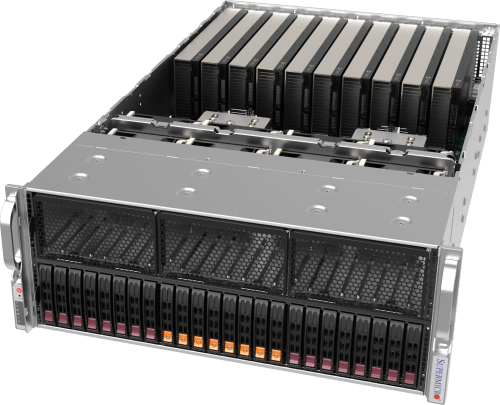

Supermicro SuperServer AS -4125GS-TNRT2
Supermicro SuperServer AS -4125GS-TNRT2 - imagine 2
Supermicro SuperServer AS -4125GS-TNRT2 - imagine 3
Supermicro SuperServer AS -4125GS-TNRT2 - imagine 4
Supermicro SuperServer AS -4125GS-TNRT2 - imagine 5
Supermicro SuperServer AS -4125GS-TNRT2 - imagine 6
, , ,

Supermicro SuperServer AS -4125GS-TNRT2

Favorite
Compara

DP AMD 4U Dual-Root PCIe GPU System with up to 10 PCIe GPUs

Pretul afisat contine TVA (21%).

SuperServer AS -4125GS-TNRT2

DP AMD 4U Dual-Root PCIe GPU System with up to 10 PCIe GPUs

Key Features

  1. Flexible GPU support: active & passive GPUsDual Root Configuration with PCIe Switch for up to 10 double width, full length GPUs8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  2. Flexible GPU support: active & passive GPUs
  3. Dual Root Configuration with PCIe Switch for up to 10 double width, full length GPUs
  4. 8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  5. Dual-Socket, AMD EPYC™ 9004/9005 Series Processors up to 400W TDP
  6. Supports up to 24 DIMM Slots, 6000 MT/s 6TB DDR5 memory(Please check System Memory Section for detail)
  7. Supports up to 24 DIMM Slots, 6000 MT/s 6TB DDR5 memory
  8. (Please check System Memory Section for detail)
  9. AIOM / OCP 3.0 Support
  10. Total of 8 Hot-swap 2.5″ NVMe drive bays, 1 onboard Gen3 M.2 Slot
  11. Total of 4x 2000W Redundant (2+2 or 3+1) Titanium Level power supplies(2+2 under 4000 Watt, 3+1 under 6000 Watt)(Power supply full redundancy based on configuration and application load)
  12. Total of 4x 2000W Redundant (2+2 or 3+1) Titanium Level power supplies
  13. (2+2 under 4000 Watt, 3+1 under 6000 Watt)
  14. (Power supply full redundancy based on configuration and application load)

Specifications

Product SKUs
  • A+ Server AS -4125GS-TNRT2

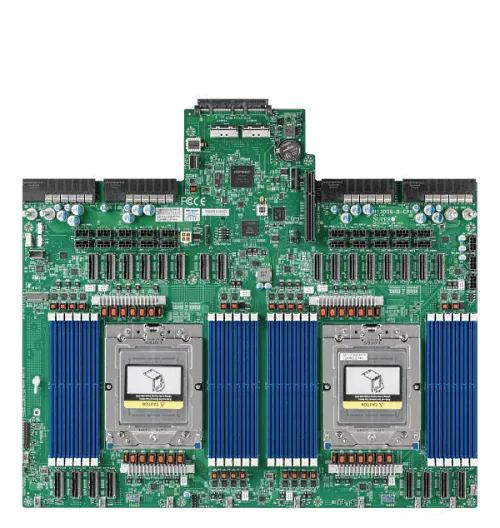

Motherboard
  • Super H13DSG-O-CPU
Processor
CPU
  • Dual processor(s)
  • AMD EPYC™ 9004/9005 Series Processors(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Core Count
  • Up to 160C/320T; Up to 512MB Cache per CPU
Note
  • Supports up to 400W TDP CPUs

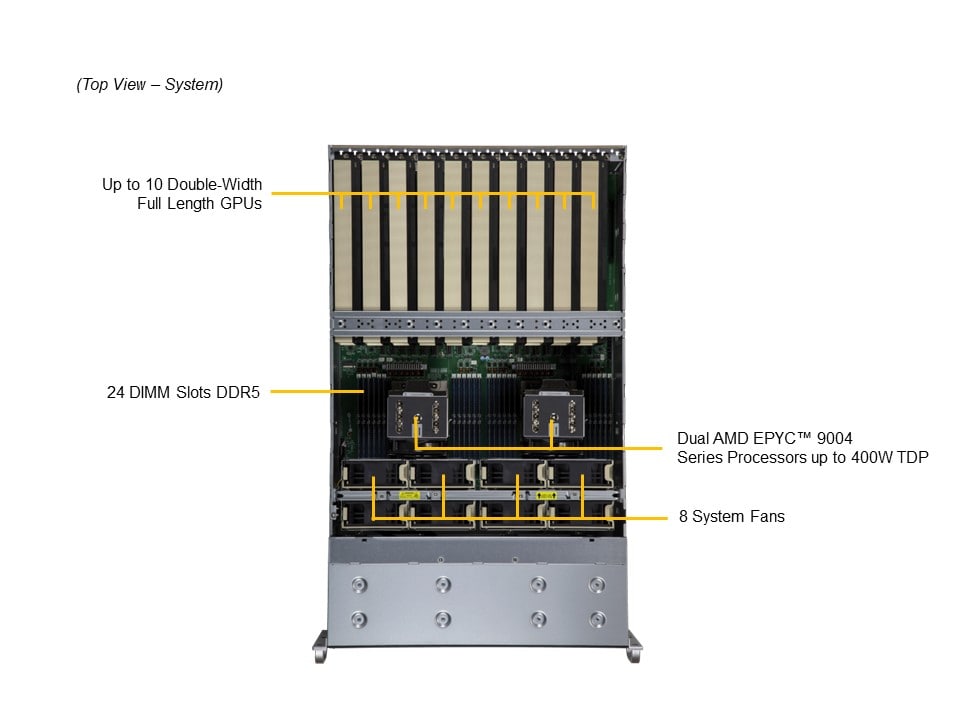

GPU
Max GPU Count
  • Up to 10 double-width GPUs
Supported GPU
  • NVIDIA PCIe: L4, L40S, NVIDIA RTX PRO™ 4500 Blackwell Server Edition, NVIDIA RTX PRO™ 5000 Blackwell, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 4000 Ada Generation, RTX 4000 SFF Ada Generation, RTX 4500 Ada, RTX 5000 Ada, RTX 6000 Ada Generation
  • AMD PCIe: Instinct™ MI210
CPU-GPU Interconnect
  • PCIe 5.0 x16 Switch Dual-Root
GPU-GPU Interconnect
  • NVIDIA® NVLink™ Bridge (optional), AMD Infinity Fabric™ Link (optional)
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • AMD SP5
Network Connectivity
  • 2 RJ45 10GbE
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 2 ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(rear)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • A+ Server AS -4125GS-TNRT2
  • Super H13DSG-O-CPU
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-418G2TS
Dimensions and Weight
Height
  • 7″ (178 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29″ (737 mm)
Package
  • 26.57″ (H) x 27″ (W) x 41″ (D)
Weight
  • Gross Weight: 100 lbs (45.3 kg)
  • Net Weight: 65.5 lbs (29.7 kg)
Available Color
  • Black Front & Silver Body
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED

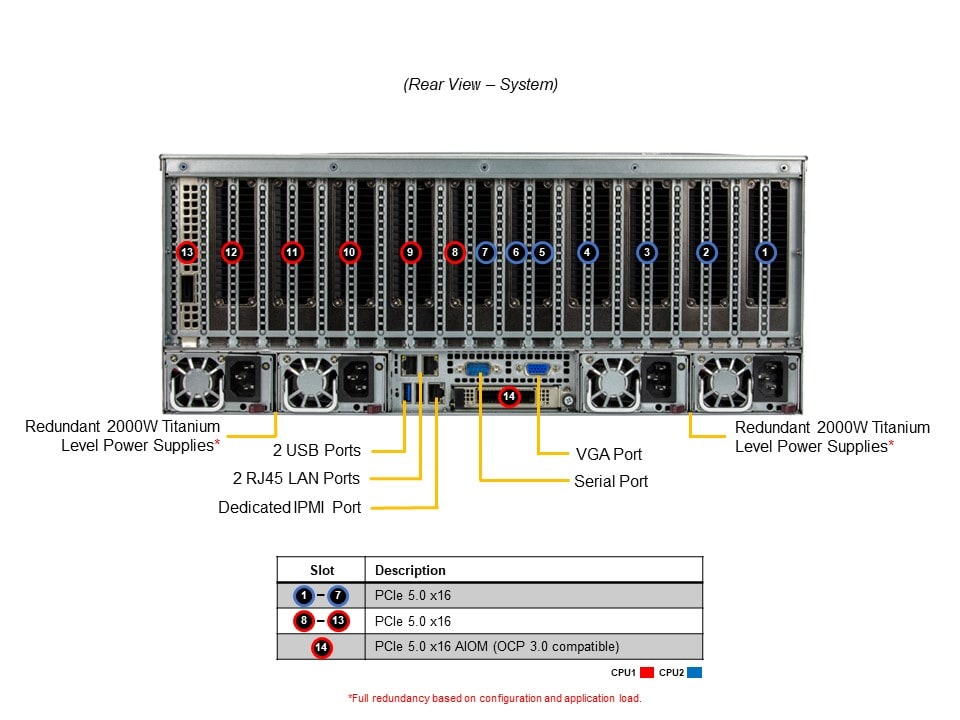

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default11 PCIe 5.0 x16 FHFL slots
  • 11 PCIe 5.0 x16 FHFL slots
  • Option A13 PCIe 5.0 x16 FHFL slots
  • 13 PCIe 5.0 x16 FHFL slots

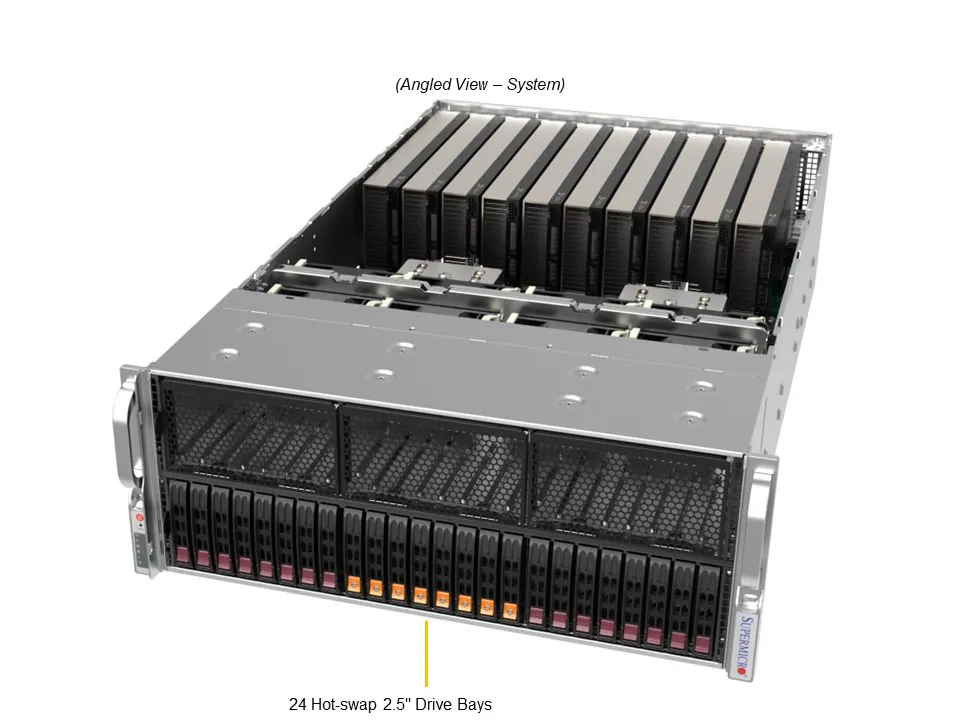

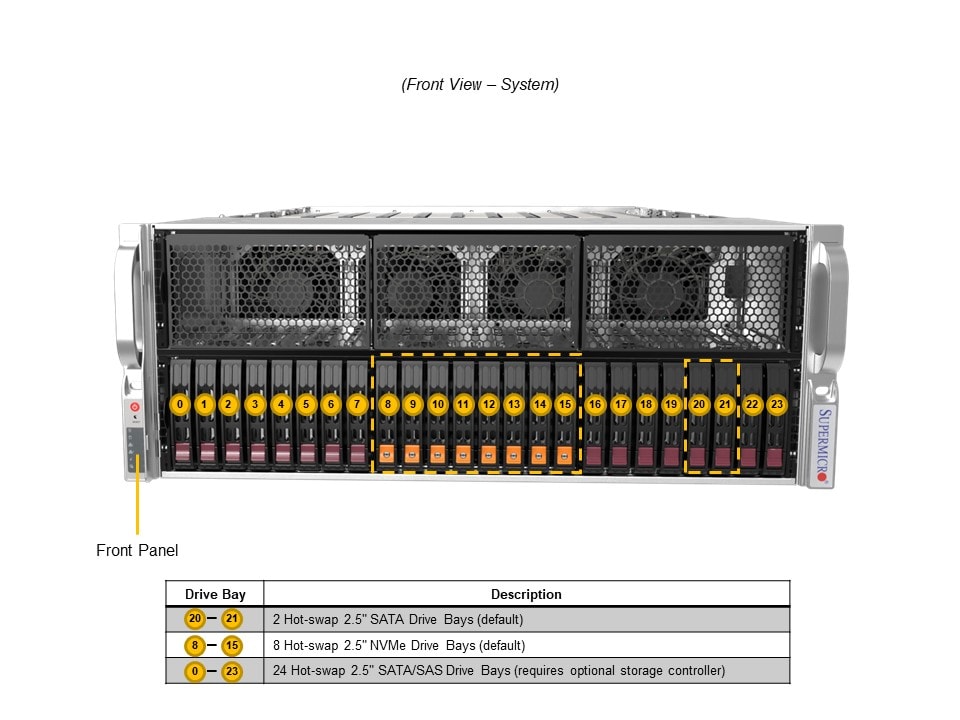

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 10 bays8 front hot-swap 2.5″ NVMe drive bays 2 front hot-swap 2.5″ SATA drive bays
  • 8 front hot-swap 2.5″ NVMe drive bays
  • 2 front hot-swap 2.5″ SATA drive bays
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe slot (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 8 heavy duty fans with optimal fan speed control
Power Supply
  • 4x 2000W 4x 2000W Redundant (3 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A Max: 3.5A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 4x 2000W 4x 2000W Redundant (3 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
