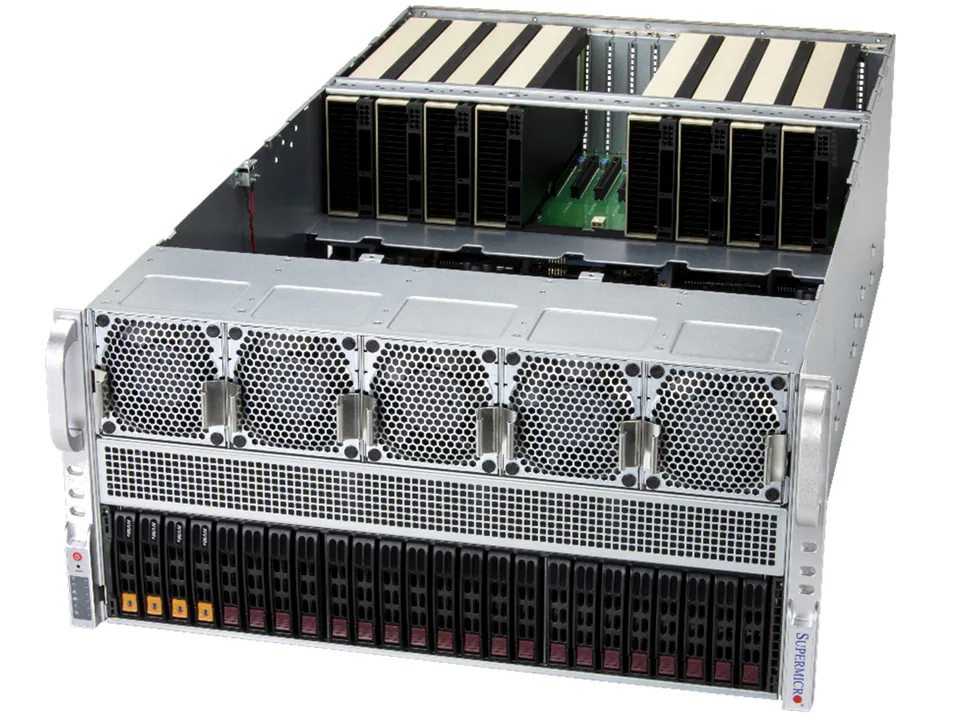

Supermicro SuperServer AS -5126GS-TNRT
Supermicro SuperServer AS -5126GS-TNRT - imagine 2
Supermicro SuperServer AS -5126GS-TNRT - imagine 3
Supermicro SuperServer AS -5126GS-TNRT - imagine 4
Supermicro SuperServer AS -5126GS-TNRT - imagine 5
Supermicro SuperServer AS -5126GS-TNRT - imagine 6
, , ,

Supermicro SuperServer AS -5126GS-TNRT

Favorite
Compara

DP AMD 5U System with 8 PCIe GPUs

Pretul afisat contine TVA (21%).

SuperServer AS -5126GS-TNRT

DP AMD 5U System with 8 PCIe GPUs

Key Features

  1. Dual Socket SP5 AMD EPYC™ 9005 Series Processors up to 500W with air cooling
  2. Supports up to 24 DIMM slots, 6400 MT/s 6TB DDR5 in 1DPC(Please check System Memory Section for detail)
  3. Supports up to 24 DIMM slots, 6400 MT/s 6TB DDR5 in 1DPC
  4. (Please check System Memory Section for detail)
  5. Total of 9 PCIe 5.0 x16 FHFL slots(If NVMe drives are disabled, then can be used as 10th PCIe 5.0 x16 FHFL slot)- Option A
  6. Total of 9 PCIe 5.0 x16 FHFL slots
  7. (If NVMe drives are disabled, then can be used as 10th PCIe 5.0 x16 FHFL slot)- Option A
  8. Supports up to 8 double-width PCIe GPU accelerator cards

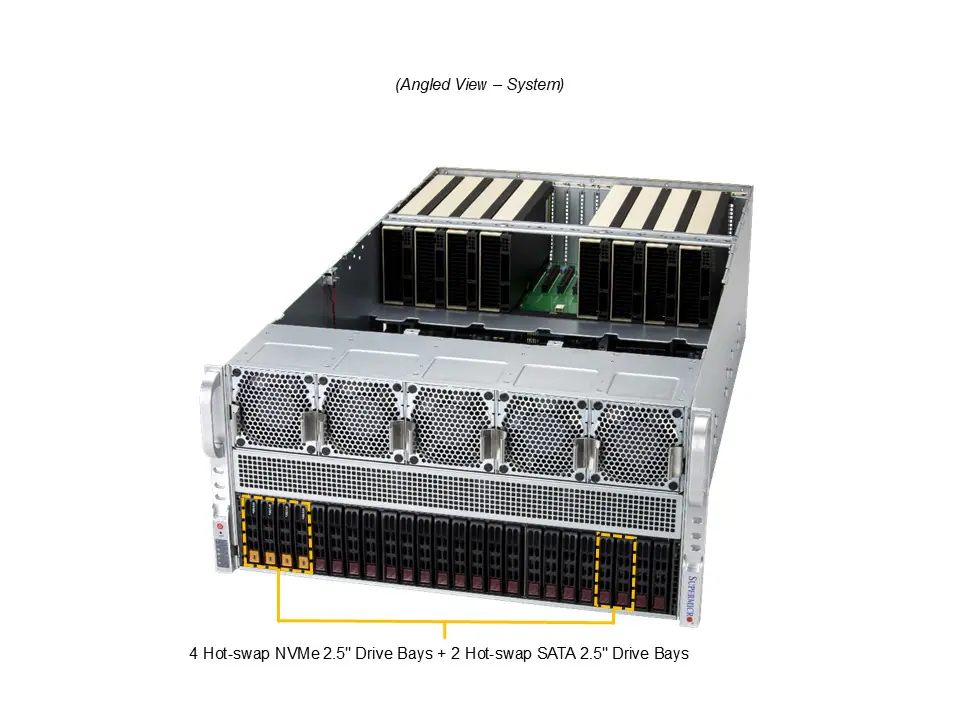

  9. Dual front hot-swap 2.5″ SATA + 4 front hot-swap 2.5″ NVMe drive bays(The PCIe signal for 4 NVMe drives can be re-directed for PCIe slot8 enablement)
  10. Dual front hot-swap 2.5″ SATA + 4 front hot-swap 2.5″ NVMe drive bays
  11. (The PCIe signal for 4 NVMe drives can be re-directed for PCIe slot8 enablement)
  12. Total of 6x 2700W Redundant (3+3 or 4+2) Titanium Level power supplies(3+3 under 8100 Watt, 4+2 under 10,800 Watt)(Power supply redundancy based on configuration and application load)
  13. Total of 6x 2700W Redundant (3+3 or 4+2) Titanium Level power supplies
  14. (3+3 under 8100 Watt, 4+2 under 10,800 Watt)
  15. (Power supply redundancy based on configuration and application load)

Specifications

Product SKUs
  • A+ Server AS -5126GS-TNRT
  • A+ Server AS -5126GS-TNRT-01-G2 Gold Series version with pre-configured components
Motherboard

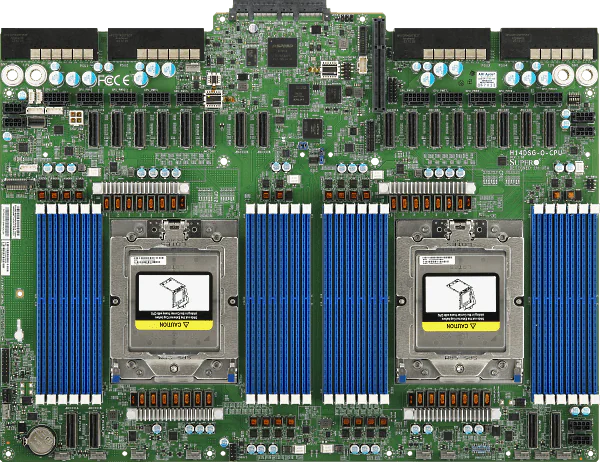

  • Super H14DSG-O-CPU
Processor
CPU
  • Dual processor(s)
  • AMD EPYC™ 9005/9004 Series Processors
Core Count
  • Up to 192C/384T
Note
  • Supports up to 500W TDP CPUs
GPU
Max GPU Count
  • Up to 8 double-width GPUs
Supported GPU
  • NVIDIA PCIe: H100 NVL, H200 NVL (141GB), L40S, NVIDIA RTX PRO™ 6000 Blackwell Server Edition
CPU-GPU Interconnect
  • Direct Attached
GPU-GPU Interconnect
  • NVIDIA® NVLink™ Bridge (optional), AMD Infinity Fabric™ Link (optional)
System Memory
Memory

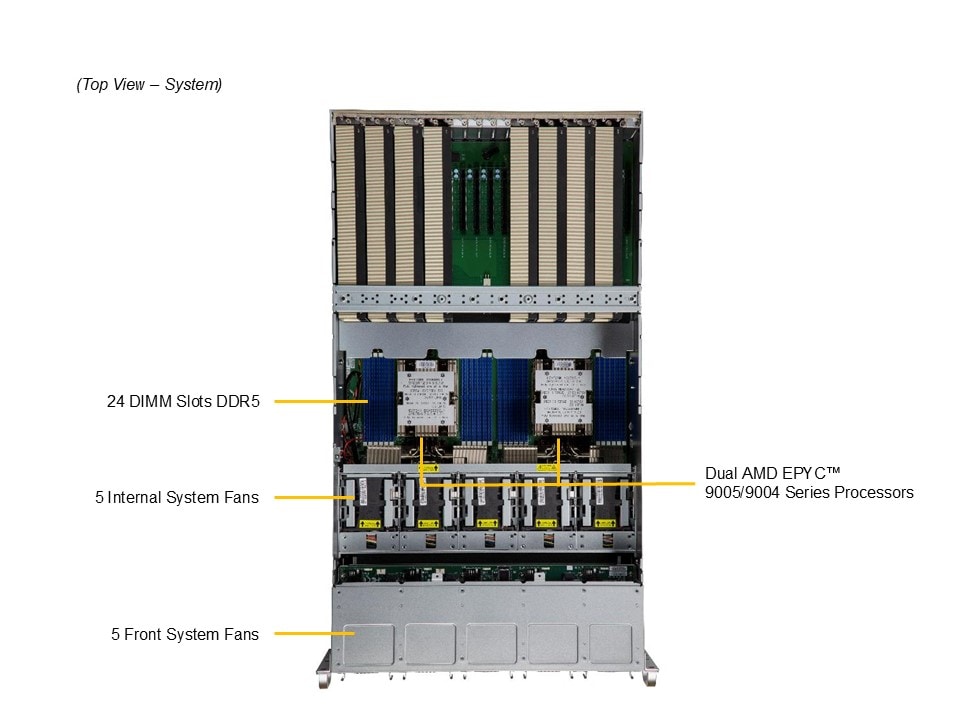

  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Network Connectivity
  • 2 RJ45 10GbE
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 2 ports(rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • A+ Server AS -5126GS-TNRT
  • A+ Server AS -5126GS-TNRT-01-G2 Gold Series version with pre-configured components
  • Super H14DSG-O-CPU
Chassis
Form Factor
  • 5U Rackmount
Model
  • CSE-528G2TS-R000NDP
Dimensions and Weight
Height
  • 8.75″ (222.5 mm)
Width
  • 17.2″ (438 mm)
Depth
  • 31″ (786.1 mm)
Package
  • 17.32″ (H) x 28.34″ (W) x 42.51″ (D)
Weight
  • Gross Weight: 100 lbs (45.3 kg)
  • Net Weight: 65.5 lbs (29.7 kg)
Available Color
  • Black Front & Silver Body
Expansion Slots
PCI-Express (PCIe) Configuration

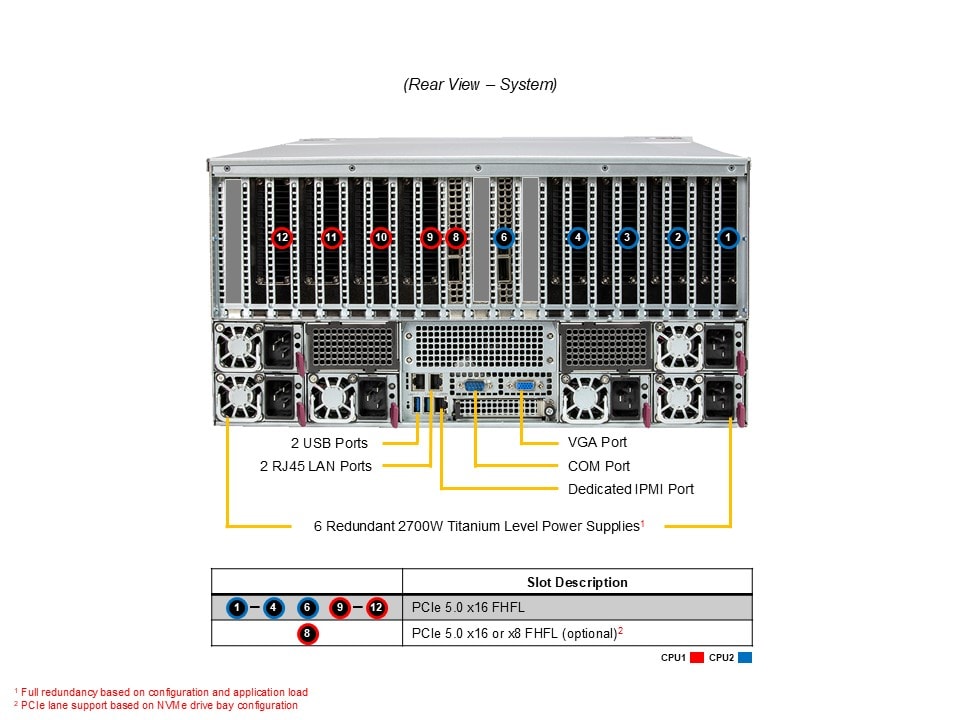

  • Default9 PCIe 5.0 x16 FHFL double-width slots
  • 9 PCIe 5.0 x16 FHFL double-width slots
  • Option A10 PCIe 5.0 x16 FHFL double-width slots
  • 10 PCIe 5.0 x16 FHFL double-width slots
Drive Bays / Storage
Drive Bays Configuration

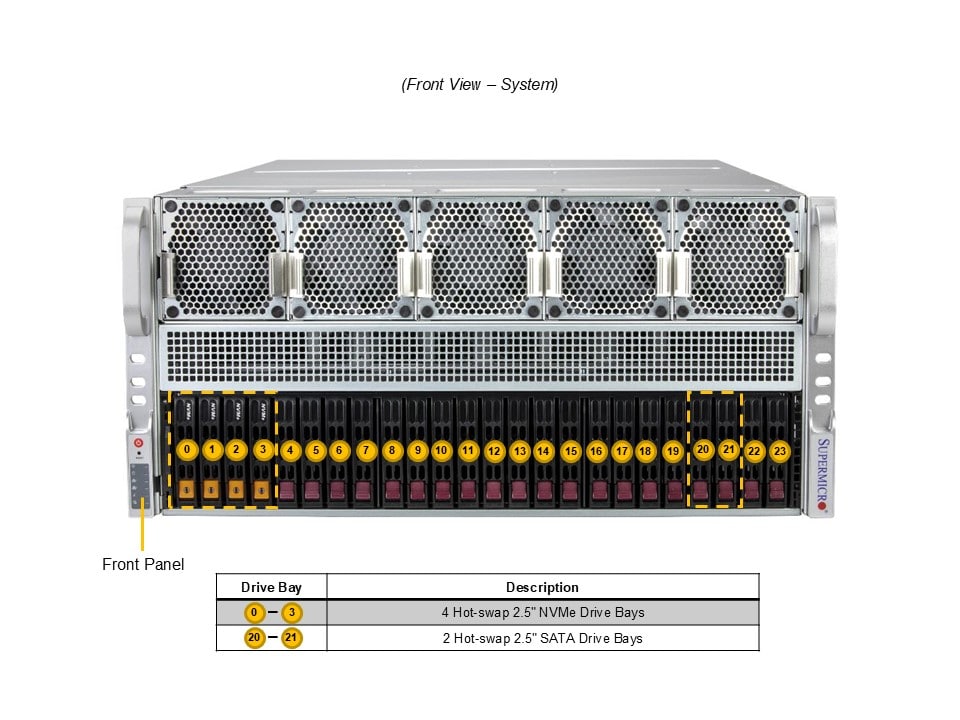

  • Default: Total 6 bays2 front hot-swap 2.5″ SATA drive bays 4 front hot-swap 2.5″ NVMe drive bays
  • 2 front hot-swap 2.5″ SATA drive bays
  • 4 front hot-swap 2.5″ NVMe drive bays
  • Option A: Total 2 bays2 front hot-swap 2.5″ SATA drive bays
  • 2 front hot-swap 2.5″ SATA drive bays
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe slot (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 10 heavy duty fans with optimal fan speed control
Power Supply
  • 6x 2700W 6x 2700W Redundant (4 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12VMax: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SBMax: 3.5A / Min: 0A Max: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB
  • Max: 3.5A / Min: 0A Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Environmental / Recycling
Recycle
  • Return Server-End of Life Product
  • 6x 2700W 6x 2700W Redundant (4 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12VMax: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SBMax: 3.5A / Min: 0A Max: 4A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
