DP AMD 8U System with NVIDIA HGX H100/H200 8-GPU

Pretul afisat contine TVA (21%).

SuperServer AS -8125GS-TNHR

DP AMD 8U System with NVIDIA HGX H100/H200 8-GPU

Key Features

  1. High density 8U system for NVIDIA® HGX™ H100/H200 8-GPUHighest GPU communication using NVIDIA® NVLINK™ + NVIDIA® NVSwitch™8 NIC for GPU direct RDMA (1:1 GPU Ratio)
  2. High density 8U system for NVIDIA® HGX™ H100/H200 8-GPU
  3. Highest GPU communication using NVIDIA® NVLINK™ + NVIDIA® NVSwitch™
  4. 8 NIC for GPU direct RDMA (1:1 GPU Ratio)
  5. Supports up to 24 DIMM Slots; 4800 MT/s 6TB DDR5 memory(Please check System Memory Section for detail)
  6. Supports up to 24 DIMM Slots; 4800 MT/s 6TB DDR5 memory
  7. (Please check System Memory Section for detail)
  8. Up to 8 PCIe 5.0 x16 LP + 4 PCIe 5.0 x16 FHFL slots
  9. Flexible networking options
  10. Total of 12 Hot-swap 2.5″ NVMe drive bays + 2 hot-swap 2.5″ SATA drive bays+ 4 hot-swap 2.5″ NVMe drive bays (optional)1 M.2 NVMe for boot drive only
  11. Total of 12 Hot-swap 2.5″ NVMe drive bays + 2 hot-swap 2.5″ SATA drive bays
  12. + 4 hot-swap 2.5″ NVMe drive bays (optional)
  13. 1 M.2 NVMe for boot drive only
  14. 10 heavy duty fans with optimal fan speed control
  15. Total of 6x (3+3) 3000W Redundant Titanium Level Power Supplies(Power supply full redundancy based on configuration and application load)
  16. Total of 6x (3+3) 3000W Redundant Titanium Level Power Supplies
  17. (Power supply full redundancy based on configuration and application load)

Specifications

Product SKUs
  • A+ Server AS -8125GS-TNHR
Motherboard

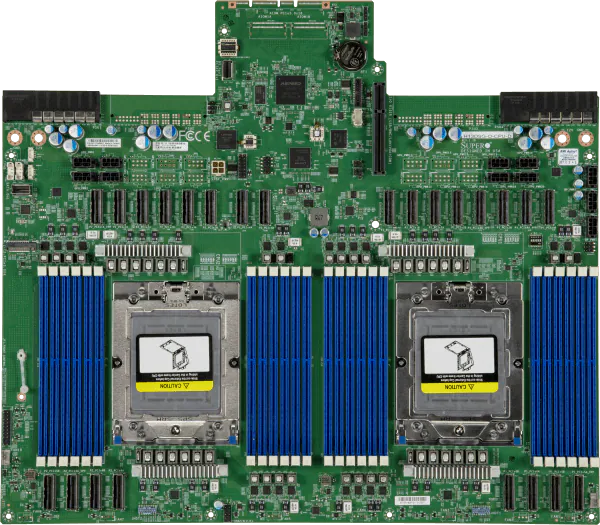

  • Super H13DSG-O-CPU-D
Processor
CPU
  • Dual Socket SP5
  • AMD EPYC™ 9004 Series Processors
Core Count
  • Up to 128C/256T
Note
  • Supports up to 400W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • 8 onboard GPUs
Supported GPU

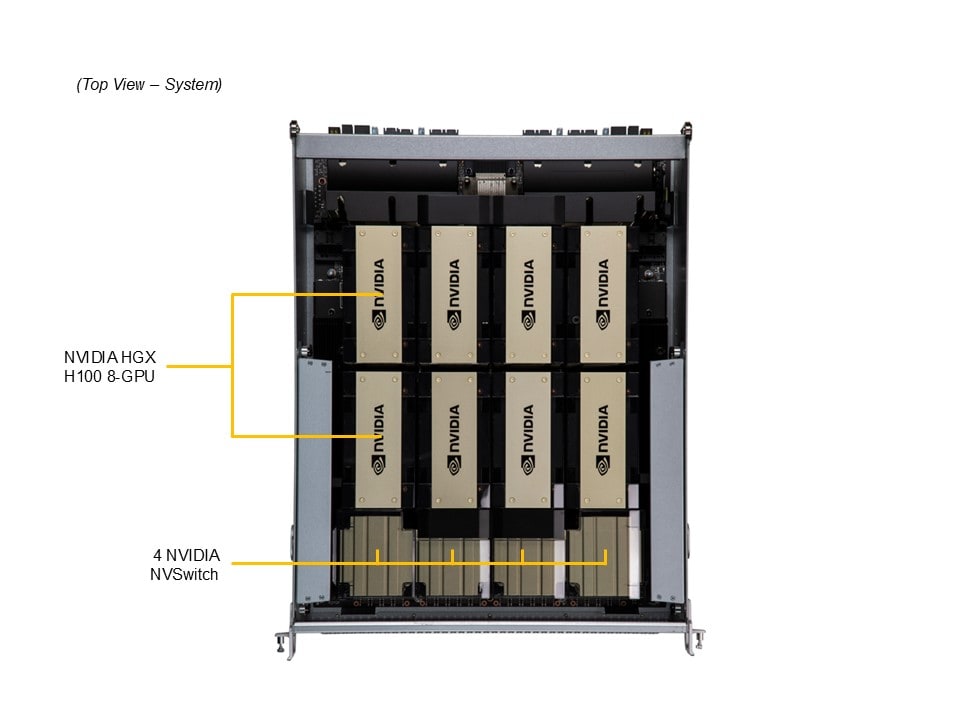

  • NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™ with NVSwitch™
System Memory
Memory

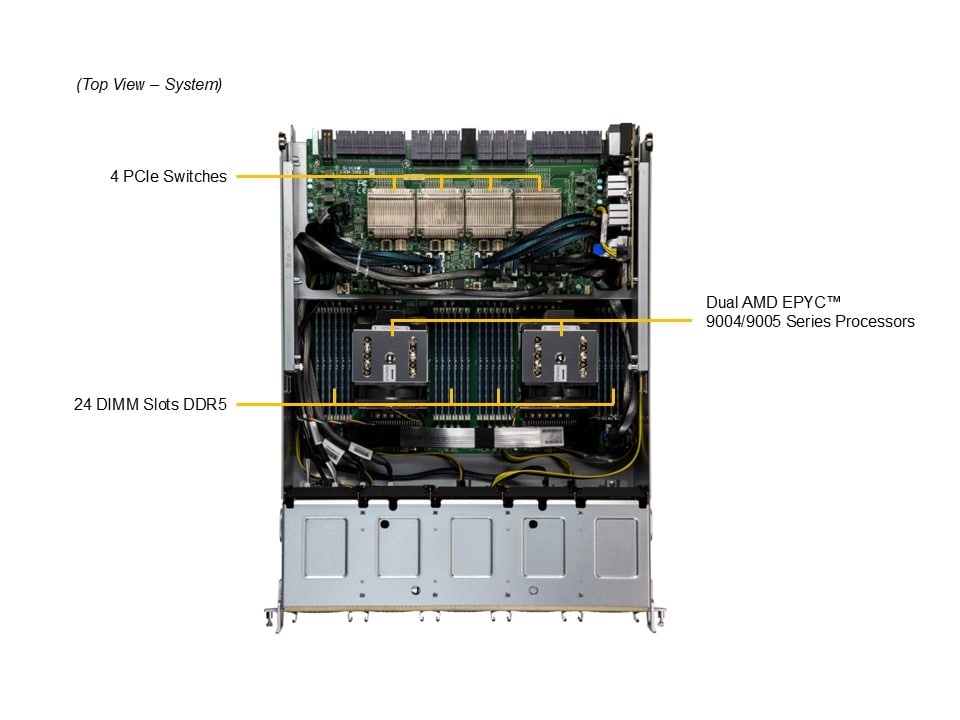

  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Input / Output
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • A+ Server AS -8125GS-TNHR
  • Super H13DSG-O-CPU-D
Chassis
Form Factor
  • 8U Rackmount
Model
  • CSE-GP801TS
Dimensions and Weight
Height
  • 14″ (355.6 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 33.2″ (843.28 mm)
Package
  • 29.5″ (H) x 27.5″ (W) x 51.2″ (D)
Weight
  • Gross Weight: 225 lbs (102.1 kg)
  • Net Weight: 166 lbs (75.3 kg)
Available Color
  • Black front & silver body
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Expansion Slots

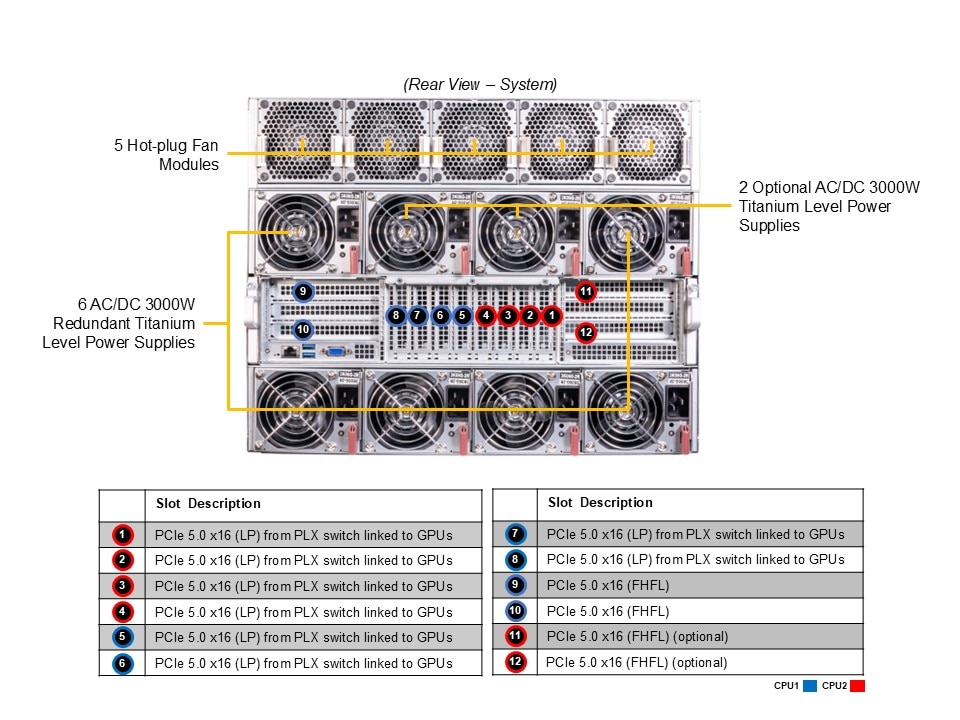

PCI-Express (PCIe) Configuration
  • Default8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHFL slots
  • 8 PCIe 5.0 x16 LP slots
  • 2 PCIe 5.0 x16 FHFL slots
  • Option A8 PCIe 5.0 x16 LP slots 4 PCIe 5.0 x16 FHFL slots
  • 8 PCIe 5.0 x16 LP slots
  • 4 PCIe 5.0 x16 FHFL slots
Drive Bays / Storage
Drive Bays Configuration

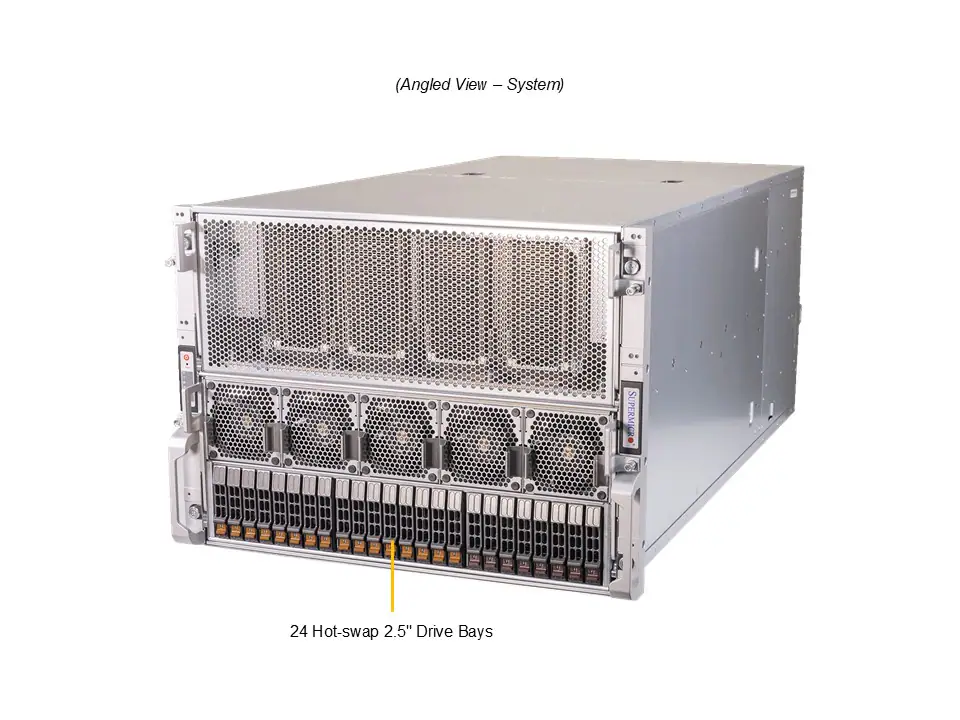

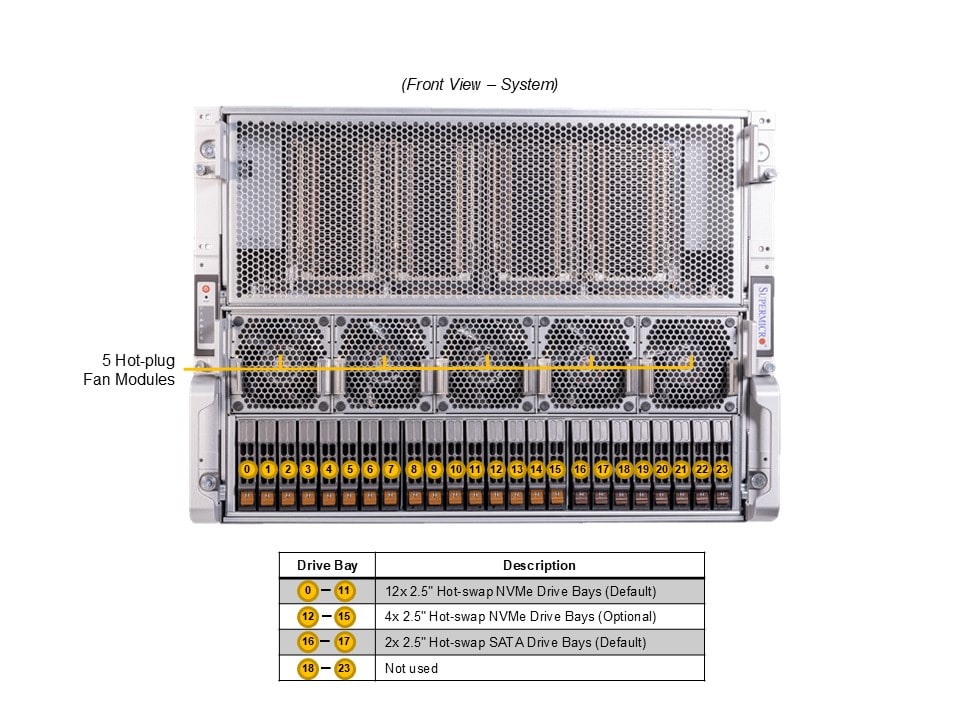

  • Default: Total 18 bays2 front hot-swap 2.5″ SATA drive bays 4 front hot-swap 2.5″ NVMe* drive bays 12 front hot-swap 2.5″ NVMe drive bays
  • 2 front hot-swap 2.5″ SATA drive bays
  • 4 front hot-swap 2.5″ NVMe* drive bays
  • 12 front hot-swap 2.5″ NVMe drive bays
  • (*NVMe support may require additional storage controller and/or cables)
M.2
  • 1 M.2 NVMe slot (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 10 heavy duty fans with optimal fan speed control
Power Supply
  • 6x 3000W 6x 3000W Redundant (3 + 3) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.5 mm Input2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 106.5 x 82.1 x 245.5 mm
Input
  • 2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 6x 3000W 6x 3000W Redundant (3 + 3) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.5 mm Input2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
