DP AMD 8U System with AMD Instinct™ MI325X/MI350X 8-GPU

Pretul afisat contine TVA (21%).

SuperServer AS -8126GS-TNMR

DP AMD 8U System with AMD Instinct™ MI325X/MI350X 8-GPU

Key Features

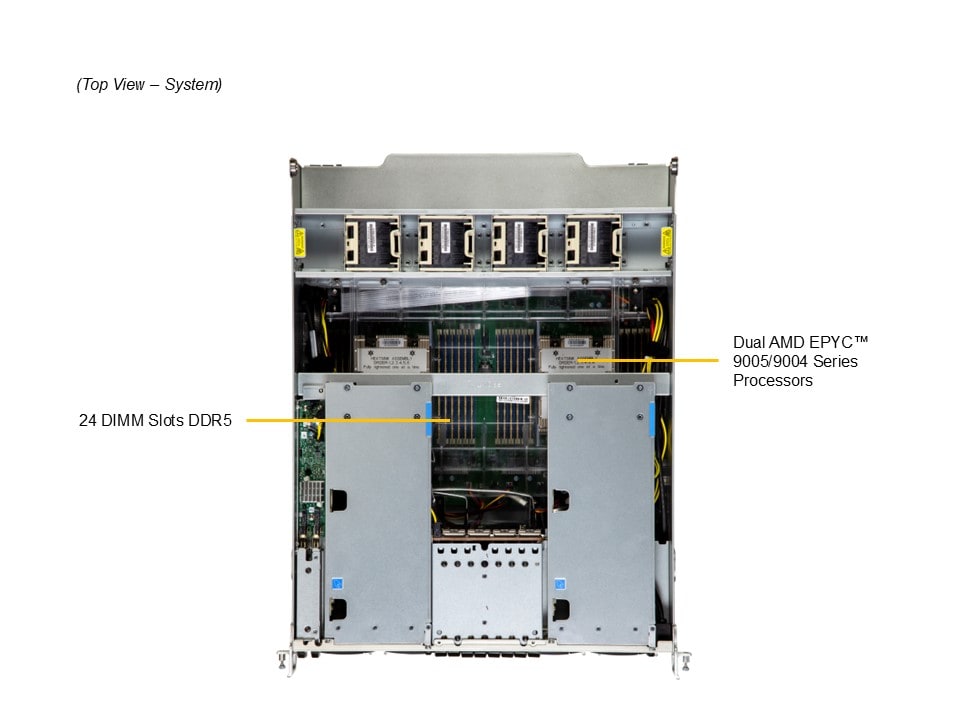

  1. Dual Socket SP5 AMD EPYC™ 9005/9004 Series Processors up to 500W with air cooling

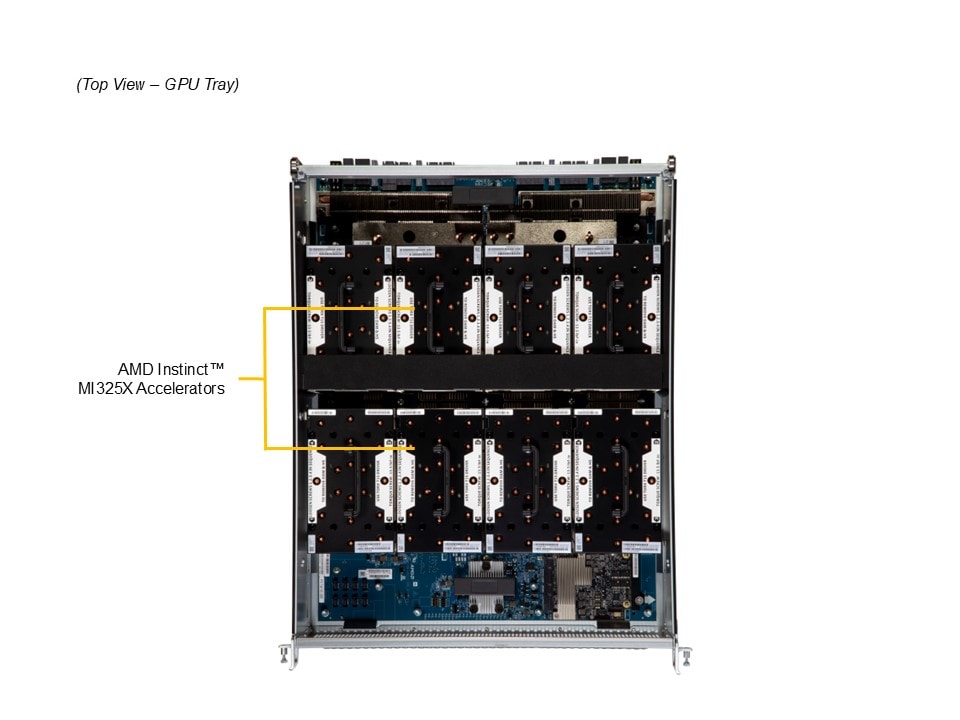

  2. 8x MI325x or MI350x onboard OAM GPU Accelerator Cards
  3. Supports up to 24 DIMMs slots, 6400 MT/s 6TB DDR5 memory in 1DPC(Please check System Memory Section for detail)
  4. Supports up to 24 DIMMs slots, 6400 MT/s 6TB DDR5 memory in 1DPC
  5. (Please check System Memory Section for detail)

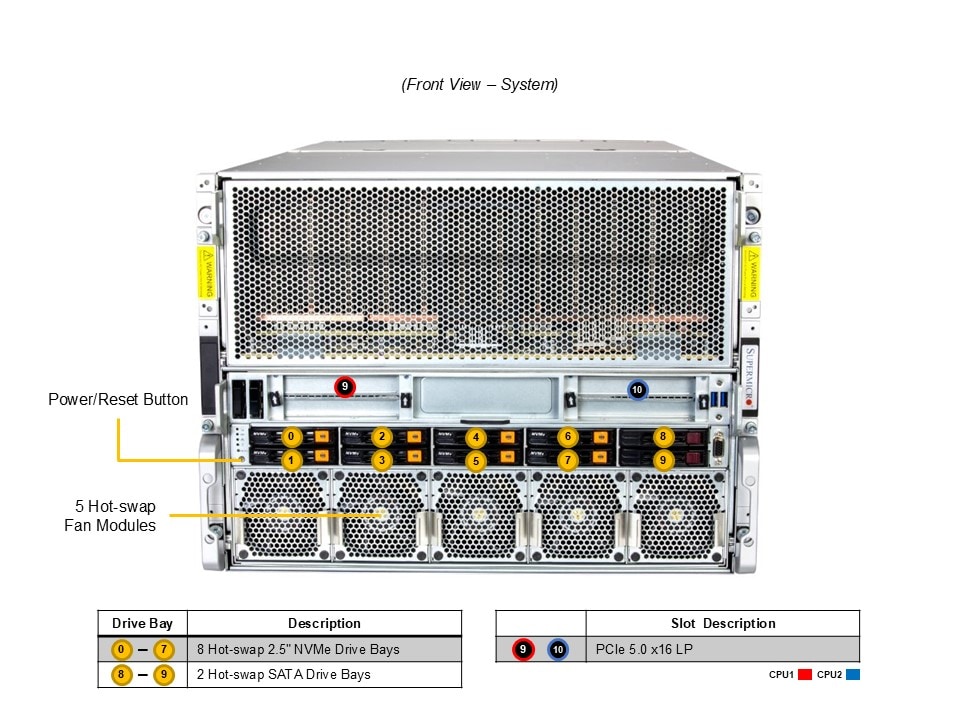

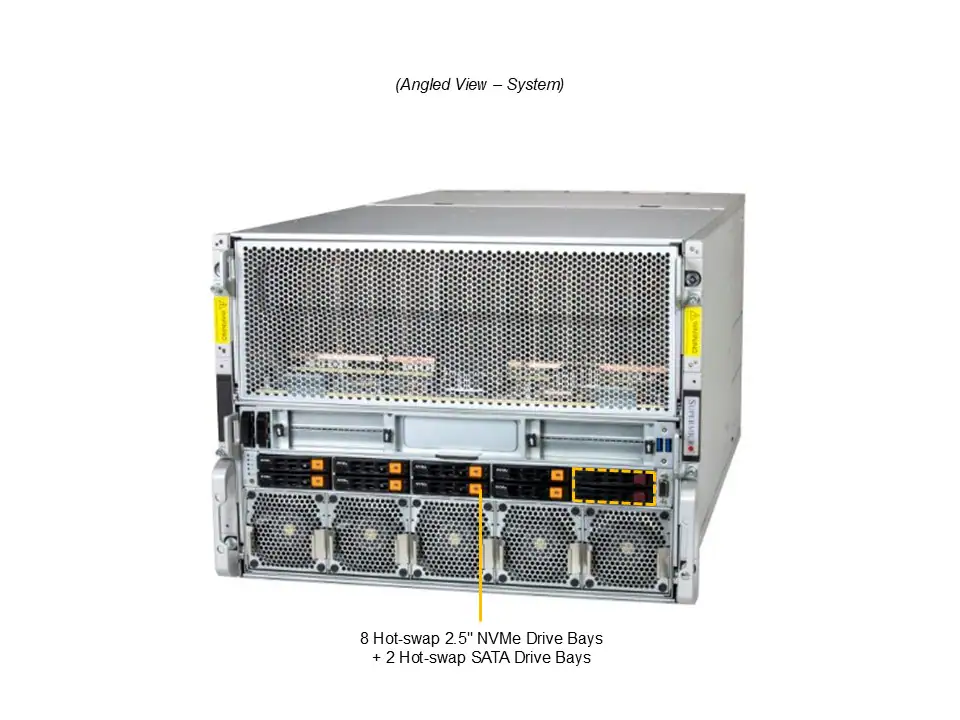

  6. 8x front hot-swap 2.5″ NVMe + 2 front hot-swap 2.5″ SATA

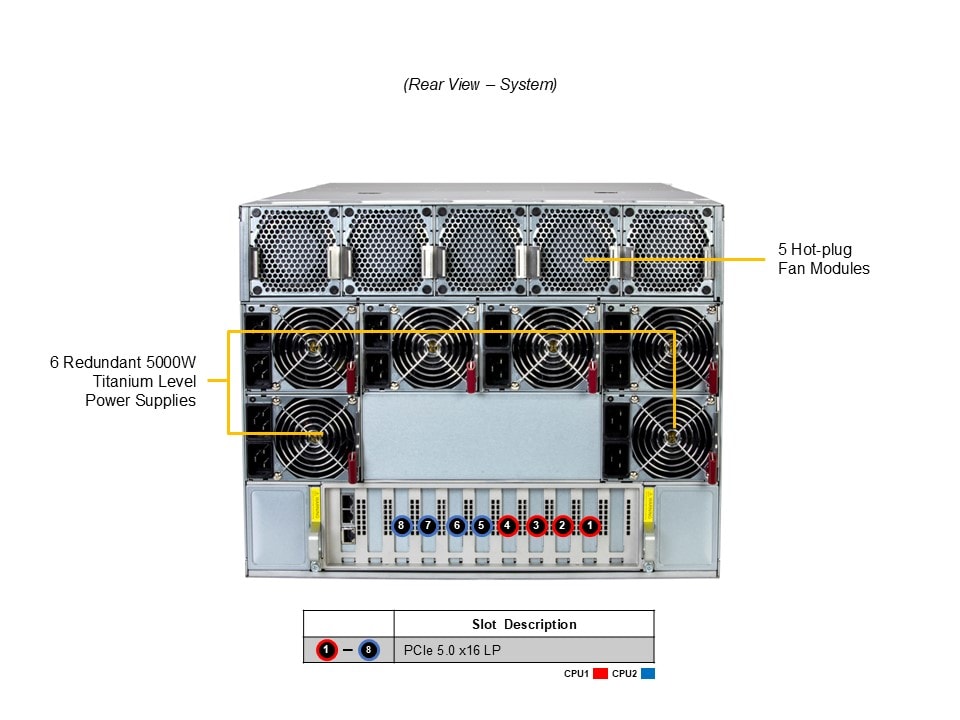

  7. Total of 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL slots
  8. Total of 6 (3+3) Titanium Level Efficiency 5250W Power Supplies(Power supply full redundancy based on configuration and application load)
  9. Total of 6 (3+3) Titanium Level Efficiency 5250W Power Supplies
  10. (Power supply full redundancy based on configuration and application load)

Specifications

Product SKUs
  • A+ Server AS -8126GS-TNMR
Motherboard

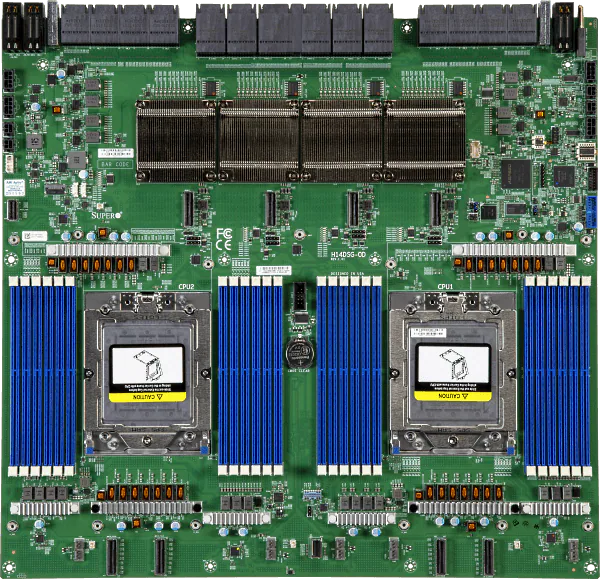

  • Super H14DSG-OD
Processor
CPU
  • Dual processor(s)
  • AMD EPYC™ 9005/9004 Series Processors
Core Count
  • Up to 384C/768T
Note
  • Supports up to 500W TDP CPUs
GPU
Max GPU Count
  • 8 onboard GPUs
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • AMD Infinity Fabric™ Link
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • 2 RJ45 10GbE with Intel® X710
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • A+ Server AS -8126GS-TNMR
  • Super H14DSG-OD
Chassis
Form Factor
  • 8U Rackmount
Model
  • CSE-GP805TS-R000NPF
Dimensions and Weight
Height
  • 13.8″ (356 mm)
Width
  • 17.6″ (447 mm)
Depth
  • 33.2″ (843 mm)
Package
  • 26″ (H) x 28.74″ (W) x 50.39″ (D)
Weight
  • Gross Weight: 336 lbs (152.4 kg)
  • Net Weight: 288 lbs (130.635 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
  • UID/ Reset button
LED
  • HDD activity
  • Network activity LEDs
  • System information (overheat/UID)
  • UID
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots
  • 8 PCIe 5.0 x16 LP slots
  • 2 PCIe 5.0 x16 FHHL slots
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 22110(default))
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 10 bays2 front hot-swap 2.5″ SATA drive bays 8 front hot-swap 2.5″ NVMe drive bays
  • 2 front hot-swap 2.5″ SATA drive bays
  • 8 front hot-swap 2.5″ NVMe drive bays
M.2
  • 2 M.2 NVMe slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 14 heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
  • 6x 5250W 6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5250W: 200-240Vac / 50-60Hz +12VMax: 125A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)
  • 106.5 x 82.1 x 245.3 mm
Input
  • 5250W: 200-240Vac / 50-60Hz
+12V
  • Max: 125A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 6x 5250W 6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5250W: 200-240Vac / 50-60Hz +12VMax: 125A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
