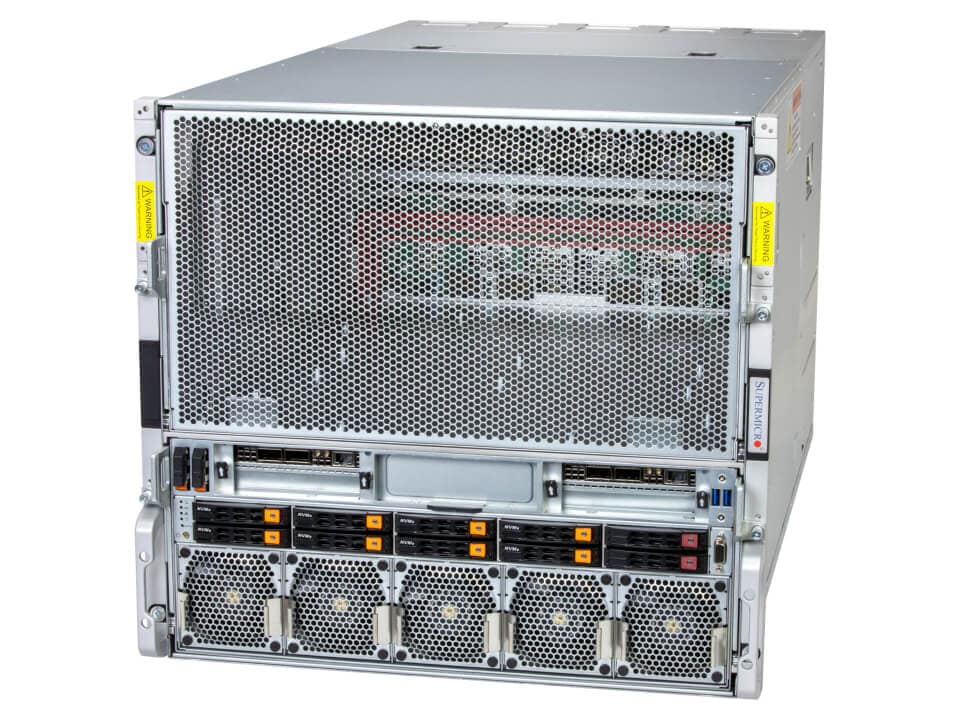

Supermicro SuperServer AS -A126GS-TNMR

Favorite

Compara

DP 10U AMD GPU System with AMD Instinct™ MI355X Accelerators

Pretul afisat contine TVA (21%).

SuperServer AS -A126GS-TNMR

DP 10U AMD GPU System with AMD Instinct™ MI355X Accelerators

Key Features

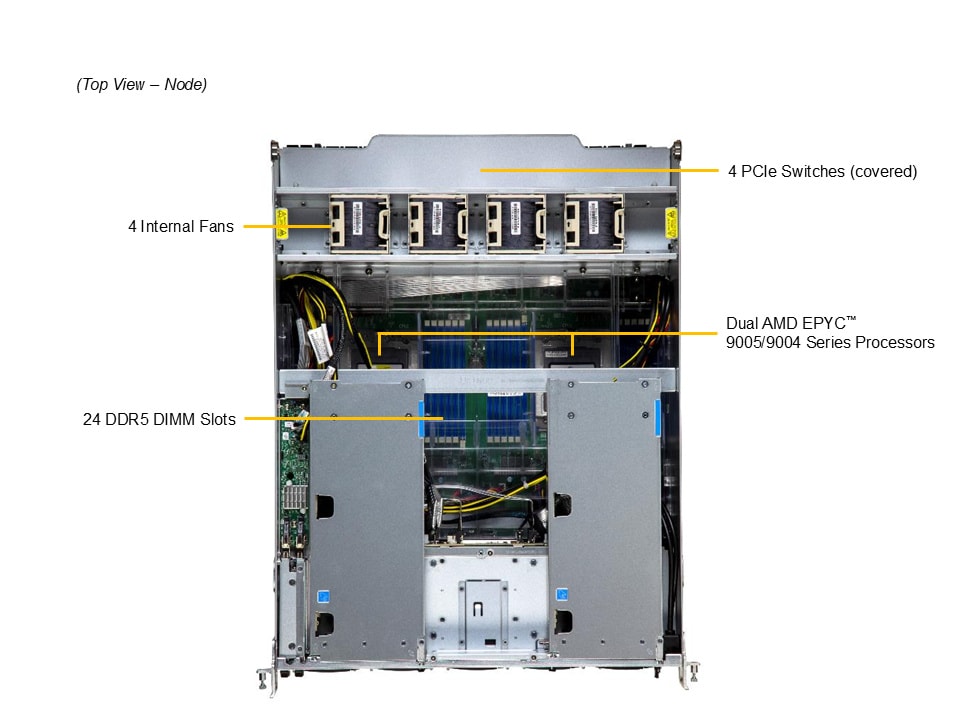

Dual AMD EPYC™ 9005/9004 Series Processors

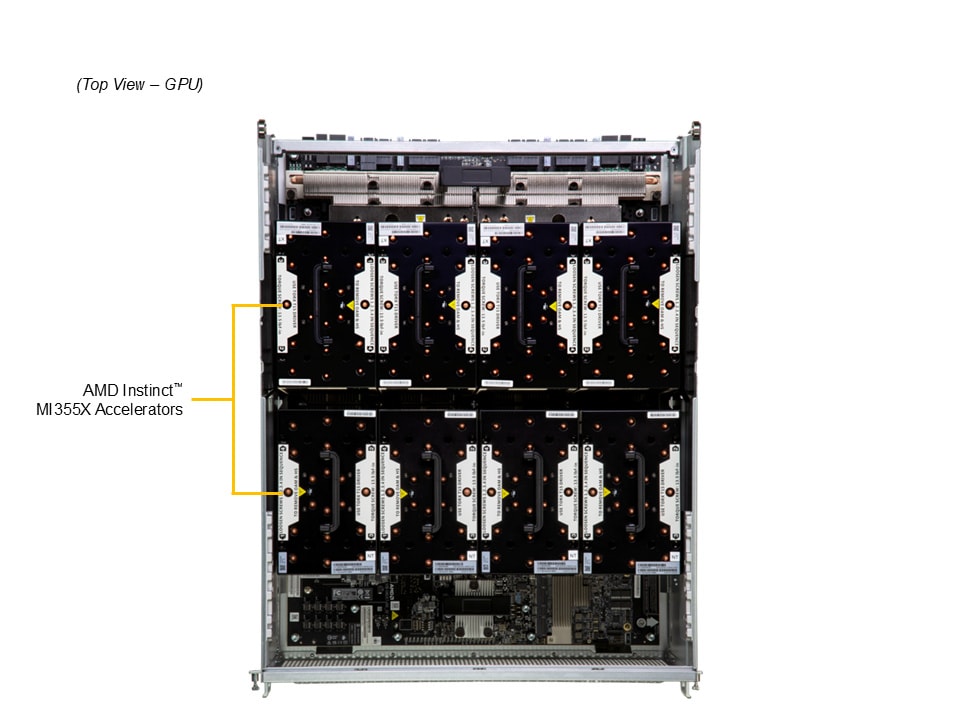

Total of 8x MI355x onboard OAM GPU accelerator modules (Air-cooled)
Supports up to 24 DIMM slots, 6400 MT/s 6TB DDR5 memory (1DPC only)(Please check System Memory Section for detail)
Supports up to 24 DIMM slots, 6400 MT/s 6TB DDR5 memory (1DPC only)
(Please check System Memory Section for detail)
8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL slotsDual 10G NIC (X710), 1 VGA, 2 USB 3.0, and 1 Dedicated IPMI
8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL slots
Dual 10G NIC (X710), 1 VGA, 2 USB 3.0, and 1 Dedicated IPMI

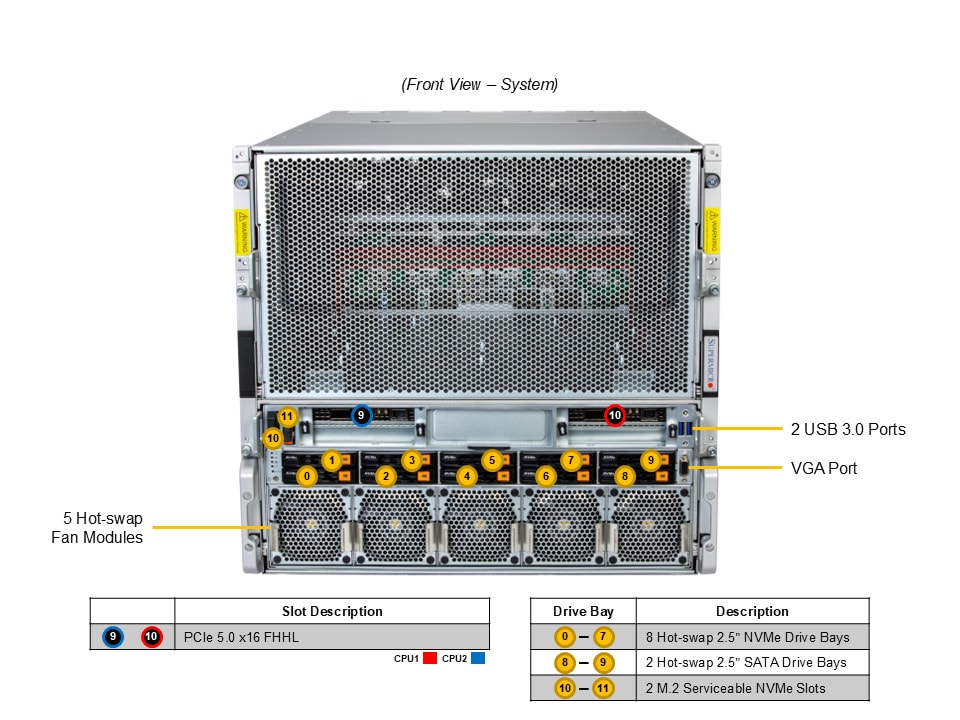

8 front hot-swap 2.5″ NVMe + 2 hot-swap 2.5″ SATA drive baysDual Serviceable M.2 slots with RAID
8 front hot-swap 2.5″ NVMe + 2 hot-swap 2.5″ SATA drive bays
Dual Serviceable M.2 slots with RAID

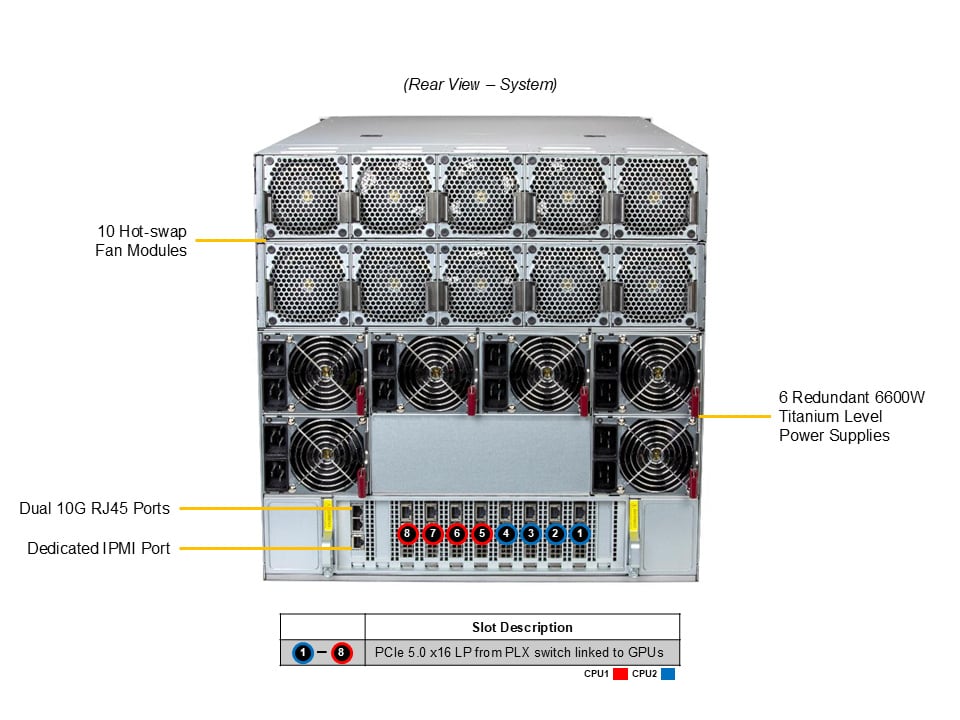

Total of 6x 6600W (4+2) Titanium Level redundant power supplies(Power supply full redundancy based on configuration and application load)
Total of 6x 6600W (4+2) Titanium Level redundant power supplies
(Power supply full redundancy based on configuration and application load)

Specifications

Product SKUs
A+ Server AS -A126GS-TNMR
Motherboard

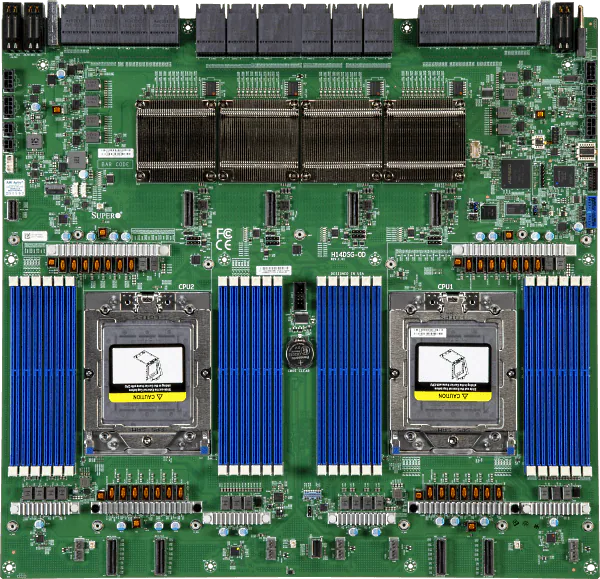

Super H14DSG-OD
Processor
CPU	Dual processor(s) AMD EPYC™ 9005/9004 Series Processors
Core Count	Up to 384C/768T
Note	Supports up to 500W TDP CPUs
GPU
Max GPU Count	8 onboard GPUs
Supported GPU	AMD: Instinct™ MI355X Accelerators
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	AMD Infinity Fabric™ Link
System Memory
Memory	Slot Count: 24 DIMM slots/1 Channels Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Memory Voltage	1.1V
On-Board Devices
Network Connectivity	2 RJ45 10GbE with Intel® X710
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 Type-A ports(Rear)
Video	1 VGA port
TPM	1 TPM header
System BIOS
BIOS Type	AMI 64MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI Power Management Power-on mode control for AC power loss recovery Power button override mechanism,
Security
Hardware	Trusted Platform Module (TPM) 2.0
Features	Automatic Firmware Recovery Cryptographically Signed Firmware Runtime BMC Protections Secure Boot Secure Firmware Updates Supply Chain Security: Remote Attestation System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Voltage	System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
A+ Server AS -A126GS-TNMR
Super H14DSG-OD
Chassis
Form Factor	10U Rackmount
Model	CSE-GP1001TS-R000NPF2
Dimensions and Weight
Height	17.2″ (438.8 mm)
Width	17.6″ (449 mm)
Depth	33.2″ (843.28 mm)
Package	27.95″ (H) x 28.74″ (W) x 50.39″ (D)
Weight	Gross Weight: 341 lbs (155 kg) Net Weight: 293 lbs (133 kg)
Available Color	Silver
Front Panel
Buttons	Power On/Off UID/ Reset button
LED	HDD activity Network activity LEDs System information (overheat/UID) UID
Expansion Slots
PCI-Express (PCIe) Configuration	Default8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots
Drive Bays / Storage
Drive Bays Configuration	Default: Total 10 bays8 front hot-swap 2.5″ PCIe 5.0 x4 NVMe drive bays 2 front hot-swap 2.5″ SATA drive bays 8 front hot-swap 2.5″ PCIe 5.0 x4 NVMe drive bays 2 front hot-swap 2.5″ SATA drive bays
M.2	2 M.2 NVMe slots (M-key) View M.2 Options
System Cooling
Fans	Up to 19x 8cm heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud
Power Supply
6x 6600W 6x 6600W Redundant (4 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5900W: 200-207.9Vac / 50-60Hz 6000W: 208-219.9Vac / 50-60Hz 6300W: 220-229.9Vac / 50-60Hz 6500W: 230-238.9Vac / 50-60Hz 6600W: 239-240Vac / 50-60Hz +12VMax: 130A / Min: 0A (200Vac-207.9Vac)Max: 130A / Min: 0A (208Vac-219.9Vac)Max: 130A / Min: 0A (220Vac-229.9Vac)Max: 130A / Min: 0A (230Vac-238.9Vac)Max: 130A / Min: 0A (239Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)	106.5 x 82.1 x 245.3 mm
Input	5900W: 200-207.9Vac / 50-60Hz 6000W: 208-219.9Vac / 50-60Hz 6300W: 220-229.9Vac / 50-60Hz 6500W: 230-238.9Vac / 50-60Hz 6600W: 239-240Vac / 50-60Hz
+12V	Max: 130A / Min: 0A (200Vac-207.9Vac)Max: 130A / Min: 0A (208Vac-219.9Vac)Max: 130A / Min: 0A (220Vac-229.9Vac)Max: 130A / Min: 0A (230Vac-238.9Vac)Max: 130A / Min: 0A (239Vac-240Vac)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
6x 6600W 6x 6600W Redundant (4 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5900W: 200-207.9Vac / 50-60Hz 6000W: 208-219.9Vac / 50-60Hz 6300W: 220-229.9Vac / 50-60Hz 6500W: 230-238.9Vac / 50-60Hz 6600W: 239-240Vac / 50-60Hz +12VMax: 130A / Min: 0A (200Vac-207.9Vac)Max: 130A / Min: 0A (208Vac-219.9Vac)Max: 130A / Min: 0A (220Vac-229.9Vac)Max: 130A / Min: 0A (230Vac-238.9Vac)Max: 130A / Min: 0A (239Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Optional Parts List

SKU: as-a126gs-tnmr Categorii: BRAND, gpu, Server&Storage, SUPERMICRO

Product SKUs
A+ Server AS -A126GS-TNMR
Motherboard
Super H14DSG-OD
Processor
CPU	Dual processor(s) AMD EPYC™ 9005/9004 Series Processors
Core Count	Up to 384C/768T
Note	Supports up to 500W TDP CPUs
GPU
Max GPU Count	8 onboard GPUs
Supported GPU	AMD: Instinct™ MI355X Accelerators
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	AMD Infinity Fabric™ Link
System Memory
Memory	Slot Count: 24 DIMM slots/1 Channels Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Memory Voltage	1.1V
On-Board Devices
Network Connectivity	2 RJ45 10GbE with Intel® X710
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 Type-A ports(Rear)
Video	1 VGA port
TPM	1 TPM header
System BIOS
BIOS Type	AMI 64MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI Power Management Power-on mode control for AC power loss recovery Power button override mechanism,
Security
Hardware	Trusted Platform Module (TPM) 2.0
Features	Automatic Firmware Recovery Cryptographically Signed Firmware Runtime BMC Protections Secure Boot Secure Firmware Updates Supply Chain Security: Remote Attestation System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Voltage	System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
A+ Server AS -A126GS-TNMR
Super H14DSG-OD
Chassis
Form Factor	10U Rackmount
Model	CSE-GP1001TS-R000NPF2
Dimensions and Weight
Height	17.2″ (438.8 mm)
Width	17.6″ (449 mm)
Depth	33.2″ (843.28 mm)
Package	27.95″ (H) x 28.74″ (W) x 50.39″ (D)
Weight	Gross Weight: 341 lbs (155 kg) Net Weight: 293 lbs (133 kg)
Available Color	Silver
Front Panel
Buttons	Power On/Off UID/ Reset button
LED	HDD activity Network activity LEDs System information (overheat/UID) UID
Expansion Slots
PCI-Express (PCIe) Configuration	Default8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots
Drive Bays / Storage
Drive Bays Configuration	Default: Total 10 bays8 front hot-swap 2.5″ PCIe 5.0 x4 NVMe drive bays 2 front hot-swap 2.5″ SATA drive bays 8 front hot-swap 2.5″ PCIe 5.0 x4 NVMe drive bays 2 front hot-swap 2.5″ SATA drive bays
M.2	2 M.2 NVMe slots (M-key) View M.2 Options
System Cooling
Fans	Up to 19x 8cm heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud
Power Supply
6x 6600W 6x 6600W Redundant (4 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5900W: 200-207.9Vac / 50-60Hz 6000W: 208-219.9Vac / 50-60Hz 6300W: 220-229.9Vac / 50-60Hz 6500W: 230-238.9Vac / 50-60Hz 6600W: 239-240Vac / 50-60Hz +12VMax: 130A / Min: 0A (200Vac-207.9Vac)Max: 130A / Min: 0A (208Vac-219.9Vac)Max: 130A / Min: 0A (220Vac-229.9Vac)Max: 130A / Min: 0A (230Vac-238.9Vac)Max: 130A / Min: 0A (239Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)	106.5 x 82.1 x 245.3 mm
Input	5900W: 200-207.9Vac / 50-60Hz 6000W: 208-219.9Vac / 50-60Hz 6300W: 220-229.9Vac / 50-60Hz 6500W: 230-238.9Vac / 50-60Hz 6600W: 239-240Vac / 50-60Hz
+12V	Max: 130A / Min: 0A (200Vac-207.9Vac)Max: 130A / Min: 0A (208Vac-219.9Vac)Max: 130A / Min: 0A (220Vac-229.9Vac)Max: 130A / Min: 0A (230Vac-238.9Vac)Max: 130A / Min: 0A (239Vac-240Vac)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
6x 6600W 6x 6600W Redundant (4 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5900W: 200-207.9Vac / 50-60Hz 6000W: 208-219.9Vac / 50-60Hz 6300W: 220-229.9Vac / 50-60Hz 6500W: 230-238.9Vac / 50-60Hz 6600W: 239-240Vac / 50-60Hz +12VMax: 130A / Min: 0A (200Vac-207.9Vac)Max: 130A / Min: 0A (208Vac-219.9Vac)Max: 130A / Min: 0A (220Vac-229.9Vac)Max: 130A / Min: 0A (230Vac-238.9Vac)Max: 130A / Min: 0A (239Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Optional Parts List
