Supermicro SuperServer SYS-212GB-NR
Supermicro SuperServer SYS-212GB-NR - imagine 2
Supermicro SuperServer SYS-212GB-NR - imagine 3
Supermicro SuperServer SYS-212GB-NR - imagine 4
Supermicro SuperServer SYS-212GB-NR - imagine 5
Supermicro SuperServer SYS-212GB-NR - imagine 6
, , ,

Supermicro SuperServer SYS-212GB-NR

Favorite
Compara

UP Intel 2U PCIe GPU System with up to 2 NVIDIA RTX PRO™ 6000 Blackwell Server Edition or NVIDIA H200

Pretul afisat contine TVA (21%).

SuperServer SYS-212GB-NR

UP Intel 2U PCIe GPU System with up to 2 NVIDIA RTX PRO™ 6000 Blackwell Server Edition or NVIDIA H200

Key Features

  1. Intel® Xeon® 6700 series processors, Single Socket, CPU TDP supports Up to 350W
  2. Support up to 4 double-width PCIe GPU accelerator cards
  3. Up to 2TB ECC RDIMM DDR5-6400MT/s and up to 512GB MRDIMM DDR5-8000MT/s in 16 DIMM slots
  4. Up to 4 PCIe 5.0 x16 FHFL double-width + 3 PCIe 5.0 x16 FHFL slots
  5. Up to 4 front hot-swap E1.S NVMe drive bays
  6. 3 Redundant 2000W Titanium Level power supplies
  7. 2U Rackmount chassis with 35.43″ (900mm) depth

Specifications

Product SKUs
  • SuperServer SYS-212GB-NR
Motherboard

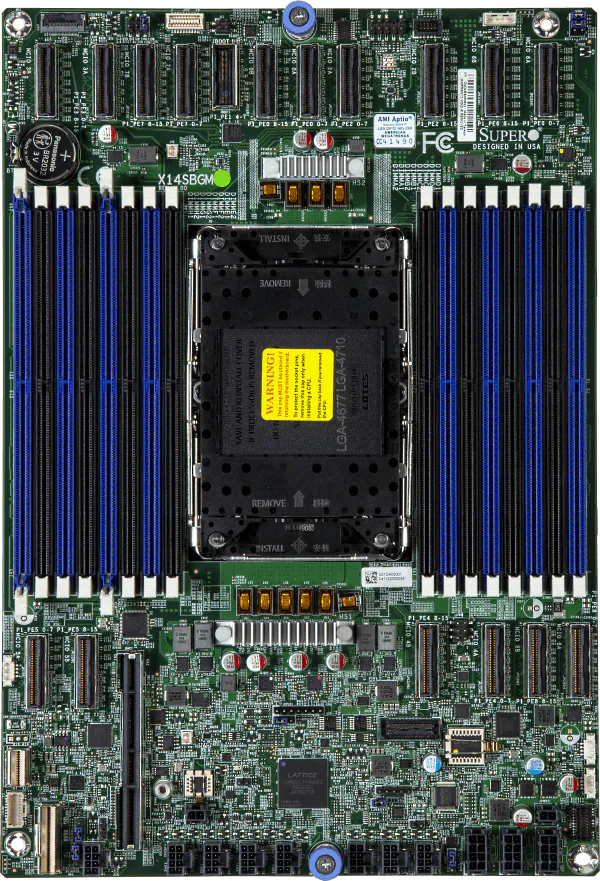

  • Super X14SBGM
Processor
CPU
  • Single Socket E2 (LGA-4710)
  • Intel® Xeon® 6700/6500 series processors with P-cores
Core Count
  • Up to 80C/160T; Up to 336MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width GPUs
Supported GPU
  • NVIDIA PCIe: H200 NVL (141GB), NVIDIA RTX PRO™ 6000 Blackwell Server Edition
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™ Bridge (optional)
System Memory
Memory
  • Slot Count: 16 DIMM slots/8 Channels
  • Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM
  • Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 1 USB 3.0 Type-A port(Rear)
Video
  • 1 mini-DP port
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
  • Plug-ins for 3rd Party Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-212GB-NR
  • Super X14SBGM
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-GP201TS-R000NP
Dimensions and Weight
Height
  • 3.46″ (88 mm)
Width
  • 17.25″ (438.4 mm)
Depth
  • 35.43″ (900 mm)
Package
  • 11″ (H) x 22.5″ (W) x 45.5″ (D)
Weight
  • Gross Weight: 84 lbs (38 kg)
  • Net Weight: 66 lbs (30 kg)
Available Color
  • Black front & silver body

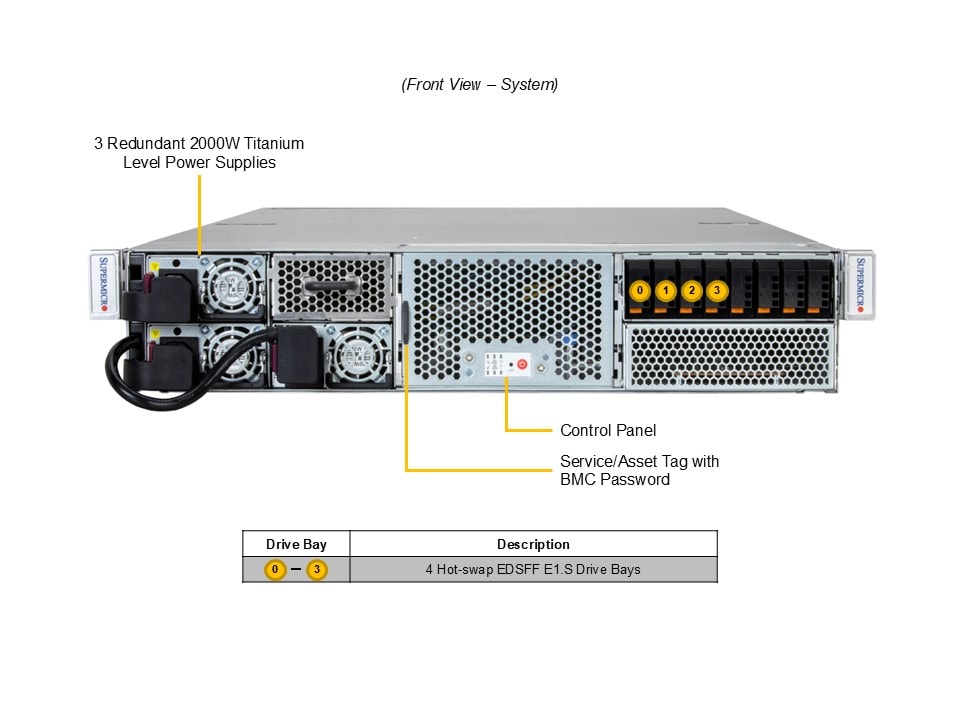

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED

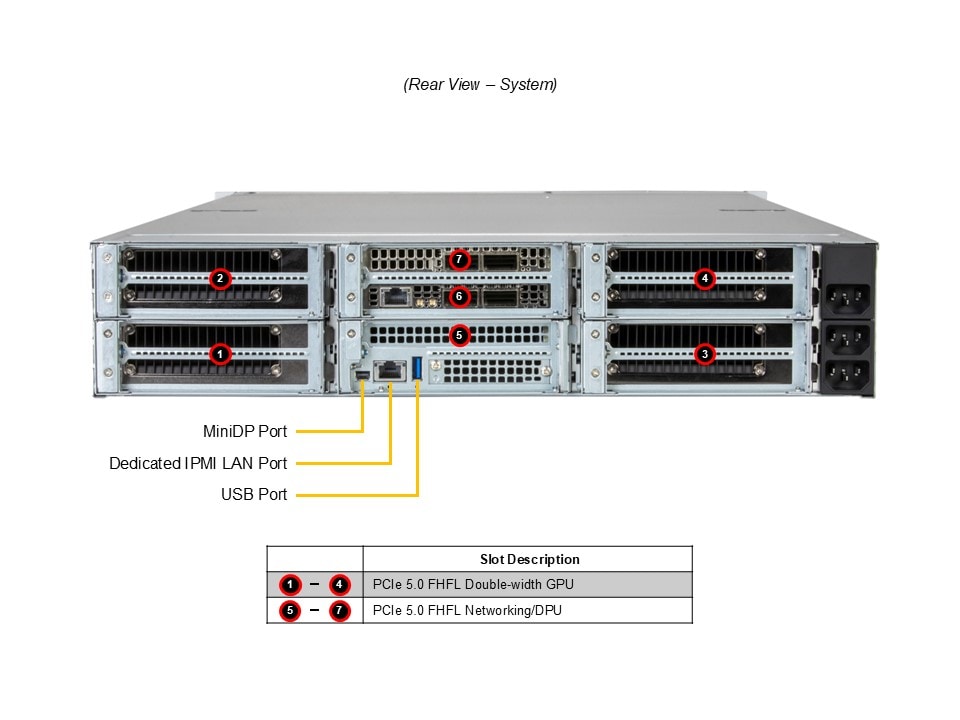

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default4 PCIe 5.0 x16 FHFL double-width slots 3 PCIe 5.0 x16 FHFL slots
  • 4 PCIe 5.0 x16 FHFL double-width slots
  • 3 PCIe 5.0 x16 FHFL slots
M.2
  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
Drive Bays / Storage
Drive Bays Configuration

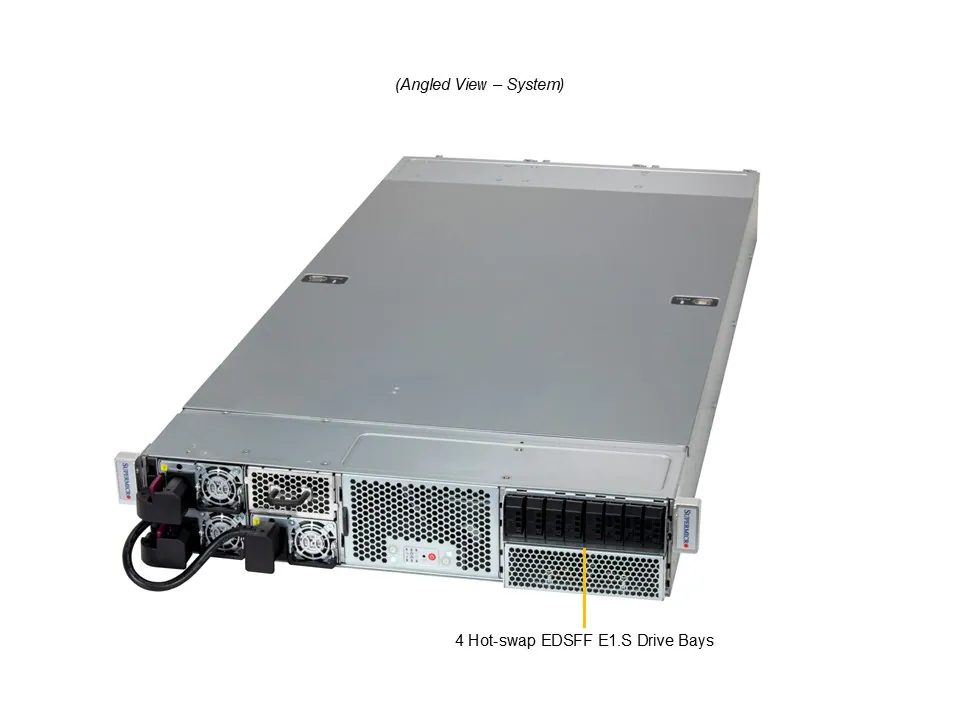

  • Default: Total 4 bays4 front hot-swap E1.S NVMe drive bays
  • 4 front hot-swap E1.S NVMe drive bays
M.2
  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 6x 6cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
  • 3x 2000W 3x 2000W Redundant (2 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
Environmental / Recycling
Recycle
  • Return Server-End of Life Product
  • 3x 2000W 3x 2000W Redundant (2 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm
Optional Parts List
