DP Intel 2U PCIe GPU system with up to 4 double-width PCIe GPU accelerator cards

Pretul afisat contine TVA (21%).

SuperServer SYS-221GE-FNR2

DP Intel 2U PCIe GPU system with up to 4 double-width PCIe GPU accelerator cards

Key Features

  1. Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors up to 350W with air cooling
  2. Support for up to 4 double-width PCIe GPU accelerator cards. The system can support up to 4 NVIDIA RTX PRO™ 6000 GPUs. With up to 35°C support.
  3. Up to 32 DIMMs supporting up to 4TB DDR5-5600 in 1DPC or 8TB DDR5-4400 in 2DPC

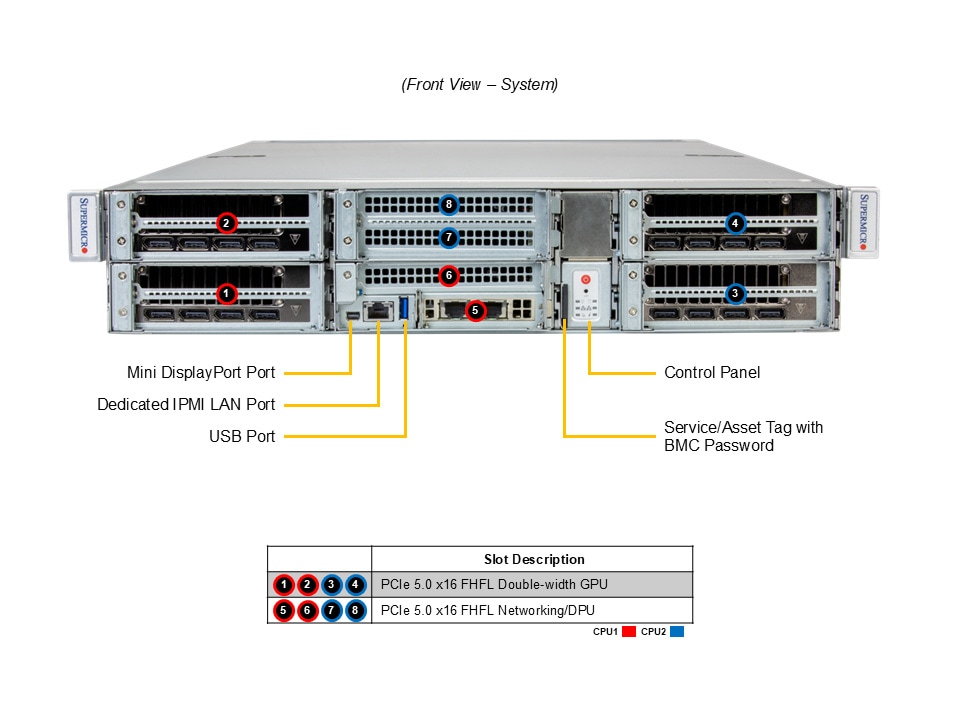

  4. Up to 4 PCIe 5.0 x16 FHFL double width + 4 AOC slots (1xPCIe 5.0 x16 HHFL and 3 PCIe 5.0 x 16 FHFL slots)

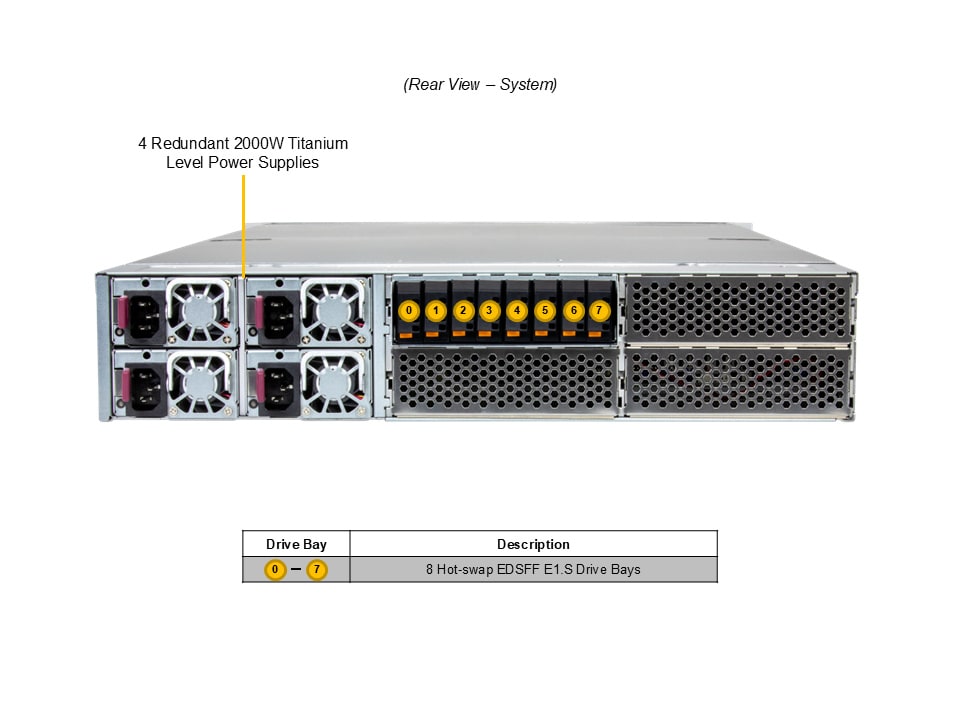

  5. Up to 8 front hot-swap E1.S NVMe drive bays
  6. 4 Redundant 2000W Titanium Level power supplies
  7. 2U Rackmount chassis with 35.43″ (900mm) depth

Specifications

Product SKUs
  • SYS-221GE-FNR2
Motherboard

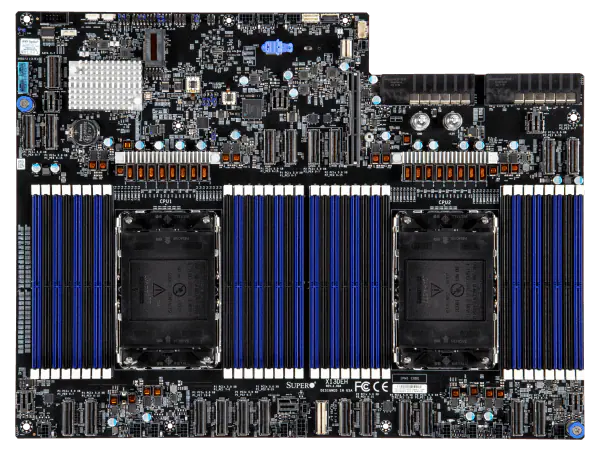

  • Super X13DEH
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width GPUs
Supported GPU
  • NVIDIA PCIe: NVIDIA RTX PRO™ 4500 Blackwell Server Edition, NVIDIA RTX PRO™ 6000 Blackwell Server Edition
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™ Bridge (optional)
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5
  • Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel® C741
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 ports(rear)
Video
  • 1 mini-DP port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • Redfish API
  • Supermicro Server Manager (SSM)
  • Supermicro Power Manager (SPM)
  • Supermicro SuperDoctor® 5 (SD5)
  • KVM with dedicated LAN
  • IPMI 2.0
  • OOB Management Package (SFT-OOB-LIC )
  • SMCIPMITool
  • IPMIView
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SYS-221GE-FNR2
  • Super X13DEH
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-MG204-R000NDFP
Dimensions and Weight
Height
  • 3.43″ (87 mm)
Width
  • 17.3″ (438.4 mm)
Depth
  • 35.43″ (900 mm)
Package
  • 11.02″ (H) x 27.56″ (W) x 47.24″ (D)
Weight
  • Gross Weight: 103 lbs (46.8 kg)
  • Net Weight: 88 lbs (40 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
LED
  • HDD activity
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default1 PCIe 5.0 x16 HHFL slot 3 PCIe 5.0 x16 FHFL slots
  • 1 PCIe 5.0 x16 HHFL slot
  • 3 PCIe 5.0 x16 FHFL slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap E1.S NVMe drive bays
  • 8 front hot-swap E1.S NVMe drive bays
M.2
  • 2 M.2 NVMe/SATA slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 8x 6cm heavy duty fans with optimal fan speed control
Power Supply
  • 1x 2000W 1x 2000W Redundant Titanium Level (96%) power supply Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Input
  • 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
Environmental / Recycling
Recycle
  • Return Server-End of Life Product
  • 1x 2000W 1x 2000W Redundant Titanium Level (96%) power supply Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
