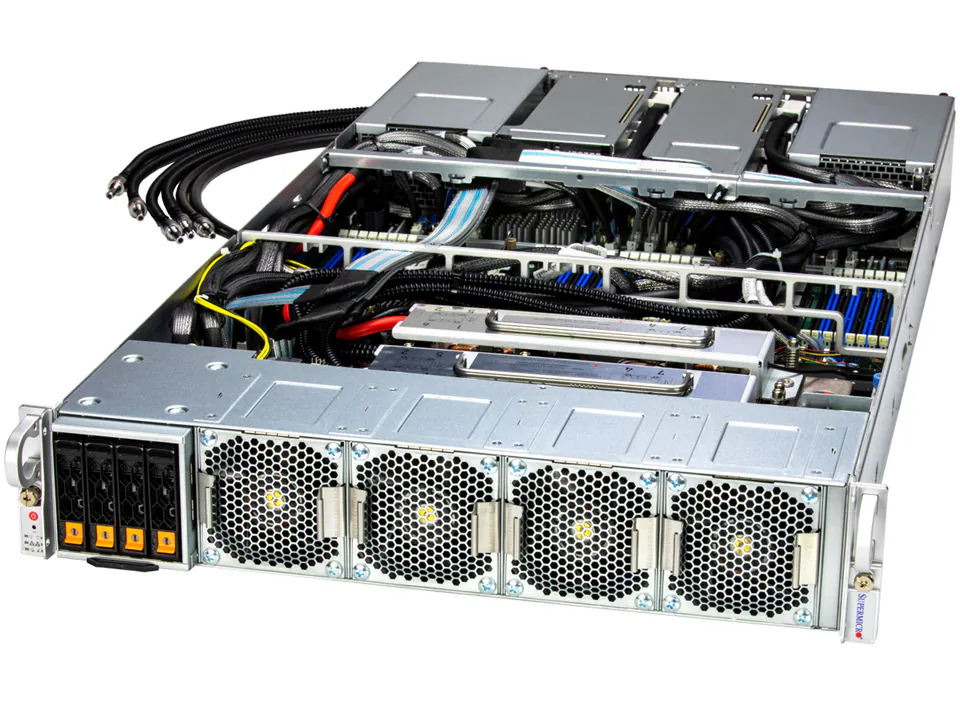

Supermicro SuperServer SYS-221GE-TNHT-LCC
Supermicro SuperServer SYS-221GE-TNHT-LCC - imagine 2
Supermicro SuperServer SYS-221GE-TNHT-LCC - imagine 3
Supermicro SuperServer SYS-221GE-TNHT-LCC - imagine 4
Supermicro SuperServer SYS-221GE-TNHT-LCC - imagine 5
Supermicro SuperServer SYS-221GE-TNHT-LCC - imagine 6
, , ,

Supermicro SuperServer SYS-221GE-TNHT-LCC

Favorite
Compara

DP Intel 2U liquid-cooled system with NVIDIA HGX™ H100 4-GPU or H200 4-GPU

Pretul afisat contine TVA (21%).

SuperServer SYS-221GE-TNHT-LCC

DP Intel 2U liquid-cooled system with NVIDIA HGX™ H100 4-GPU or H200 4-GPU

Key Features

  1. Highest GPU communication using NVIDIA® NVLINK™High density 2U system with NVIDIA® HGX™ H100 4-GPU/H200 4-GPU and 4xPCIe Gen 5 slots
  2. Highest GPU communication using NVIDIA® NVLINK™
  3. High density 2U system with NVIDIA® HGX™ H100 4-GPU/H200 4-GPU and 4xPCIe Gen 5 slots
  4. 5th/4th Gen Intel® Xeon® Scalable processor support
  5. 32 DIMM slots, up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s. Up to 256 GB of memory with speeds of up to 5600 MT/s(1DPC) or 4400 MT/s (2DPC)
  6. 4 PCIe Gen 5.0 X16 LP
  7. Flexible networking options
  8. 2 M.2 NVMe for boot drive only4x 2.5″ Hot-swap NVMe/SATA3 drive bays
  9. 2 M.2 NVMe for boot drive only
  10. 4x 2.5″ Hot-swap NVMe/SATA3 drive bays
  11. Direct-To-Chip Liquid Cooling solution4 heavy duty fans with optimal fan speed control
  12. Direct-To-Chip Liquid Cooling solution
  13. 4 heavy duty fans with optimal fan speed control
  14. 2x 5250W(1+1) Redundant Power Supplies

Specifications

Product SKUs
  • SuperServer SYS-221GE-TNHT-LCC
Motherboard

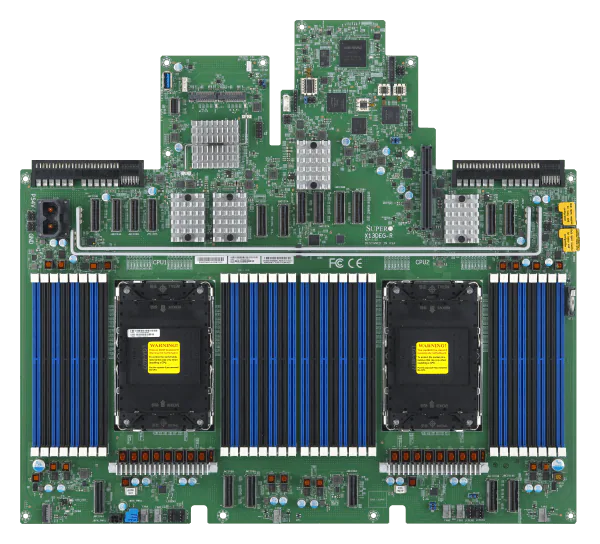

  • Super X13DEG-R
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 56C/112T; Up to 112.5MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • 4 onboard GPUs
Supported GPU
  • NVIDIA SXM: HGX H100 4-GPU (80GB), HGX H200 4-GPU (141GB)
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™
System Memory
Memory
  • Slot Count: 32 DIMM slots/16 Channels
  • Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • 2 RJ45 10GbE with Intel® X710-AT2
Input / Output
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-221GE-TNHT-LCC
  • Super X13DEG-R
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-228G2TS-R5K25P
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 32.7″ (830.3 mm)
Package
  • 11″ (H) x 22.5″ (W) x 45.5″ (D)
Weight
  • Gross Weight: 86.5 lbs (39.2 kg)
  • Net Weight: 67.5 lbs (30.6 kg)
Available Color
  • Silver Body

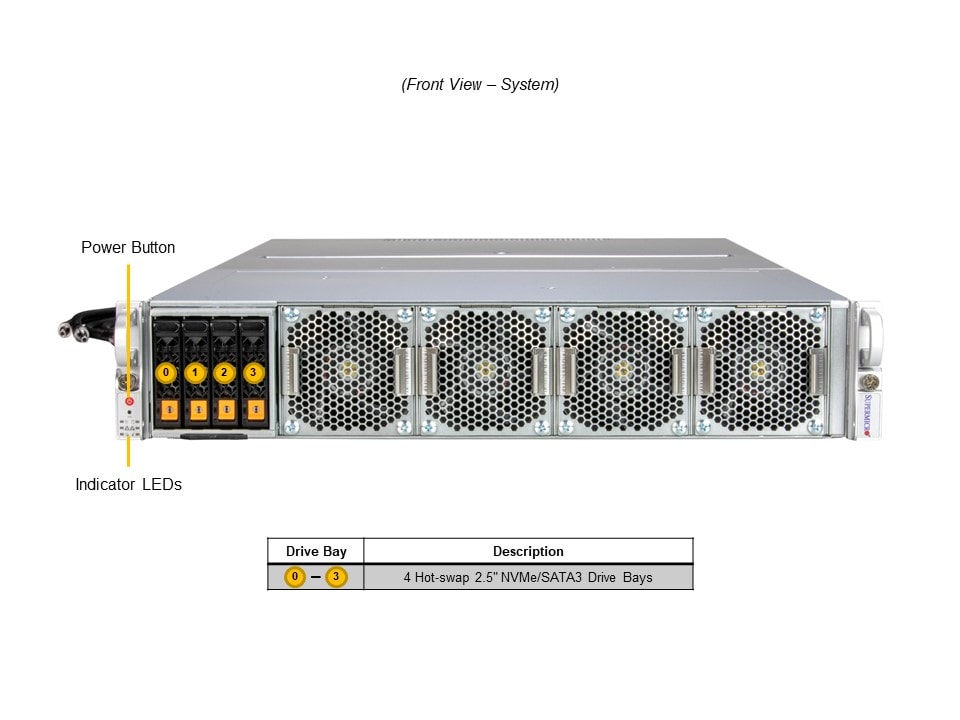

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Expansion Slots
PCI-Express (PCIe) Configuration

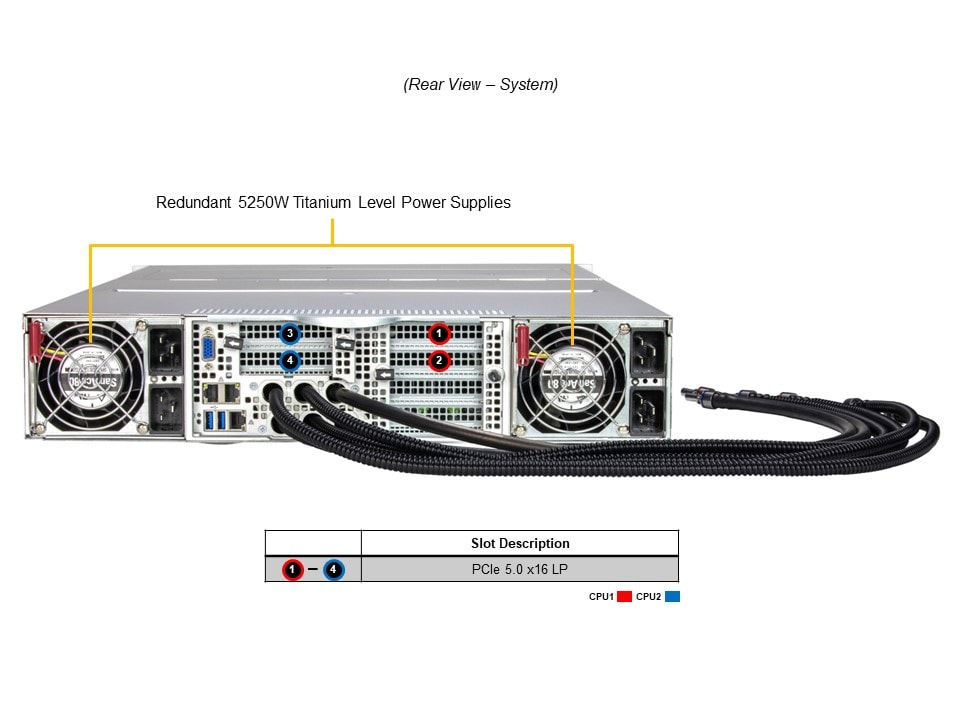

  • Default4 PCIe 5.0 x16 LP slots
  • 4 PCIe 5.0 x16 LP slots
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default)/2280)
Drive Bays / Storage
Drive Bays Configuration

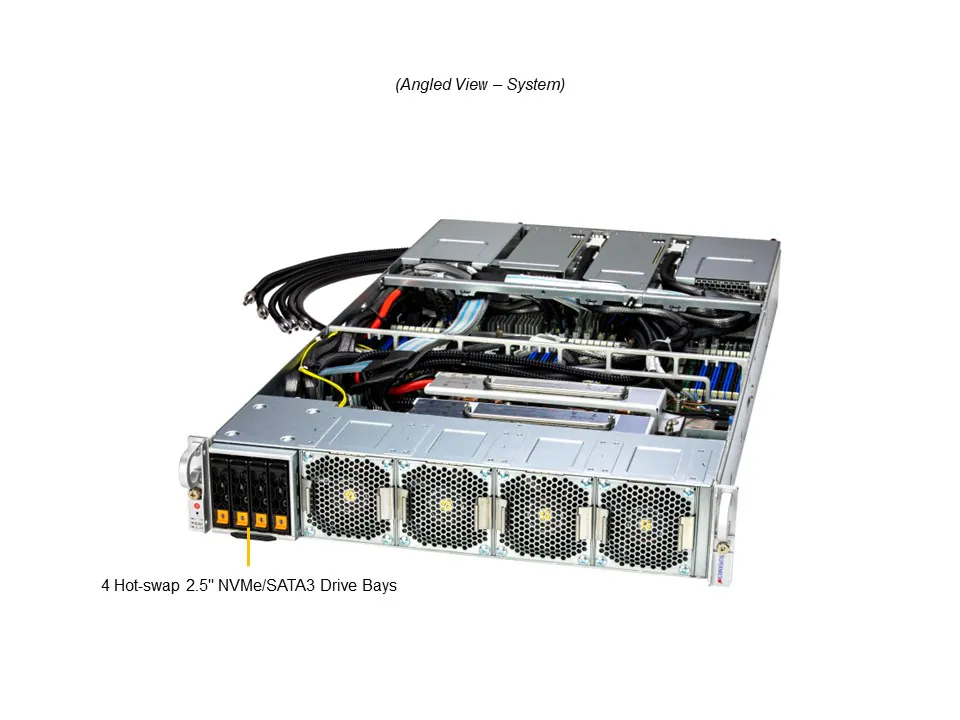

  • Default: Total 4 bays4 front hot-swap 2.5″ NVMe/SATA drive bays
  • 4 front hot-swap 2.5″ NVMe/SATA drive bays

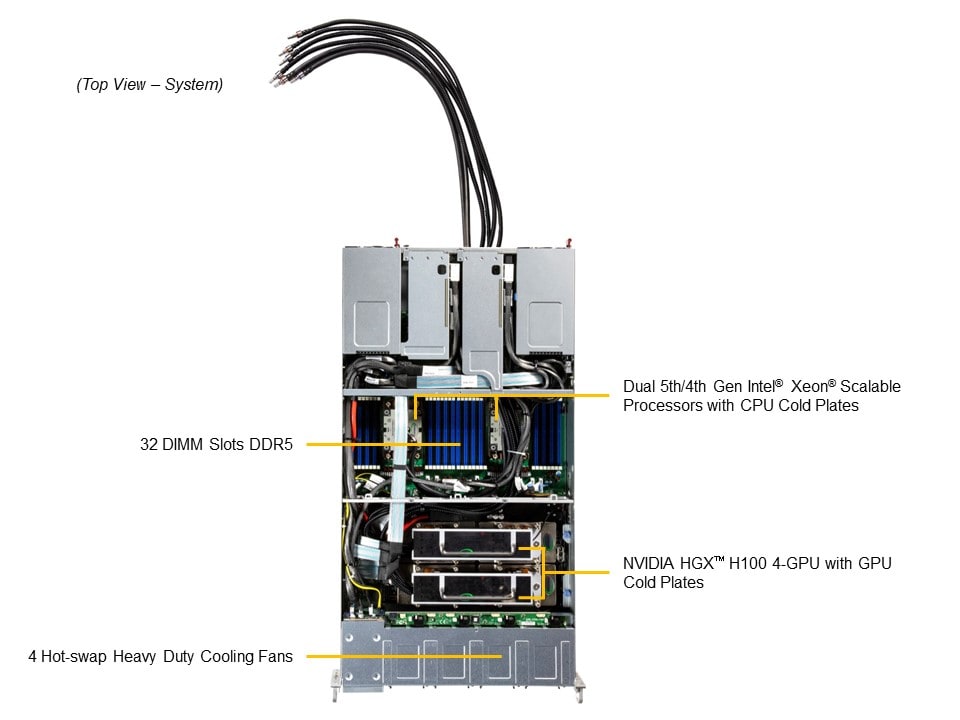

System Cooling
Fans
  • Up to 4 Fan 8cm Fan(s)
Air Shroud
  • 1 Air Shroud
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
  • 2x 5250W 2x 5250W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5250W: 200-240Vac / 50-60Hz +12VMax: 125A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)
  • 106.5 x 82.1 x 245.3 mm
Input
  • 5250W: 200-240Vac / 50-60Hz
+12V
  • Max: 125A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 5250W 2x 5250W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5250W: 200-240Vac / 50-60Hz +12VMax: 125A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
