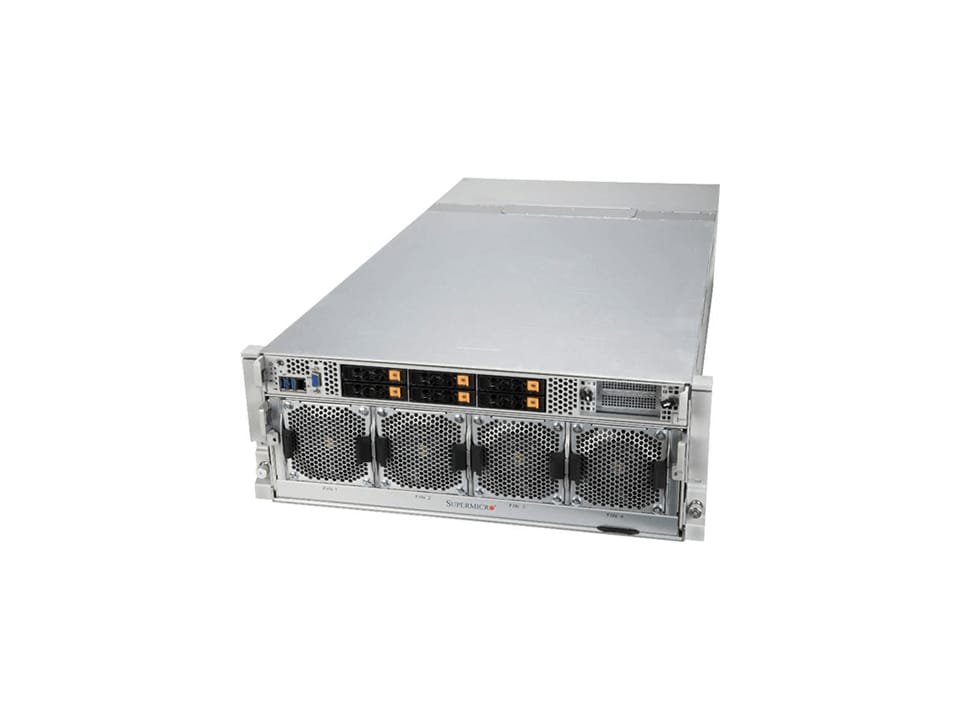

Supermicro SuperServer SYS-420GP-TNAR+
Supermicro SuperServer SYS-420GP-TNAR+ - imagine 2
Supermicro SuperServer SYS-420GP-TNAR+ - imagine 3
Supermicro SuperServer SYS-420GP-TNAR+ - imagine 4
Supermicro SuperServer SYS-420GP-TNAR+ - imagine 5
Supermicro SuperServer SYS-420GP-TNAR+ - imagine 6
Supermicro SuperServer SYS-420GP-TNAR+ - imagine 7
, , ,

Supermicro SuperServer SYS-420GP-TNAR+

Favorite
Compara

DP Intel System with NVIDIA HGX A100 8-GPU and 3000W Power Supplies

Pretul afisat contine TVA (21%).

SuperServer SYS-420GP-TNAR+

DP Intel System with NVIDIA HGX A100 8-GPU and 3000W Power Supplies

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  4. AIOM/OCP 3.0 Support10 PCIe Gen 4.0 X16 LP Slots
  5. AIOM/OCP 3.0 Support
  6. 10 PCIe Gen 4.0 X16 LP Slots
  7. Flexible networking options
  8. 6x 2.5″ Hot-swap NVMe/SATA/SAS drive bays2 M.2 NVMe and SATA for boot drive only

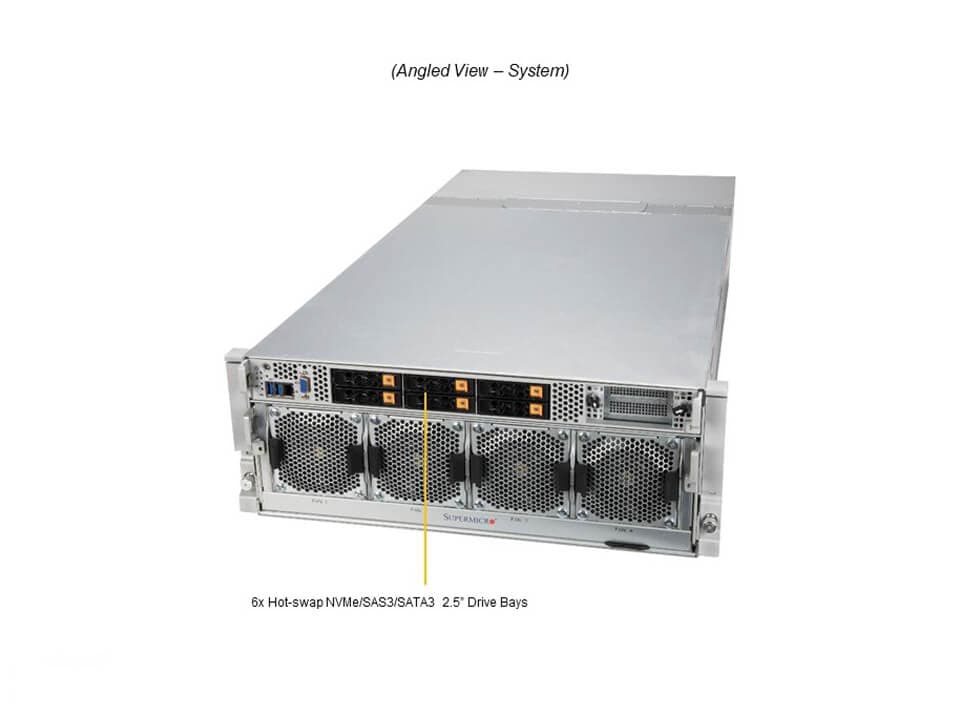

  9. 6x 2.5″ Hot-swap NVMe/SATA/SAS drive bays
  10. 2 M.2 NVMe and SATA for boot drive only

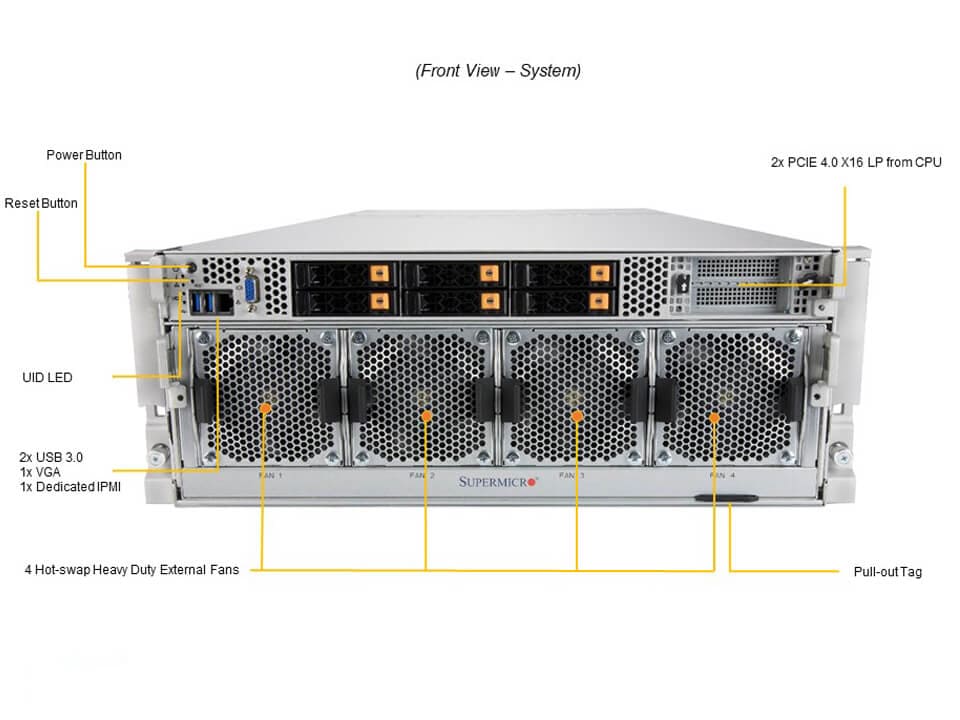

  11. 4 heavy duty fans with optimal fan speed control

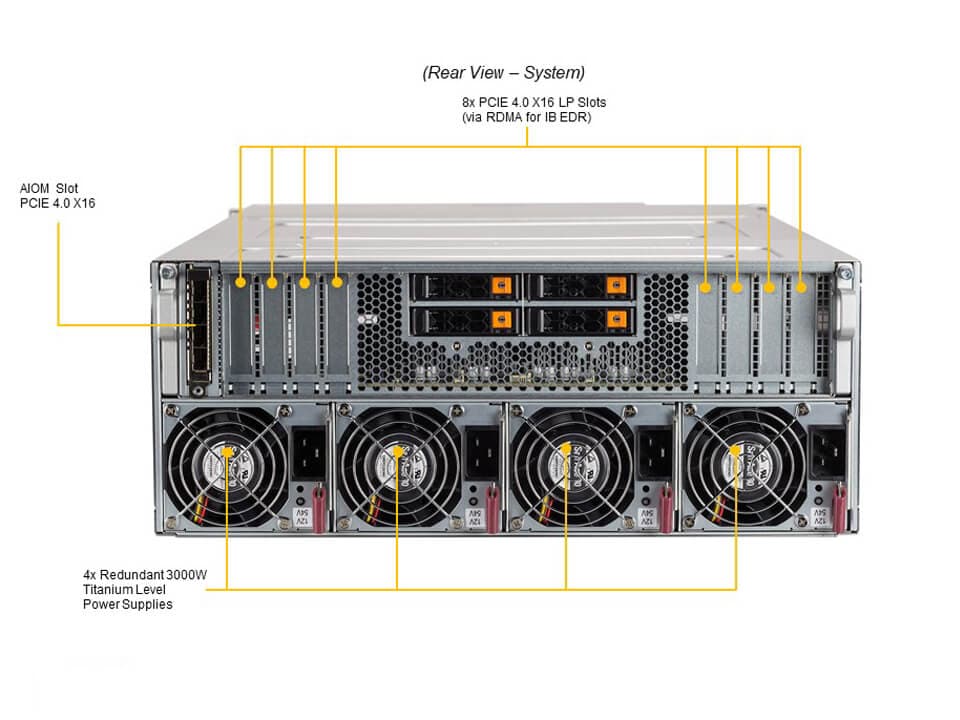

  12. 4x 3000W redundant Titanium level power supplies

Specifications

Product SKUs
  • SuperServer SYS-420GP-TNAR+
Motherboard
  • Super X12DGO-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • 8 onboard GPUs
Supported GPU

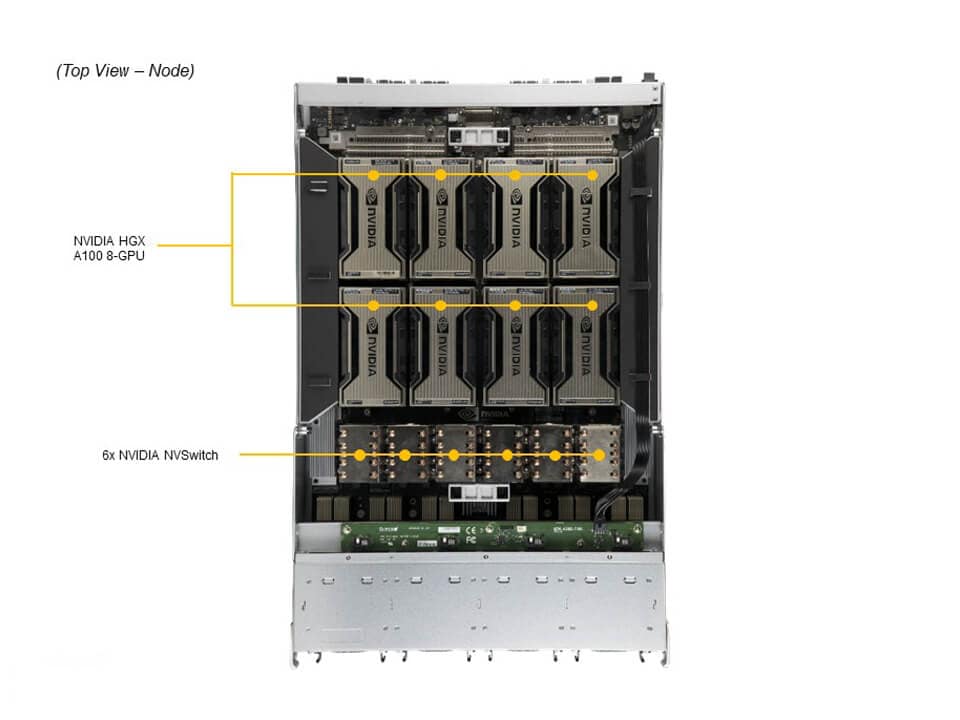

  • NVIDIA SXM: HGX A100 8-GPU (80GB)
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™ with NVSwitch™
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Network Connectivity
  • 2 RJ45 10GbE with Intel® X550-AT2 (optional)
Input / Output
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
  • SuperServer SYS-420GP-TNAR+
  • Super X12DGO-6
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-438G
Dimensions and Weight
Height
  • 6.9″ (174 mm)
Width
  • 17.6″ (446 mm)
Depth
  • 35.4″ (900 mm)
Package
  • 29.5″ (H) x 27.4″ (W) x 44.9″ (D)
Weight
  • Gross Weight: 225 lbs (102.1 kg)
  • Net Weight: 166 lbs (75.3 kg)
Available Color
  • Black Front & Silver Body
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default10 PCIe 4.0 x16 LP slots
  • 10 PCIe 4.0 x16 LP slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 6 bays6 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
  • 6 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
M.2
  • 2 M.2 NVMe/SATA slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 4 heavy duty fans with optimal fan speed control
Power Supply
  • 1x 3000W 1x 3000W Redundant Titanium Level (96%) power supply Dimension (WxHxL)106.5 x 82.4 x 203.5 mm Input2880W: 200-207Vac 2880W: 200-207Vac / 50-60Hz 3000W: 207.1-240Vac 3000W: 240Vdc 3000W: 207.1-240Vac / 50-60Hz 3000W: 240Vdc / 50-60Hz +12VMax: 91.66A / Min: 0A (Vdc-240Vdc)Max: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 106.5 x 82.4 x 203.5 mm
Input
  • 2880W: 200-207Vac 2880W: 200-207Vac / 50-60Hz 3000W: 207.1-240Vac 3000W: 240Vdc 3000W: 207.1-240Vac / 50-60Hz 3000W: 240Vdc / 50-60Hz
+12V
  • Max: 91.66A / Min: 0A (Vdc-240Vdc)Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 3000W 1x 3000W Redundant Titanium Level (96%) power supply Dimension (WxHxL)106.5 x 82.4 x 203.5 mm Input2880W: 200-207Vac 2880W: 200-207Vac / 50-60Hz 3000W: 207.1-240Vac 3000W: 240Vdc 3000W: 207.1-240Vac / 50-60Hz 3000W: 240Vdc / 50-60Hz +12VMax: 91.66A / Min: 0A (Vdc-240Vdc)Max: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
