Supermicro SuperServer SYS-420GP-TNR

Favorite
Compara

DP Intel, Dual-Root System with 10 PCIe GPUs

Pretul afisat contine TVA (21%).

SuperServer SYS-420GP-TNR

DP Intel, Dual-Root System with 10 PCIe GPUs

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  4. AIOM/OCP 3.0 Support12 PCIe Gen 4.0 X16 FHFL Slots
  5. AIOM/OCP 3.0 Support
  6. 12 PCIe Gen 4.0 X16 FHFL Slots
  7. Flexible networking options
  8. Total 24x 2.5″ Hot-swap drive bays8x HOT SWAP 2.5†NVMe8x HOT SWAP 2.5†SATA8x HOT SWAP 2.5†SATA/SAS (AOC required)2x M.2 NVMe for boot drive only
  9. Total 24x 2.5″ Hot-swap drive bays
  10. 8x HOT SWAP 2.5†NVMe
  11. 8x HOT SWAP 2.5†SATA
  12. 8x HOT SWAP 2.5†SATA/SAS (AOC required)
  13. 2x M.2 NVMe for boot drive only
  14. 8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  15. 4x 2000W redundant Titanium level power supplies

Specifications

Product SKUs
  • SuperServer SYS-420GP-TNR
Motherboard

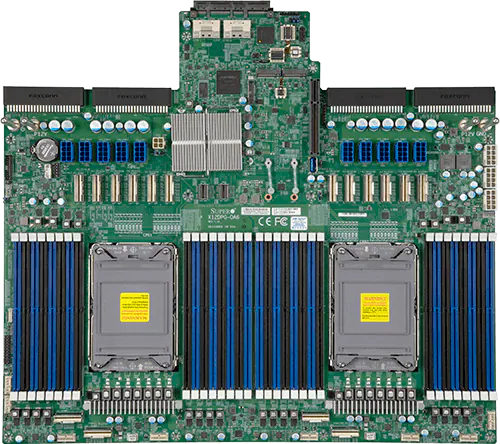

  • Super X12DPG-OA6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count

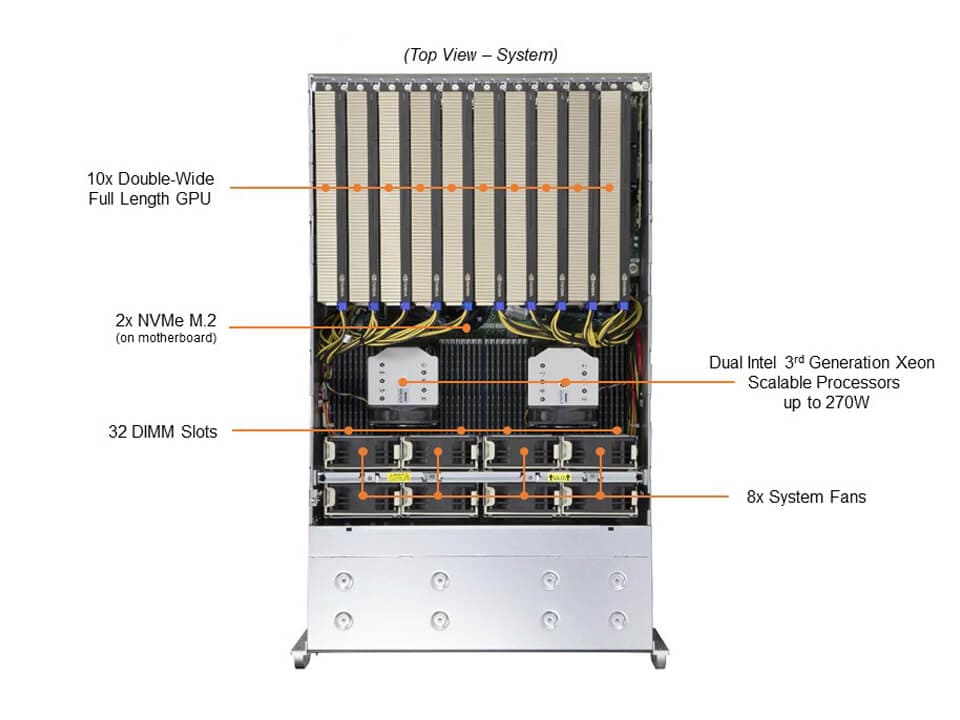

  • Up to 10 double-width or 10 single-width GPUs
Supported GPU
  • NVIDIA PCIe: H100, A10, A100, A16, A2, A30, A40, L40, RTX A2000, RTX A4000, RTX A4500, RTX A5000, RTX A5500, RTX A6000
  • Intel PCIe: Intel Data Center GPU Flex 170
CPU-GPU Interconnect
  • PCIe 4.0 x16 Switch Dual-Root
GPU-GPU Interconnect
  • NVIDIA® NVLink™ Bridge (optional)
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Network Connectivity
  • 2 RJ45 1GbE with Intel® I350
Input / Output
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-420GP-TNR
  • Super X12DPG-OA6
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-418G2TS-R4016BP
Dimensions and Weight
Height
  • 7″ (178 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29″ (737 mm)
Package
  • 26.57″ (H) x 27″ (W) x 41″ (D)
Weight
  • Gross Weight: 100 lbs (45.3 kg)
  • Net Weight: 65.5 lbs (29.7 kg)
Available Color
  • Black Front & Silver Body
Expansion Slots
PCI-Express (PCIe) Configuration

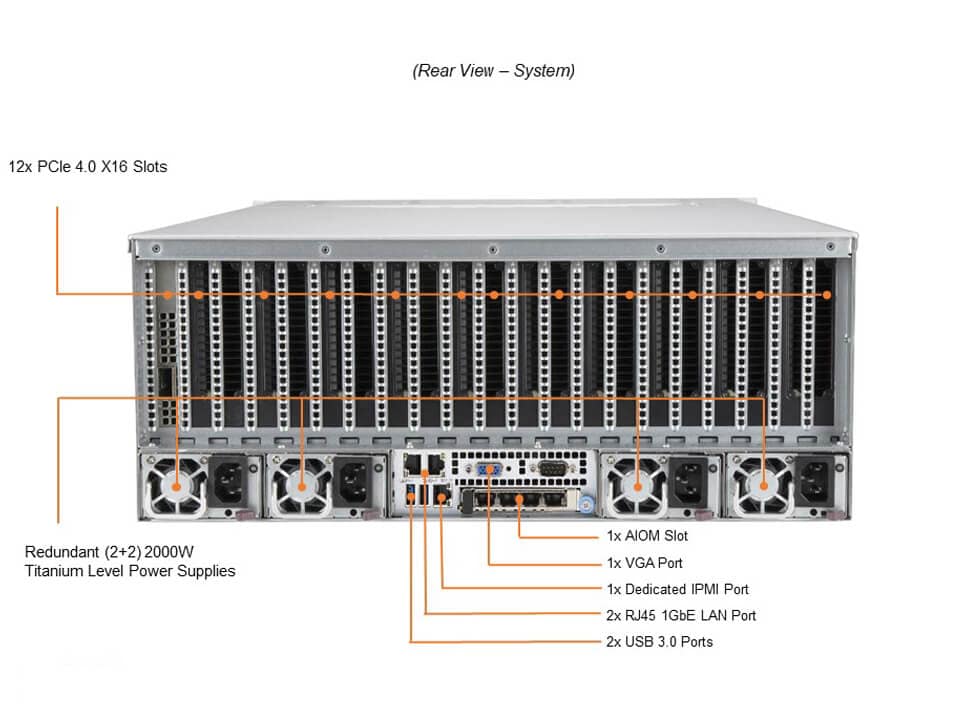

  • Default12 PCIe 4.0 x16 FHFL slots
  • 12 PCIe 4.0 x16 FHFL slots
Drive Bays / Storage
Drive Bays Configuration

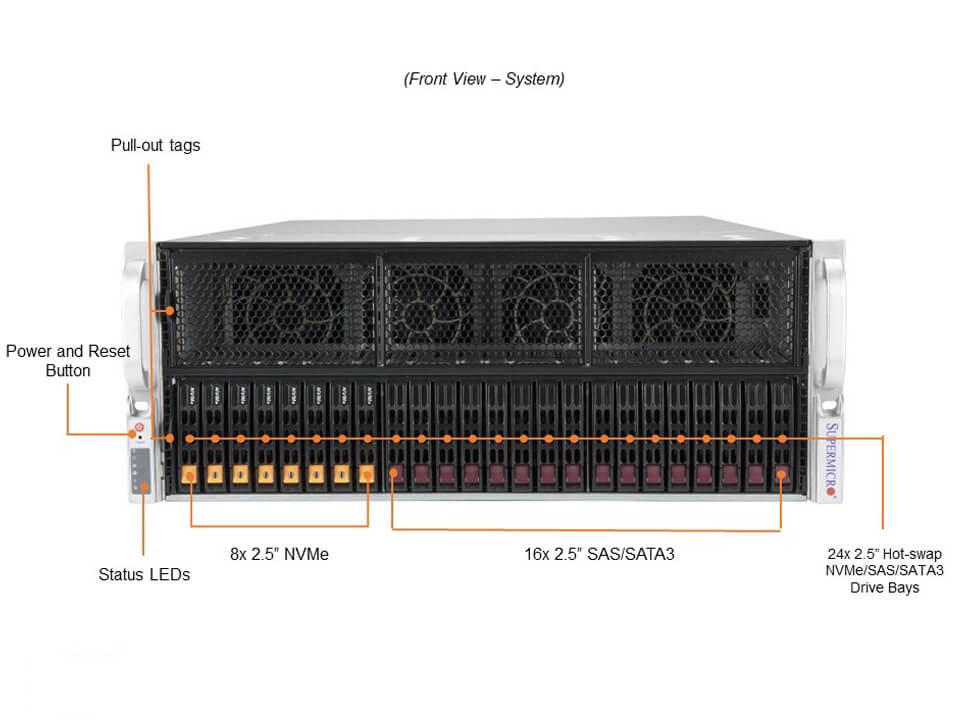

  • Default: Total 24 bays8 front hot-swap 2.5″ NVMe drive bays 16 front hot-swap 2.5″ SAS/SATA drive bays
  • 8 front hot-swap 2.5″ NVMe drive bays
  • 16 front hot-swap 2.5″ SAS/SATA drive bays
  • Option A: Total 24 bays24 front hot-swap 2.5″ NVMe*/SAS/SATA drive bays
  • 24 front hot-swap 2.5″ NVMe*/SAS/SATA drive bays
  • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 NVMe/SATA slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 8 heavy duty fans with optimal fan speed control
Power Supply
  • 4x 2000W 4x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A Max: 3.5A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 4x 2000W 4x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for China only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
