DP liquid cooled AI development platform

Pretul afisat contine TVA (21%).

SuperServer SYS-751GE-TNRT-NV1

DP liquid cooled AI development platform

Key Features

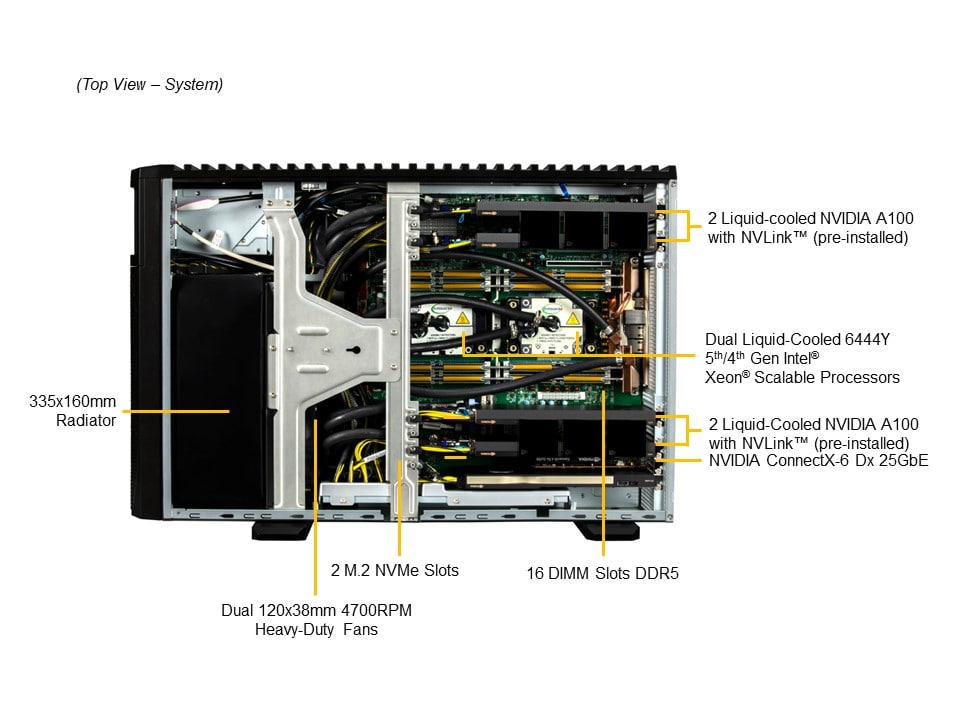

  1. Acoustically optimized for quiet operationClosed-loop liquid cooling for CPUs and GPUs
  2. 4 liquid-cooled NVIDIA A100 GPUs with NVIDIA® NVLink™ (2+2) installed
  3. Dual 4th Gen Intel® Xeon® Scalable Processors, 6444Y (16 cores at 3.6Ghz) installed
  4. Dual-port active-cooled NVIDIA Connect-X6 Dx 25G Network Adapter installed
  5. Supermicro Cloud Orchestrator AI software stack
  6. Ubuntu 22.04 LTS installed

Specifications

Product SKUs
  • SuperServer SYS-751GE-TNRT-NV1
Motherboard

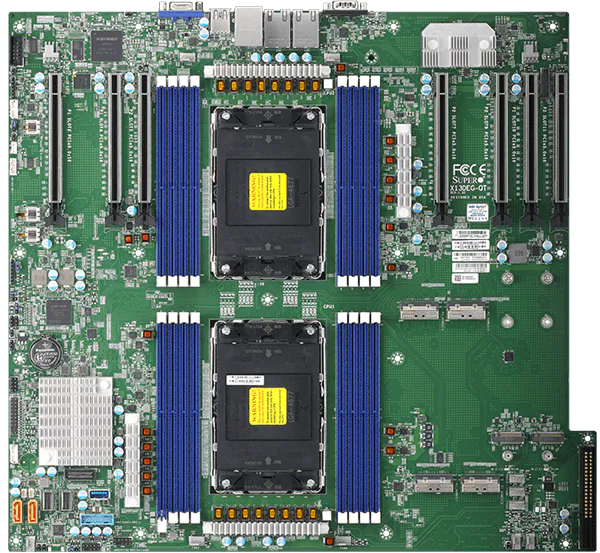

  • Super X13DEG-QT
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • 16C/32T; 30MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
  • Supports up to 350W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • Up to 4 double-width GPUs
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™ Bridge (2+2)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): 512GB 4800MT/s ECC DDR5
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Network Connectivity
  • 2 RJ45 10GbE with Intel® X550-AT2
  • 1 RJ45 1GbE with ASPEED AST2600
  • 1 SFP28 25GbE

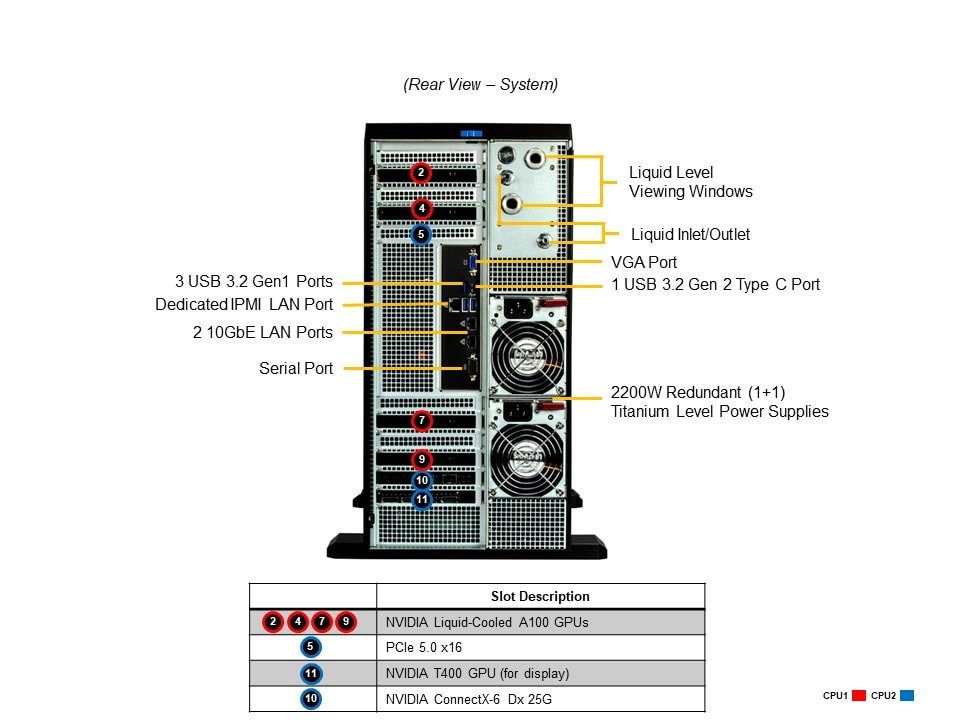

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GbE LAN ports
  • 1 SFP28 25 GbE LAN port
USB
  • 2 USB 3.2 Gen1 ports(front)
  • 3 USB 3.2 Gen1 ports(rear)
  • 1 USB 3.2 Gen2 port(rear)
Video
  • 1 VGA port
DOM
  • 2 SATA DOM (Disk on Module) ports
Audio
  • 7.1 HD Audio
  • Line Out
  • Mic in
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-751GE-TNRT-NV1
  • Super X13DEG-QT
Chassis
Form Factor
  • Tower or 5U Rackmount
Model
  • CSE-759TS-R2K21BP

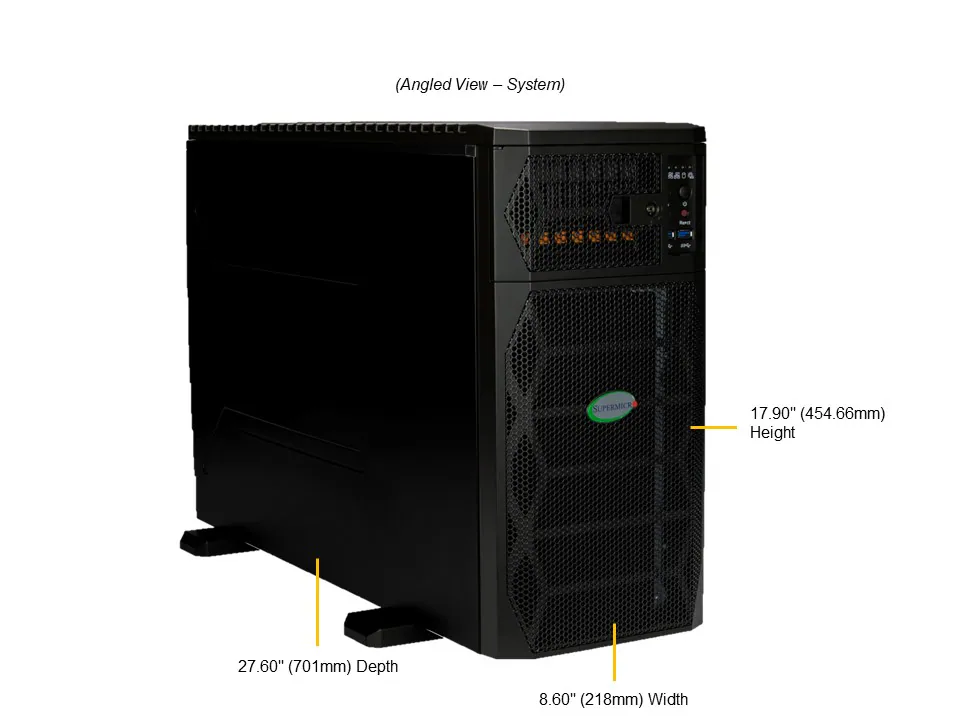

Dimensions and Weight
Height
  • 8.6″ (218.4 mm)
Width
  • 17.9″ (454.7 mm)
Depth
  • 27.6″ (701 mm)
Package
  • 25.8″ (H) x 15.3″ (W) x 37.6″ (D)
Weight
  • Gross Weight: 121 lbs (55 kg)
  • Net Weight: 97 lbs (44 kg)
Available Color
  • Black Front & Black Body

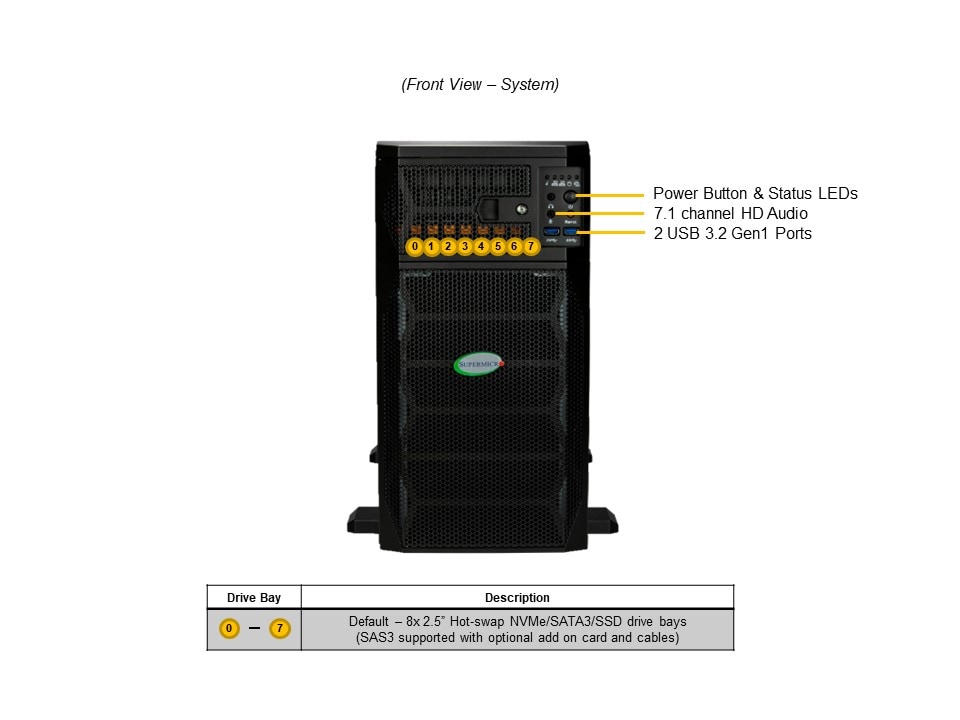

Front Panel
Buttons
  • Power On/Off button
  • Reset button
LED
  • HDD activity LED
  • Information LED
  • Network 1 activity LED
  • Network 2 activity LED
  • Power status LED
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default7 PCIe 5.0 x16 FHFL slots
  • 7 PCIe 5.0 x16 FHFL slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap 2.5″ NVMe/SAS*/SATA drive bays
  • 8 front hot-swap 2.5″ NVMe/SAS*/SATA drive bays
  • (*SAS support may require additional storage controller and/or cables)
M.2
  • 2 M.2 NVMe slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 1 fan 8cm Fan(s)
  • Up to 2 fan 12cm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
  • 1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)106.5 x 82.1 x 203.5 mm Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vdc (China only)2090W: 230-240Vac 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac (UL/cUL only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 106.5 x 82.1 x 203.5 mm
Input
  • 1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vdc (China only)2090W: 230-240Vac 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac (UL/cUL only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
12V SB
  • Max: 3A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 25°C (50°F to 77°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)106.5 x 82.1 x 203.5 mm Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vdc (China only)2090W: 230-240Vac 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac (UL/cUL only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
