8U AI training platform with 8 Gaudi®2 accelerators

Pretul afisat contine TVA (21%).

SuperServer SYS-820GH-TNR2

8U AI training platform with 8 Gaudi®2 accelerators

Key Features

  1. Dual Intel® Xeon® 3rd Gen Scalable Processors (Ice Lake) TDP up to 270W
  2. Intel® C621A Chipset
  3. 32x DIMM slots, up to 8TB Registered ECC DDR4 3200MHz SDRAM
  4. 2x PCIe 4.0 x16 FHFL slot and 2x PCIe 4.0 x8 FHFL slot
  5. 6x 400GbE QSFP-DD for scale-out and 1x 1GbE BaseT (dedicated IPMI port)
  6. 4x 2.5â€NVMe Hot-Swap Drive BaysUp to 8x 2.5″ SATA Hot-Swap Drive BaysUp to 16x 2.5″ SATA Hot-Swap Drive Bays (Additional SAOC is required)
  7. 4x 2.5â€NVMe Hot-Swap Drive Bays
  8. Up to 8x 2.5″ SATA Hot-Swap Drive Bays
  9. Up to 16x 2.5″ SATA Hot-Swap Drive Bays (Additional SAOC is required)
  10. 12x Removable Heavy-Duty FANs (Includes 2x Dummy PSU FAN)
  11. 6x 3000W(54V+12V) Redundant Power Supplies, Titanium Level

Specifications

Product SKUs
  • SuperServer SYS-820GH-TNR2
Motherboard

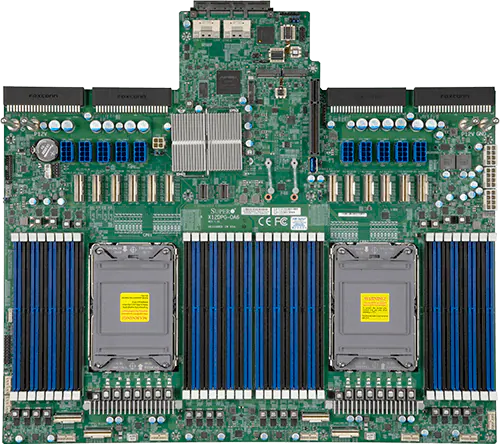

  • Super X12DPG-OA6-GD2
Processor
CPU
  • Dual Socket P+ (LG-4189)
  • 3rd Gen Intel® Xeon® Scalable Processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 8 double-width GPUs
Supported GPU

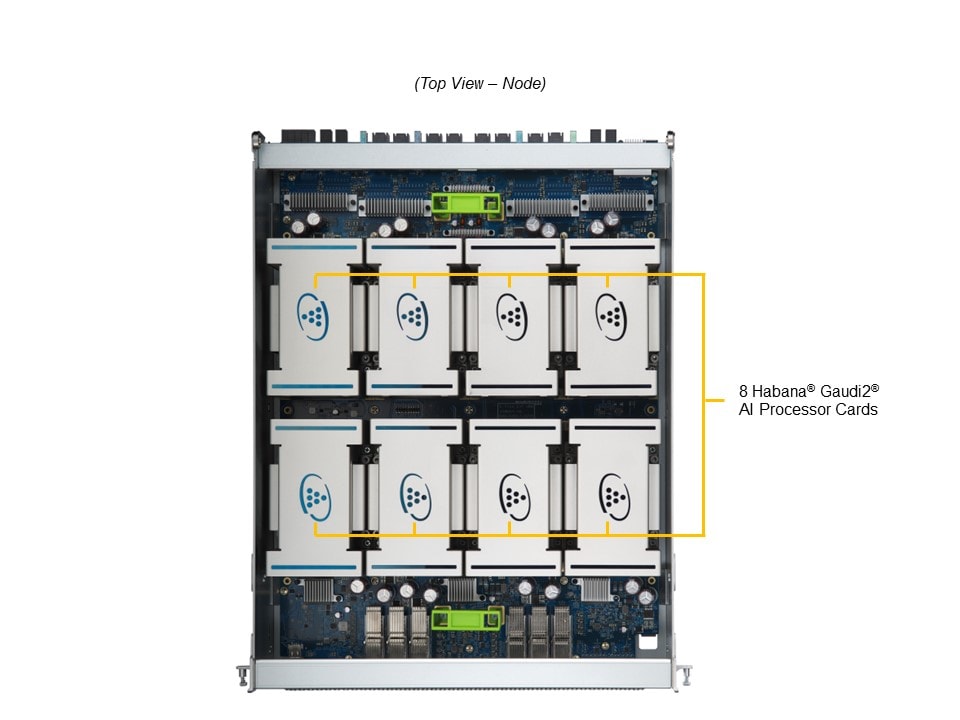

  • Intel OAM: Gaudi 2
CPU-GPU Interconnect
  • PCIe Gen4 x16
GPU-GPU Interconnect
  • 21x 100GbE PAM4 SerDes Links

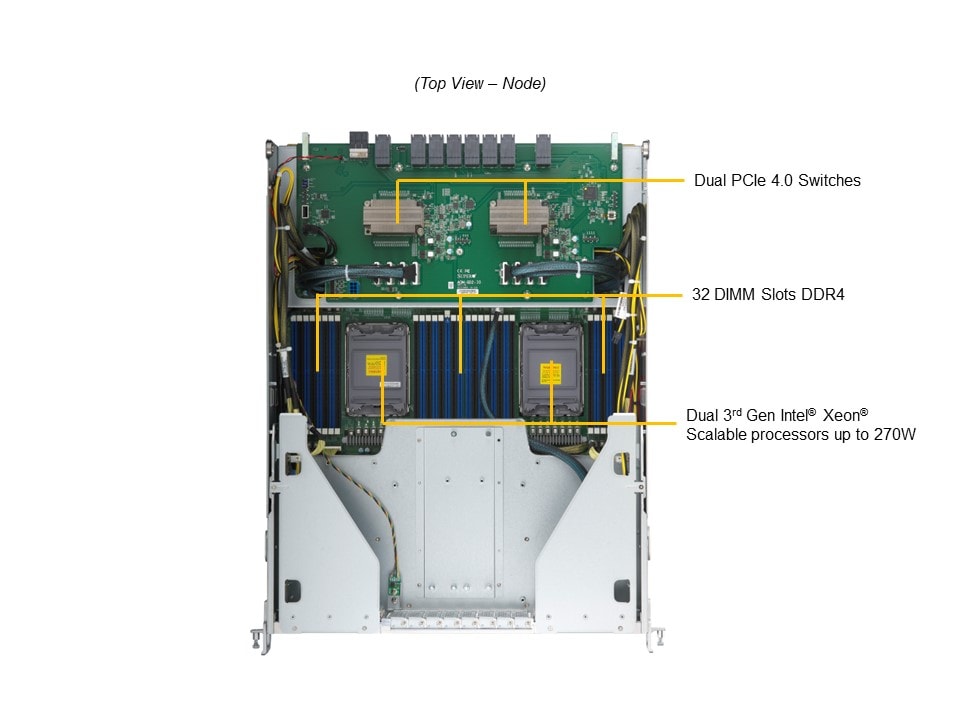

System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • 6 QSFP-DD 400GbE
  • 1 RJ45 1GbE
Input / Output
LAN
  • 1 RJ45 1 GbE LAN port
USB
  • 2 USB 3.0 ports
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-820GH-TNR2
  • Super X12DPG-OA6-GD2
Chassis
Form Factor
  • 8U Rackmount
Model
  • CSE-GP802TS-R000NP
Dimensions and Weight
Height
  • 14″ (356 mm)
Width
  • 17.6″ (447 mm)
Depth
  • 31.5″ (800 mm)
Package
  • 26.8″ (H) x 40″ (W) x 55.2″ (D)
Weight
  • Gross Weight: 282 lbs (128 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off button
  • Reset button
LED
  • HDD Information LED
  • Information LED
  • Power Failed LED
  • Power On LED
  • PSU Failed LED
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x16 FHFL slots 2 PCIe 4.0 x8 FHFL slots
  • 2 PCIe 4.0 x16 FHFL slots
  • 2 PCIe 4.0 x8 FHFL slots

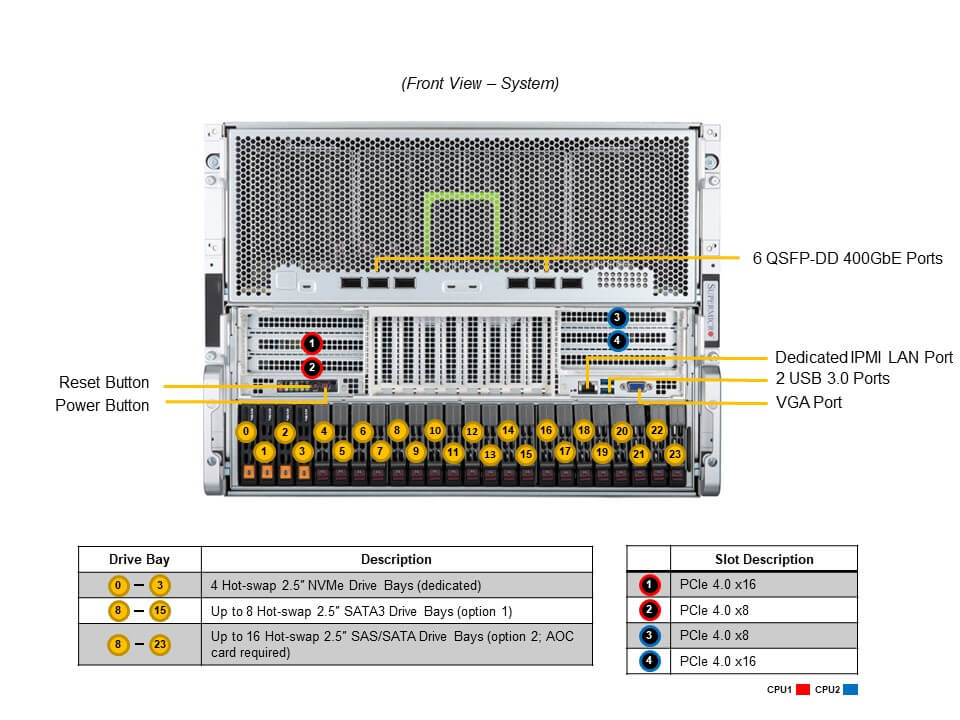

Drive Bays / Storage
Drive Bays Configuration

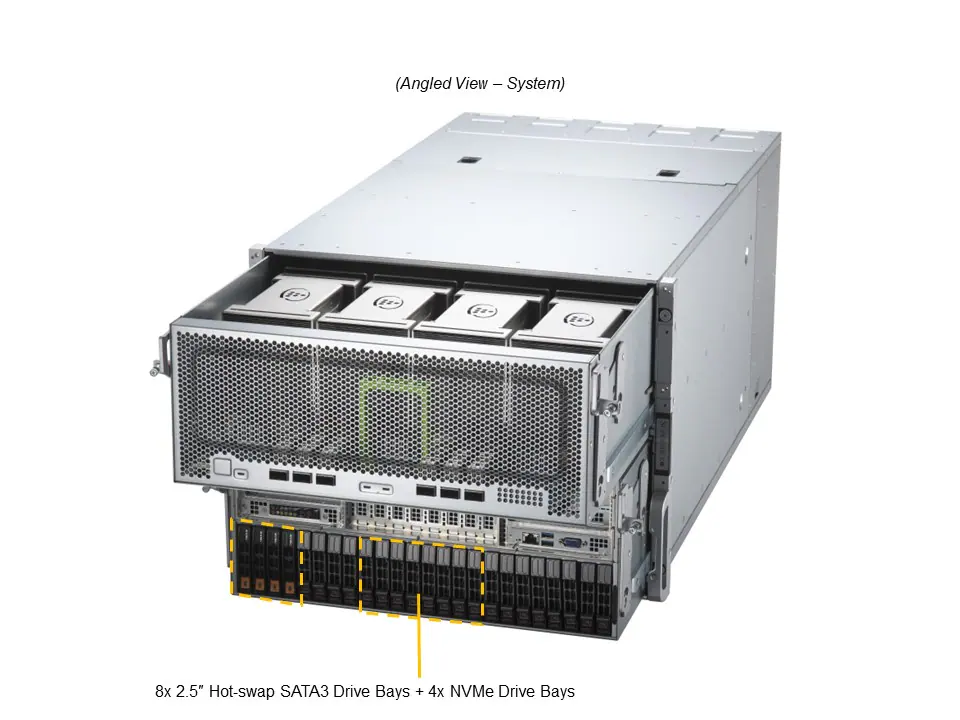

  • Default: Total 12 bays4 front hot-swap 2.5″ NVMe drive bays 8 front hot-swap 2.5″ SATA drive bays
  • 4 front hot-swap 2.5″ NVMe drive bays
  • 8 front hot-swap 2.5″ SATA drive bays
  • Option A: Total 20 bays4 front hot-swap 2.5″ NVMe drive bays 16 front hot-swap 2.5″ SATA* drive bays
  • 4 front hot-swap 2.5″ NVMe drive bays
  • 16 front hot-swap 2.5″ SATA* drive bays
  • (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 NVMe/SATA slots (M-key)
  • View M.2 Options

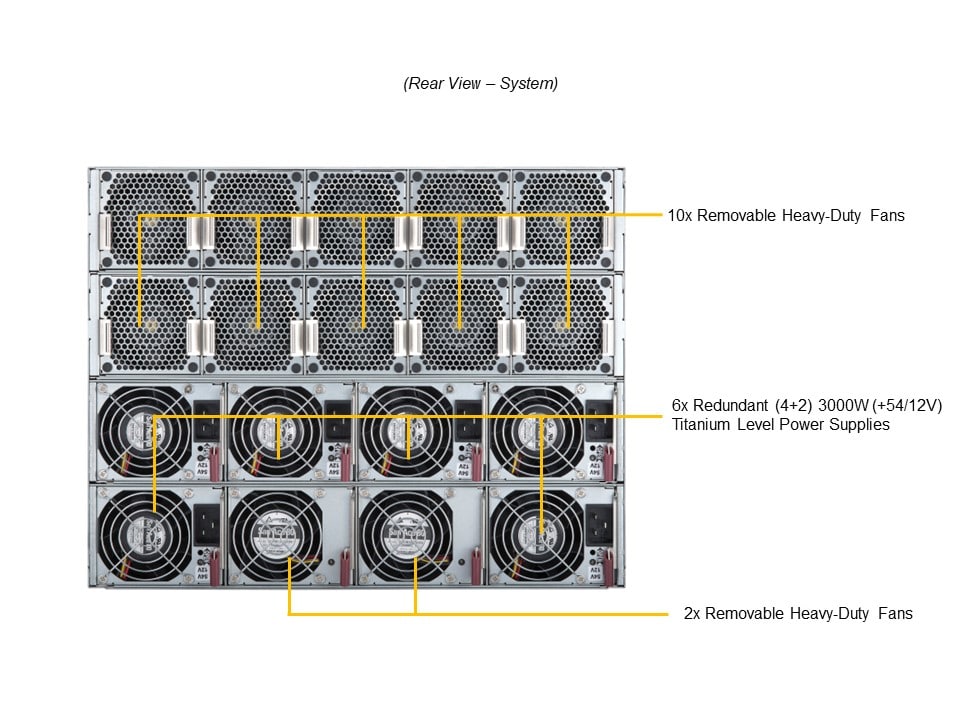

System Cooling
Fans
  • Up to 2 Removable Heavy-Duty 106.5 x 203.5 x 82.4mm Fan(s)
  • Up to 10 Removable Heavy-Duty 80 x 80 x 80mm Fan(s)
Power Supply
  • 6x 3000W 6x 3000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.4 x 203.5 mm Input2880W: 200-207Vac 2880W: 200-207Vac / 50-60Hz 3000W: 207.1-240Vac 3000W: 240Vdc 3000W: 207.1-240Vac / 50-60Hz 3000W: 240Vdc / 50-60Hz +12VMax: 91.66A / Min: 0A (Vdc-240Vdc)Max: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 106.5 x 82.4 x 203.5 mm
Input
  • 2880W: 200-207Vac 2880W: 200-207Vac / 50-60Hz 3000W: 207.1-240Vac 3000W: 240Vdc 3000W: 207.1-240Vac / 50-60Hz 3000W: 240Vdc / 50-60Hz
+12V
  • Max: 91.66A / Min: 0A (Vdc-240Vdc)Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
  • 6x 3000W 6x 3000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.4 x 203.5 mm Input2880W: 200-207Vac 2880W: 200-207Vac / 50-60Hz 3000W: 207.1-240Vac 3000W: 240Vdc 3000W: 207.1-240Vac / 50-60Hz 3000W: 240Vdc / 50-60Hz +12VMax: 91.66A / Min: 0A (Vdc-240Vdc)Max: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
