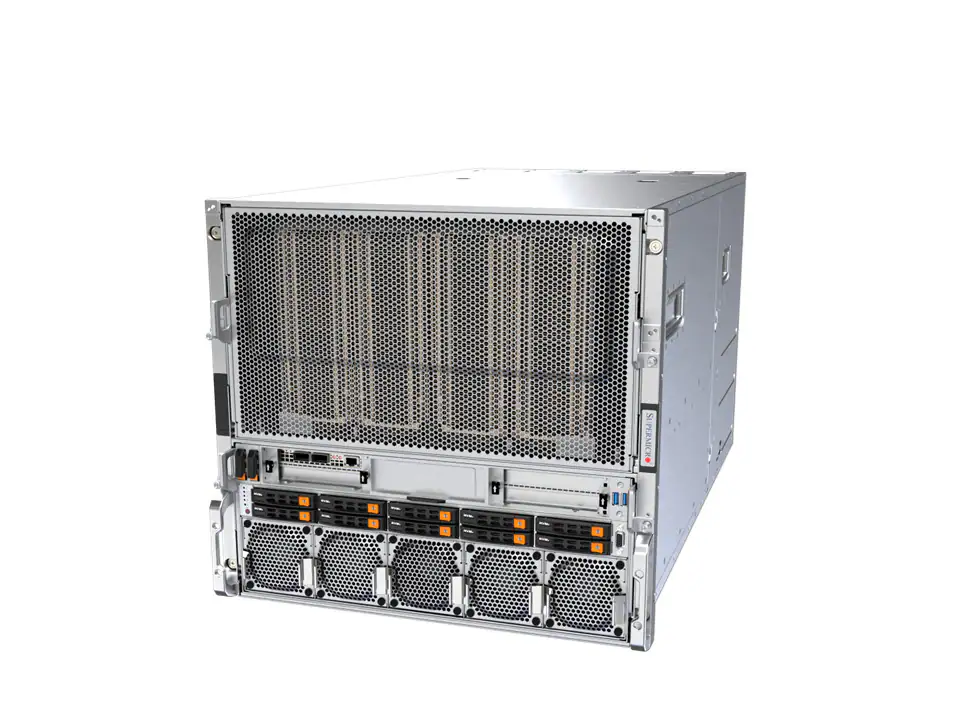

Supermicro SuperServer SYS-A21GE-NBRT
Supermicro SuperServer SYS-A21GE-NBRT - imagine 2
Supermicro SuperServer SYS-A21GE-NBRT - imagine 3
, , ,

Supermicro SuperServer SYS-A21GE-NBRT

Favorite
Compara

DP Intel 10U System with NVIDIA HGX B200 8-GPU

Pretul afisat contine TVA (21%).

SuperServer SYS-A21GE-NBRT

DP Intel 10U System with NVIDIA HGX B200 8-GPU

Key Features

  1. Dual 5th/4th Gen Intel® Xeon® Scalable processors
  2. 8x NVIDIA B200 SXM GPUs, 1.4TB HBM3e GPU Memory Space
  3. 32x DIMM slots, DDR5 up to 5600MT/s(1DPC), 4800MT/s(2DPC)
  4. 8x PCIe 5.0 x16 LP, 2x PCIe 5.0 x16 FHHL slots
  5. 10x Front Hot-swap 2.5″ NVMe U.2 , 2x NVMe M.2
  6. 2x 10GbE RJ-45, 1x Dedicated BMC/IPMI
  7. 6x 5250W Redundant (3+3) Power Supplies Titanium Level Efficiency

Specifications

Product SKUs
  • SuperServer SYS-A21GE-NBRT
Motherboard

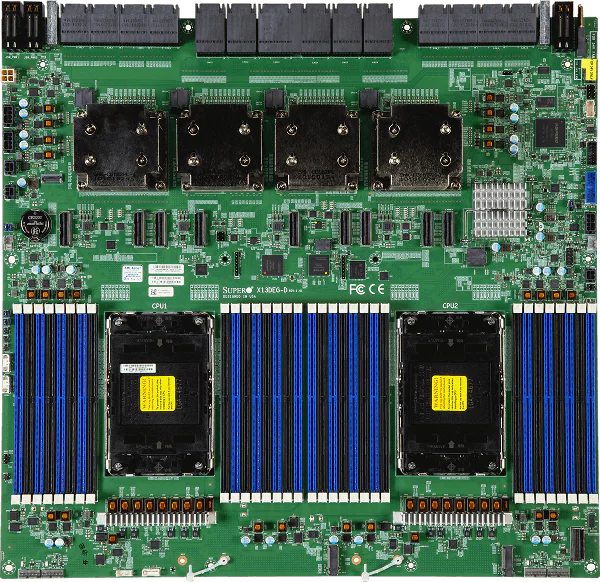

  • Super X13DEG-D
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • 8 onboard GPUs
Supported GPU
  • NVIDIA SXM: HGX B200 8-GPU (180GB)
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™ with NVSwitch™
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • 2 RJ45 10GbE
Input / Output
USB
  • 2 USB 3.0 Type-A ports(Front)
Video
  • 1 VGA port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB UEFI
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-A21GE-NBRT
  • Super X13DEG-D
Chassis
Form Factor
  • 10U Rackmount
Model
  • CSE-GP1001TS-R000NPF
Dimensions and Weight
Height
  • 17.2″ (438.8 mm)
Width
  • 17.6″ (449 mm)
Depth
  • 33.2″ (843.28 mm)
Package
  • 27.95″ (H) x 28.74″ (W) x 50.39″ (D)
Weight
  • Gross Weight: 341 lbs (155 kg)
  • Net Weight: 293 lbs (133 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
  • UID/ Reset button
LED
  • HDD activity
  • Network activity LEDs
  • System information (overheat/UID)
  • UID
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots
  • 8 PCIe 5.0 x16 LP slots
  • 2 PCIe 5.0 x16 FHHL slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 10 bays10 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays
  • 10 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays
  • (*NVMe support may require additional storage controller and/or cables)
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110; VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • Up to 15 heavy duty hot-swappable 80mm Fan(s)
  • Up to 4 heavy duty internal 60mm Fan(s)
Power Supply
  • 6x 5250W 6x 5250W Redundant (3 + 3) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5250W: 200-240Vac / 50-60Hz +12VMax: 125A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)
  • 106.5 x 82.1 x 245.3 mm
Input
  • 5250W: 200-240Vac / 50-60Hz
+12V
  • Max: 125A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 6x 5250W 6x 5250W Redundant (3 + 3) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5250W: 200-240Vac / 50-60Hz +12VMax: 125A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
