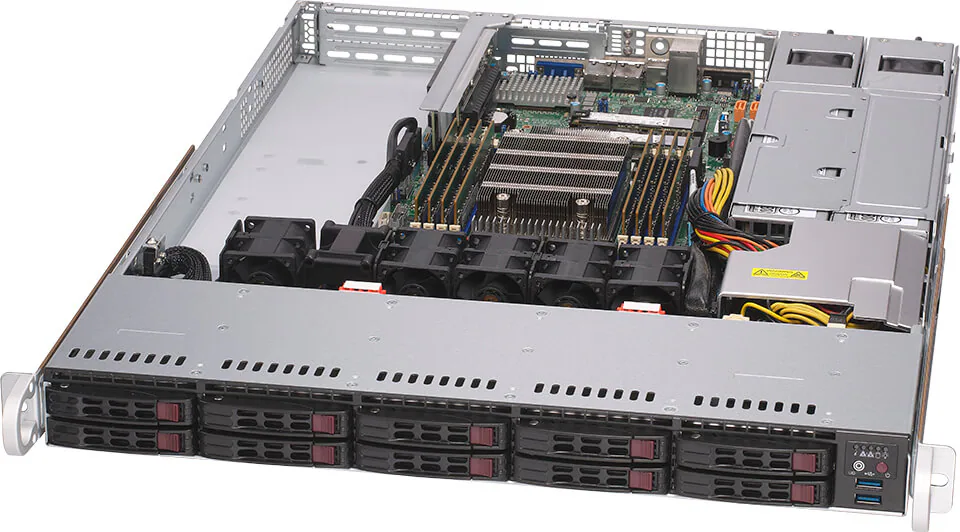

Supermicro SuperServer AS -1114S-WTRT
Supermicro SuperServer AS -1114S-WTRT - imagine 2
Supermicro SuperServer AS -1114S-WTRT - imagine 3
Supermicro SuperServer AS -1114S-WTRT - imagine 4
Supermicro SuperServer AS -1114S-WTRT - imagine 5
Supermicro SuperServer AS -1114S-WTRT - imagine 6
, , ,

Supermicro SuperServer AS -1114S-WTRT

Favorite
Compara

1U WIO with 10 hot-swap SATA bays and dual 10GbE

Pretul afisat contine TVA (21%).

SuperServer AS -1114S-WTRT

1U WIO with 10 hot-swap SATA bays and dual 10GbE

Key Features

  1. Single AMD EPYC™ 7003/7002 Series Processor(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. 8 DIMMs; up to 2TB 3DS ECCDDR4-3200MHz RDIMM/LRDIMM
  3. 2 PCIe 4.0 x16 FHFL slots1 PCIe 4.0 x16 LP slot

Specifications

Product SKUs
  • A+ Server AS -1114S-WTRT Standard version with PWS-504P-1R (Platinum Level)
  • A+ Server AS -1114S-WTRT-EU European version with PWS-601A-1R (Titanium Level)
Motherboard

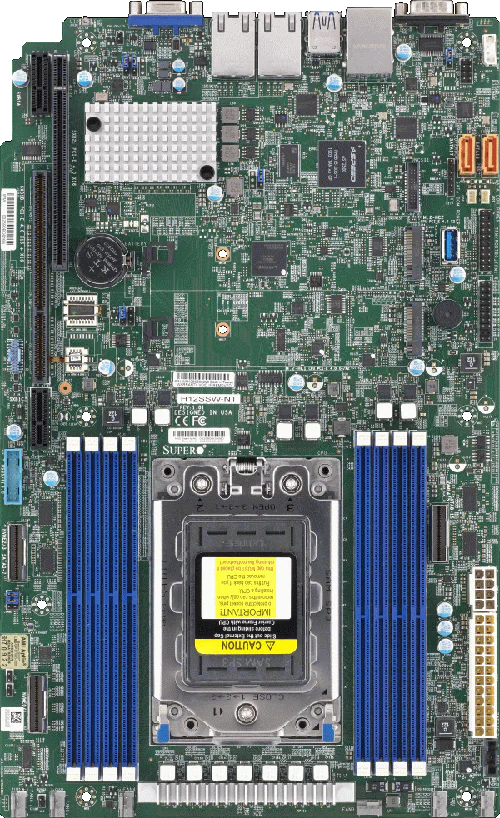

  • Super H12SSW-NT
Processor
CPU
  • Single Socket SP3
  • AMD EPYC™ 7002/7003 Series Processors
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 2 single-width GPUs
Supported GPU
  • NVIDIA PCIe: A2, T4
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • 2 RJ45 10GbE
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

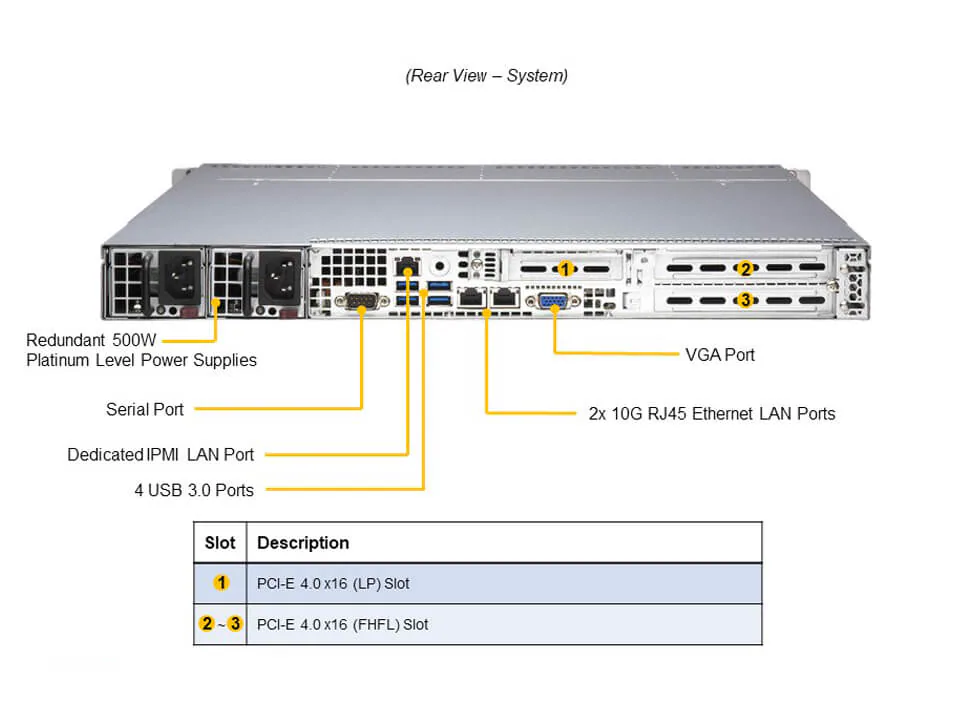

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 7 USB 3.0 ports
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • KVM with dedicated LAN
  • IPMI 2.0
  • Watch Dog
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • A+ Server AS -1114S-WTRT Standard version with PWS-504P-1R (Platinum Level)
  • A+ Server AS -1114S-WTRT-EU European version with PWS-601A-1R (Titanium Level)
  • Super H12SSW-NT
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-116TS-R504WBP
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 23.5″ (597 mm)
Package
  • 8″ (H) x 24″ (W) x 32″ (D)
Weight
  • Gross Weight: 46 lbs (20.9 kg)
  • Net Weight: 25 lbs (11.34 kg)
Available Color
  • Black

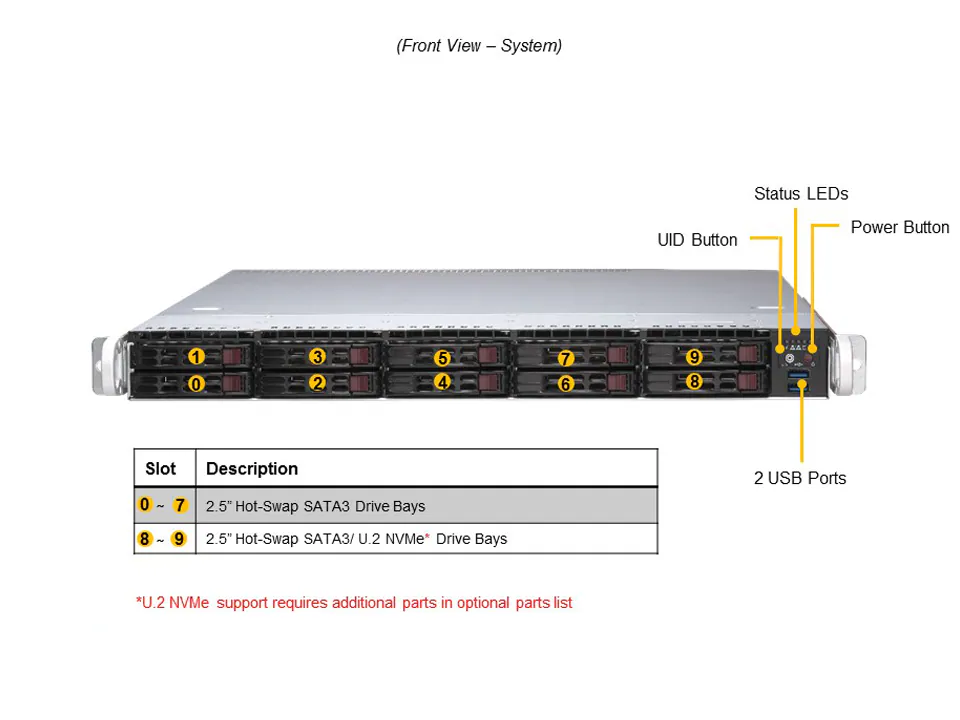

Front Panel
Buttons
  • Power On/Off
  • UID button
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x16 FHFL slots 1 PCIe 4.0 x16 LP slot
  • 2 PCIe 4.0 x16 FHFL slots
  • 1 PCIe 4.0 x16 LP slot
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe/SATA slots (M-key)
Drive Bays / Storage
Drive Bays Configuration

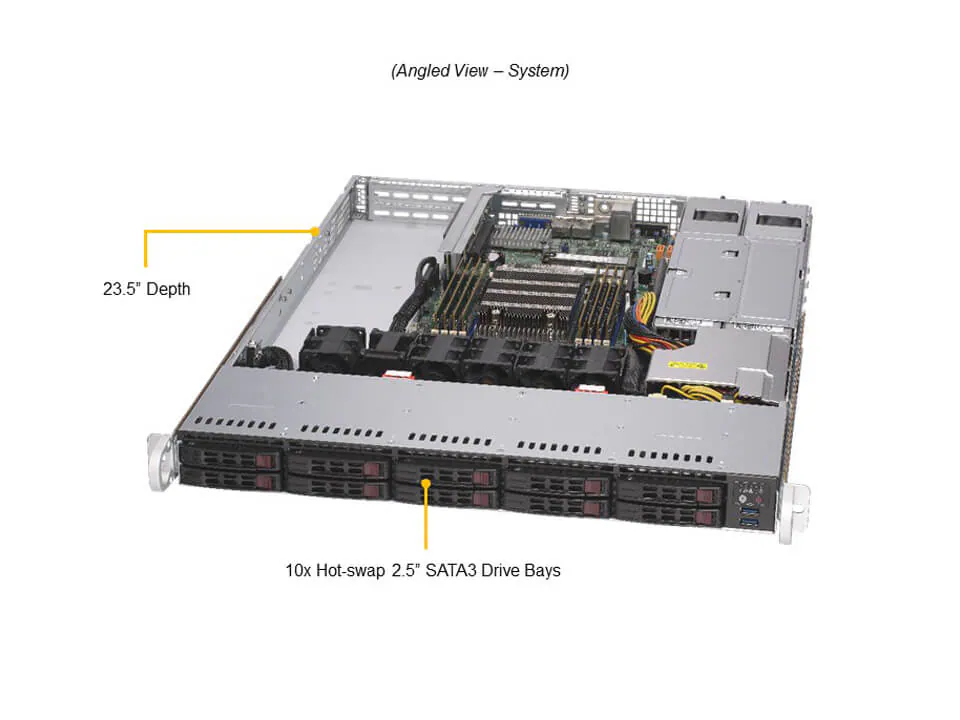

  • Default: Total 10 bays10 front hot-swap 2.5″ SATA drive bays
  • 10 front hot-swap 2.5″ SATA drive bays
  • Option A: Total 10 bays8 front hot-swap 2.5″ SATA drive bays 2 front hot-swap 2.5″ PCIe 3.0 NVMe* drive bays
  • 8 front hot-swap 2.5″ SATA drive bays
  • 2 front hot-swap 2.5″ PCIe 3.0 NVMe* drive bays
  • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)

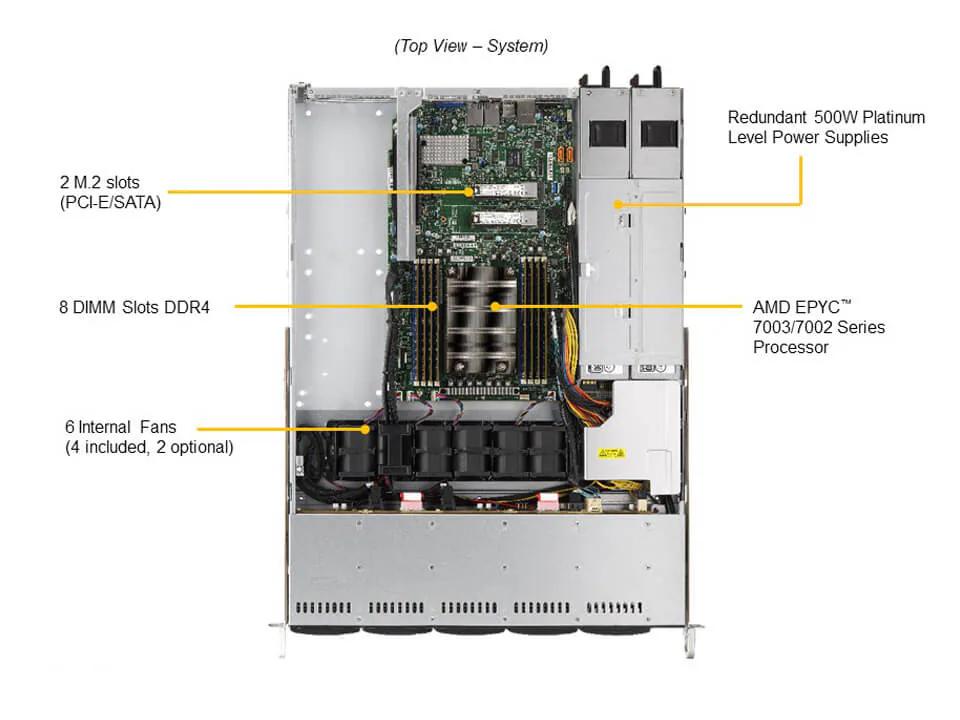

System Cooling
Fans
  • Up to 6 heavy duty fans with optimal fan speed control
Power Supply
  • 2x 500W 2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 320 mm Input500W: 100-240Vac / 50-60Hz +12VMax: 42A / Min: 0.5A Max: 42A / Min: 0.5A (100Vac-240Vac) 5V SBMax: 4A / Min: 0A Max: 3A / Min: 0A Output TypeBackplanes (gold finger) Certification Platinum Level [ Test Report ]
Dimension (WxHxL)
  • 54.5 x 40.25 x 320 mm
Input
  • 500W: 100-240Vac / 50-60Hz
+12V
  • Max: 42A / Min: 0.5A Max: 42A / Min: 0.5A (100Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A Max: 3A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Platinum Level [ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 2x 500W 2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 320 mm Input500W: 100-240Vac / 50-60Hz +12VMax: 42A / Min: 0.5A Max: 42A / Min: 0.5A (100Vac-240Vac) 5V SBMax: 4A / Min: 0A Max: 3A / Min: 0A Output TypeBackplanes (gold finger) Certification Platinum Level [ Test Report ]
Standard Parts (Parts Included)
