Supermicro SuperServer AS -2114S-WN24RT
Supermicro SuperServer AS -2114S-WN24RT - imagine 2
, , ,

Supermicro SuperServer AS -2114S-WN24RT

Favorite
Compara

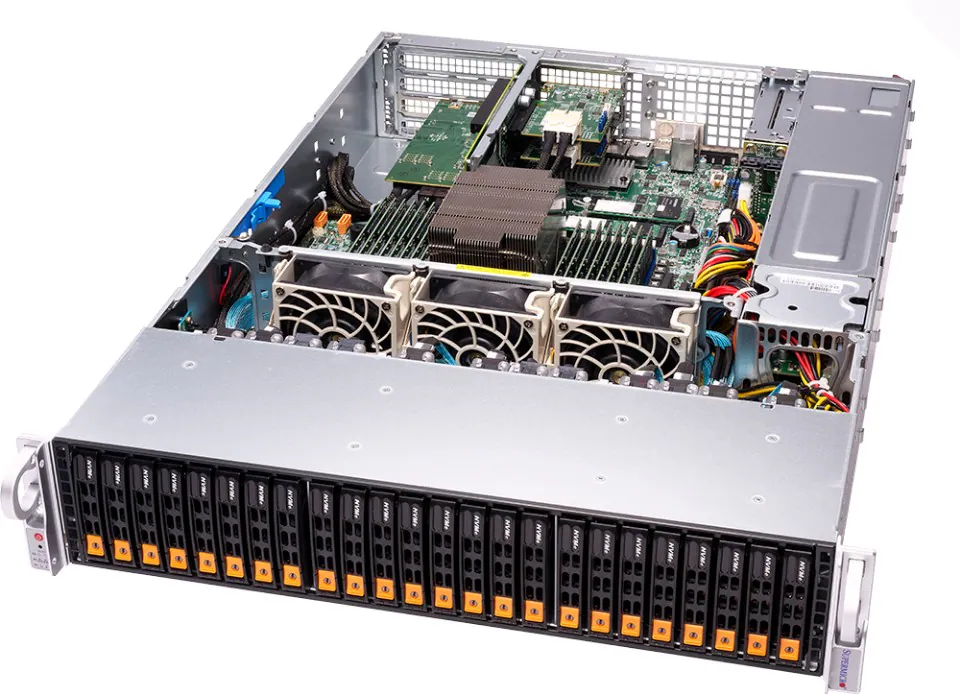

2U WIO with 24 hot-swap NVMe bays and dual 10GbE

Pretul afisat contine TVA (21%).

SuperServer AS -2114S-WN24RT

2U WIO with 24 hot-swap NVMe bays and dual 10GbE

Key Features

  1. Single AMD EPYC™ 7003/7002 Series Processor(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. Up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
  3. Up to 2 PCIe 4.0 x16 FH/HL slots24 NVMe configuration (Standard) – 1 slot available20 NVMe configuration – 2 slots available

Specifications

Product SKUs
  • A+ Server AS -2114S-WN24RT
Motherboard

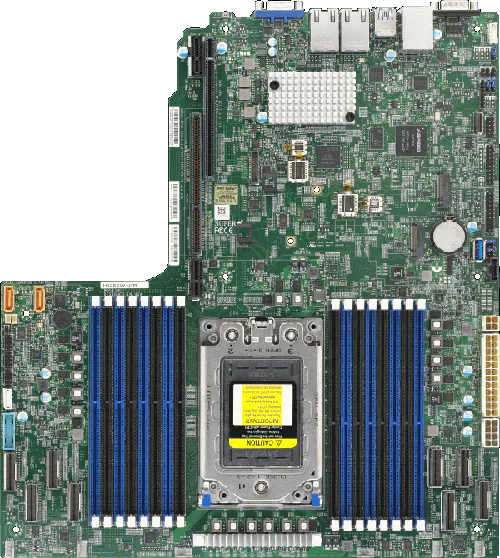

  • Super H12SSW-NTR
Processor
CPU
  • Single Socket SP3
  • AMD EPYC™ 7002/7003 Series Processors
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • 2 RJ45 10GbE
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 5 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port
DOM
  • 2 SATA DOM (Disk on Module) ports
TPM
  • 3 TPM header
System BIOS
BIOS Type
  • AMI 256MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.3
  • PCI 2.2
  • Plug and Play (PnP)
  • SMBIOS 3.0 or later
  • USB Keyboard support
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • CPU switching voltage regulator
  • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
FAN
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
  • Up to 6-fan status tachometer monitoring
  • Up to six 4-pin fan headers
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
Temperature
  • CPU thermal trip support
  • I²C Temperature Sensing Logic
  • Monitoring for CPU and chassis environment
  • Thermal control for 6x Fan connectors
  • A+ Server AS -2114S-WN24RT
  • Super H12SSW-NTR
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R1K23AWP1
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (648 mm)
Package
  • 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Gross Weight: 59 lbs (26.76 kg)
  • Net Weight: 33 lbs (15 kg)
Available Color
  • Black front & sliver body
Front Panel
Buttons
  • Power On/Off
  • Universal Information (UID)
LED
  • Drive activity
  • Network activity
  • Power status
  • Universal Information (UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x16 FHHL slots
  • 2 PCIe 4.0 x16 FHHL slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 24 bays24 front hot-swap 2.5″ NVMe drive bays
  • 24 front hot-swap 2.5″ NVMe drive bays
System Cooling
Fans
  • Up to 3 heavy duty fans with optimal fan speed control
Power Supply
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
SKU: as-2114s-wn24rt Categorii: , , ,
Product SKUs
  • A+ Server AS -2114S-WN24RT
Motherboard
  • Super H12SSW-NTR
Processor
CPU
  • Single Socket SP3
  • AMD EPYCâ„¢ 7002/7003 Series Processors
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • 2 RJ45 10GbE
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 5 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port
DOM
  • 2 SATA DOM (Disk on Module) ports
TPM
  • 3 TPM header
System BIOS
BIOS Type
  • AMI 256MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.3
  • PCI 2.2
  • Plug and Play (PnP)
  • SMBIOS 3.0 or later
  • USB Keyboard support
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • CPU switching voltage regulator
  • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
FAN
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
  • Up to 6-fan status tachometer monitoring
  • Up to six 4-pin fan headers
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
Temperature
  • CPU thermal trip support
  • I²C Temperature Sensing Logic
  • Monitoring for CPU and chassis environment
  • Thermal control for 6x Fan connectors
  • A+ Server AS -2114S-WN24RT
  • Super H12SSW-NTR
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R1K23AWP1
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (648 mm)
Package
  • 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Gross Weight: 59 lbs (26.76 kg)
  • Net Weight: 33 lbs (15 kg)
Available Color
  • Black front & sliver body
Front Panel
Buttons
  • Power On/Off
  • Universal Information (UID)
LED
  • Drive activity
  • Network activity
  • Power status
  • Universal Information (UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x16 FHHL slots
  • 2 PCIe 4.0 x16 FHHL slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 24 bays24 front hot-swap 2.5″ NVMe drive bays
  • 24 front hot-swap 2.5″ NVMe drive bays
System Cooling
Fans
  • Up to 3 heavy duty fans with optimal fan speed control
Power Supply
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
