1U UP CloudDC with 10 hot-swap 2.5″ NVMe/SAS/SATA bays and 2 PCIe 5.0 slots + 2 PCIe 5.0 AIOM slots

Pretul afisat contine TVA (21%).

SuperServer SYS-111C-NR

1U UP CloudDC with 10 hot-swap 2.5″ NVMe/SAS/SATA bays and 2 PCIe 5.0 slots + 2 PCIe 5.0 AIOM slots

Key Features

  1. Single Socket E (LGA-4677) 4th/5th Gen Intel® Xeon® Scalable processors. Up to 350W TDP
  2. Intel® C741 Chipset
  3. 16 DIMMs; Supports 3DS DDR5 RDIMM. Up to 5600 MHz
  4. Dual AIOM (OCP 3.0) for networking (NCSI available), 1 dedicated IPMI LAN
  5. 10x front hot-swap 2.5″ SATA3 drive bays (Optional all 10 hybrid Gen5 NVMe), SAS3 with additional SAS controller card
  6. Redundant Now Titanium 860W Power Supplies

Specifications

Product SKUs
  • SuperServer SYS-111C-NR
Motherboard

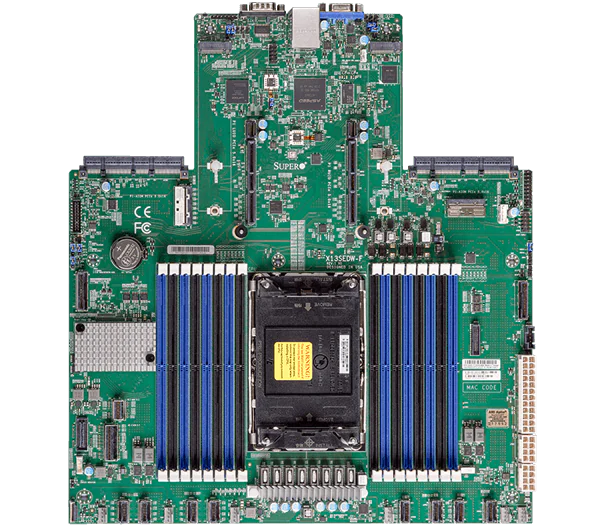

  • Super X13SEDW-F
Processor
CPU
  • Single Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 64C/128T; Up to 320MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 single-width GPUs
Supported GPU
  • NVIDIA PCIe: A2, L4
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory

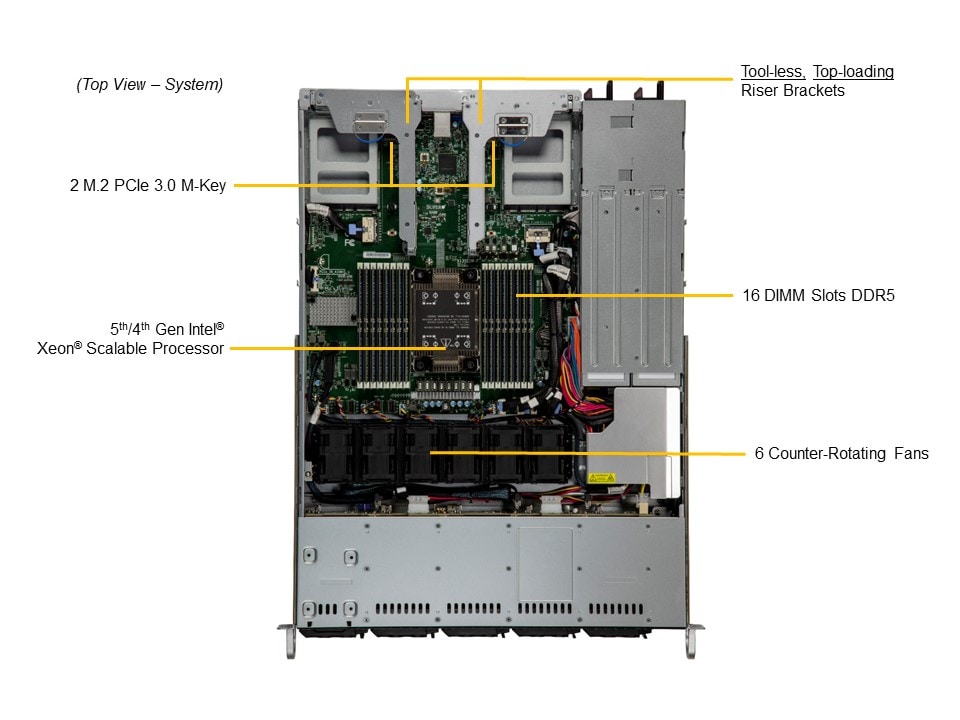

Memory
  • Slot Count: 16 DIMM slots/8 Channels
  • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Network Connectivity
  • Via AIOM

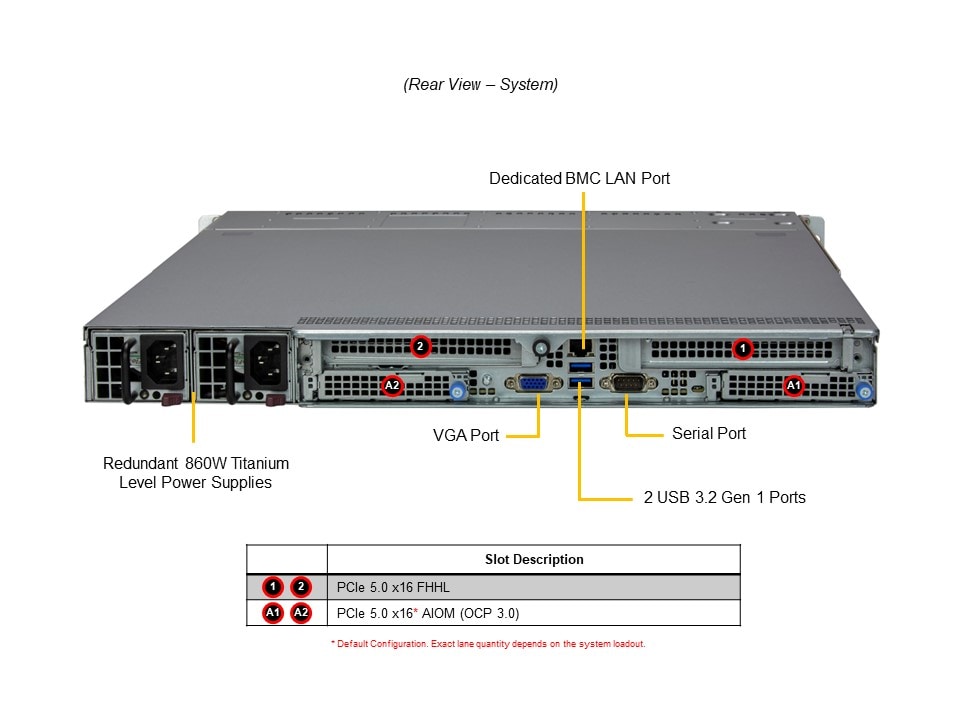

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(front)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-111C-NR
  • Super X13SEDW-F

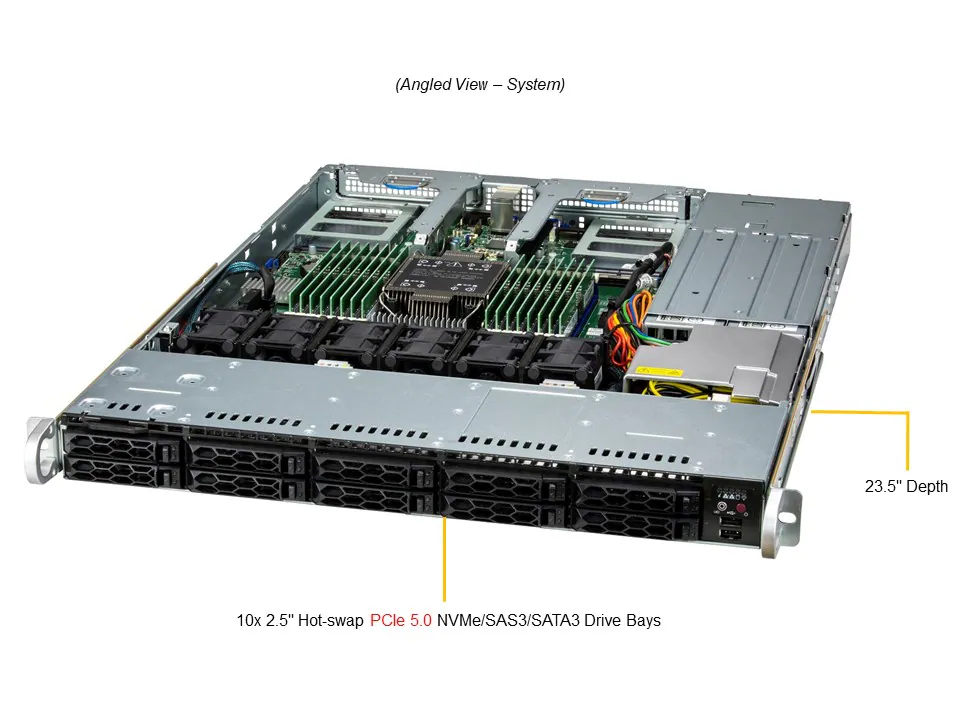

Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-LB16TS-R0AWNP3
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 23.5″ (597 mm)
Package
  • 7.8″ (H) x 23.8″ (W) x 32.4″ (D)
Weight
  • Gross Weight: 40 lbs (18.1 kg)
  • Net Weight: 25 lbs (11.3 kg)
Available Color
  • Black front & silver body

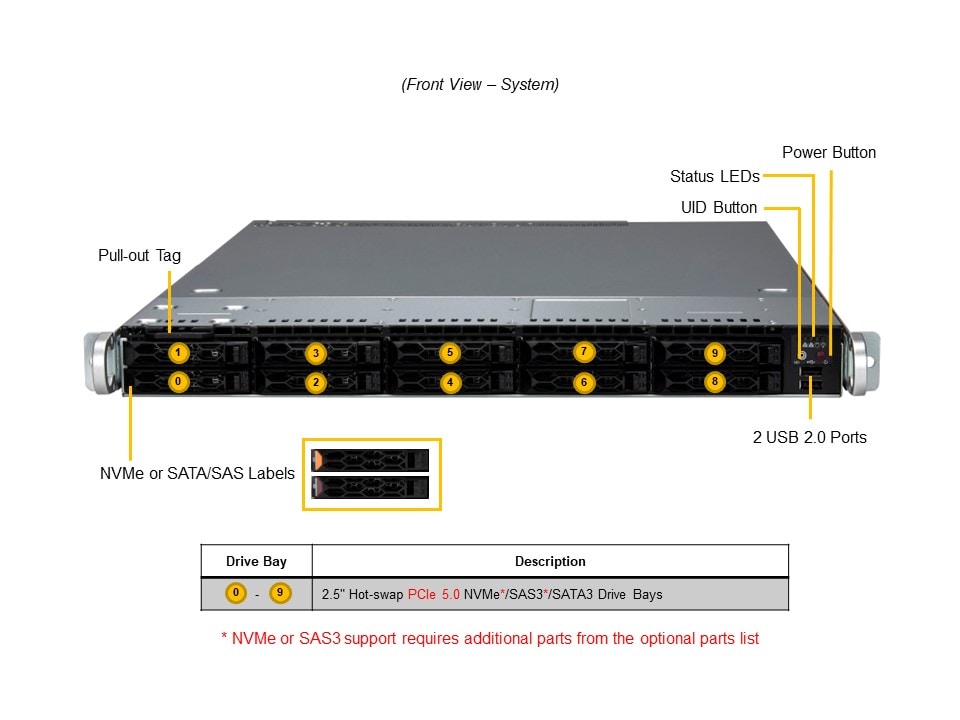

Front Panel
Buttons
  • Power On/Off
  • Unit Identifier (UID)
LED
  • Drive activity
  • Network activity
  • Power status
  • Universal Information
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • 2 PCIe 5.0 x16 FHHL slots
  • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • Option A2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • 2 PCIe 5.0 x16 FHHL slots
  • 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
  • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option B2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
  • 2 PCIe 5.0 x16 FHHL slots
  • 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 10 bays10 front hot-swap 2.5″ SAS*/SATA drive bays
  • 10 front hot-swap 2.5″ SAS*/SATA drive bays
  • Option A: Total 10 bays6 front hot-swap 2.5″ SAS*/SATA drive bays 4 front hot-swap 2.5″ PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
  • 6 front hot-swap 2.5″ SAS*/SATA drive bays
  • 4 front hot-swap 2.5″ PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
  • Option B: Total 10 bays10 front hot-swap 2.5″ PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
  • 10 front hot-swap 2.5″ PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 6 middle cooling PWM 40x40x56mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 860W 2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac / 50-60Hz 860W: 200-240Vac / 50-60Hz 860W: 240Vdc / 50-60Hz +12VMax: 66.67A / Min: 0A (100Vac-127Vac)Max: 71.67A / Min: 0A (Vdc-240Vdc)Max: 71.67A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 54.5 x 40.25 x 322 mm
Input
  • 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac / 50-60Hz 860W: 240Vdc / 50-60Hz
+12V
  • Max: 66.67A / Min: 0A (100Vac-127Vac)Max: 71.67A / Min: 0A (Vdc-240Vdc)Max: 71.67A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
  • 2x 860W 2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac / 50-60Hz 860W: 200-240Vac / 50-60Hz 860W: 240Vdc / 50-60Hz +12VMax: 66.67A / Min: 0A (100Vac-127Vac)Max: 71.67A / Min: 0A (Vdc-240Vdc)Max: 71.67A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
