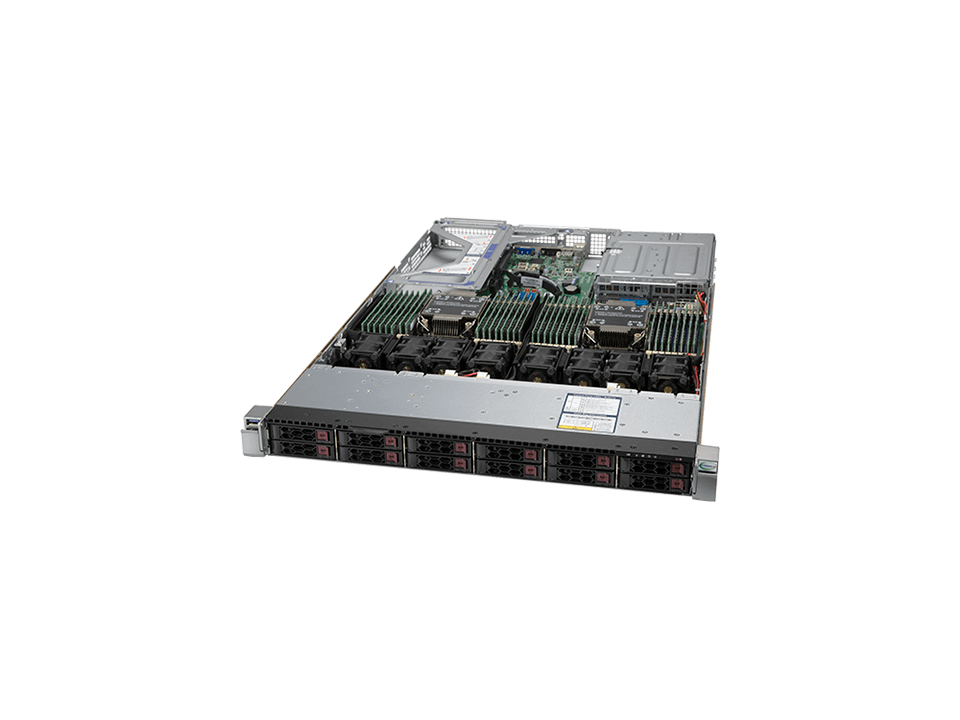

SuperServer SYS-120U-TNR

1U Ultra with 12 NVMe/SAS/SATA bays

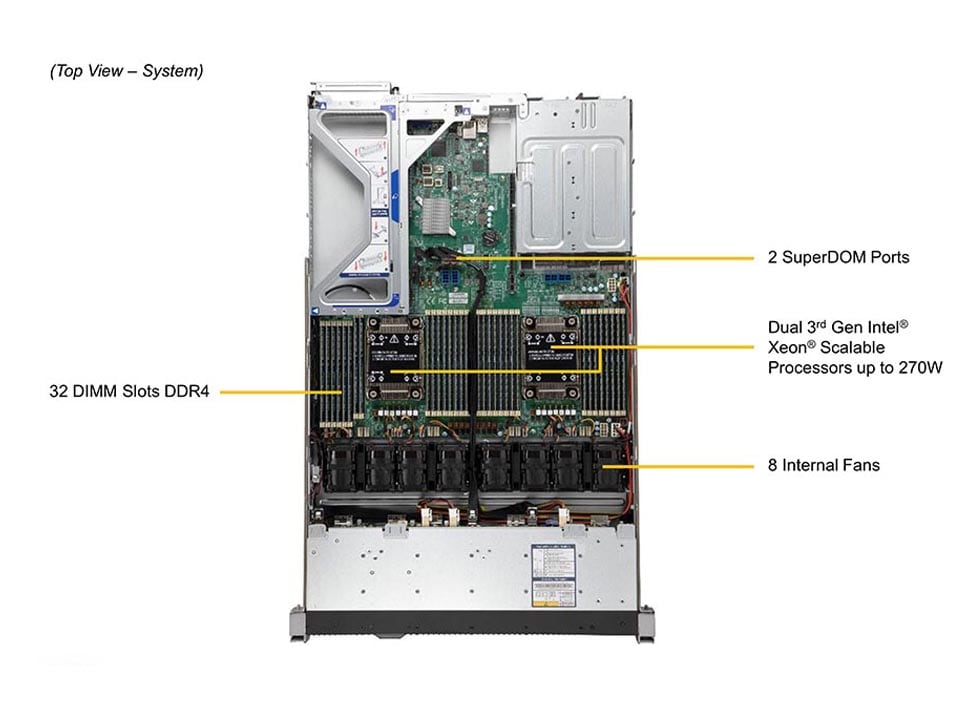

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  4. 2 PCIe 4.0 x16 (FH, 10.5″L)1 PCIe 4.0 x16 (LP)1 Internal PCIe 4.0 x16
  5. 2 PCIe 4.0 x16 (FH, 10.5″L)
  6. 1 PCIe 4.0 x16 (LP)
  7. 1 Internal PCIe 4.0 x16
  8. Flexible networking options

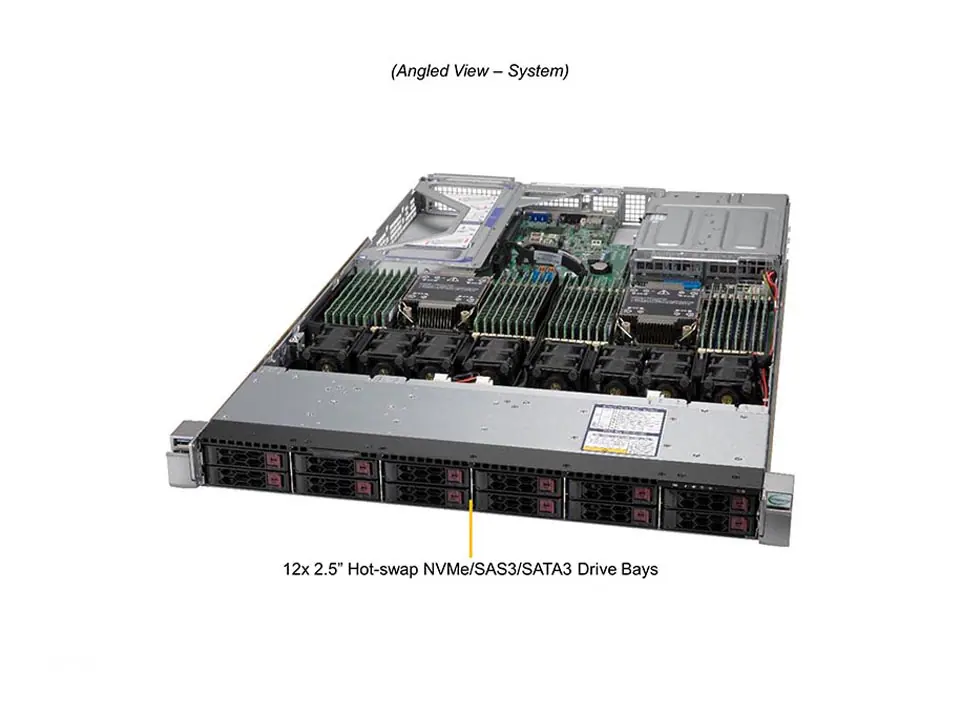

  9. 12×2.5″ hot-swap hybrid NVMe/SATA/SAS drive bays
  10. 8 heavy duty fans with optimal fan speed control
  11. 1200W redundant Titanium level power supplies

Specifications

Product SKUs
  • SuperServer SYS-120U-TNR

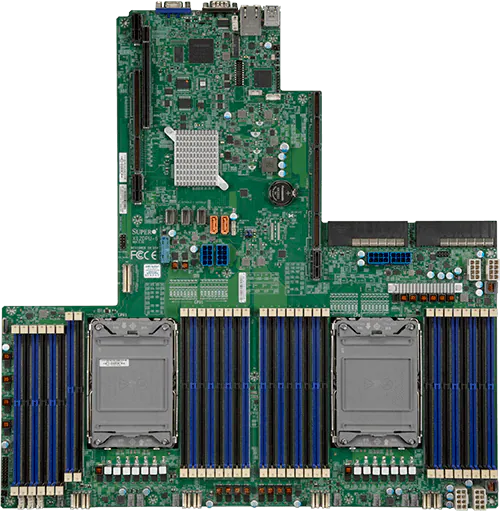

Motherboard
  • Super X12DPU-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 2 single-width GPUs
Supported GPU
  • NVIDIA PCIe: A100, A16, A2, L4, T4
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support
Network Connectivity
  • 2 RJ45 10GBASE-T with Intel® X710-AT2 (optional)
  • 2 RJ45 10GBASE-T with Intel® X710-TM4 (optional)
  • 2 SFP+ 10GbE with Intel® X710-TM4 (optional)
  • No NIC option supported
  • View Network Card (AOC) Options

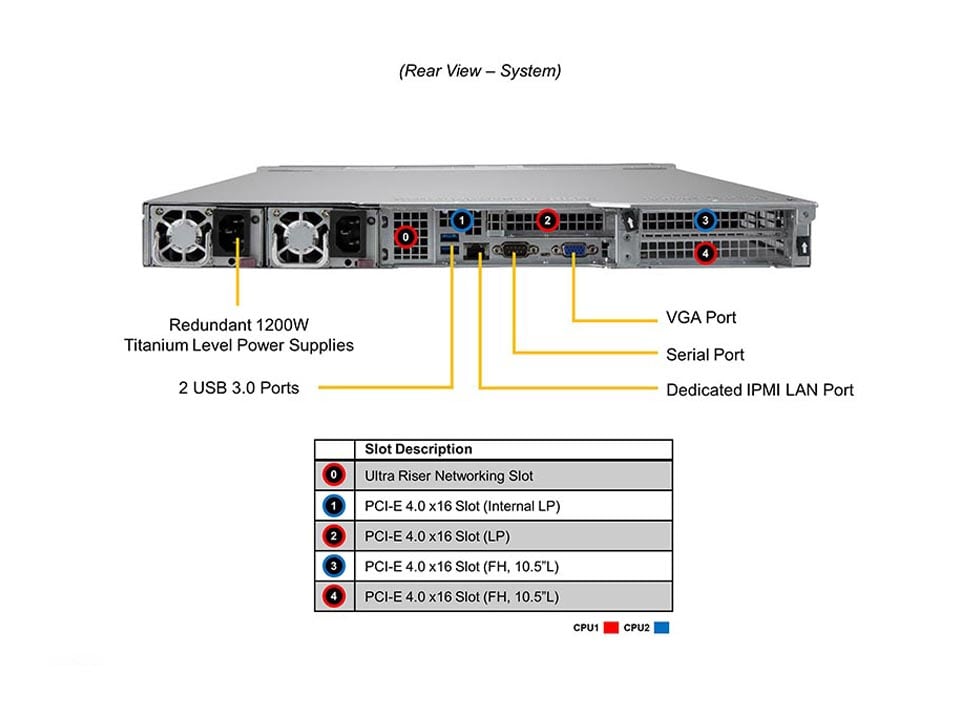

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 1 USB 3.0 port(front)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-120U-TNR
  • Super X12DPU-6
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-119UH3TS-R1K22P-T
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29.1″ (739 mm)
Package
  • 7.99″ (H) x 23.81″ (W) x 37.4″ (D)
Weight
  • Gross Weight: 41 lbs (18.6 kg)
  • Net Weight: 26.5 lbs (12.2 kg)
Available Color
  • Black Front & Silver Body

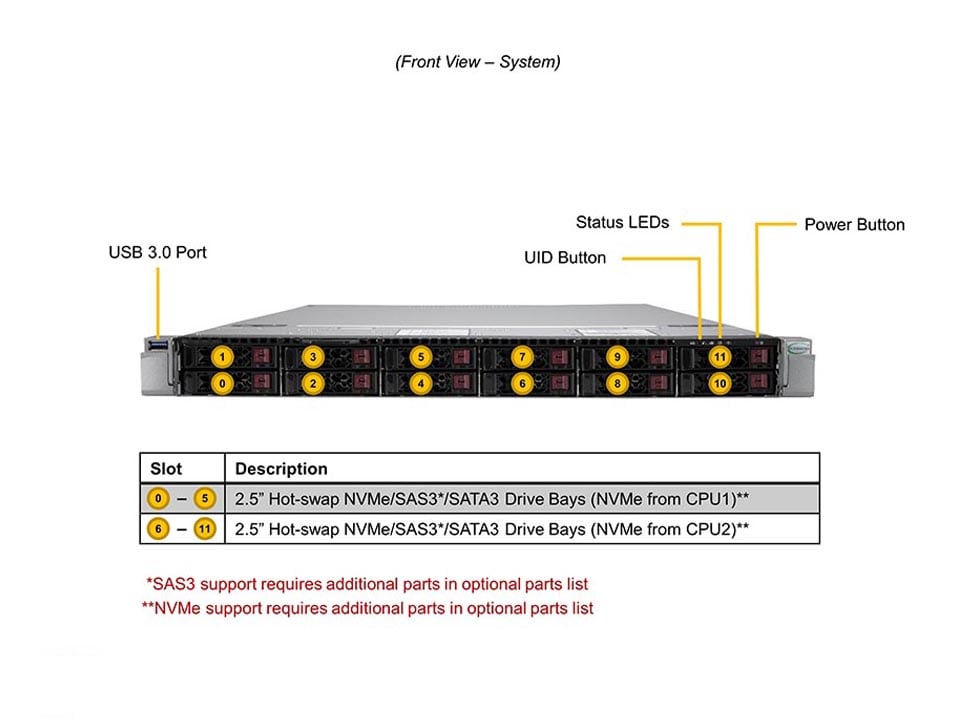

Front Panel
Buttons
  • Power On/Off
  • UID button
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x16 LP slot 2 PCIe 4.0 x16 FH/10.5″L slots
  • 1 PCIe 4.0 x16 LP slot
  • 1 PCIe 4.0 x16 LP slot
  • 2 PCIe 4.0 x16 FH/10.5″L slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays12 front hot-swap 2.5″ NVMe/SAS*/SATA drive bays
  • 12 front hot-swap 2.5″ NVMe/SAS*/SATA drive bays
  • (*SAS support may require additional storage controller and/or cables)
System Cooling
Fans
  • Up to 8x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shrouds
Power Supply
  • 1x 1200W 1x 1200W Redundant Titanium Level (96%) Hot-plug power supply Dimension (WxHxL)73.5 x 40 x 203 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vdc (For CCC Only)1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vdc (For CCC Only)1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 1200W 1x 1200W Redundant Titanium Level (96%) Hot-plug power supply Dimension (WxHxL)73.5 x 40 x 203 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vdc (For CCC Only)1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
SKU: sys-120u-tnr Categorii: , , ,
Product SKUs
  • SuperServer SYS-120U-TNR
Motherboard
  • Super X12DPU-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 2 single-width GPUs
Supported GPU
  • NVIDIA PCIe: A100, A16, A2, L4, T4
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optaneâ„¢ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support
Network Connectivity
  • 2 RJ45 10GBASE-T with Intel® X710-AT2 (optional)
  • 2 RJ45 10GBASE-T with Intel® X710-TM4 (optional)
  • 2 SFP+ 10GbE with Intel® X710-TM4 (optional)
  • No NIC option supported
  • View Network Card (AOC) Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 1 USB 3.0 port(front)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-120U-TNR
  • Super X12DPU-6
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-119UH3TS-R1K22P-T
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29.1″ (739 mm)
Package
  • 7.99″ (H) x 23.81″ (W) x 37.4″ (D)
Weight
  • Gross Weight: 41 lbs (18.6 kg)
  • Net Weight: 26.5 lbs (12.2 kg)
Available Color
  • Black Front & Silver Body
Front Panel
Buttons
  • Power On/Off
  • UID button
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x16 LP slot 2 PCIe 4.0 x16 FH/10.5″L slots
  • 1 PCIe 4.0 x16 LP slot
  • 1 PCIe 4.0 x16 LP slot
  • 2 PCIe 4.0 x16 FH/10.5″L slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays12 front hot-swap 2.5″ NVMe/SAS*/SATA drive bays
  • 12 front hot-swap 2.5″ NVMe/SAS*/SATA drive bays
  • (*SAS support may require additional storage controller and/or cables)
System Cooling
Fans
  • Up to 8x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shrouds
Power Supply
  • 1x 1200W 1x 1200W Redundant Titanium Level (96%) Hot-plug power supply Dimension (WxHxL)73.5 x 40 x 203 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vdc (For CCC Only)1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vdc (For CCC Only)1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 1200W 1x 1200W Redundant Titanium Level (96%) Hot-plug power supply Dimension (WxHxL)73.5 x 40 x 203 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vdc (For CCC Only)1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
