Supermicro SuperServer SYS-121C-TN2R

Favorite

Compara

1U DP CloudDC with 8 hot-swap 2.5″ SATA (2 NVMe hybrid) bays and 2 PCIe 5.0 x16 slots + 2 PCIe 5.0 x16 AIOM slots

Pretul afisat contine TVA (21%).

SuperServer SYS-121C-TN2R

1U DP CloudDC with 8 hot-swap 2.5″ SATA (2 NVMe hybrid) bays and 2 PCIe 5.0 x16 slots + 2 PCIe 5.0 x16 AIOM slots

Key Features

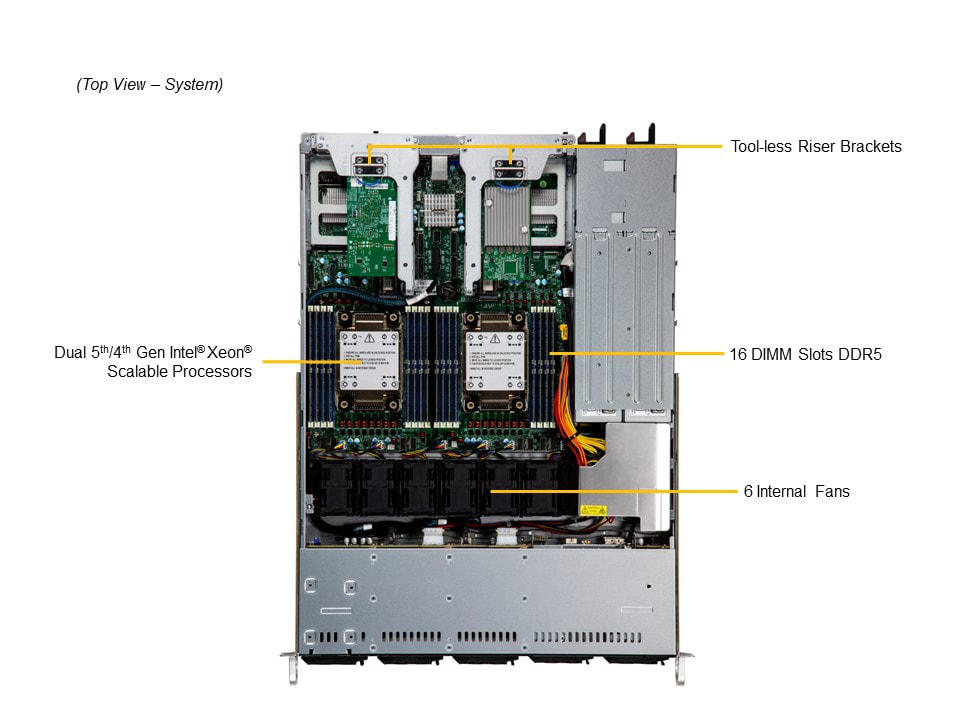

Dual sockets E (LGA-4677) 5th and 4th Gen Intel® Xeon® Scalable processors
16 DIMMs up to 4TB 3DS ECC DDR5-5600: RDIMM
2 PCIe 5.0 x16 FHHL; 2 PCIe 5.0 x4 NVMe M.2
Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN

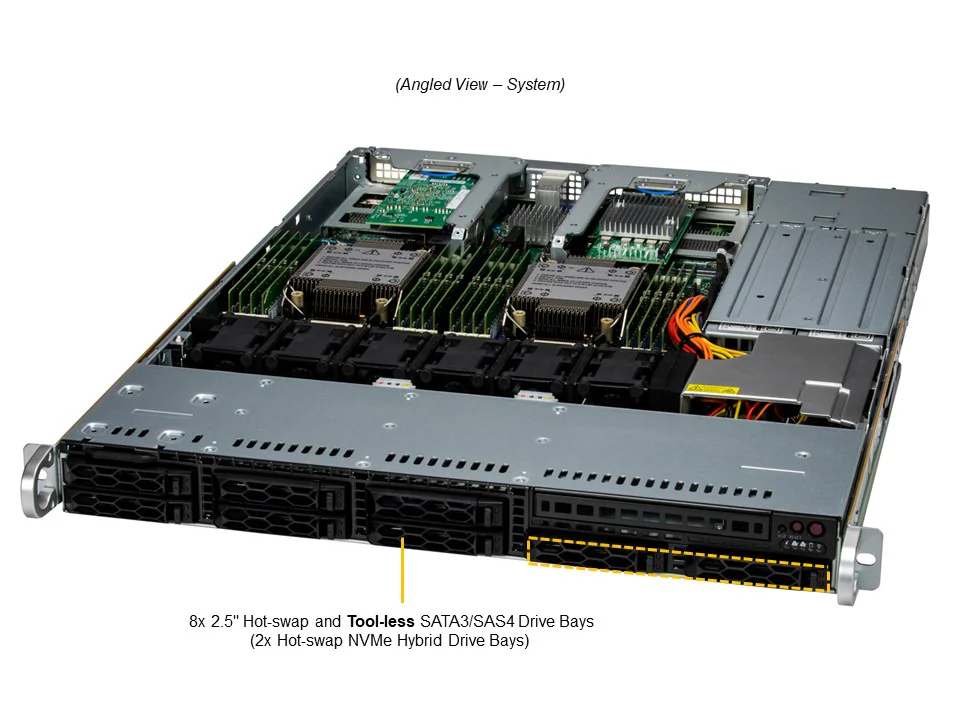

8x 2.5″ hot-swap SATA/SAS4 w/ 2x hybrid NVME drive bays
1 VGA, 1 COM, 2 USB 3.0 (rear)

Specifications

Product SKUs
SuperServer SYS-121C-TN2R
Motherboard

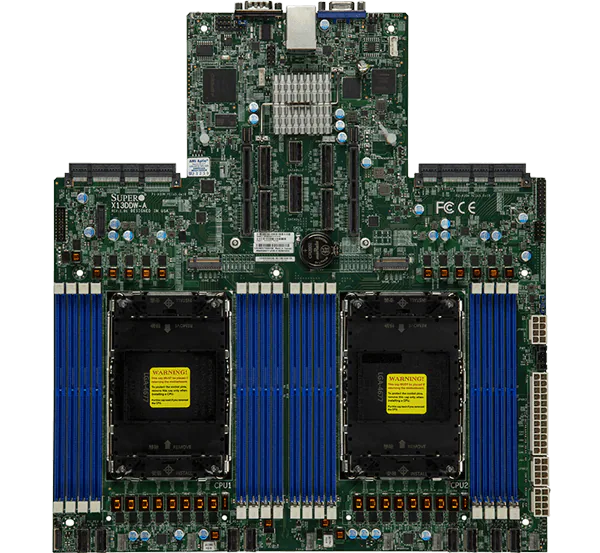

Super X13DDW-A
Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 82.5MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count	Up to 2 single-width GPUs
Supported GPU	NVIDIA PCIe: A2, L4 Intel PCIe: Intel Data Center GPU Flex 140
System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support(VROC HW key required)
Network Connectivity	Via AIOM

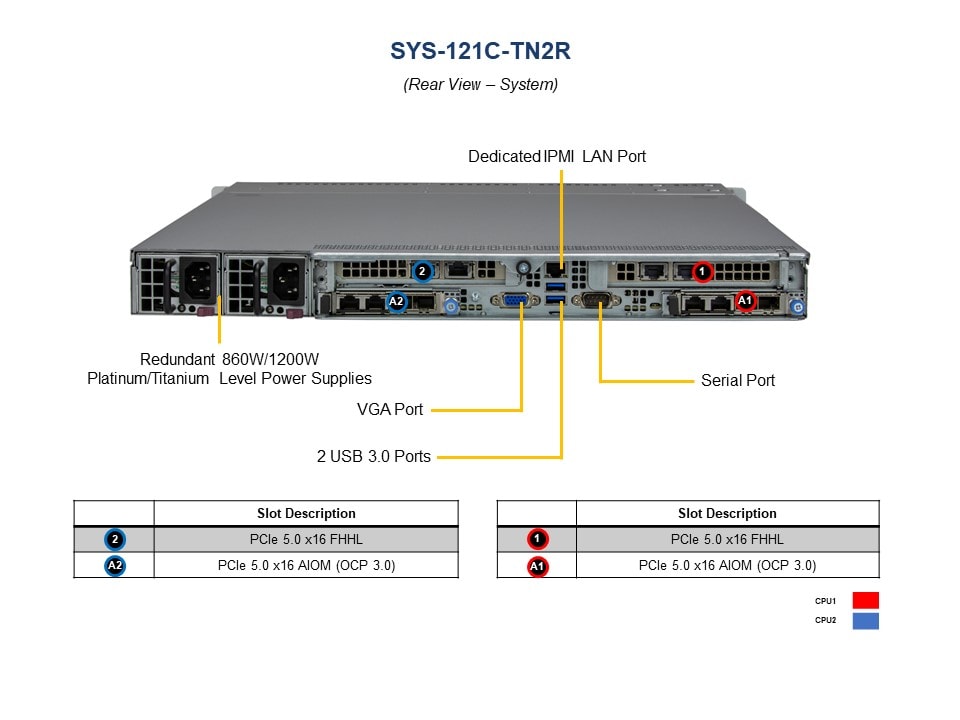

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.2 Gen1 Type-A ports(rear)
Video	1 VGA port
Serial	1 COM port(Rear)
TPM	1 TPM header
System BIOS
BIOS Type	AMI 32MB SPI FLASH ROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	8 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory.
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
SuperServer SYS-121C-TN2R
Super X13DDW-A
Chassis
Form Factor	1U Rackmount
Model	CSE-LB13TS-R0AWNP2
Dimensions and Weight
Height	1.7″ (43 mm)
Width	17.2″ (437 mm)
Depth	23.5″ (597 mm)
Package	7.8″ (H) x 23.8″ (W) x 32.4″ (D)
Weight	Gross Weight: 40 lbs (18.1 kg) Net Weight: 25 lbs (11.3 kg)
Available Color	Black front & silver body
Front Panel
Buttons	Power On/Off Reset button Unit Identifier (UID)
LED	Drive activity Network activity Power status Universal Information
Expansion Slots
PCI-Express (PCIe) Configuration	Default2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Drive Bays / Storage

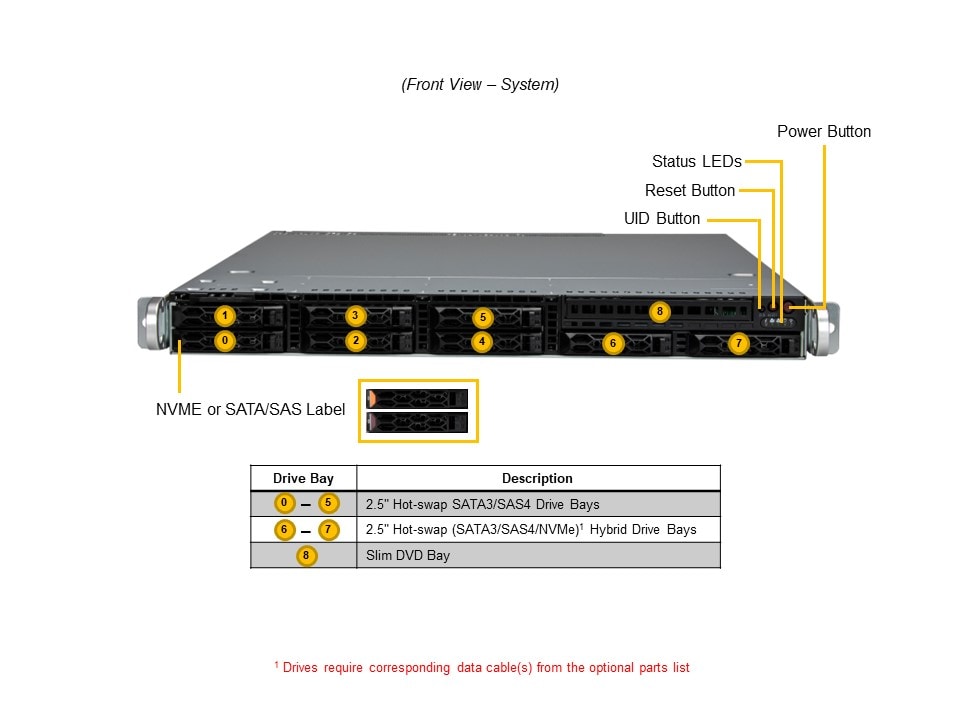

Drive Bays Configuration	Default: Total 8 bays2 front hot-swap 2.5″ NVMe/SAS/SATA* drive bays 6 front hot-swap 2.5″ SAS/SATA drive bays 2 front hot-swap 2.5″ NVMe/SAS/SATA* drive bays 6 front hot-swap 2.5″ SAS/SATA drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables)

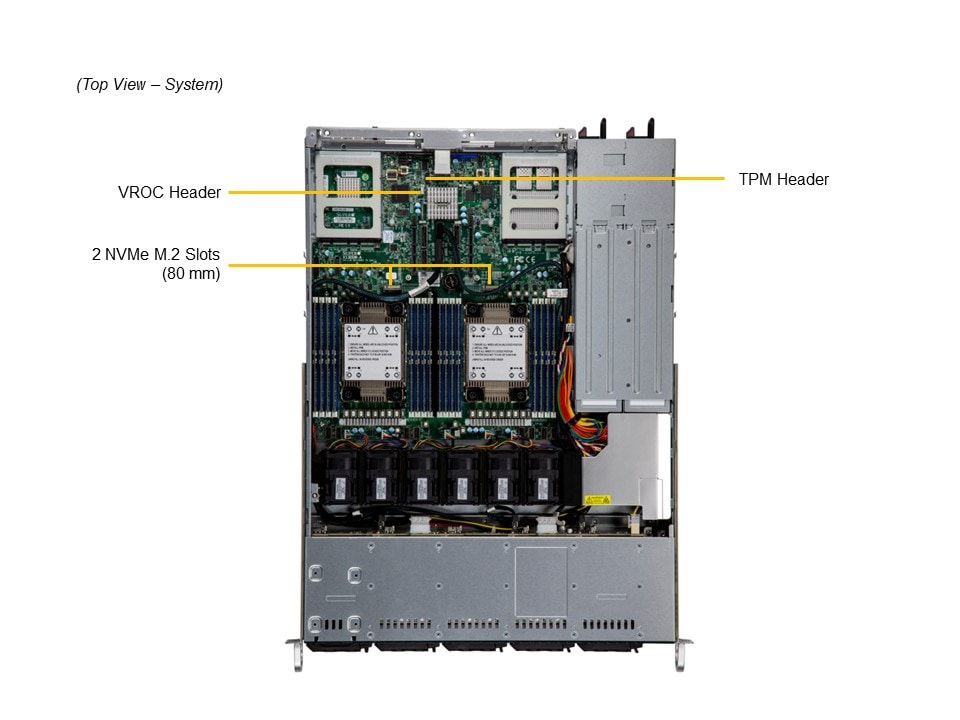

M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280(default); VROC required for RAID) View M.2 Options
Peripheral Bays	1 slim DVD bay (optional)
System Cooling
Fans	Up to 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud	2 Air Shrouds
Power Supply
2x 860W 2x 860W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac / 50-60Hz 860W: 200-240Vac / 50-60Hz 860W: 240Vdc / 50-60Hz +12VMax: 66.67A / Min: 0A (100Vac-127Vac)Max: 71.67A / Min: 0A (Vdc-240Vdc)Max: 71.67A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	54.5 x 40.25 x 322 mm
Input	800W: 100-127Vac / 50-60Hz 860W: 200-240Vac / 50-60Hz 860W: 240Vdc / 50-60Hz
+12V	Max: 66.67A / Min: 0A (100Vac-127Vac)Max: 71.67A / Min: 0A (Vdc-240Vdc)Max: 71.67A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Name: A2 Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
2x 860W 2x 860W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac / 50-60Hz 860W: 200-240Vac / 50-60Hz 860W: 240Vdc / 50-60Hz +12VMax: 66.67A / Min: 0A (100Vac-127Vac)Max: 71.67A / Min: 0A (Vdc-240Vdc)Max: 71.67A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
