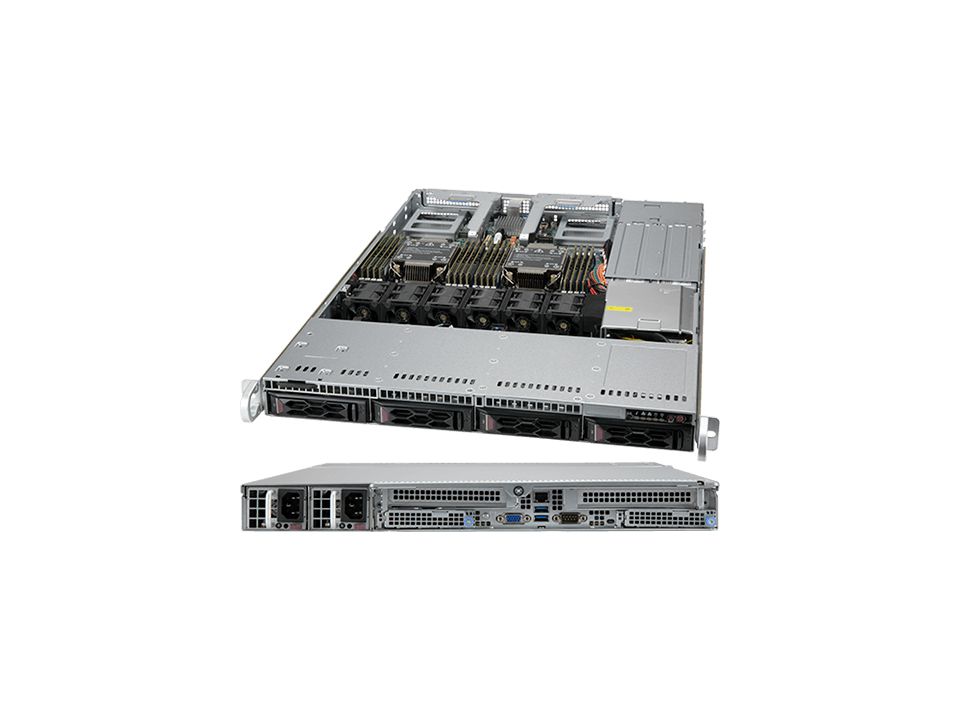

Supermicro SuperServer SYS-610C-TR
Supermicro SuperServer SYS-610C-TR - imagine 2
Supermicro SuperServer SYS-610C-TR - imagine 3
Supermicro SuperServer SYS-610C-TR - imagine 4
Supermicro SuperServer SYS-610C-TR - imagine 5
Supermicro SuperServer SYS-610C-TR - imagine 6
, , ,

Supermicro SuperServer SYS-610C-TR

Favorite
Compara

1U CloudDC with 4 3.5″ SAS/SATA bays

Pretul afisat contine TVA (21%).

SuperServer SYS-610C-TR

1U CloudDC with 4 3.5″ SAS/SATA bays

Key Features

  1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  2. Intel® C621A Chipset
  3. 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® Intel® DCPMM
  4. 2 PCIe 4.0 x16 FHHL; 2 PCIe 3.0 x2 NVMe M.2
  5. 2 PCIe 4.0 x16 FHHL;
  6. 2 PCIe 3.0 x2 NVMe M.2
  7. Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN
  8. 4x 3.5/2.5″ hot-swap SATA/SAS drive bays
  9. 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
  10. 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies
  11. 1 VGA, 1 COM, 2 USB 3.0 (rear)

Specifications

Product SKUs
  • SuperServer SYS-610C-TR Standard version with PWS-860P-1R2 (Platinum Level)
  • SuperServer SYS-610C-TR-EU European version with PWS-861A-1R (Titanium Level)
Motherboard

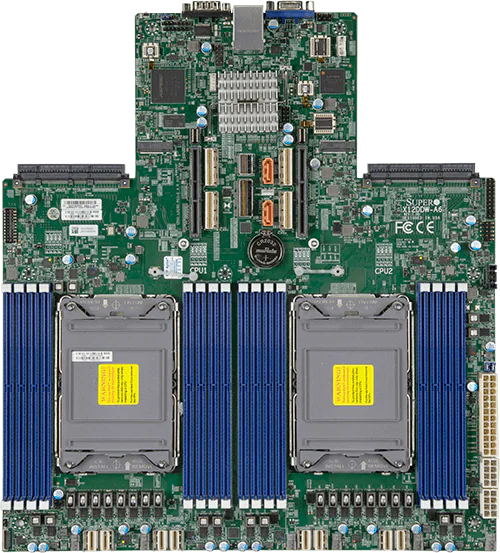

  • Super X12DDW-A6
Processor
CPU
  • Dual Socket P4 (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 2 single-width GPUs
Supported GPU
  • NVIDIA PCIe: A2, L4
  • Intel PCIe: Intel Data Center GPU Flex 140
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.2 Gen1 Type-A ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(rear)
DOM
  • 1 SuperDOM (Disk on Module) port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 8 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-610C-TR Standard version with PWS-860P-1R2 (Platinum Level)
  • SuperServer SYS-610C-TR-EU European version with PWS-861A-1R (Titanium Level)
  • Super X12DDW-A6
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-LA15TS-R860AWP
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.6″ (650 mm)
Package
  • 7.8″ (H) x 23.8″ (W) x 34.6″ (D)
Weight
  • Gross Weight: 46 lbs (20.9 kg)
  • Net Weight: 25 lbs (11.3 kg)
Available Color
  • Black front & sliver body

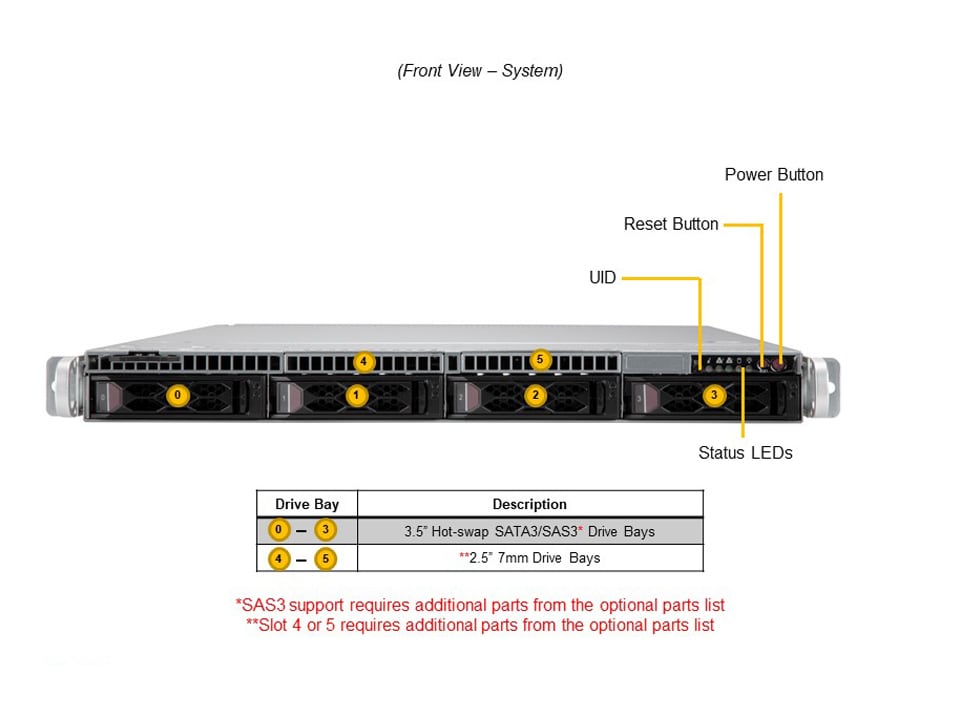

Front Panel
Buttons
  • Power On/Off
  • Reset button
  • Unit Identifier (UID)
LED
  • Drive activity
  • Network activity
  • Power status
  • Universal Information
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x16 FHHL slots 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
  • 2 PCIe 4.0 x16 FHHL slots
  • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays4 front hot-swap 3.5″ SAS/SATA drive bays
  • 4 front hot-swap 3.5″ SAS/SATA drive bays
  • Option A: Total 4 bays4 front hot-swap 2.5″ SAS/SATA drive bays
  • 4 front hot-swap 2.5″ SAS/SATA drive bays
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default); VROC required for RAID)
  • View M.2 Options
Peripheral Bays
  • 2 2.5″ peripheral bays (optional)
System Cooling
Fans
  • Up to 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shrouds
Power Supply
  • 2x 860W 2x 860W Redundant (1 + 1) Platinum Level (94%) Hot-plug power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vac / 50-60Hz 860W: 200-240Vdc / 50-60Hz +12VMax: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vac-240Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 54.5 x 40.25 x 322 mm
Input
  • 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vac / 50-60Hz 860W: 200-240Vdc / 50-60Hz
+12V
  • Max: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vac-240Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 2x 860W 2x 860W Redundant (1 + 1) Platinum Level (94%) Hot-plug power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vac / 50-60Hz 860W: 200-240Vdc / 50-60Hz +12VMax: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vac-240Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
