2U Mainstream with 8 hot-swap SATA bays and 6 PCIe 4.0 slots

Pretul afisat contine TVA (21%).

SuperServer SYS-620P-TR

2U Mainstream with 8 hot-swap SATA bays and 6 PCIe 4.0 slots

Key Features

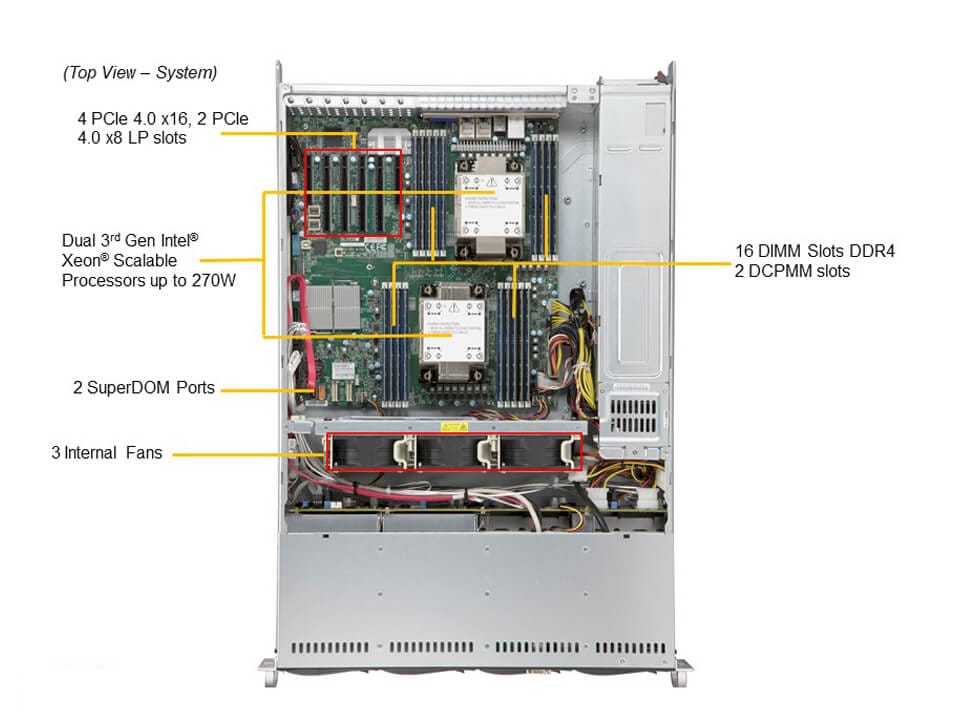

  1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors CPU TDP supports Up to 270W TDP 3 UPI up to 11.2 GT/s
  2. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz – Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)
  3. 4 PCIe 4.0 x16 Low Profile (LP) 2 PCIe 4.0 x8 Low Profile (LP)
  4. Dual Gigabit LAN with Intel® i350 Ethernet Controller
  5. 1200W Redundant Power Supplies Titanium level 100-240Vac and 200-240 Vdc
  6. 1 rear VGA, 1 Type A port, 2 COM Ports (1 front; 1 rear) and 6 USB ports (2 front USB 2.0 and 4 rear USB 3.0)

Specifications

Product SKUs
  • SuperServer SYS-620P-TR

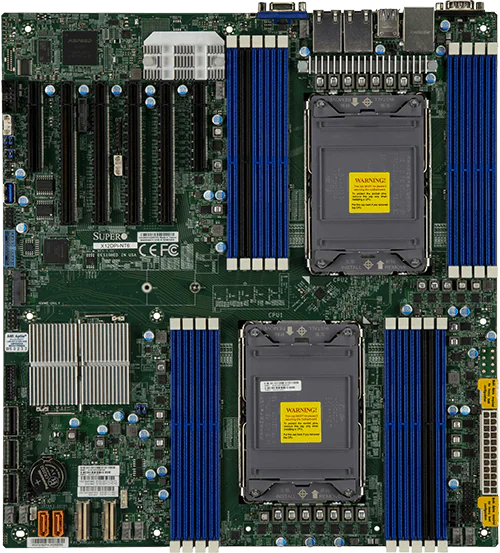

Motherboard
  • Super X12DPi-N6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • 2 RJ45 1GbE
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 2.0 ports(front)
  • 4 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-620P-TR
  • Super X12DPi-N6
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-825BTS-R1K23LPP1
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (647 mm)
Package
  • 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Gross Weight: 69 lbs (31.2 kg)
  • Net Weight: 36.38 lbs (16.5 kg)
Available Color
  • Black

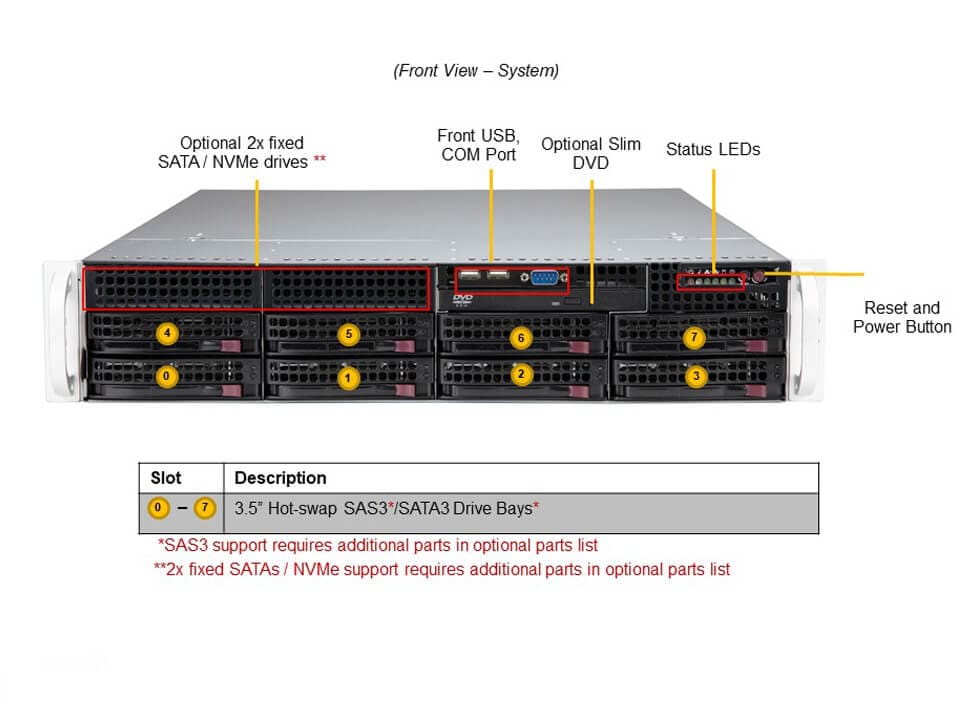

Front Panel
Buttons
  • Power On/Off
  • System Reset
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)

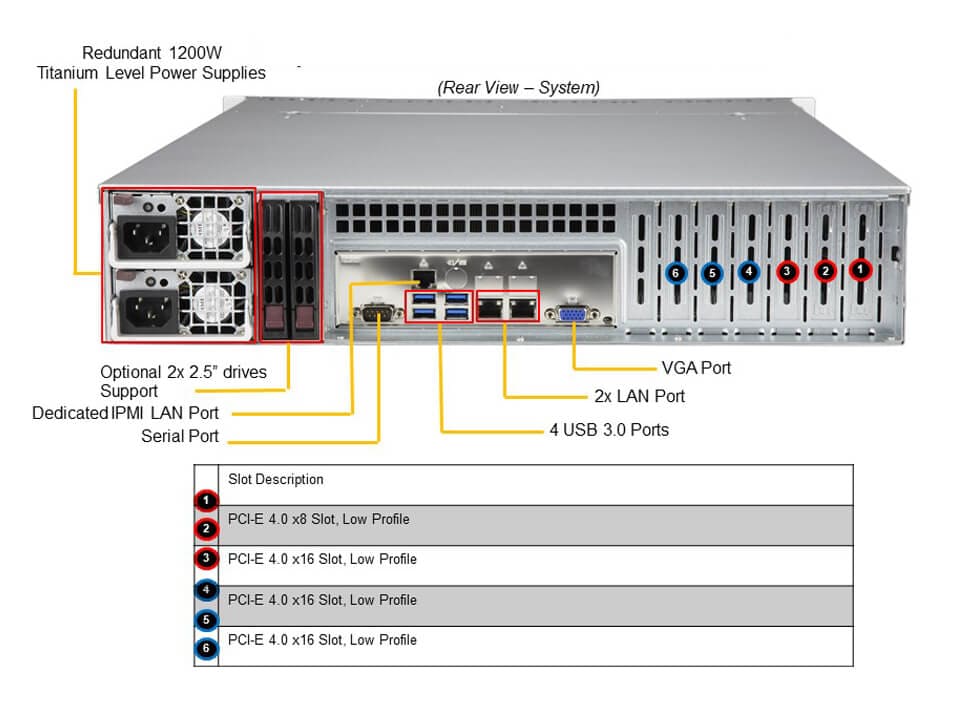

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x8 LP slots 4 PCIe 4.0 x16 LP slots
  • 2 PCIe 4.0 x8 LP slots
  • 4 PCIe 4.0 x16 LP slots

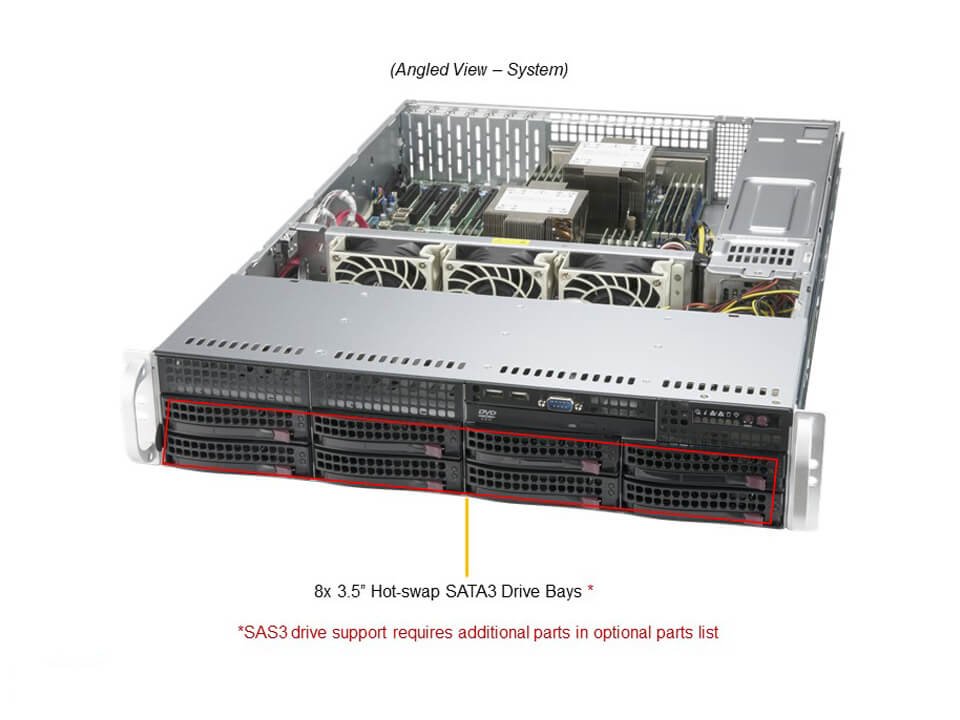

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap 3.5″ SAS*/SATA drive bays
  • 8 front hot-swap 3.5″ SAS*/SATA drive bays
  • Option A: Total 10 bays8 front hot-swap 3.5″ SAS*/SATA drive bays 2 front fixed 3.5″ NVMe*/SATA* drive bays
  • 8 front hot-swap 3.5″ SAS*/SATA drive bays
  • 2 front fixed 3.5″ NVMe*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 1 M.2 NVMe slot (M-key)
  • View M.2 Options
Peripheral Bays
  • 1 slim DVD bay (optional)
System Cooling
Fans
  • Up to 3 heavy duty fans with optimal fan speed control
Power Supply
  • 2x 1200W 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 2x 1200W 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
