6U 8-socket system with 128 DIMMs, 24 NVMe/SAS/SATA drive bays, and 24 PCIe slots

Pretul afisat contine TVA (21%).

SuperServer SYS-681E-TR

6U 8-socket system with 128 DIMMs, 24 NVMe/SAS/SATA drive bays, and 24 PCIe slots

Key Features

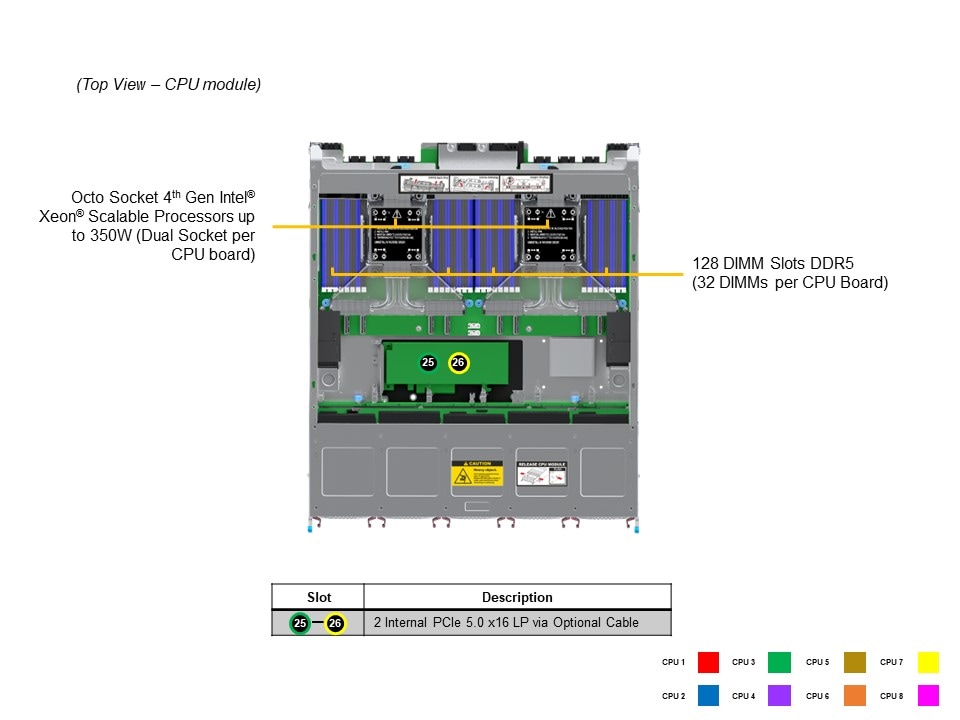

  1. Octa Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors
  2. 128 DIMM Slots; Up to 32TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS
  3. Optional PCIe configurations up to 24 PCIe slots with support for 12 double-width GPU/Accerlator cards

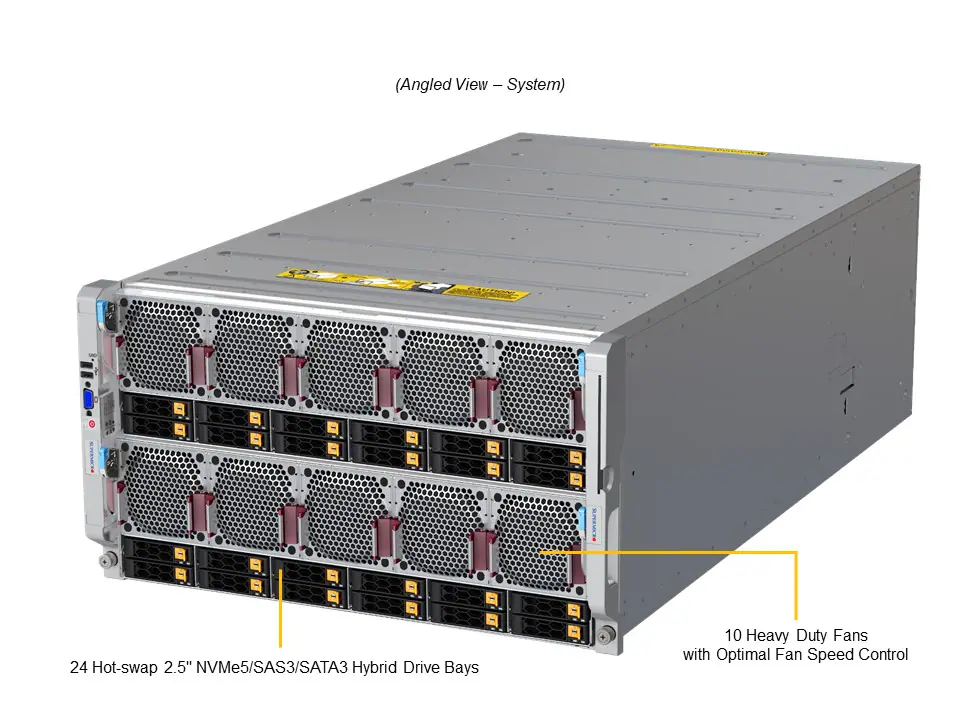

  4. 24x 2.5″ Hot-swap NVMe/SAS3/SATA3 drive bays ; 2x internal M.2 NVMe/SATA; Optional RAID support via storage add-on card
  5. 10 heavy duty fans w/ optimal fan speed control

Specifications

Product SKUs
  • SuperServer SYS-681E-TR
Motherboard

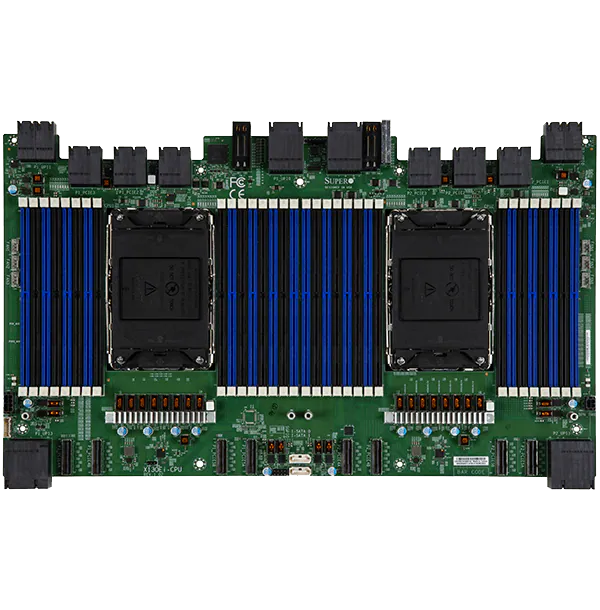

  • Super X13OEI-CPU
Processor
CPU
  • 8 Socket E (LGA-4677)
  • 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 60C/120T; Up to 112.5MB Cache per CPU
Note
  • Supports 250W – 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 12 double-width GPUs
System Memory
Memory
  • Slot Count: 128 DIMM slots
  • Max Memory (1DPC): Up to 16TB 4800MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 32TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • 1 RJ45 1GBASE-T
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 1 RJ45 1 GbE LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 2 ports(front)
Video
  • 1 VGA port(Front)
  • 1 DisplayPort port(Rear)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-681E-TR
  • Super X13OEI-CPU
Chassis
Form Factor
  • 6U Rackmount
Model
  • CSE-618TS-R5K26P
Dimensions and Weight
Height
  • 10.4″ (265 mm)
Width
  • 17.68″ (449 mm)
Depth
  • 33.1″ (841 mm)
Package
  • 36.3″ (H) x 28.34″ (W) x 42.5″ (D)
Weight
  • Gross Weight: 242.5 lbs (110 kg)
  • Net Weight: 176.37 lbs (80 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off
  • UID
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration

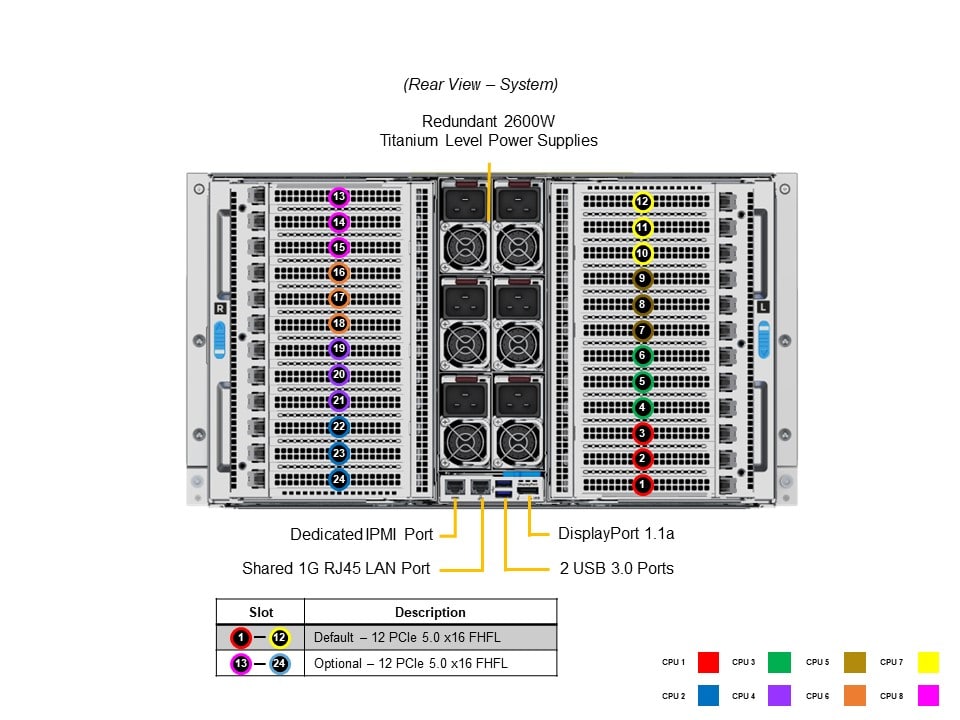

  • Default12 PCIe 5.0 x16 FHFL slots 2 PCIe 5.0 x16 LP slots
  • 12 PCIe 5.0 x16 FHFL slots
  • 2 PCIe 5.0 x16 LP slots
  • Option A*12 PCIe 5.0 x16 FHFL slots
  • 12 PCIe 5.0 x16 FHFL slots
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
M.2
  • 2 M.2 NVMe/SATA slots (M-key 2280/22110)
Drive Bays / Storage
Drive Bays Configuration

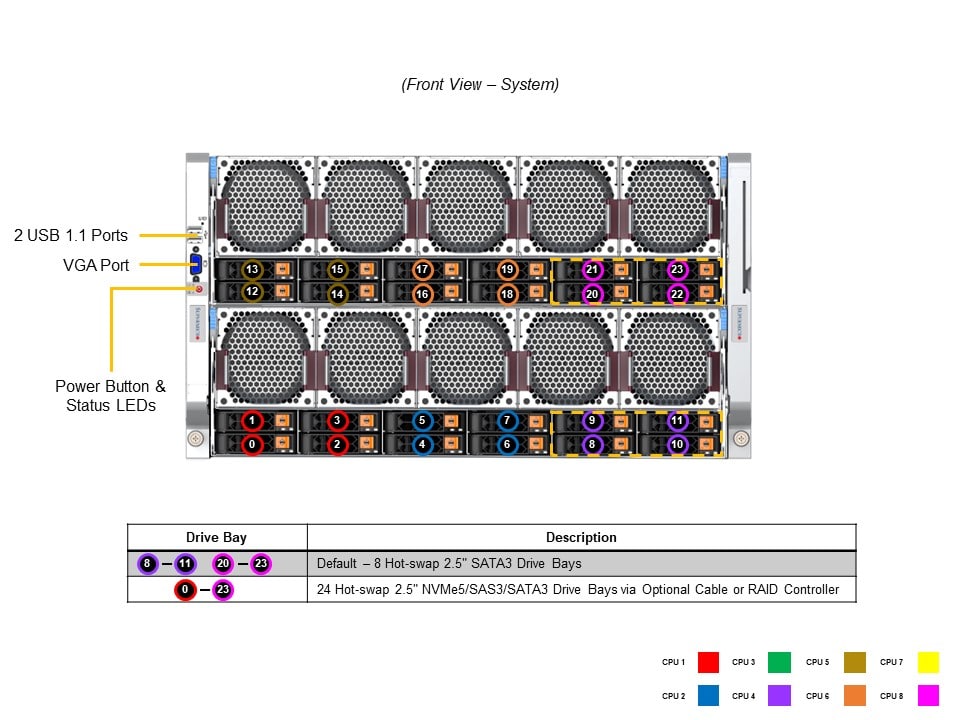

  • Default: Total 8 bays8 front hot-swap 2.5″ SATA drive bays
  • 8 front hot-swap 2.5″ SATA drive bays
  • Option A: Total 24 bays24 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • 24 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 10 Heavy duty counter-rotating 8cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 4x 2600W 4x 2600W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
Input
  • 2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 4x 2600W 4x 2600W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A Output TypeBackplanes (gold finger)
