1U NVIDIA Grace CPU Superchip system supporting NVIDIA BlueField®-3 or NVIDIA Connect®X-7

Pretul afisat contine TVA (21%).

SuperServer ARS-121L-NE316R

1U NVIDIA Grace CPU Superchip system supporting NVIDIA BlueField®-3 or NVIDIA Connect®X-7

Key Features

  1. NVIDIA Grace™ CPU Superchip (Dual-Core), 144 ARM v9 cores, TDP 500W
  2. Up to 960GB LPDDR onboard memory
  3. 2 PCIe 5.0 x16 FHHL slots & 2 AIOM connector (OCP 3.0 SFF Compliant)
  4. 16 Front Hot-Swap E3.S (7.5mm) NVMe drive bays
  5. Reduntant Titanium 1600W Power Supplies

Specifications

Product SKUs
  • ARS-121L-NE316R

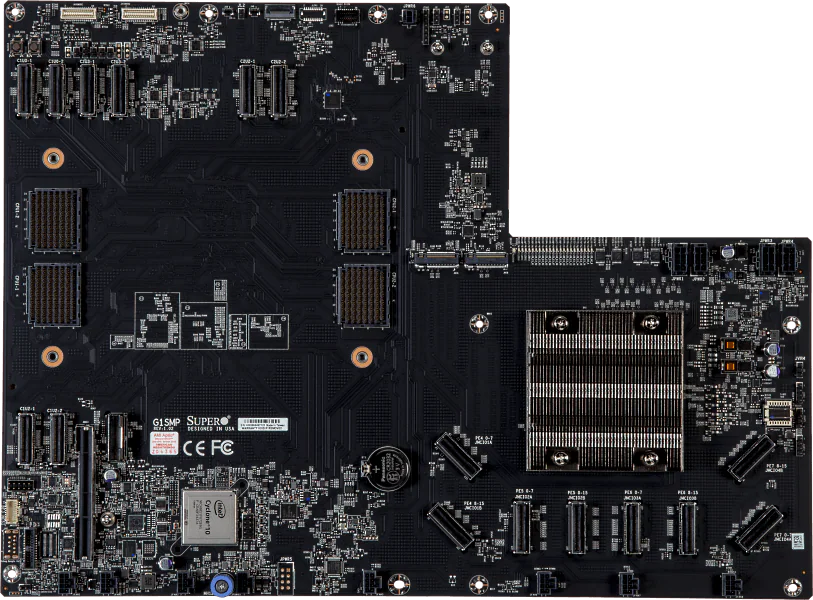

Motherboard
  • Super G1SMP

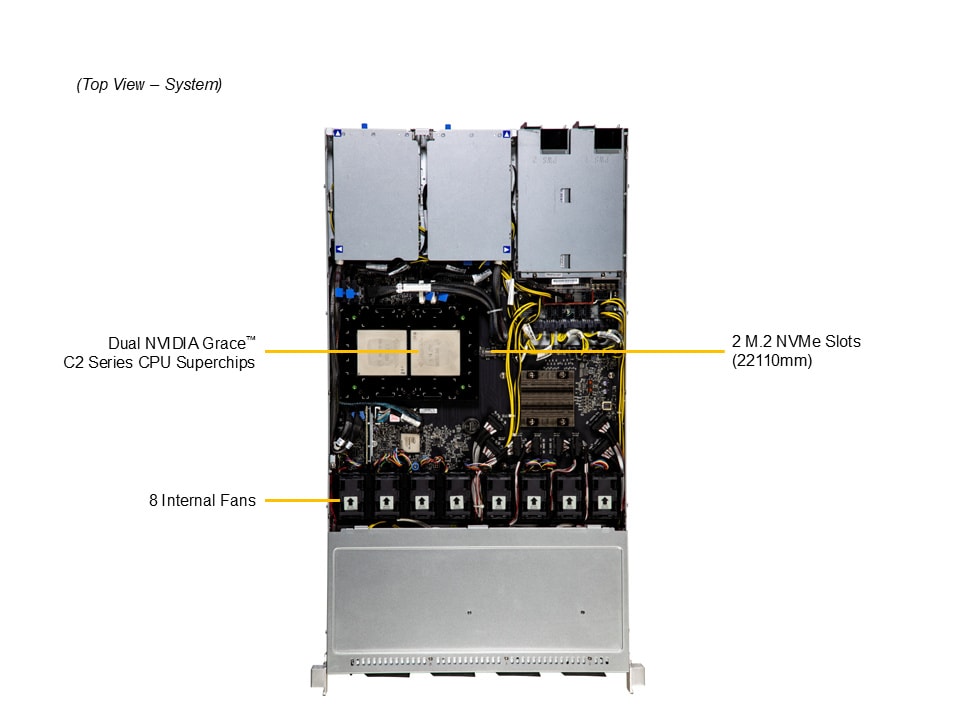

Processor
CPU
  • Dual processor(s)
  • NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip
Note
  • Supports up to 500W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 960GB ECC LPDDR5X
On-Board Devices
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 1 USB 3.0 Type-A port(Rear)
Video
  • 1 mini-DP port
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • ARS-121L-NE316R
  • Super G1SMP
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-SG101E3-R000NDP
Dimensions and Weight
Height
  • 1.7″ (43.6 mm)
Width
  • 17.2″ (438.4 mm)
Depth
  • 30.9″ (784.85 mm)
Package
  • 9.52″ (H) x 26.77″ (W) x 43.62″ (D)
Weight
  • Gross Weight: 66.8 lbs (30.3 kg)
  • Net Weight: 43.6 lbs (19.8 kg)
Available Color
  • Silver

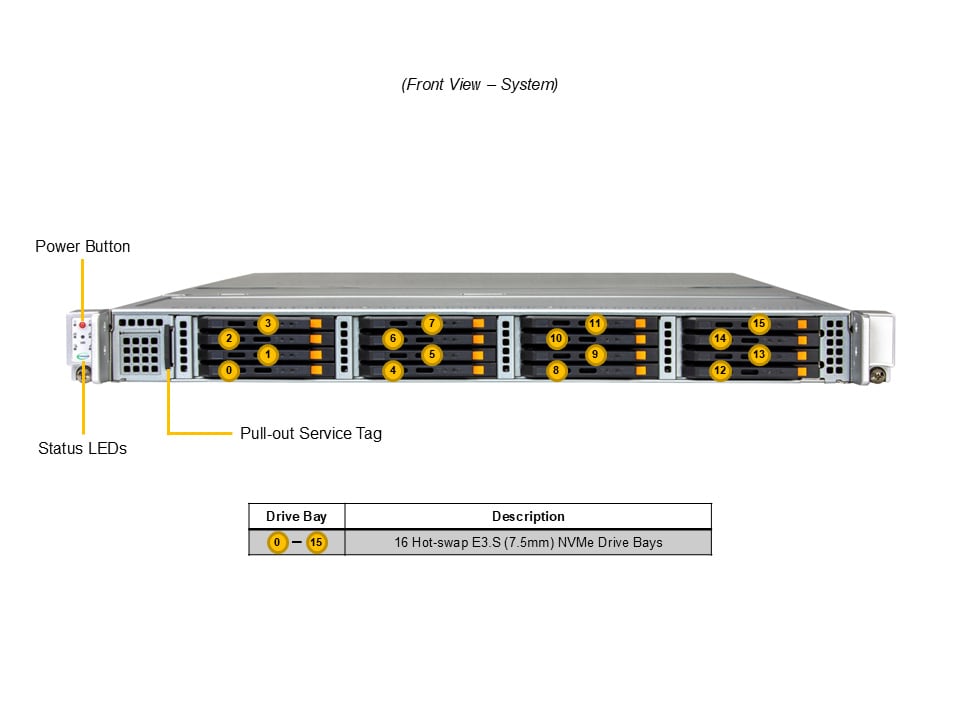

Front Panel
Buttons
  • Power On/Off
  • UID button
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power Fail LED
  • Power status
  • System information

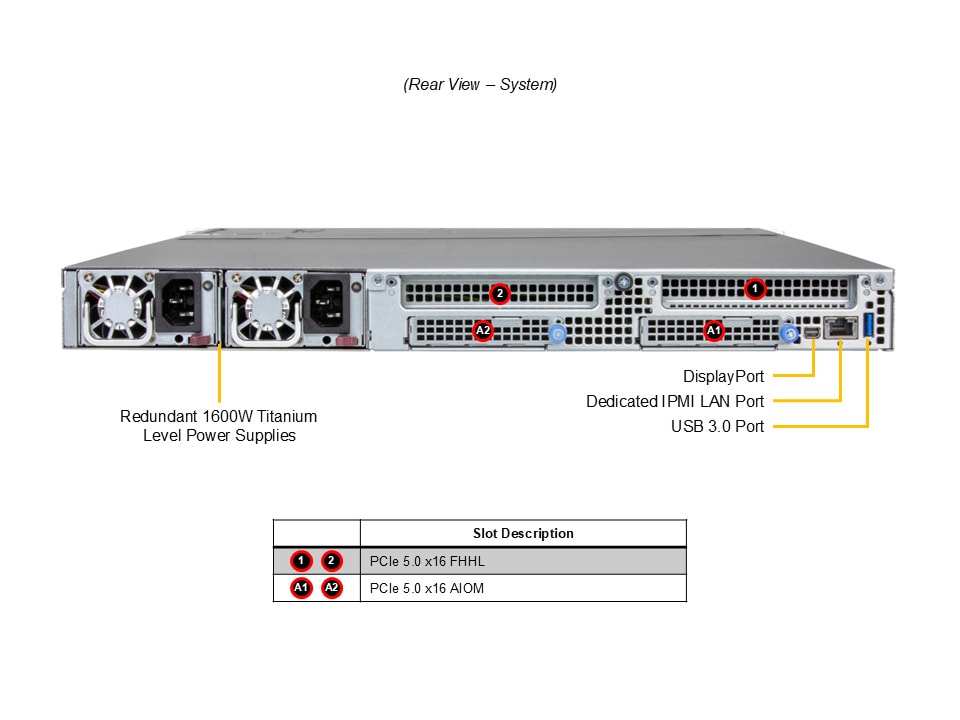

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x16 (in x16) FHHL slots
  • 2 PCIe 5.0 x16 (in x16) FHHL slots
  • Option A2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible)
  • 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible)

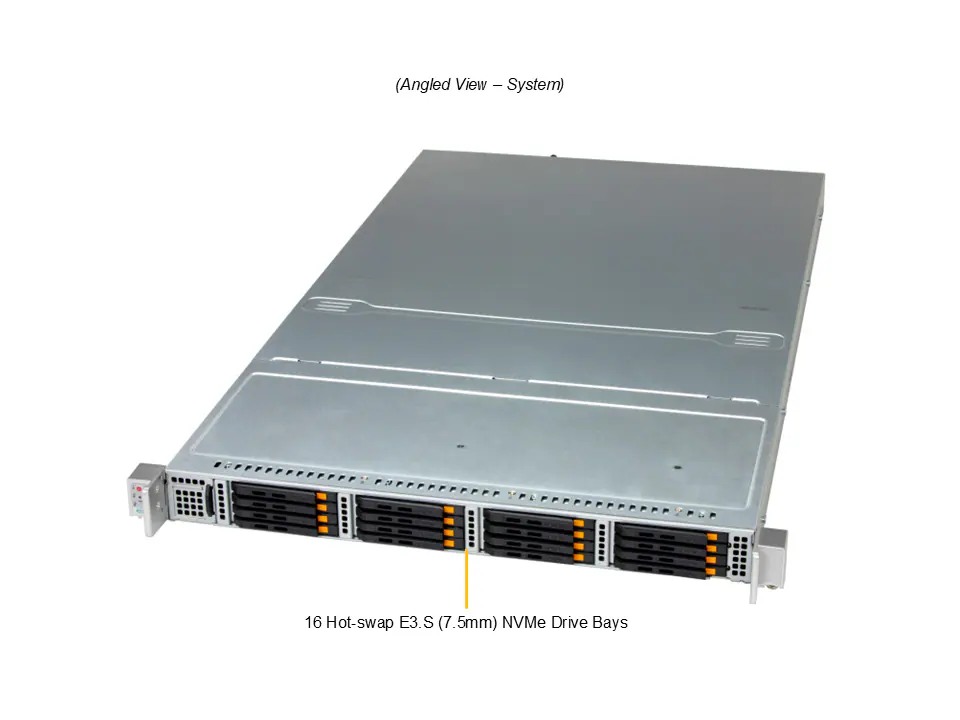

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 16 bays16 front hot-swap E3.S 1T NVMe drive bays
  • 16 front hot-swap E3.S 1T NVMe drive bays
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default))
  • View M.2 Options
System Cooling
Fans
  • Up to 8 Removable heavy-duty 4cm Fan(s)
Power Supply
  • 2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
