Supermicro SuperServer ASG-1115S-NE3X12R

Favorite
Compara

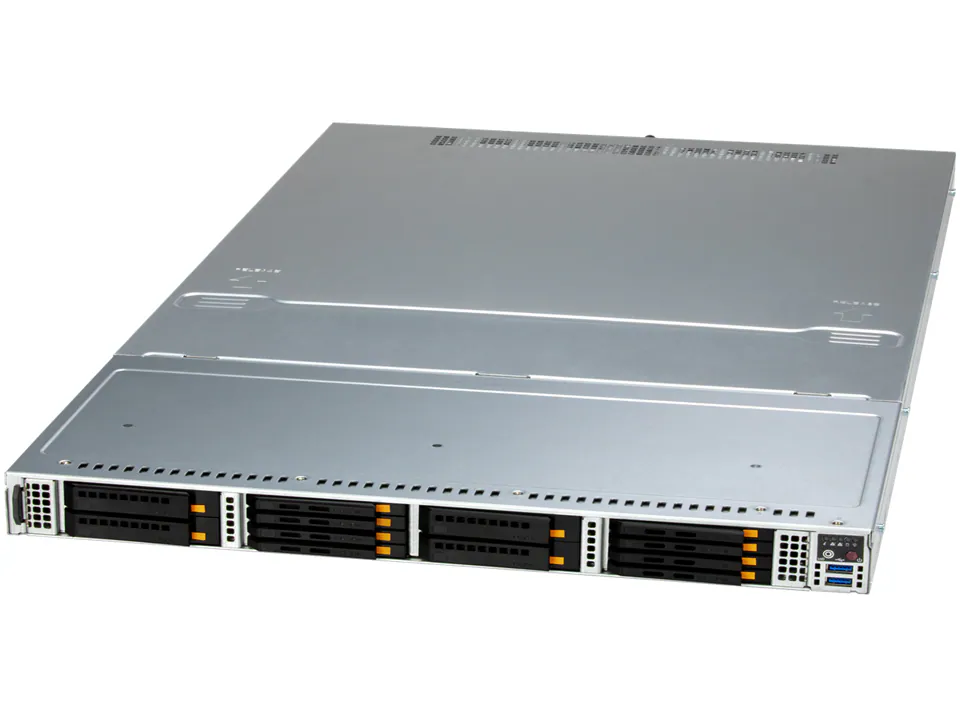

1U front-loading all-flash storage server with 12 E3.S NVMe drives and PCIe 5.0

Pretul afisat contine TVA (21%).

SuperServer ASG-1115S-NE3X12R

1U front-loading all-flash storage server with 12 E3.S NVMe drives and PCIe 5.0

Key Features

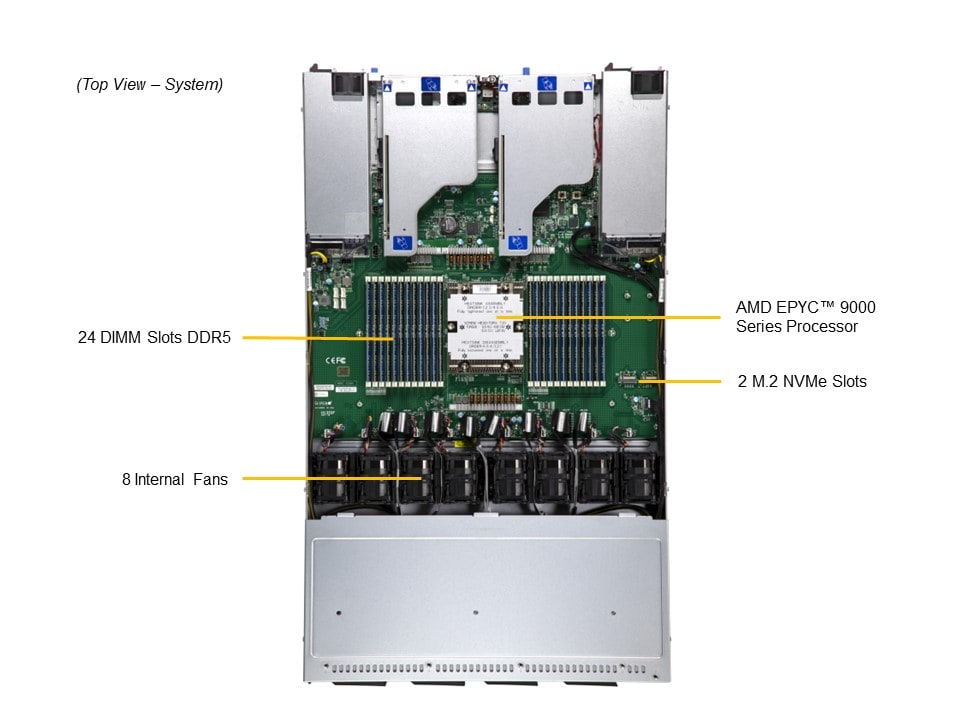

  1. Single Socket SP5 AMD EPYC™ 9004 Series processors. Up to 300W TDP.
  2. Supports 24 DIMMs with 2DPC, up to 9TB memory capacity with 24 DIMMs of 384GB 3DS RDIMM/RDIMM DDR5 ECC memory
  3. Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)

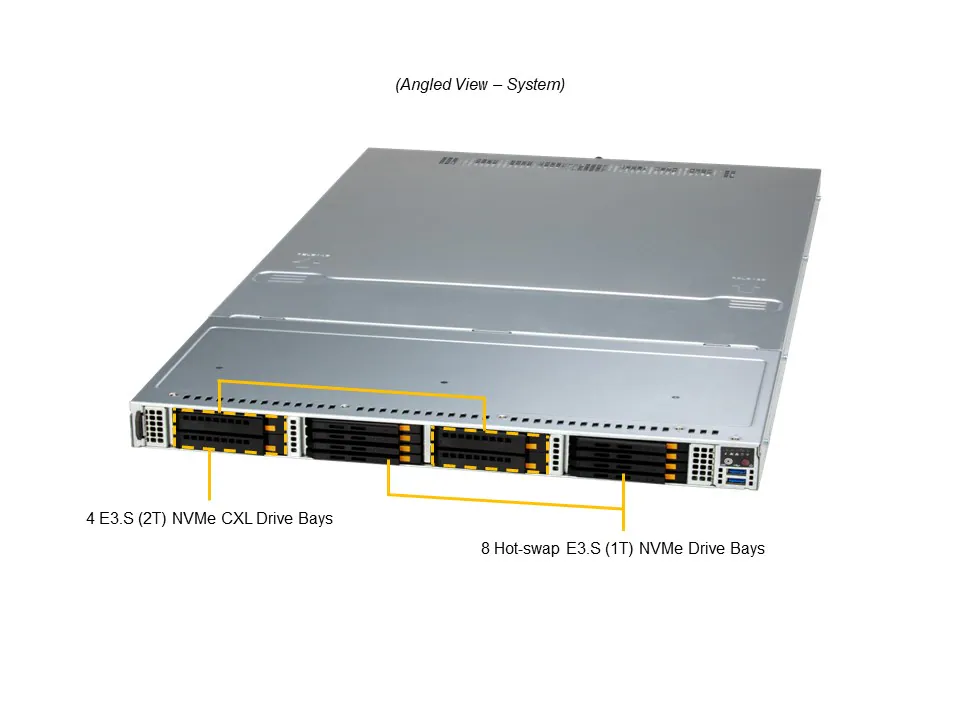

  4. 4x E3.S CXL (16.8mm) + 8x hot-swap E3.S (7.5mm) NVMe drive bays
  5. Redundant Titanium 1600W Power Supplies

Specifications

Product SKUs
  • A+ Server ASG-1115S-NE3X12R
Motherboard

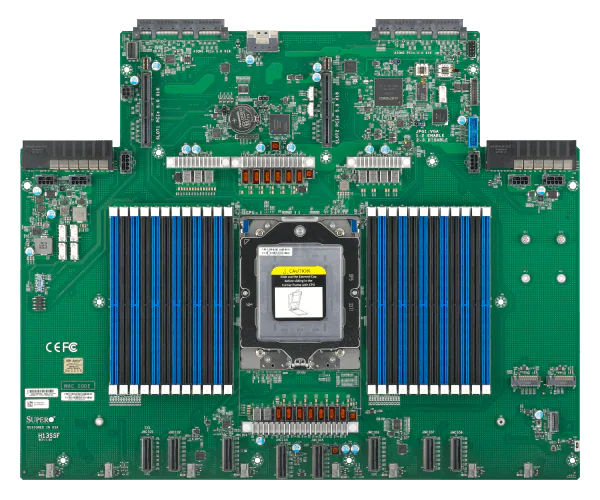

  • Super H13SSF
Processor
CPU
  • Single processor(s)
  • AMD EPYC™ 9004/9005 Series Processors(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Core Count
  • Up to 96C/192T
Note
  • Supports up to 300W TDP CPUs
System Memory
Memory
  • Slot Count: 24 DIMM slots/12 Channels
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • Max Memory (1DPC): Up to 4.5TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • Max Memory (2DPC): Up to 9TB 4400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • Via AIOM

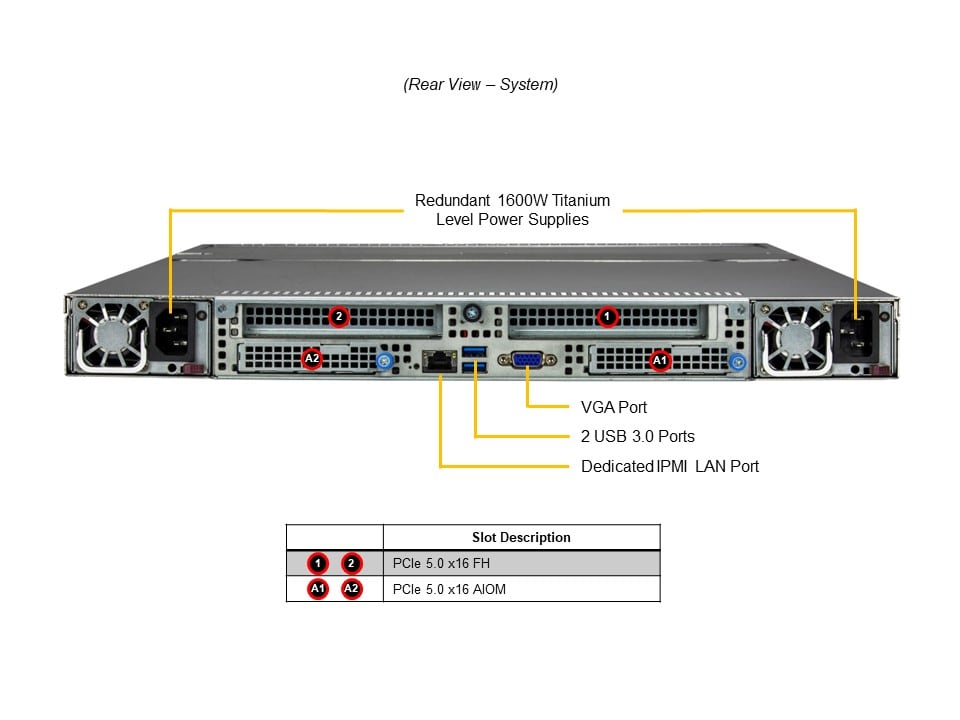

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 2 USB 3.0 ports(front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
  • A+ Server ASG-1115S-NE3X12R
  • Super H13SSF
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-126E32-R1K62P
Dimensions and Weight
Height
  • 1.7″ (43.6 mm)
Width
  • 17.2″ (438.4 mm)
Depth
  • 30.4″ (773.25 mm)
Package
  • 7.87″ (H) x 23.81″ (W) x 40.55″ (D)
Weight
  • Gross Weight: 68.74 lbs (31.2 kg)
  • Net Weight: 48 lbs (21.8 kg)
Available Color
  • Silver

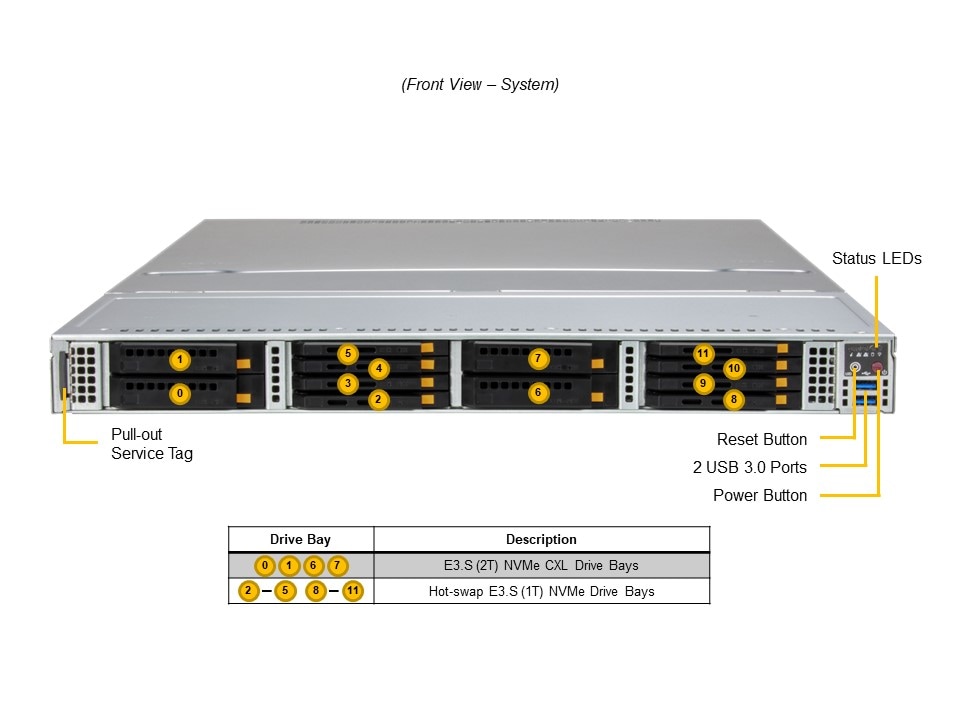

Front Panel
Buttons
  • Power On/Off
LED
  • Network activity
  • Power status
  • SSD activity
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • 2 PCIe 5.0 x16 FHHL slots
  • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
CXL Support
  • Up to 4 CXL 2.0 x8 Type 3 devices
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays 4 front fixed E3.S 2T PCIe 5.0 x8 CXL Type 3 drive bays
  • 8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
  • 4 front fixed E3.S 2T PCIe 5.0 x8 CXL Type 3 drive bays
M.2
  • 1 M.2 PCIe 3.0 x2 NVMe slot (M-key 2280/22110)
  • 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 8 Heavy Duty 4cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 1x 1600W 1x 1600W Redundant Titanium Level (96%) power supply Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level [ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-condensing)
  • Non-operating Relative Humidity: 8% to 95% (Non-condensing)
  • 1x 1600W 1x 1600W Redundant Titanium Level (96%) power supply Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
