Supermicro SuperServer SSG-522B-ACR12L

Favorite
Compara

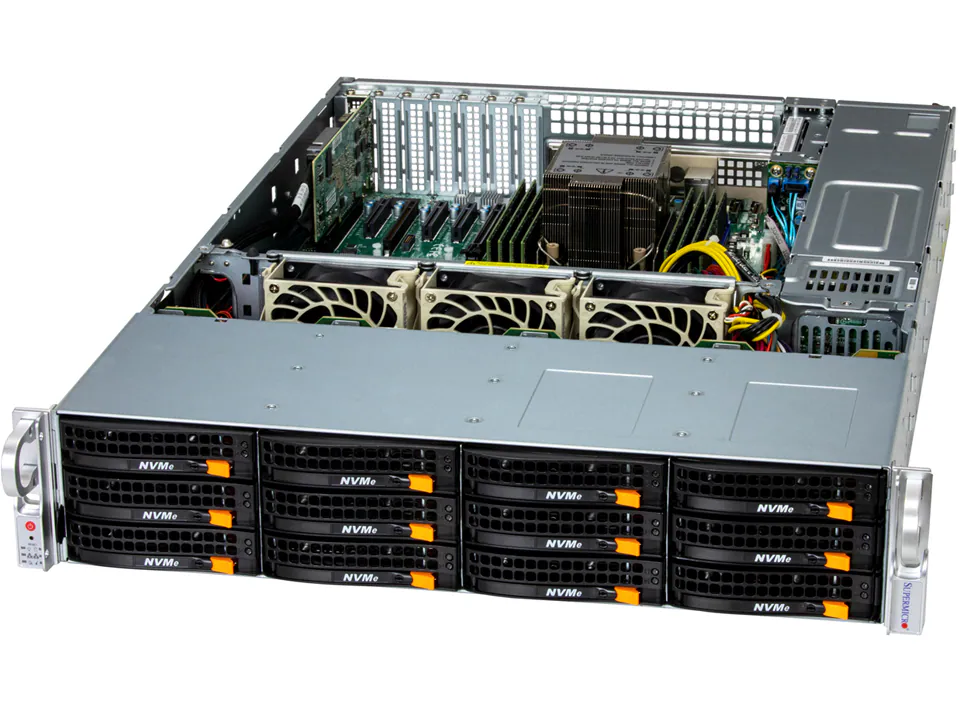

2U UP front-loading storage server with 12 direct-attached hot-swap 3.5″ SAS/SATA/NVMe bays (SAS HBA) and PCIe 5.0

Pretul afisat contine TVA (21%).

SuperServer SSG-522B-ACR12L

2U UP front-loading storage server with 12 direct-attached hot-swap 3.5″ SAS/SATA/NVMe bays (SAS HBA) and PCIe 5.0

Key Features

  1. HBA by Broadcom® SAS3816 on both front and rear drive bays
  2. Single Intel® Xeon® 6700/6500 series processor up to 350W TDP
  3. Up to 2TB DDR5-6400MT/s ECC Registered in 8 DIMM slots (1DPC)
  4. 2 onboard 10GbE ports via Intel® X550 and 1 GbE port for BMC via Aspeed AST2600
  5. Six total PCIe slots: 3 PCIe 5.0 x8 + 3 PCIe 5.0 x16 slots ** Slot 1 is occupied by system’s default controller
  6. Six total PCIe slots: 3 PCIe 5.0 x8 + 3 PCIe 5.0 x16 slots *
  7. * Slot 1 is occupied by system’s default controller
  8. 2U all hybrid hot-swap NVMe/SAS3/SATA3 front(3.5″ x 12) and rear(2.5″ x 2) drive bays ** up to total 12 NVMe ports in the system
  9. 2U all hybrid hot-swap NVMe/SAS3/SATA3 front(3.5″ x 12) and rear(2.5″ x 2) drive bays *
  10. * up to total 12 NVMe ports in the system
  11. 1200W Redundant Titanium Level (96%) Hot-plug power supplies

Specifications

Product SKUs
  • SuperServer SSG-522B-ACR12L
Motherboard

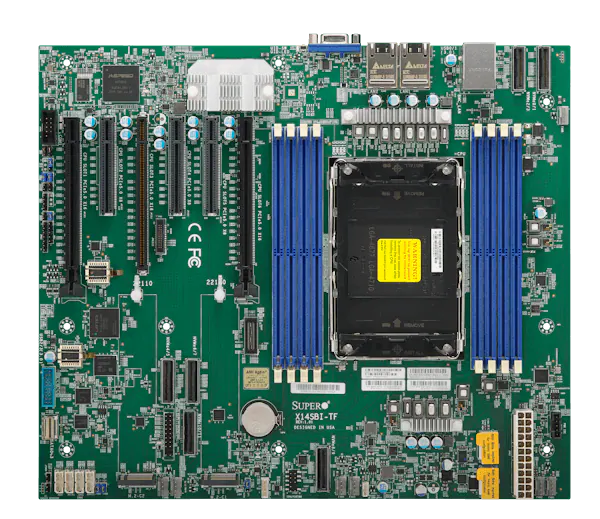

  • Super X14SBI-TF
Processor
CPU
  • Single Socket E2 (LGA-4710)
  • Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count
  • P-cores: Up to 86C/172T; Up to 336MB Cache
  • E-cores: Up to 144C/144T; Up to 108MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
System Memory
Memory

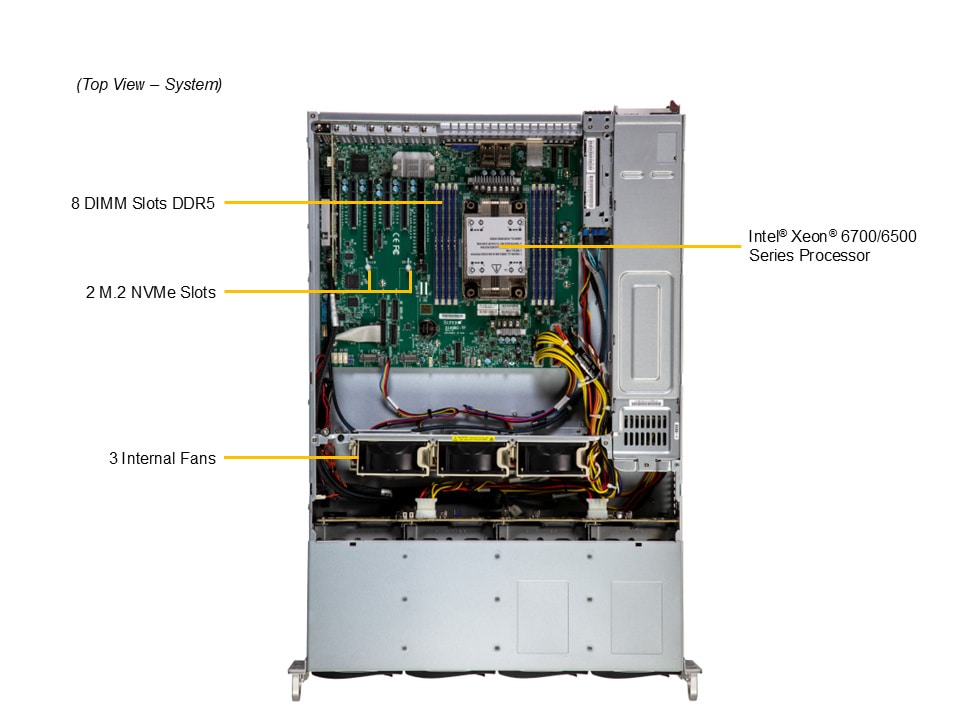

  • Slot Count: 8 DIMM slots/8 Channels
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • 4 x SlimSAS
SAS
  • SAS (12Gbps) via Broadcom® 3816; (IT mode)
NVMe
  • NVMe; RAID 0/1 support(Intel® VROC RAID key required)
Network Connectivity
  • 2 RJ45 10GbE with Intel® X550
Input / Output
LAN
  • 2 RJ45 10 GbE LAN ports (Intel® X550)
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
  • 2 USB 3.2 Gen1 ports(Header)
  • 2 USB 3.2 Gen1 ports(Rear)
Video
  • 1 VGA port(Rear)
Serial
  • 1 COM port(header)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 64MB UEFI
BIOS Features
  • ACPI 6.5
  • SMBIOS 3.7 or later
  • UEFI 2.9
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
  • Runtime BMC Protections
  • Supply Chain Security: Remote Attestation
PC Health Monitoring
CPU
  • 8 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
  • SuperServer SSG-522B-ACR12L
  • Super X14SBI-TF
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-826BTS-R1K23LPBP2
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.6″ (650 mm)
Package
  • 11.5″ (H) x 26.5″ (W) x 34″ (D)
Weight
  • Gross Weight: 58 lbs (26.3 kg)
  • Net Weight: 34 lbs (15.4 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off
  • System Reset
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power Failure LED
  • Power status
  • System information
Expansion Slots

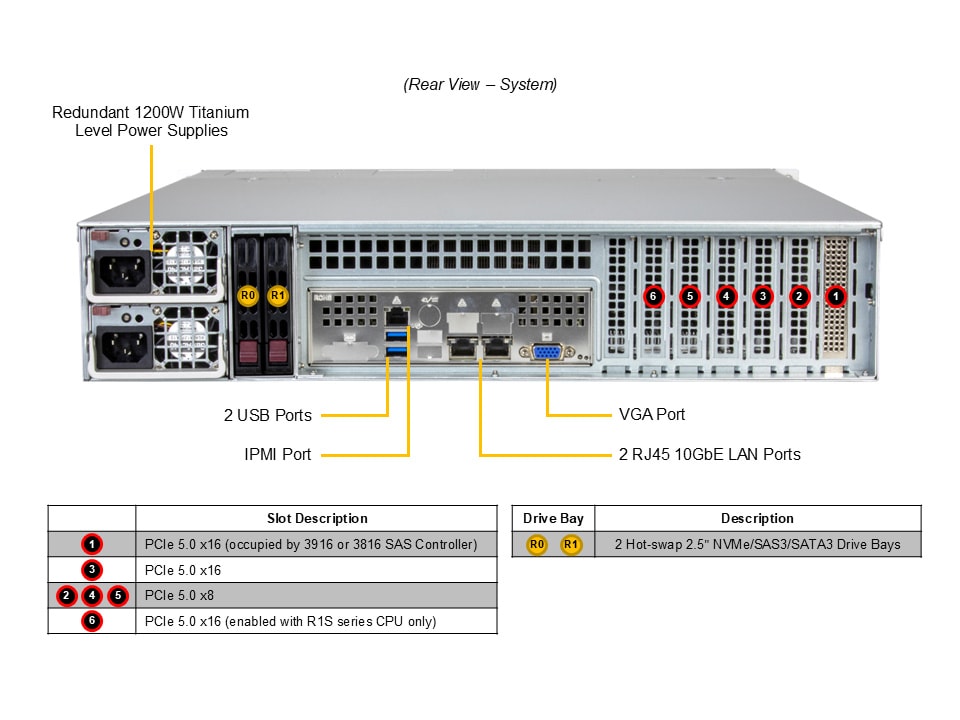

PCI-Express (PCIe) Configuration
  • Default3 PCIe 5.0 x16 (in x16) LP slots 3 PCIe 5.0 x8 (in x8) LP slots
  • 3 PCIe 5.0 x16 (in x16) LP slots
  • 3 PCIe 5.0 x8 (in x8) LP slots
Drive Bays / Storage
Drive Bays Configuration

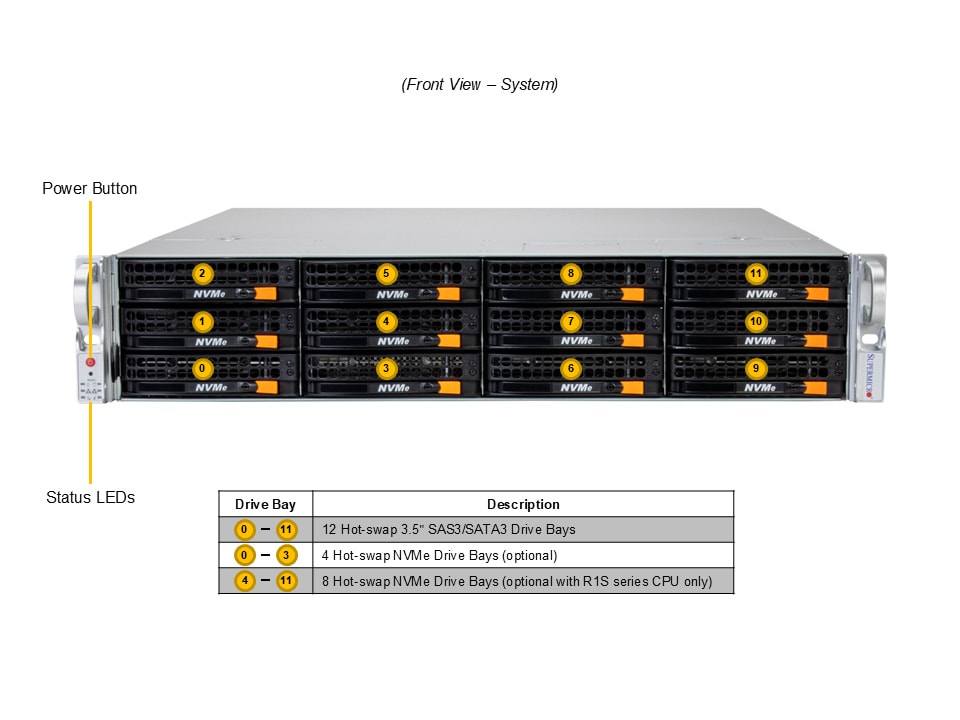

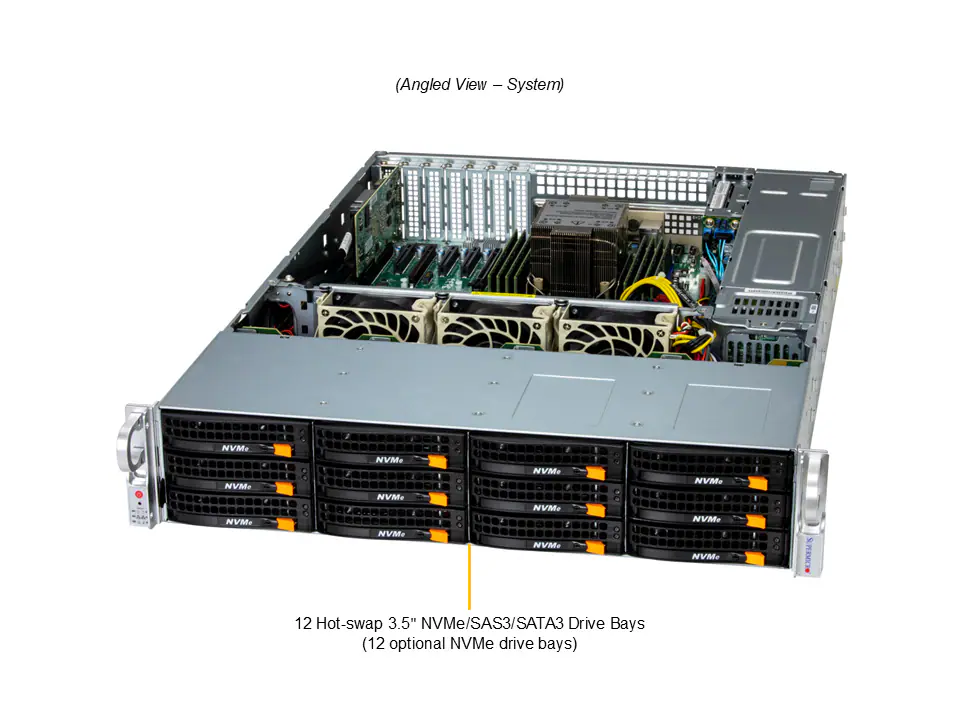

  • Default: Total 14 bays12 front hot-swap 3.5″ NVMe*/SAS/SATA drive bays 2 rear hot-swap 2.5″ NVMe*/SAS/SATA drive bays
  • 12 front hot-swap 3.5″ NVMe*/SAS/SATA drive bays
  • 2 rear hot-swap 2.5″ NVMe*/SAS/SATA drive bays
  • (*NVMe support may require additional storage controller and/or cables)
M.2
  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default))
  • View M.2 Options
System Cooling
Fans
  • Up to 3 Heavy Duty PWM 80x80x38mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
