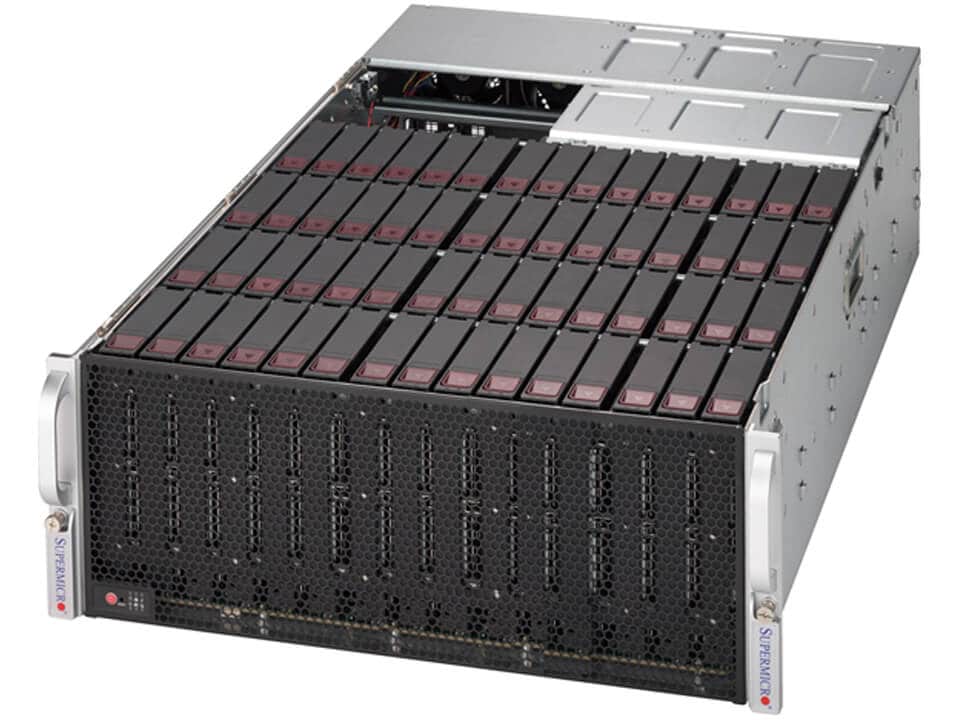

4U top-loading storage server with 60 hot-swap SAS/SATA bays and PCIe 4.0

Pretul afisat contine TVA (21%).

SuperServer SSG-540P-E1CTR60L

4U top-loading storage server with 60 hot-swap SAS/SATA bays and PCIe 4.0

Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
  3. 2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots
  4. Intel® Ethernet Controller X550 2x 10GbE RJ45
  5. 60x Top-loading hot-swap 3.5″ or 2.5″ SAS3/SATA3 drive bays, 2x Hot-swap 2.5″ SATA drive bays (rear), Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5″ SATA3/NVMe (rear, optional)
  6. 5 Hot-Swap 8cm redundant PWM fans
  7. Redundant Titanium 1600W Power Supply

Specifications

Product SKUs
  • SuperServer SSG-540P-E1CTR60L
Motherboard

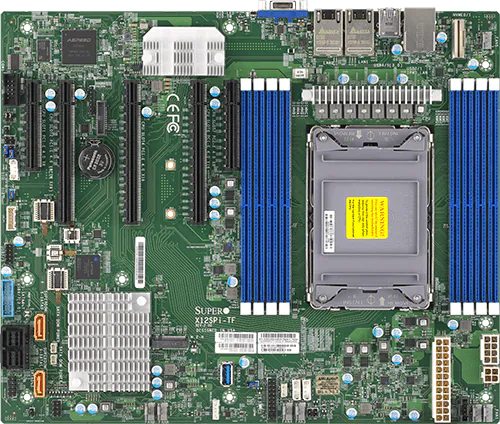

  • Super X12SPi-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 38C/76T; Up to 57MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory

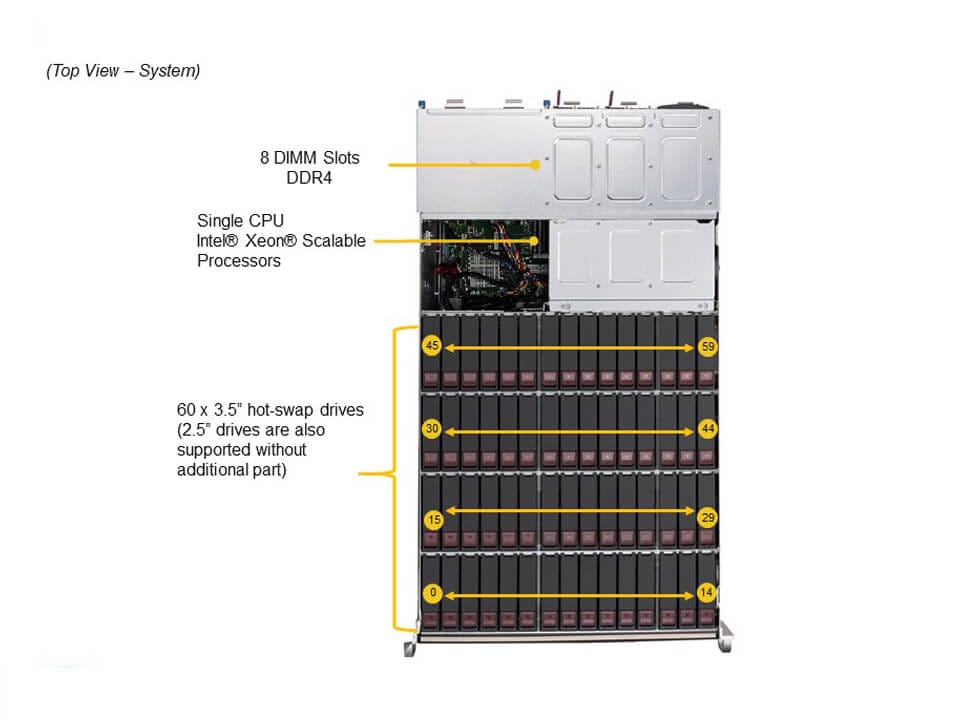

  • Slot Count: 8 DIMM slots
  • Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps)
SAS
  • SAS (12Gbps) ; (IT mode)
Network Connectivity
  • 2 RJ45 10GBASE-T with Intel® X550

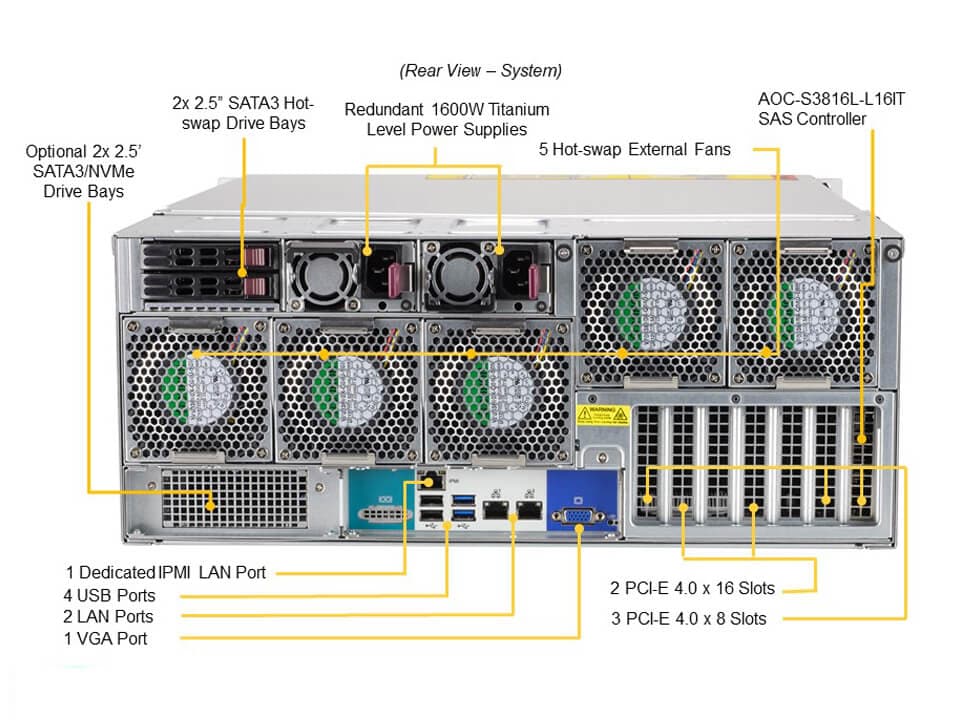

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 4 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SSG-540P-E1CTR60L
  • Super X12SPi-TF
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSV-946STS-R1K6LPP
Dimensions and Weight
Height
  • 7″
Width
  • 17.2″
Depth
  • 30.2″ (767 mm)
Package
  • 33.25″ (H) x 28″ (W) x 42.5″ (D)
Weight
  • Gross Weight: 169.5 lbs (76.9 kg)
  • Net Weight: 117 lbs (53 kg)
Available Color
  • Black

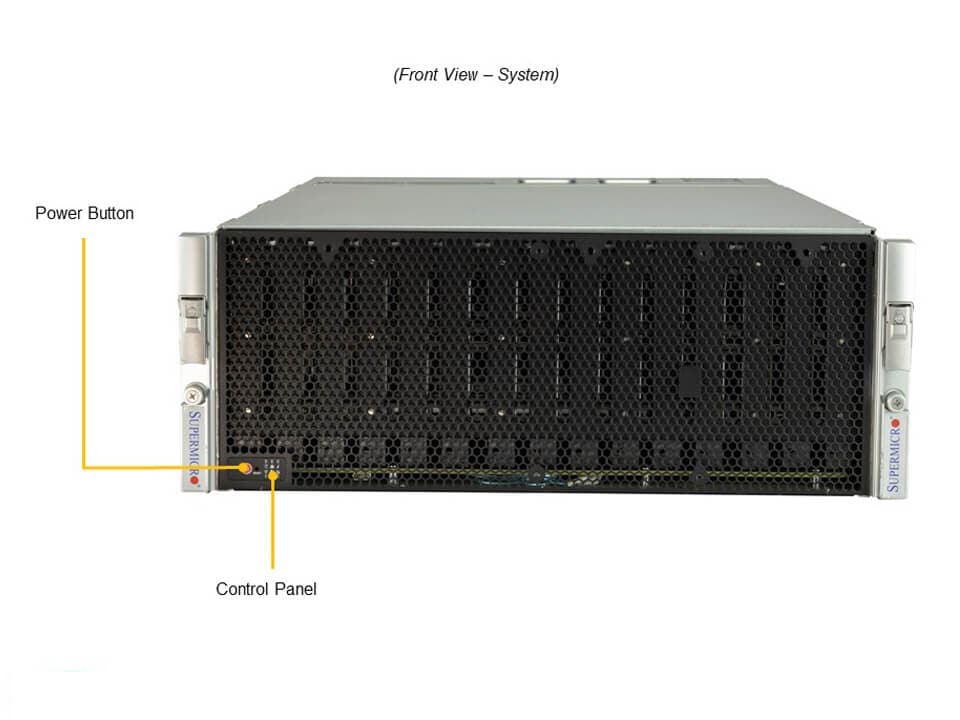

Front Panel
Buttons
  • Power On/Off
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default3 PCIe 4.0 x8 LP slots 2 PCIe 4.0 x16 LP slots
  • 3 PCIe 4.0 x8 LP slots
  • 2 PCIe 4.0 x16 LP slots
Drive Bays / Storage
Drive Bays Configuration

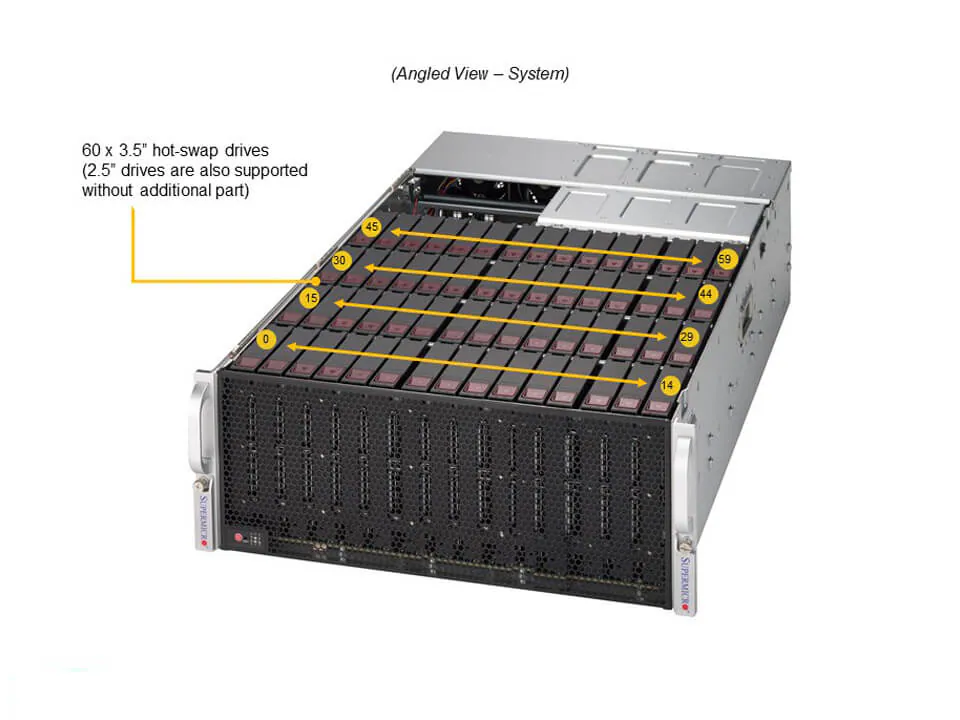

  • Default: Total 60 bays60 top-loading hot-swap 3.5″ SAS/SATA drive bays
  • 60 top-loading hot-swap 3.5″ SAS/SATA drive bays
M.2
  • 1 M.2 PCIe 3.0 x4 SATA slot (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 5 Heavy Duty 8cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 1600W 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A Max: 3.5A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% ()
  • Non-operating Relative Humidity: 5% to 95% ()
  • 2x 1600W 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Optional Parts List
