Supermicro SuperServer SSG-542B-E1CR36L

Favorite

Compara

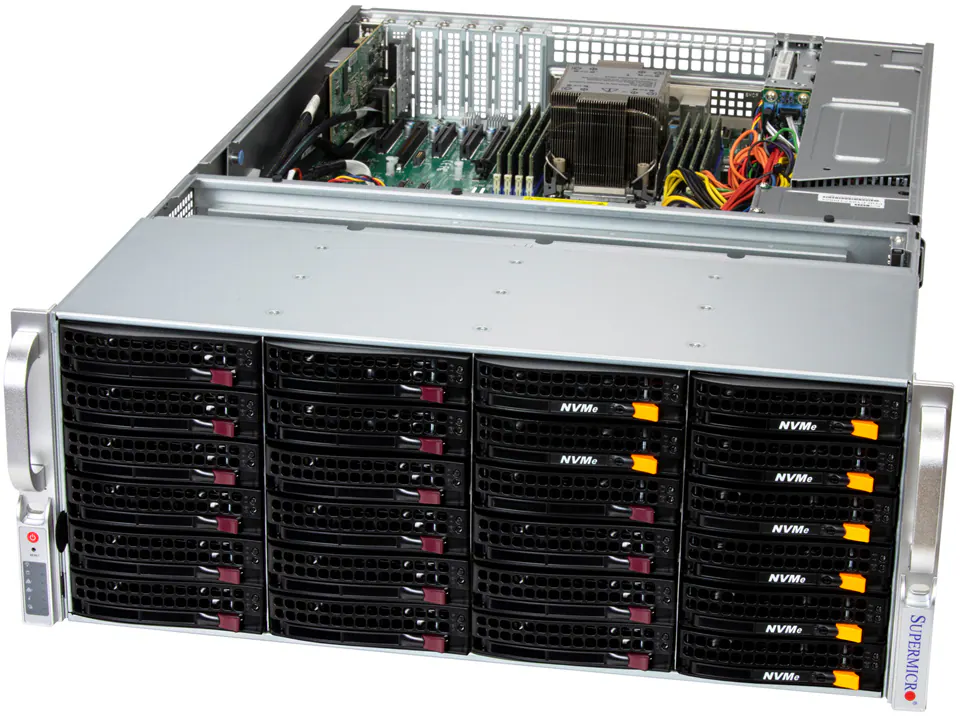

4U UP front/rear-loading storage server with 36 hot-swap 3.5″ SAS/SATA bays (SAS HBA) and PCIe 5.0

Pretul afisat contine TVA (21%).

SuperServer SSG-542B-E1CR36L

4U UP front/rear-loading storage server with 36 hot-swap 3.5″ SAS/SATA bays (SAS HBA) and PCIe 5.0

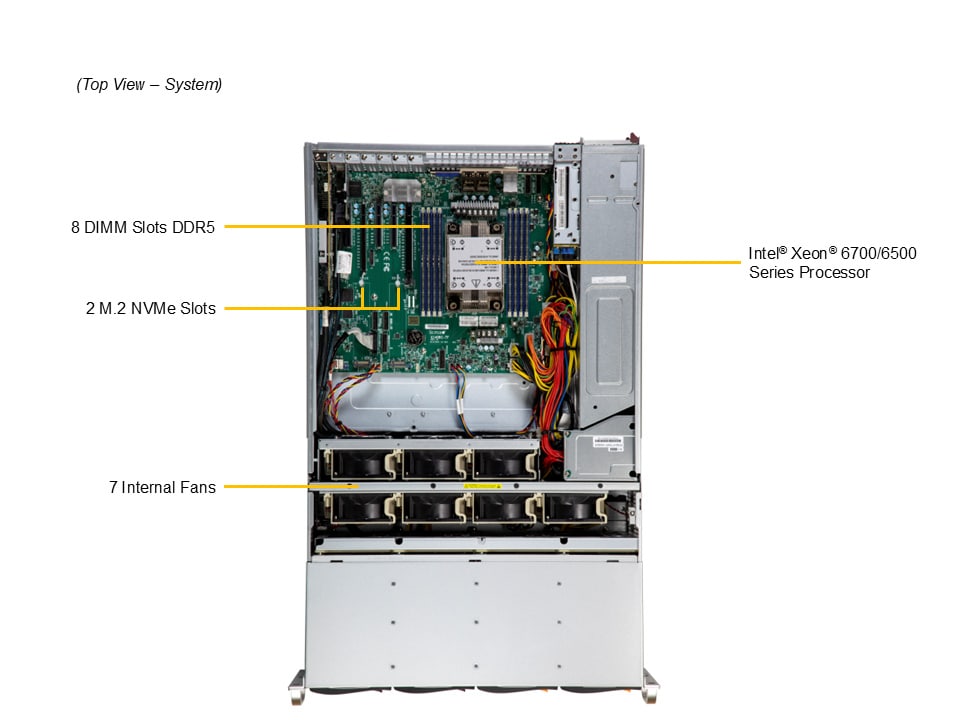

Key Features

HBA via Broadcom® SAS3816 connected on all 2.5″/3.5″ drive bays
Single Intel® Xeon® 6700/6500 series processor up to 350W TDP
Up to 2TB DDR5-6400MT/s registered ECC in 8 DIMM slots (1DPC)
2 onboard 10GbE ports via Intel® X550 and 1GbE port for BMC via Aspeed AST2600
Six total PCIe slots: 3 PCIe 5.0 x8 + 3 PCIe 5.0 x16 slots ** Slot 1 & 2 are occupied by system’s default controller and JBOD module
Six total PCIe slots: 3 PCIe 5.0 x8 + 3 PCIe 5.0 x16 slots *
* Slot 1 & 2 are occupied by system’s default controller and JBOD module
* up to total 10 NVMe ports in the system4U hybrid hot-swap NVMe/SAS3/SATA3 main (3.5″ x 36) and rear (2.5″ x 2) drive bays *
* up to total 10 NVMe ports in the system
4U hybrid hot-swap NVMe/SAS3/SATA3 main (3.5″ x 36) and rear (2.5″ x 2) drive bays *
1600W Redundant Titanium Level (96%) Hot-plug power supplies

Specifications

Product SKUs
SuperServer SSG-542B-E1CR36L
Motherboard

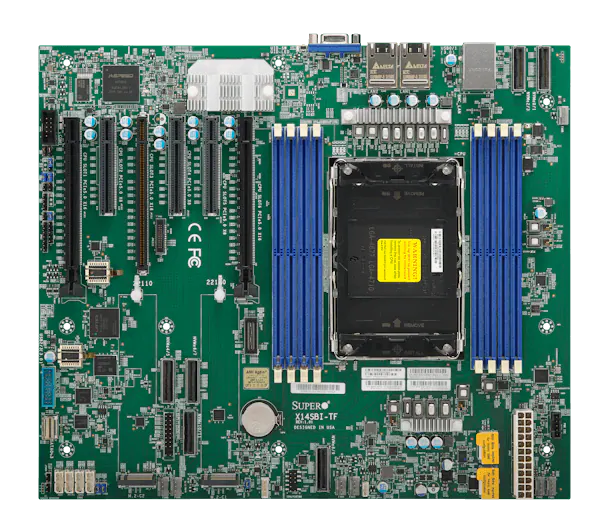

Super X14SBI-TF
Processor
CPU	Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count	P-cores: Up to 86C/172T; Up to 336MB Cache E-cores: Up to 144C/144T; Up to 108MB Cache
Note	Supports up to 350W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: 8 DIMM slots/8 Channels Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices
SATA	4 x SlimSAS
SAS	SAS (12Gbps) via Broadcom® 3916; RAID 0/1/5/6/10/50/60 support
NVMe	NVMe; RAID 0/1 support(Intel® VROC RAID key required)
Network Connectivity	2 RJ45 10GbE with Intel® X550
Input / Output
LAN	2 RJ45 10 GbE LAN ports (Intel® X550) 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB	2 USB 3.2 Gen1 ports(Header) 2 USB 3.2 Gen1 ports(Rear)
Video	1 VGA port
Serial	1 COM port(header)
TPM	1 TPM header
System BIOS
BIOS Type	AMI 64MB UEFI
BIOS Features	ACPI 6.5 SMBIOS 3.7 or later UEFI 2.9
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown Runtime BMC Protections Supply Chain Security: Remote Attestation
PC Health Monitoring
CPU	8 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
SuperServer SSG-542B-E1CR36L
Super X14SBI-TF
Chassis
Form Factor	4U Rackmount
Model	CSE-847BTS-R1K68LPBP5
Dimensions and Weight
Height	7″
Width	17.2″
Depth	27.5″
Package	15″ (H) x 27″ (W) x 39″ (D)
Weight	Gross Weight: 102.5 lbs (46.4 kg) Net Weight: 65.5 lbs (29.7 kg)
Available Color	Silver
Front Panel
Buttons	Power On/Off
LED	HDD activity Network activity Power status System information (overheat/UID)
Expansion Slots

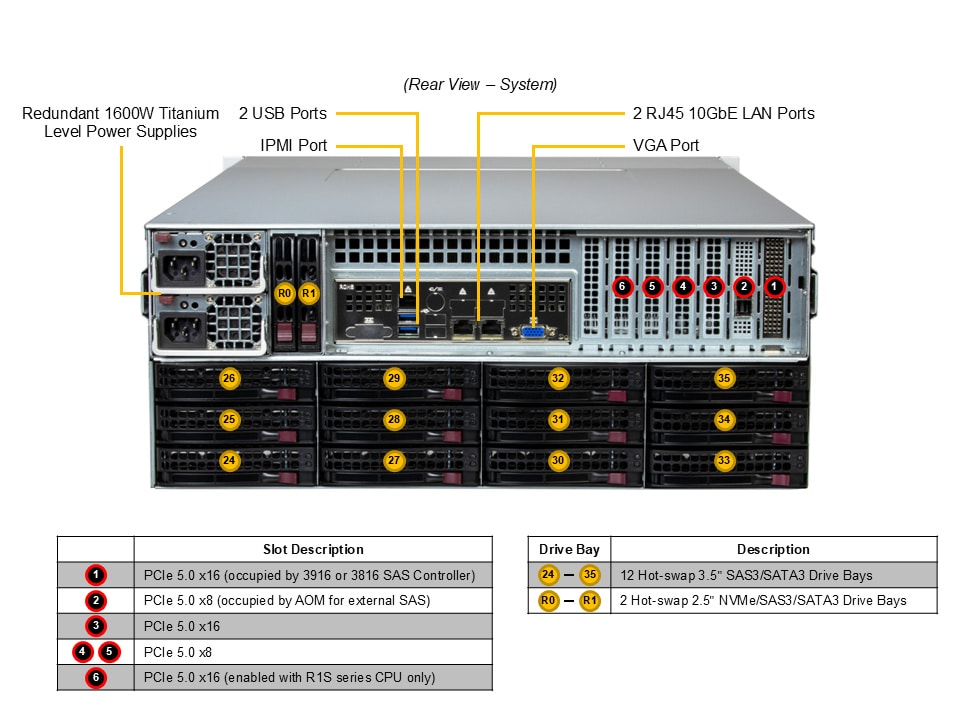

PCI-Express (PCIe) Configuration	Default3 PCIe 5.0 x8 (in x8) LP slots 3 PCIe 5.0 x16 (in x16) LP slots 3 PCIe 5.0 x8 (in x8) LP slots 3 PCIe 5.0 x16 (in x16) LP slots
Drive Bays / Storage

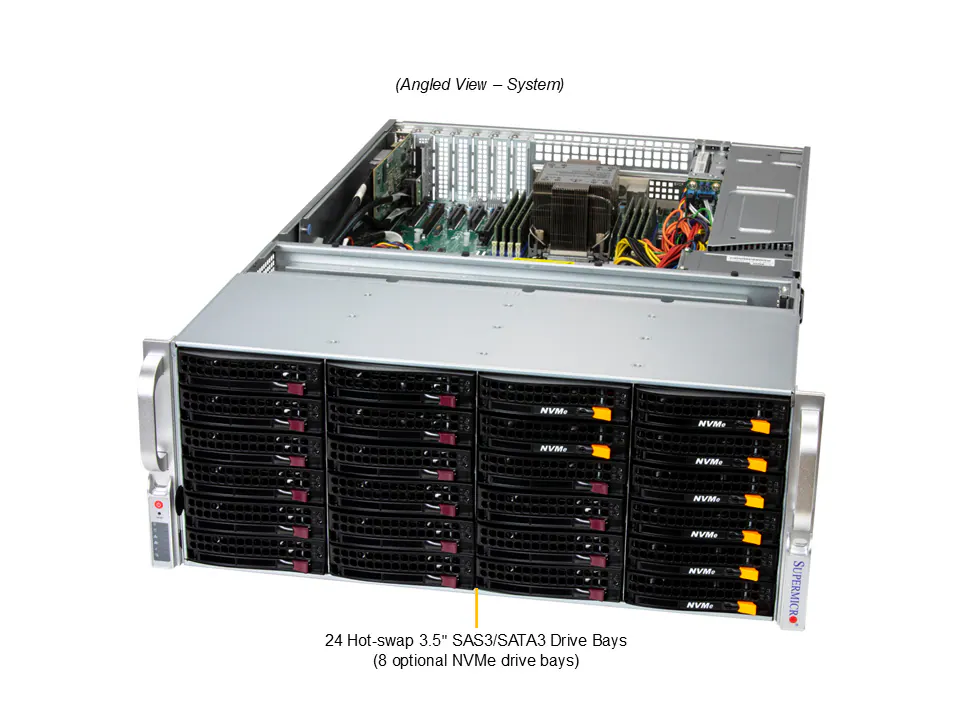

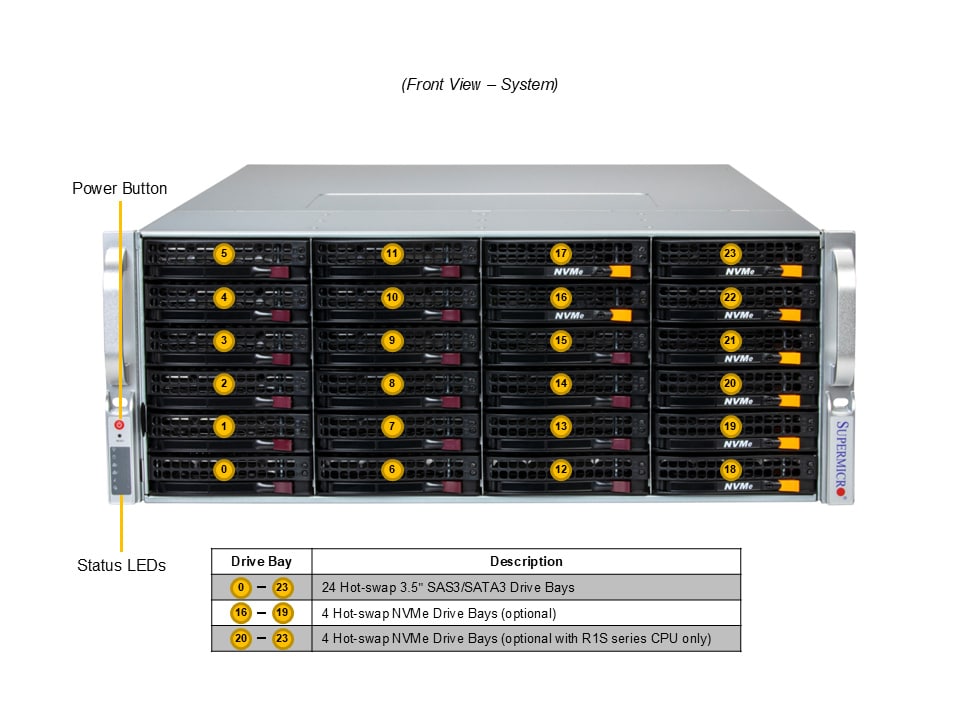

Drive Bays Configuration	Default: Total 38 bays24 front hot-swap 3.5″ SAS/SATA drive bays 12 rear hot-swap 3.5″ SAS/SATA drive bays 2 rear hot-swap 2.5″ SAS/SATA drive bays 24 front hot-swap 3.5″ SAS/SATA drive bays 12 rear hot-swap 3.5″ SAS/SATA drive bays 2 rear hot-swap 2.5″ SAS/SATA drive bays Option A: Total 10 bays8 front hot-swap 3.5″ PCIe 5.0 x4 NVMe* drive bays 2 rear hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays 8 front hot-swap 3.5″ PCIe 5.0 x4 NVMe* drive bays 2 rear hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)) View M.2 Options
System Cooling
Fans	7 Heavy Duty PWM 80x80x38mm Fan(s)
Air Shroud	1 Air Shroud
Power Supply
2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input180-240Vac 100-140Vac 800W: 100-140Vac / 50-60Hz 1600W: 180-240Vac / 50-60Hz +12VMax: 66A / Min: 0A (100Vac-140Vac)Max: 66A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (180Vac-240Vac)Max: 133A / Min: 0A (200Vac-240Vac) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)	76 x 40 x 336 mm
Input	180-240Vac 100-140Vac 800W: 100-140Vac / 50-60Hz 1600W: 180-240Vac / 50-60Hz
+12V	Max: 66A / Min: 0A (100Vac-140Vac)Max: 66A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (180Vac-240Vac)Max: 133A / Min: 0A (200Vac-240Vac)
5V SB	Max: 1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input180-240Vac 100-140Vac 800W: 100-140Vac / 50-60Hz 1600W: 180-240Vac / 50-60Hz +12VMax: 66A / Min: 0A (100Vac-140Vac)Max: 66A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (180Vac-240Vac)Max: 133A / Min: 0A (200Vac-240Vac) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Optional Parts List

SKU: ssg-542b-e1cr36l Categorii: BRAND, Server&Storage, storage, SUPERMICRO

Product SKUs
SuperServer SSG-542B-E1CR36L
Motherboard
Super X14SBI-TF
Processor
CPU	Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count	P-cores: Up to 86C/172T; Up to 336MB Cache E-cores: Up to 144C/144T; Up to 108MB Cache
Note	Supports up to 350W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: 8 DIMM slots/8 Channels Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices
SATA	4 x SlimSAS
SAS	SAS (12Gbps) via Broadcom® 3916; RAID 0/1/5/6/10/50/60 support
NVMe	NVMe; RAID 0/1 support(Intel® VROC RAID key required)
Network Connectivity	2 RJ45 10GbE with Intel® X550
Input / Output
LAN	2 RJ45 10 GbE LAN ports (Intel® X550) 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB	2 USB 3.2 Gen1 ports(Header) 2 USB 3.2 Gen1 ports(Rear)
Video	1 VGA port
Serial	1 COM port(header)
TPM	1 TPM header
System BIOS
BIOS Type	AMI 64MB UEFI
BIOS Features	ACPI 6.5 SMBIOS 3.7 or later UEFI 2.9
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown Runtime BMC Protections Supply Chain Security: Remote Attestation
PC Health Monitoring
CPU	8 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
SuperServer SSG-542B-E1CR36L
Super X14SBI-TF
Chassis
Form Factor	4U Rackmount
Model	CSE-847BTS-R1K68LPBP5
Dimensions and Weight
Height	7″
Width	17.2″
Depth	27.5″
Package	15″ (H) x 27″ (W) x 39″ (D)
Weight	Gross Weight: 102.5 lbs (46.4 kg) Net Weight: 65.5 lbs (29.7 kg)
Available Color	Silver
Front Panel
Buttons	Power On/Off
LED	HDD activity Network activity Power status System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration	Default3 PCIe 5.0 x8 (in x8) LP slots 3 PCIe 5.0 x16 (in x16) LP slots 3 PCIe 5.0 x8 (in x8) LP slots 3 PCIe 5.0 x16 (in x16) LP slots
Drive Bays / Storage
Drive Bays Configuration	Default: Total 38 bays24 front hot-swap 3.5″ SAS/SATA drive bays 12 rear hot-swap 3.5″ SAS/SATA drive bays 2 rear hot-swap 2.5″ SAS/SATA drive bays 24 front hot-swap 3.5″ SAS/SATA drive bays 12 rear hot-swap 3.5″ SAS/SATA drive bays 2 rear hot-swap 2.5″ SAS/SATA drive bays Option A: Total 10 bays8 front hot-swap 3.5″ PCIe 5.0 x4 NVMe* drive bays 2 rear hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays 8 front hot-swap 3.5″ PCIe 5.0 x4 NVMe* drive bays 2 rear hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)) View M.2 Options
System Cooling
Fans	7 Heavy Duty PWM 80x80x38mm Fan(s)
Air Shroud	1 Air Shroud
Power Supply
2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input180-240Vac 100-140Vac 800W: 100-140Vac / 50-60Hz 1600W: 180-240Vac / 50-60Hz +12VMax: 66A / Min: 0A (100Vac-140Vac)Max: 66A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (180Vac-240Vac)Max: 133A / Min: 0A (200Vac-240Vac) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)	76 x 40 x 336 mm
Input	180-240Vac 100-140Vac 800W: 100-140Vac / 50-60Hz 1600W: 180-240Vac / 50-60Hz
+12V	Max: 66A / Min: 0A (100Vac-140Vac)Max: 66A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (180Vac-240Vac)Max: 133A / Min: 0A (200Vac-240Vac)
5V SB	Max: 1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input180-240Vac 100-140Vac 800W: 100-140Vac / 50-60Hz 1600W: 180-240Vac / 50-60Hz +12VMax: 66A / Min: 0A (100Vac-140Vac)Max: 66A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (180Vac-240Vac)Max: 133A / Min: 0A (200Vac-240Vac) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Optional Parts List
