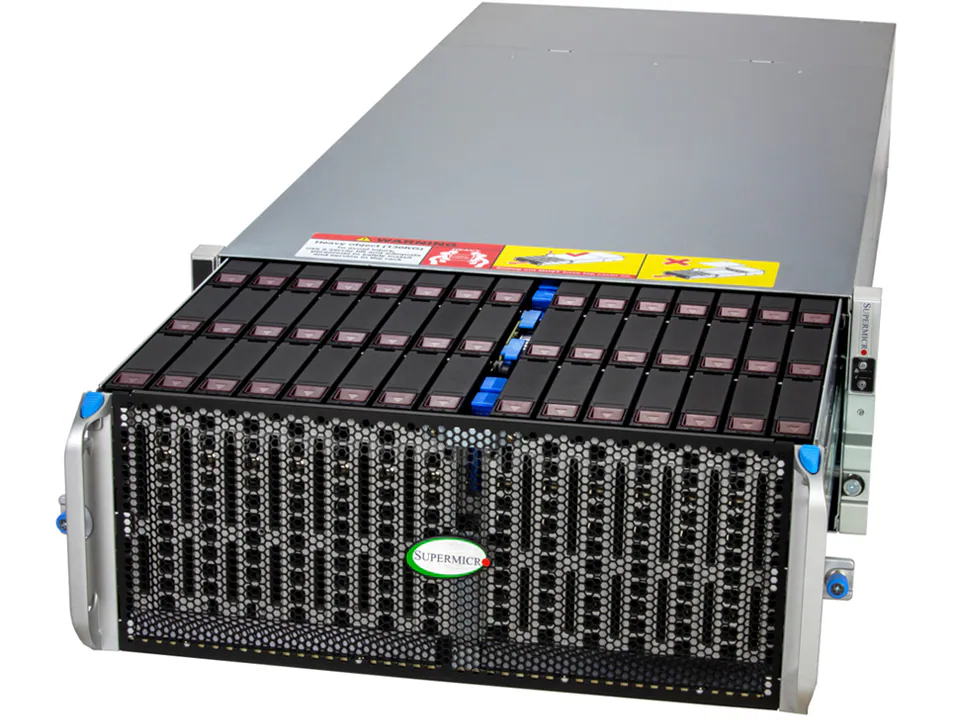

4U top-loading storage server with 60 hot-swap 3.5″ SAS/SATA bays and PCIe 5.0

Pretul afisat contine TVA (21%).

SuperServer SSG-542B-E1CR60

4U top-loading storage server with 60 hot-swap 3.5″ SAS/SATA bays and PCIe 5.0

Key Features

  1. Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP
  2. Up to 2TB ECC RDIMM, DDR5-6400MT/s (1DPC) or DDR5-5200MT/s (2DPC) in 16 DIMM slots
  3. 1 PCIe 5.0 x8 and 3 PCIe 5.0 x16 HHHL
  4. 60 3.5″/2.5″ Hot-swap SAS3/SATA3 drives, 2 2.5″ Hot-swap Gen4 NVMe
  5. Drive Controller support via Broadcom® 3916 or 3816
  6. 2000W Redundant Power Supplies Titanium Level (96%)

Specifications

Product SKUs
  • SuperServer SSG-542B-E1CR60
  • SuperServer SSG-542B-E1CR60-01-G2 Gold Series version with pre-configured components
Motherboard

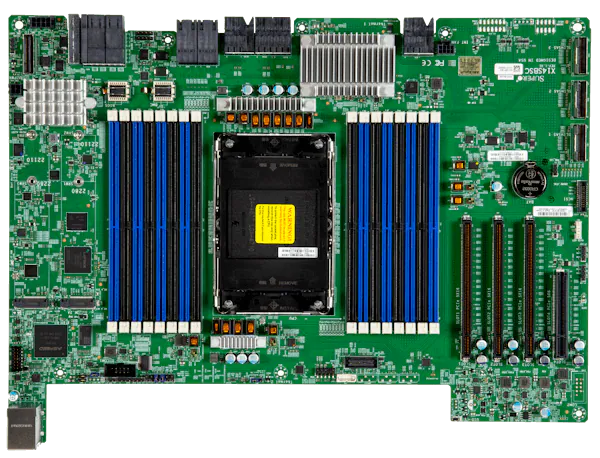

  • Super X14SBSC
Processor
CPU
  • Single Socket E2 (LGA-4710)
  • Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count
  • P-cores: Up to 86C/144T; Up to 336MB Cache
  • E-cores: Up to 144C/144T; Up to 108MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
NVMe
  • NVMe; RAID 0/1 support
Network Connectivity
  • No NIC option supported
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
TPM
  • 1 TPM Onboard TPM & TPM Header
System BIOS
BIOS Type
  • AMI 64MB SPI Flash
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SSG-542B-E1CR60
  • SuperServer SSG-542B-E1CR60-01-G2 Gold Series version with pre-configured components
  • Super X14SBSC
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-947STS-R2K05P
Dimensions and Weight
Height
  • 6.96″ (177 mm)
Width
  • 17.6″ (447 mm)
Depth
  • 32″ (813 mm)
Package
  • N/A
Weight
  • Gross Weight: 170 lbs (77.11 kg)
  • Net Weight: 107 lbs (48.53 kg)
Palletized Packing (W x H x L)
  • 35.82″ (805 mm) x 29.92″ (755 mm) x 53.15″ (1135 mm)
Available Color
  • N/A
Expansion Slots

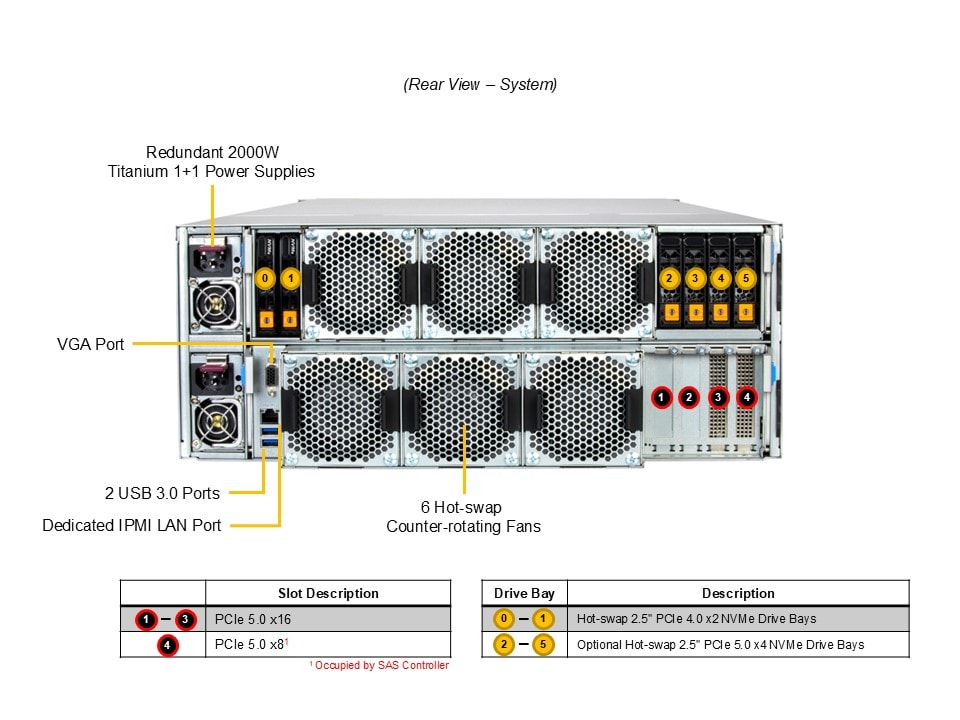

PCI-Express (PCIe) Configuration
  • Default1 PCIe 5.0 x8 (in x8) HHHL slot 3 PCIe 5.0 x16 (in x16) HHHL slots
  • 1 PCIe 5.0 x8 (in x8) HHHL slot
  • 3 PCIe 5.0 x16 (in x16) HHHL slots
M.2
  • 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110)
Drive Bays / Storage
Drive Bays Configuration

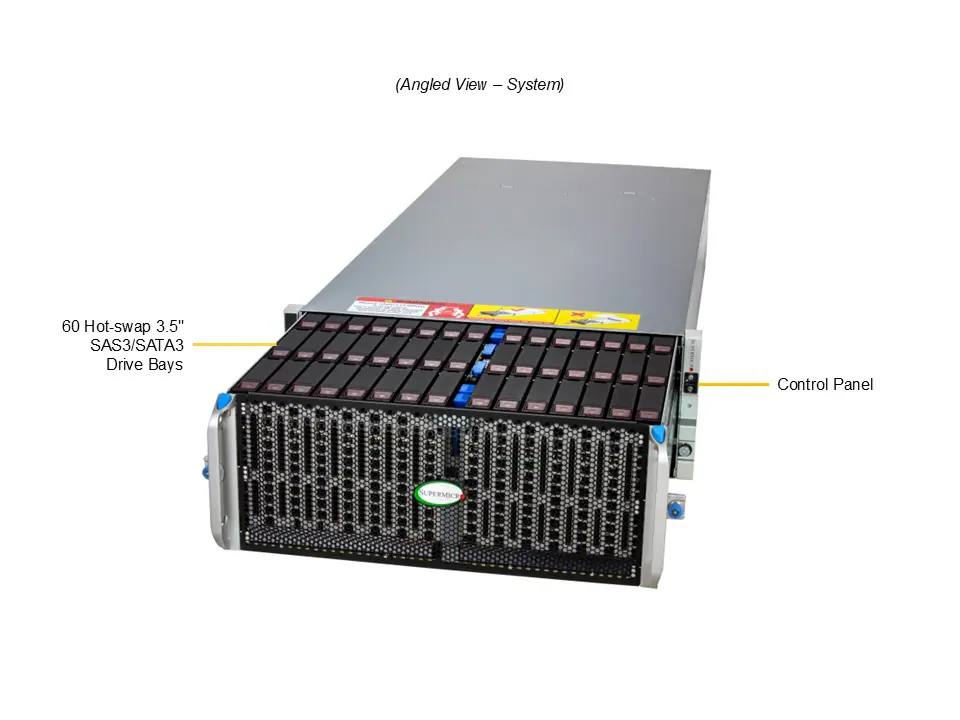

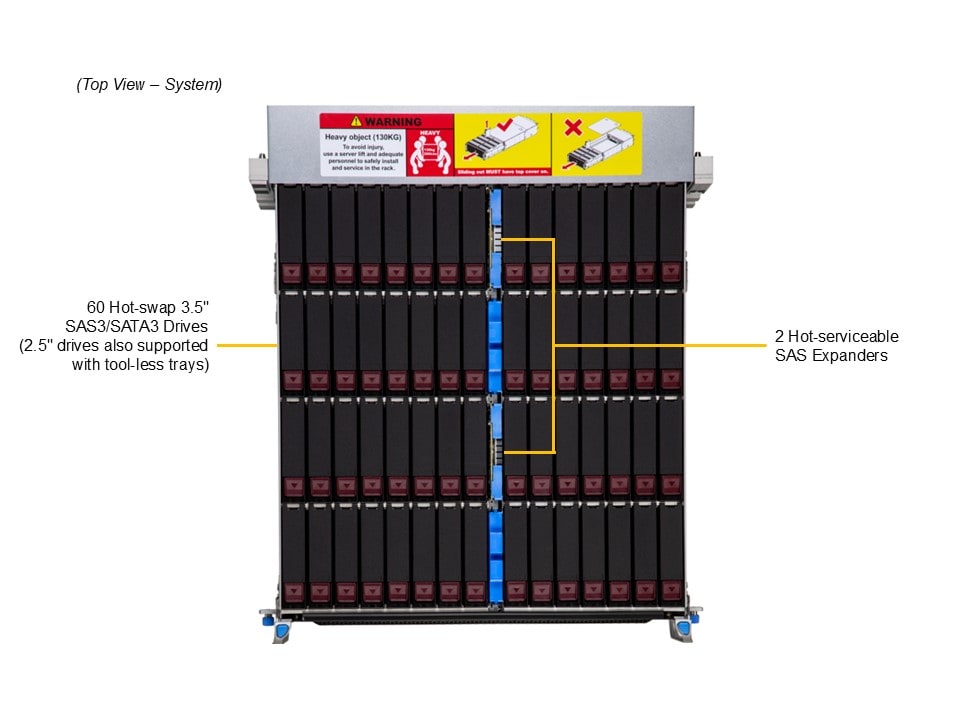

  • Default: Total 60 bays60 top-loading hot-swap 3.5″/2.5″ SAS/SATA drive bays
  • 60 top-loading hot-swap 3.5″/2.5″ SAS/SATA drive bays
  • Option A: Total 4 bays4 rear hot-swap 2.5″ PCIe 4.0 x4 NVMe* drive bays
  • 4 rear hot-swap 2.5″ PCIe 4.0 x4 NVMe* drive bays

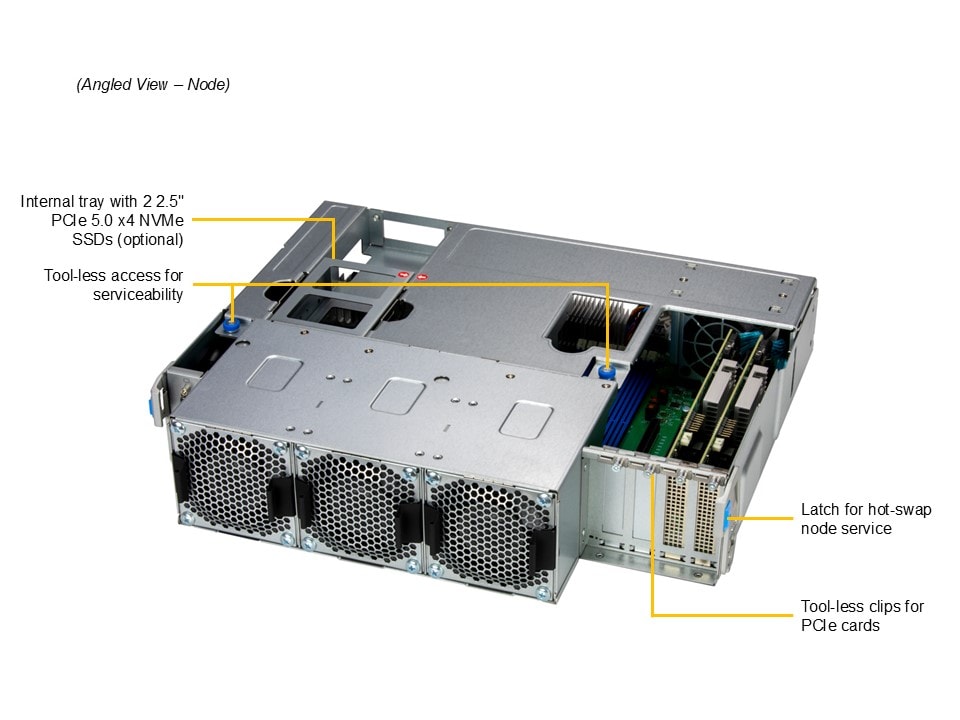

  • Option B: Total 2 bays2 internal fixed 2.5″ PCIe 5.0 x4 NVMe* drive bays
  • 2 internal fixed 2.5″ PCIe 5.0 x4 NVMe* drive bays
  • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 6 Heavy Duty 8cm Fan(s)
  • Up to 1 Counter Rotating 6cm Fan(s)
Power Supply
  • 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input100-127Vac 200-240Vac 1000W: 100-120Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 230-240Vac / 50-60Hz 2000W: 200-240Vac / 50-60Hz (for UL/cUL only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-120Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)Max: 166.7A / Min: 0A (200Vac-240Vac)Max: 166.7A / Min: 0A (230Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
Input
  • 100-127Vac 200-240Vac 1000W: 100-120Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 230-240Vac / 50-60Hz 2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-120Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)Max: 166.7A / Min: 0A (200Vac-240Vac)Max: 166.7A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input100-127Vac 200-240Vac 1000W: 100-120Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 230-240Vac / 50-60Hz 2000W: 200-240Vac / 50-60Hz (for UL/cUL only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-120Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)Max: 166.7A / Min: 0A (200Vac-240Vac)Max: 166.7A / Min: 0A (230Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)
