Supermicro SuperServer SSG-610P-ACR12N4L

Favorite
Compara

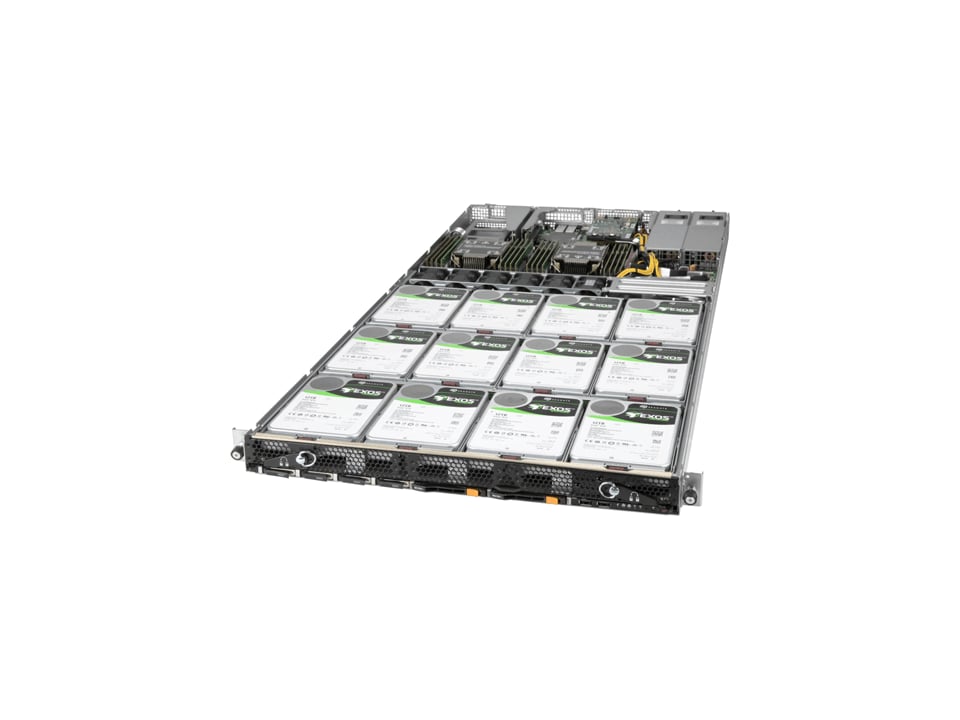

1U internal-mounted storage server with 12 3.5″ SAS/SATA + 4 EDSFF short + 2 2.5″ 7mm bays and PCIe 4.0

Pretul afisat contine TVA (21%).

SuperServer SSG-610P-ACR12N4L

1U internal-mounted storage server with 12 3.5″ SAS/SATA + 4 EDSFF short + 2 2.5″ 7mm bays and PCIe 4.0

Key Features

  1. Up to 4TB ECC DDR4-3200: LRDIMM/RDIMM
  2. 2x 25G SFP+ Ports Onboard

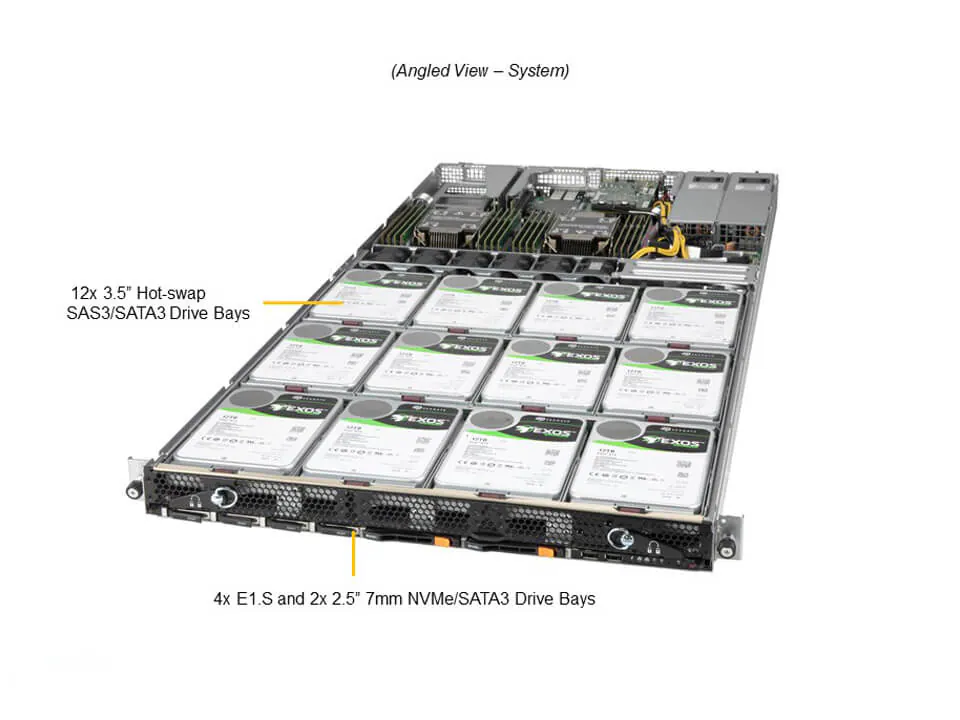

  3. 12x 3.5″ hot-swap SAS/SATA, 4x hot-swap E1.S (EDSFF Short) drive bays, 2x 2.5″ 7mm NVMe/SATA drive bays
  4. Host Bus Adapter via Broadcom® 3224
  5. PCIe 4.0 x16 AIOM Support + 3 PCIe 4.0 LP Slots

Specifications

Product SKUs
  • SuperServer SSG-610P-ACR12N4L Standard version with PWS-804P-1R (Platinum Level)
  • SuperServer SSG-610P-ACR12N4L-EU European version with PWS-862A-1R (Titanium Level)
Motherboard

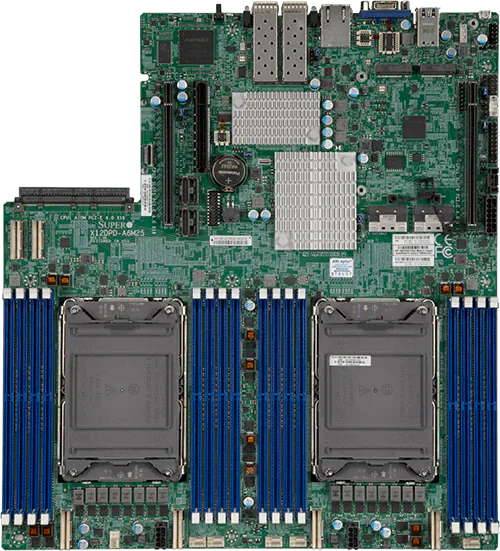

  • Super X12DPD-A6M25
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 38C/76T; Up to 57MB Cache per CPU
Note
  • Supports 120W – 205W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • 2 SFP28 25GbE with Mellanox®

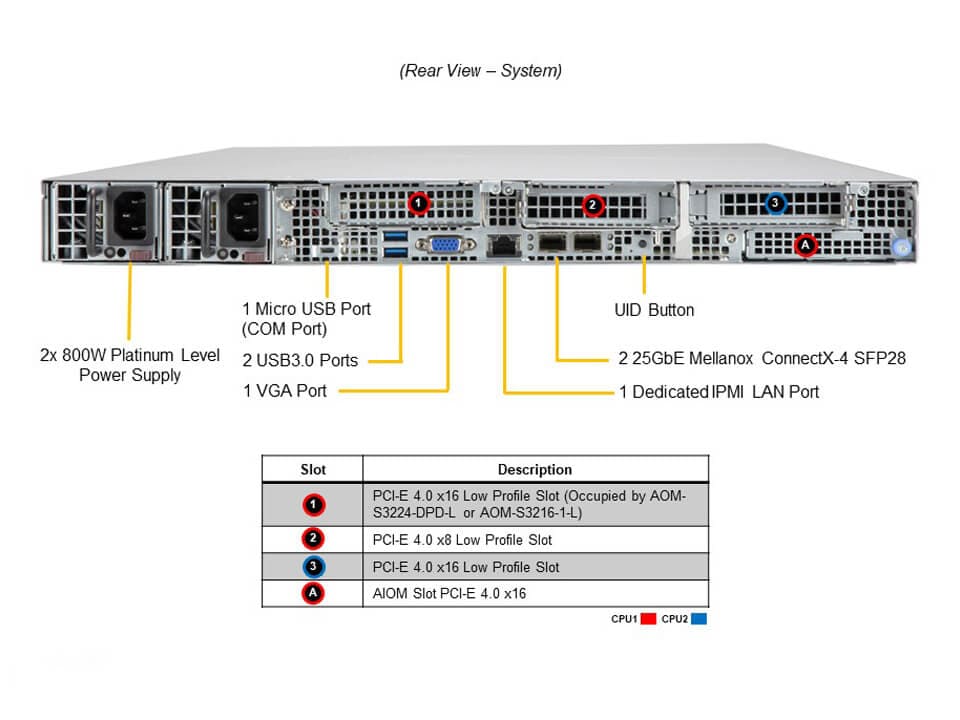

Input / Output
LAN
  • 2 SFP28 25 GbE LAN ports
  • 1 RJ45 1 GBASE-T Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 2 USB 2.0 ports(front)
Video
  • 1 VGA port
Serial
  • 1 port
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SSG-610P-ACR12N4L Standard version with PWS-804P-1R (Platinum Level)
  • SuperServer SSG-610P-ACR12N4L-EU European version with PWS-862A-1R (Titanium Level)
  • Super X12DPD-A6M25
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-802ETS-R804AMP
Dimensions and Weight
Height
  • 1.7″ (43.18 mm)
Width
  • 17.6″ (447.04 mm)
Depth
  • 37″ (939.8 mm)
Package
  • 12″ (H) x 27″ (W) x 53.15″ (D)
Weight
  • Gross Weight: 58 lbs (26.3 kg)
  • Net Weight: 39.5 lbs (17.9 kg)
Available Color
  • Black

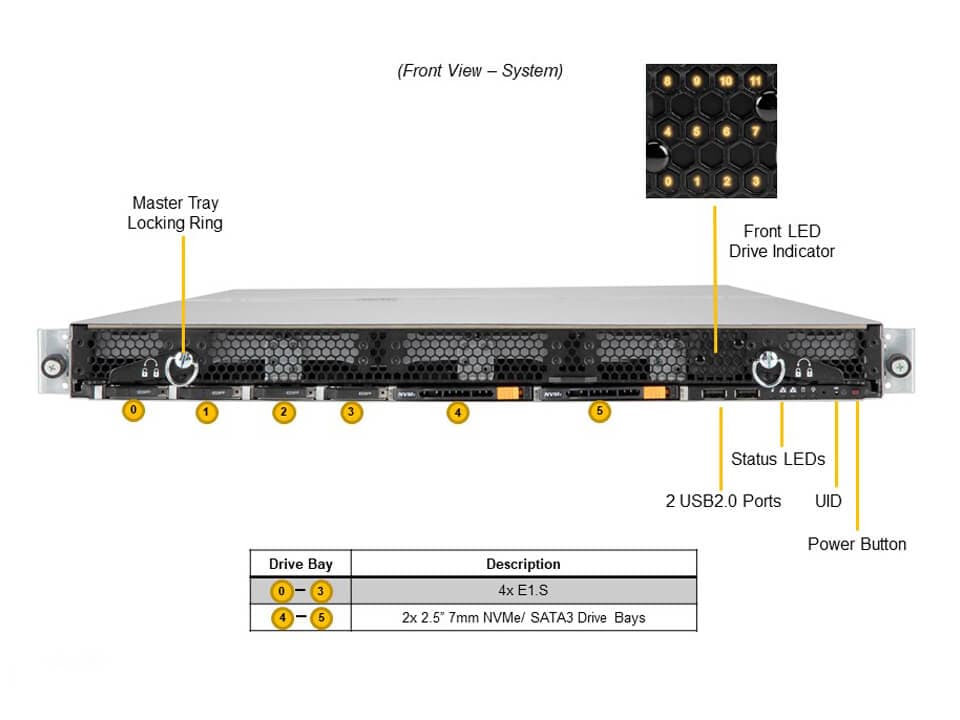

Front Panel
Buttons
  • Power On/Off
  • Power On/Off
  • UID button
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x8 LP slot 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)
  • 2 PCIe 4.0 x16 LP slots
  • 1 PCIe 4.0 x8 LP slot
  • 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)

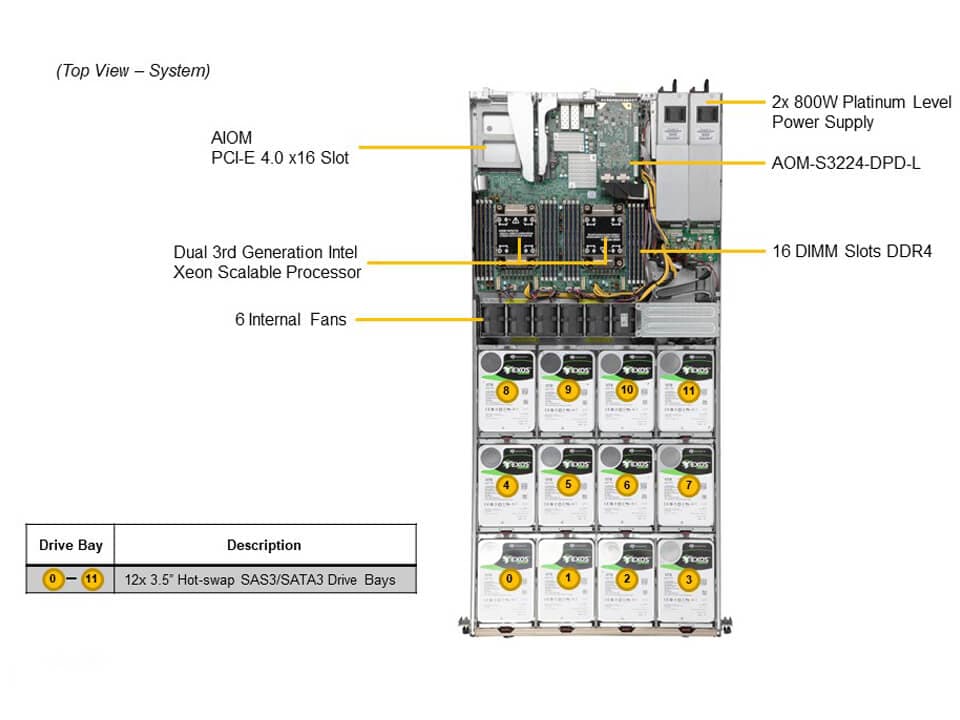

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 16 bays12 internal hot-swap 3.5″ SAS/SATA drive bays 4 front hot-swap E1.S NVMe drive bays
  • 12 internal hot-swap 3.5″ SAS/SATA drive bays
  • 4 front hot-swap E1.S NVMe drive bays
M.2
  • 2 M.2 NVMe/SATA slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 6 Heavy Duty 4cm Fan(s)
Power Supply
  • 2x 800W 2x 800W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 220 mm Input100-127Vac 200-240Vac 230-240Vdc 750W: 100-127Vac / 50-60Hz 800W: 200-240Vac / 50-60Hz 800W: 230-240Vdc / 50-60Hz +12VMax: 62.5A / Min: 0A (100Vac-127Vac)Max: 62.5A / Min: 0.5A (100Vac-127Vac)Max: 66.6A / Min: 0A (200Vac-240Vac)Max: 66.6A / Min: 0A (230Vdc-240Vdc)Max: 66.6A / Min: 0.5A (200Vac-240Vac)Max: 66.6A / Min: 0.5A (230Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 54.5 x 40.25 x 220 mm
Input
  • 100-127Vac 200-240Vac 230-240Vdc 750W: 100-127Vac / 50-60Hz 800W: 200-240Vac / 50-60Hz 800W: 230-240Vdc / 50-60Hz
+12V
  • Max: 62.5A / Min: 0A (100Vac-127Vac)Max: 62.5A / Min: 0.5A (100Vac-127Vac)Max: 66.6A / Min: 0A (200Vac-240Vac)Max: 66.6A / Min: 0A (230Vdc-240Vdc)Max: 66.6A / Min: 0.5A (200Vac-240Vac)Max: 66.6A / Min: 0.5A (230Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 2x 800W 2x 800W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 220 mm Input100-127Vac 200-240Vac 230-240Vdc 750W: 100-127Vac / 50-60Hz 800W: 200-240Vac / 50-60Hz 800W: 230-240Vdc / 50-60Hz +12VMax: 62.5A / Min: 0A (100Vac-127Vac)Max: 62.5A / Min: 0.5A (100Vac-127Vac)Max: 66.6A / Min: 0A (200Vac-240Vac)Max: 66.6A / Min: 0A (230Vdc-240Vdc)Max: 66.6A / Min: 0.5A (200Vac-240Vac)Max: 66.6A / Min: 0.5A (230Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
