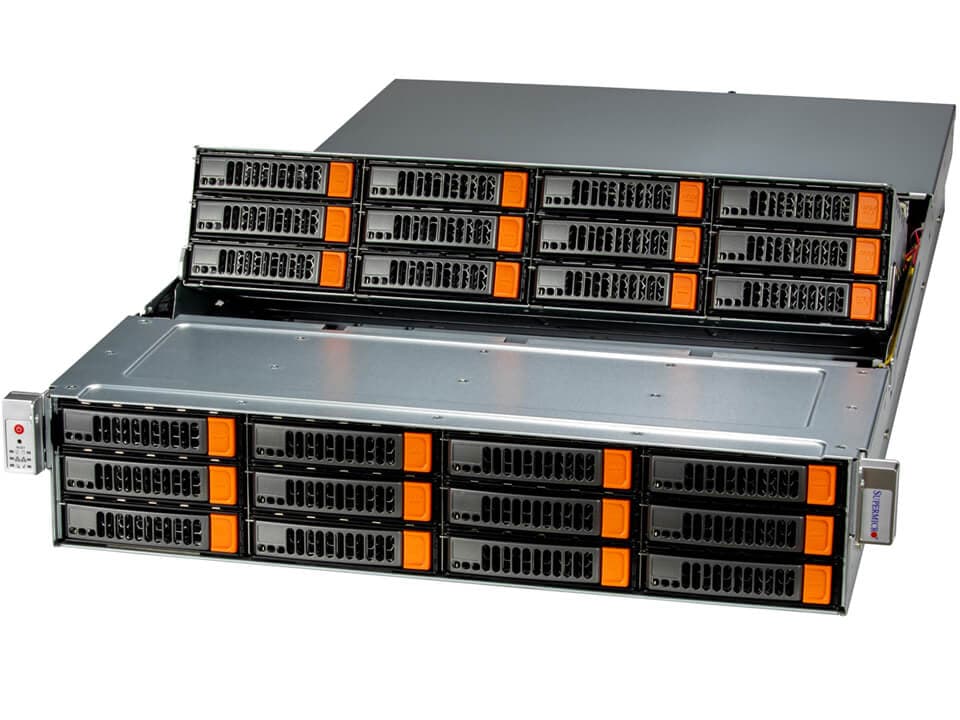

Supermicro SuperServer SSG-620P-E1CR24L
Supermicro SuperServer SSG-620P-E1CR24L - imagine 2
Supermicro SuperServer SSG-620P-E1CR24L - imagine 3
Supermicro SuperServer SSG-620P-E1CR24L - imagine 4
Supermicro SuperServer SSG-620P-E1CR24L - imagine 5
Supermicro SuperServer SSG-620P-E1CR24L - imagine 6
, , ,

Supermicro SuperServer SSG-620P-E1CR24L

Favorite
Compara

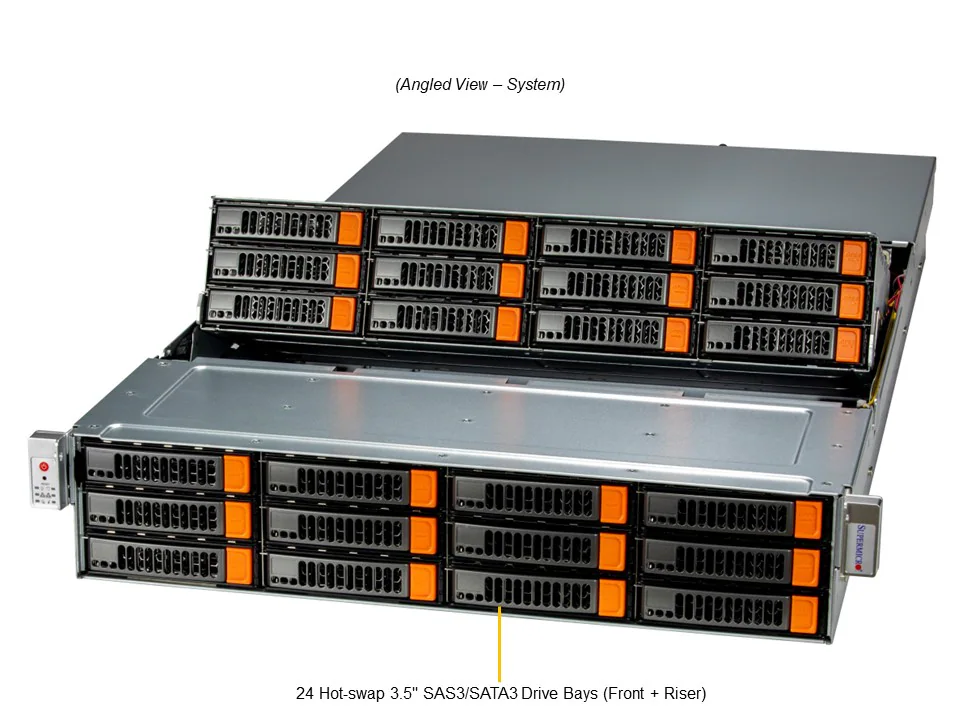

2U front/top-loading storage server with 24 hot-swap 3.5″ SAS/SATA bays and PCIe 4.0

Pretul afisat contine TVA (21%).

SuperServer SSG-620P-E1CR24L

2U front/top-loading storage server with 24 hot-swap 3.5″ SAS/SATA bays and PCIe 4.0

Key Features

  1. Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
  2. 16 ECC DDR4-3200: LRDIMM/RDIMM
  3. Dedicated PCIe 4.0 AIOM slot3 x PCIe 4.0 x16 Slots
  4. Dedicated PCIe 4.0 AIOM slot
  5. 3 x PCIe 4.0 x16 Slots
  6. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
  7. 24 3.5″ Hot-swap SAS3/SATA3 drives, 4 x Rear SATA/NVMe Slots, 2x SATA/NVMe M.2 (form factor: 2280)
  8. 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
  9. 1600W Redundant Power Supplies Titanium Level (96%)
  10. HBA Controller support via Broadcom® 3808

Specifications

Product SKUs
  • SuperServer SSG-620P-E1CR24L

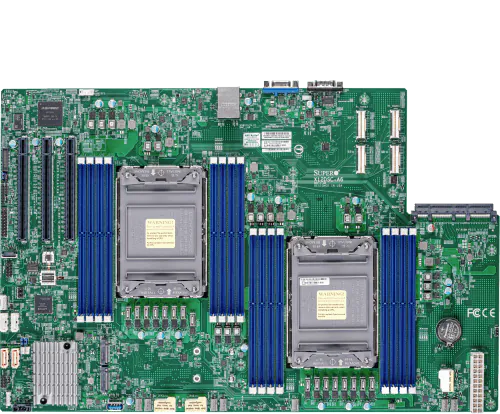

Motherboard
  • Super X12DSC-A6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 38C/76T; Up to 57MB Cache per CPU
Note
  • Supports 120W – 205W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SSG-620P-E1CR24L
  • Super X12DSC-A6
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-826STS-R1K62P1
Dimensions and Weight
Height
  • 3.5″
Width
  • 17.2″
Depth
  • 34″
Package
  • 12″ (H) x 29″ (W) x 52″ (D)
Weight
  • Gross Weight: 74.5 lbs (33.79 kg)
  • Net Weight: 52 lbs (23.59 kg)
Available Color
  • Silver

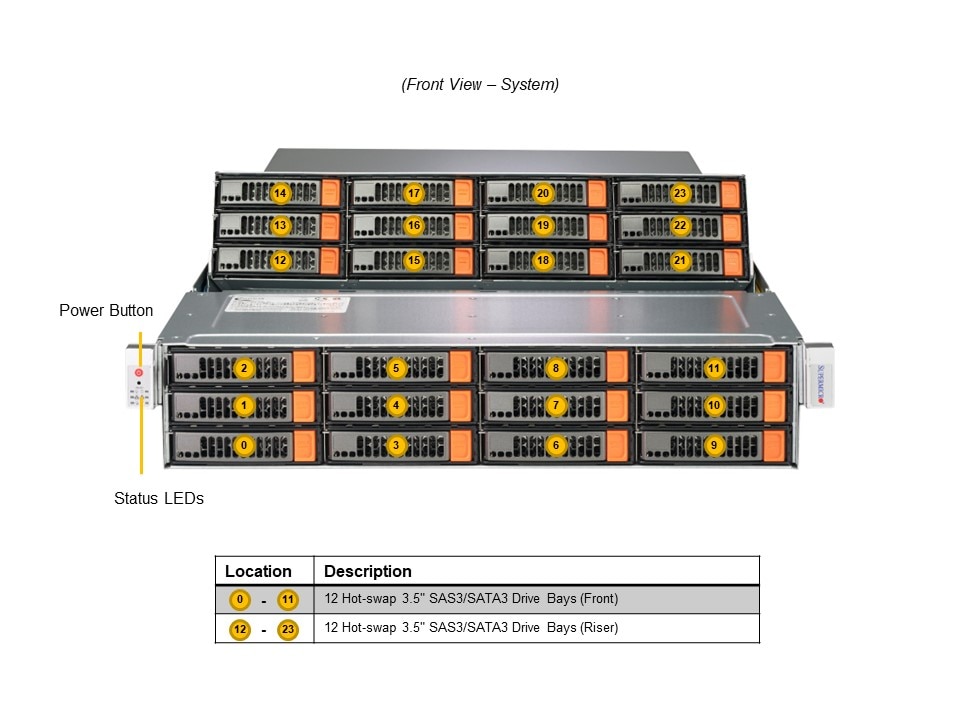

Front Panel
Buttons
  • Power On/Off
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)

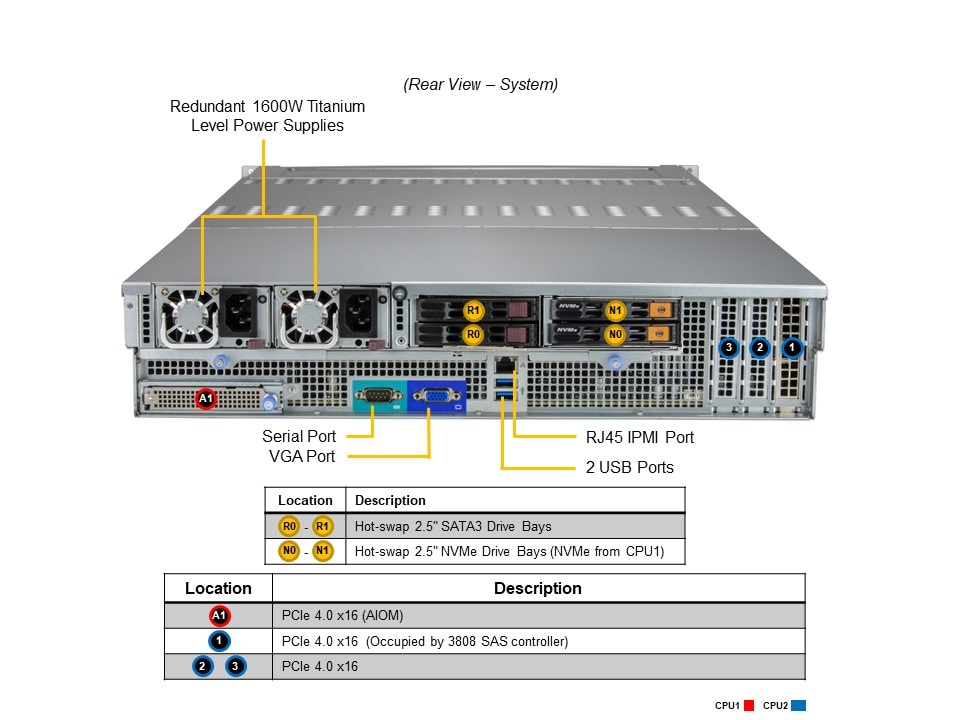

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default1 PCIe 4.0 x8 LP slot 2 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)
  • 1 PCIe 4.0 x8 LP slot
  • 2 PCIe 4.0 x16 LP slots
  • 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 28 bays12 front hot-swap 3.5″ SAS/SATA drive bays 12 top-loading hot-swap 3.5″ SAS/SATA drive bays 2 rear hot-swap 2.5″ SATA drive bays 2 rear hot-swap 2.5″ NVMe drive bays
  • 12 front hot-swap 3.5″ SAS/SATA drive bays
  • 12 top-loading hot-swap 3.5″ SAS/SATA drive bays
  • 2 rear hot-swap 2.5″ SATA drive bays
  • 2 rear hot-swap 2.5″ NVMe drive bays
M.2
  • 2 M.2 NVMe slots (M-key 2280/22110)
  • View M.2 Options

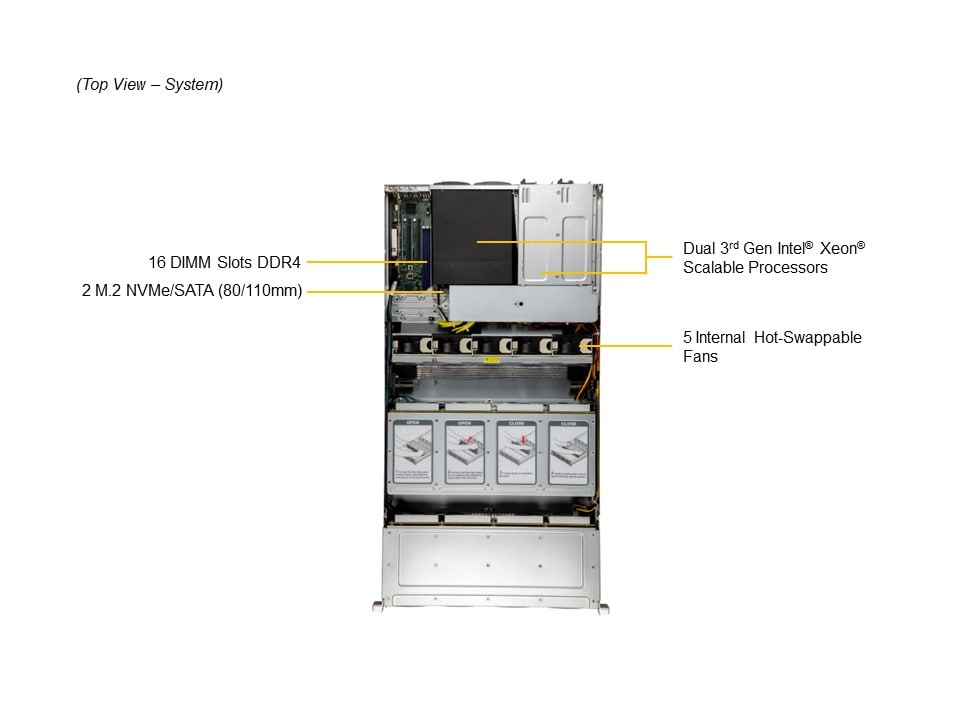

System Cooling
Fans
  • Up to 5 Heavy Duty 8cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 1600W 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level [ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 2x 1600W 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Optional Parts List
