Supermicro SuperServer SSG-621E-ACR16H

Favorite

Compara

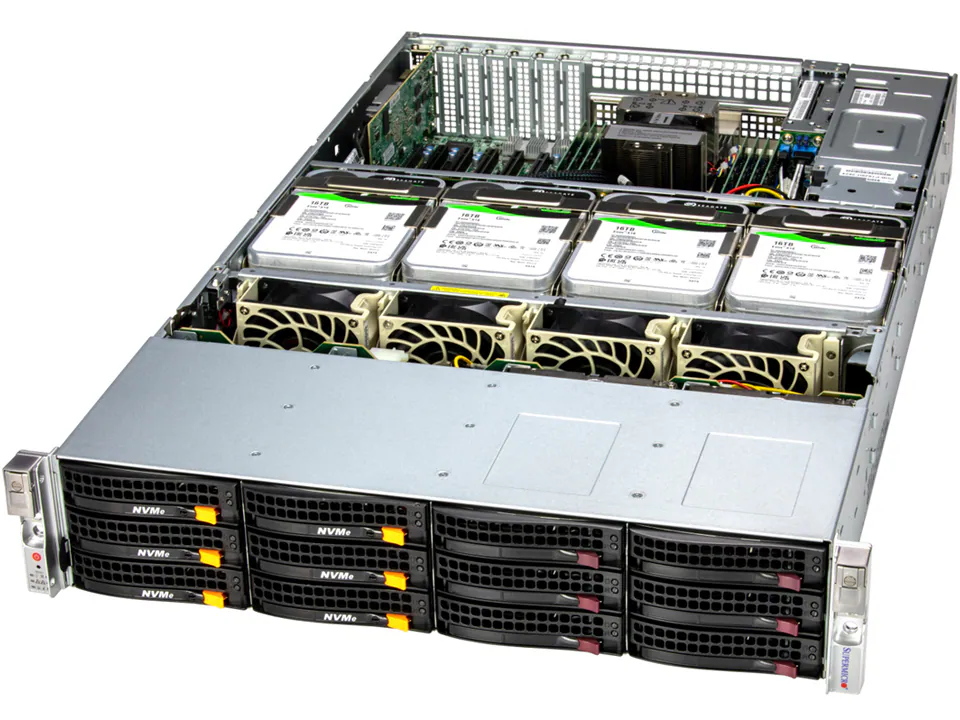

2U front-loading storage server with 16 hot-swap 3.5″ SAS/SATA bays (SAS hardware RAID) and PCIe 5.0

Pretul afisat contine TVA (21%).

SuperServer SSG-621E-ACR16H

2U front-loading storage server with 16 hot-swap 3.5″ SAS/SATA bays (SAS hardware RAID) and PCIe 5.0

Key Features

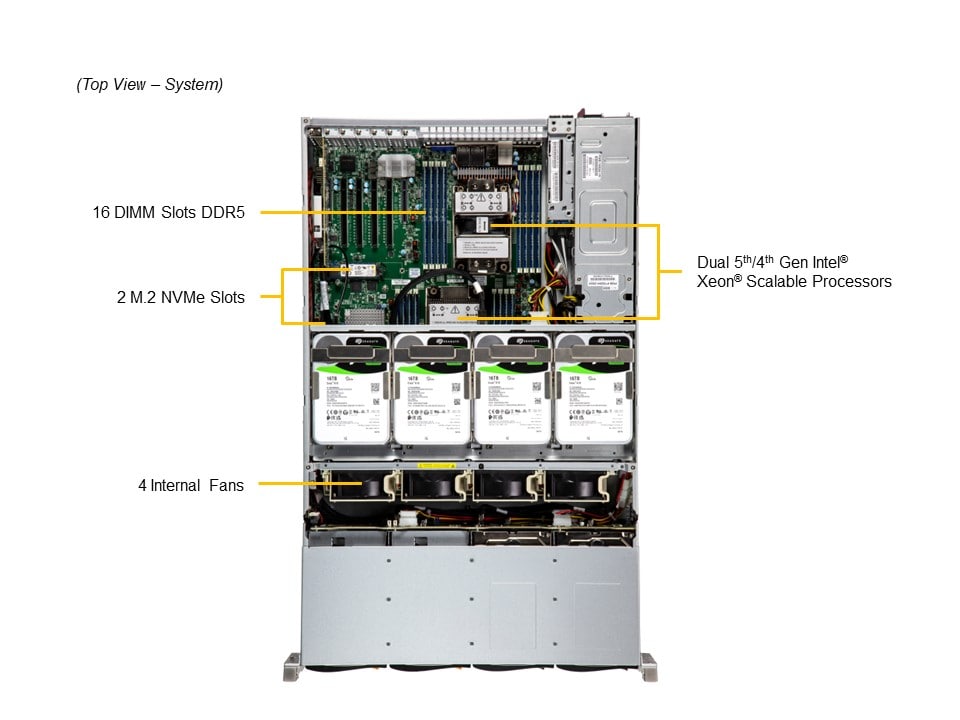

Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
2x 10 GbE onboard via Broadcom BCM574161x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
2x 10 GbE onboard via Broadcom BCM57416
1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN

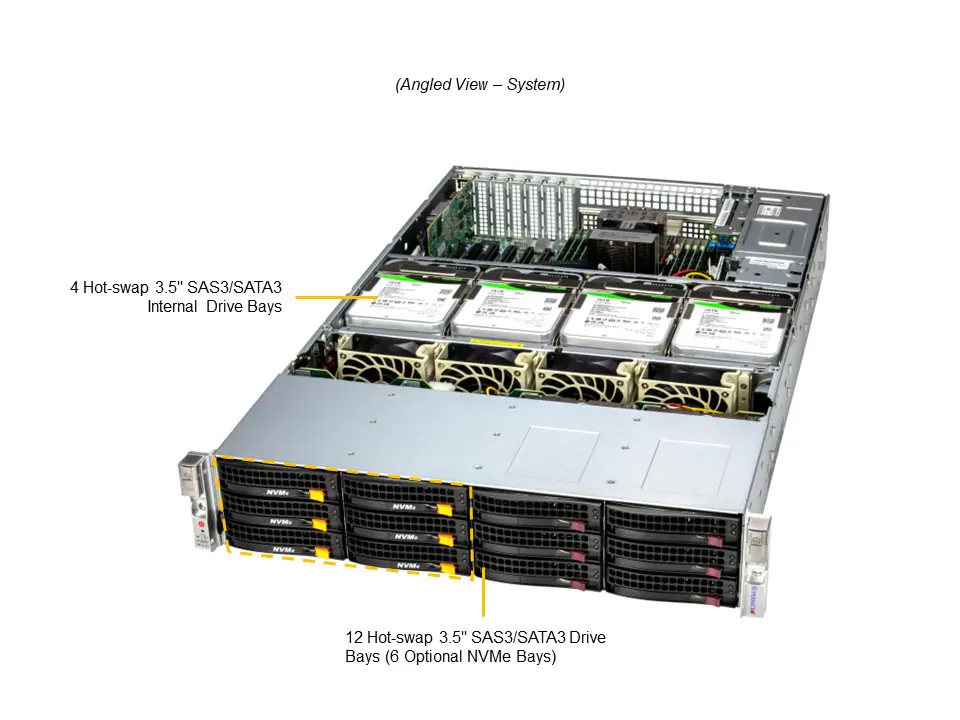

16x 3.5″/2.5″ Hot-swap SAS3/SATA3 drives, 2x Rear 2.5″ SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
4x 8cm hot-swap counter-rotate redundant PWM cooling fans
1600W Redundant Power Supplies Titanium Level (96%)
HW RAID support via Broadcom® 3916

Specifications

Product SKUs
SuperServer SSG-621E-ACR16H
Motherboard

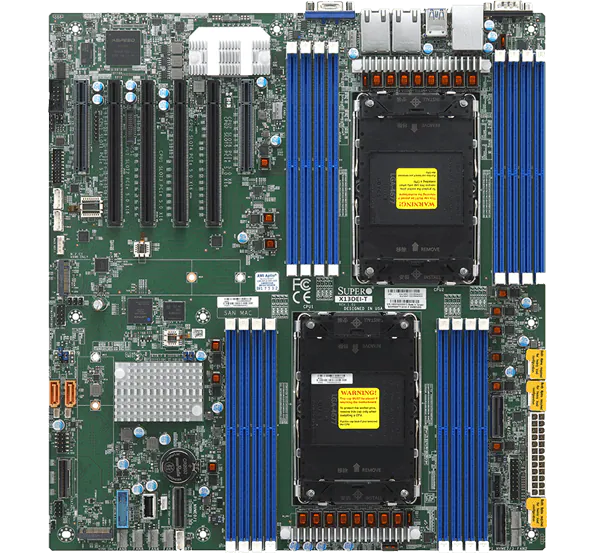

Super X13DEI-T
Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Note	Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices
Network Connectivity	2 RJ45 10GbE with Broadcom® BCM57416

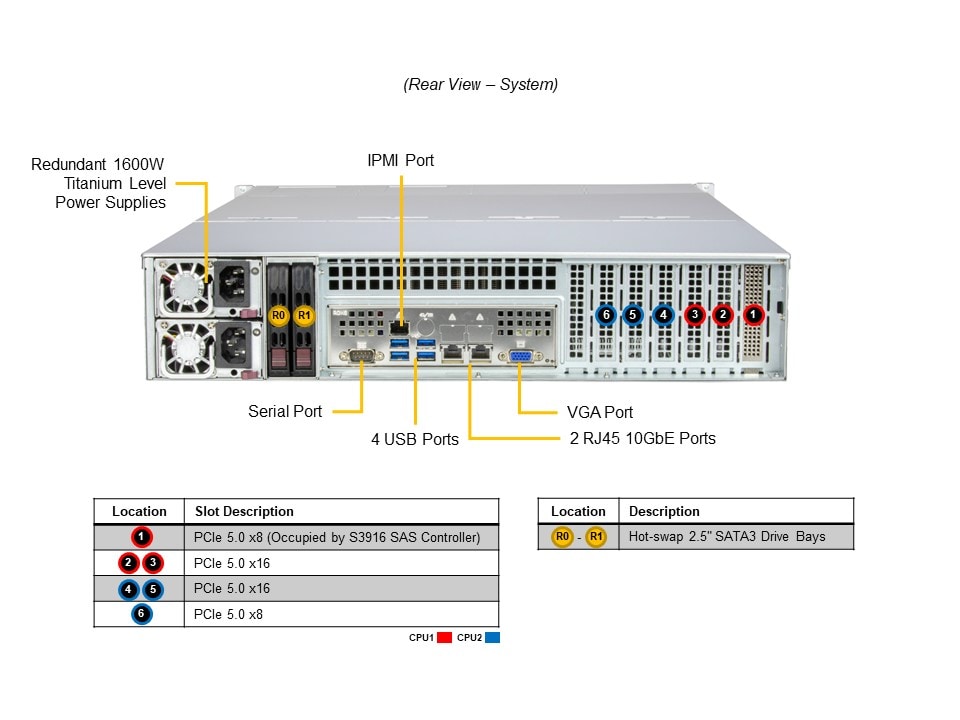

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GbE LAN ports (Broadcom® BCM57416) (IPMI shared on LAN port 1)
USB	4 USB 3.0 ports(rear)
Video	1 VGA port(Rear)
Serial	1 COM port(Rear)
TPM	1 TPM header
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	7+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
SuperServer SSG-621E-ACR16H
Super X13DEI-T
Chassis
Form Factor	2U Rackmount
Model	CSE-829HTS-R1K62LPBP2
Dimensions and Weight
Height	3.5″ (89 mm)
Width	17.2″ (437 mm)
Depth	27.75″ (705 mm)
Package	10.8″ (H) x 25.9″ (W) x 39.3″ (D)
Weight	Gross Weight: 62 lbs (28.12 kg) Net Weight: 41.5 lbs (18.82 kg)
Available Color	Silver

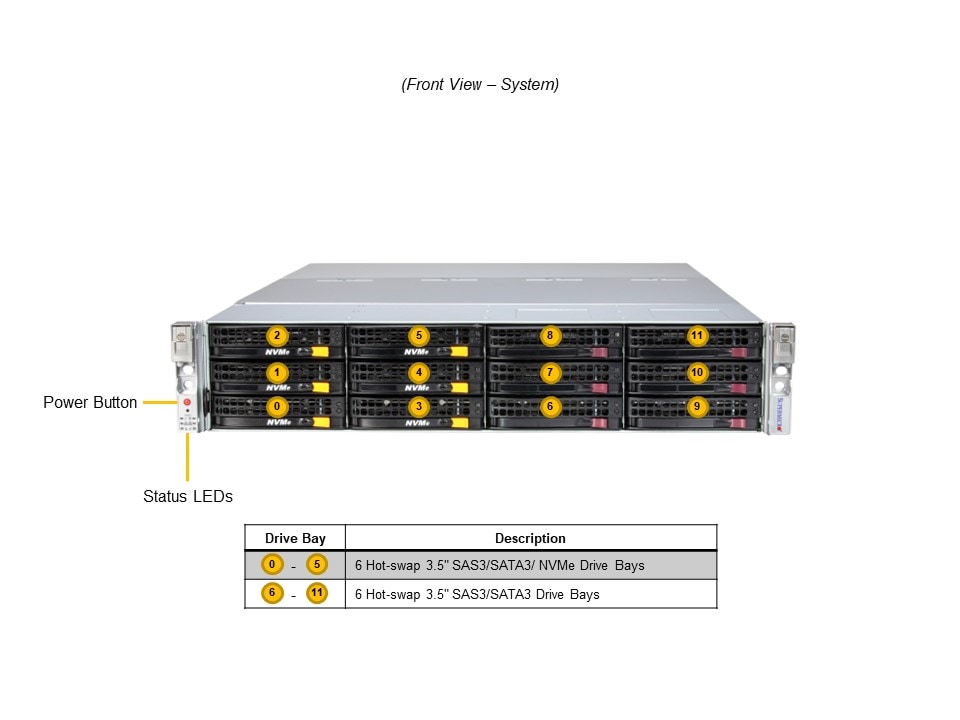

Front Panel
Buttons	Power On/Off button System Reset button
LED	HDD Fail LED Network Activity LEDs Power Fail LED Power status LED System Information LED
Expansion Slots
PCI-Express (PCIe) Configuration	Default4 PCIe 5.0 x16 (in x16) LP slots 2 PCIe 5.0 x8 (in x8) LP slots 4 PCIe 5.0 x16 (in x16) LP slots 2 PCIe 5.0 x8 (in x8) LP slots
Drive Bays / Storage
Drive Bays Configuration	Default: Total 18 bays12 front hot-swap 3.5″ SAS/SATA drive bays 4 internal hot-swap 3.5″ SAS/SATA drive bays 2 rear hot-swap 2.5″ SATA drive bays 12 front hot-swap 3.5″ SAS/SATA drive bays 4 internal hot-swap 3.5″ SAS/SATA drive bays 2 rear hot-swap 2.5″ SATA drive bays Option A: Total 6 bays6 front hot-swap 3.5″ PCIe 5.0 x4 NVMe* drive bays 6 front hot-swap 3.5″ PCIe 5.0 x4 NVMe* drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110) View M.2 Options
System Cooling
Fans	Up to 4 Heavy Duty 8cm Fan(s)
Air Shroud	1 Air Shroud
Power Supply
2x 1600W 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz
+12V	Max: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
2x 1600W 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Standard Parts (Parts Included)
Optional Parts List

SKU: ssg-621e-acr16h Categorii: BRAND, Server&Storage, storage, SUPERMICRO

Product SKUs
SuperServer SSG-621E-ACR16H
Motherboard
Super X13DEI-T
Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Note	Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices
Network Connectivity	2 RJ45 10GbE with Broadcom® BCM57416
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GbE LAN ports (Broadcom® BCM57416) (IPMI shared on LAN port 1)
USB	4 USB 3.0 ports(rear)
Video	1 VGA port(Rear)
Serial	1 COM port(Rear)
TPM	1 TPM header
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	7+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
SuperServer SSG-621E-ACR16H
Super X13DEI-T
Chassis
Form Factor	2U Rackmount
Model	CSE-829HTS-R1K62LPBP2
Dimensions and Weight
Height	3.5″ (89 mm)
Width	17.2″ (437 mm)
Depth	27.75″ (705 mm)
Package	10.8″ (H) x 25.9″ (W) x 39.3″ (D)
Weight	Gross Weight: 62 lbs (28.12 kg) Net Weight: 41.5 lbs (18.82 kg)
Available Color	Silver
Front Panel
Buttons	Power On/Off button System Reset button
LED	HDD Fail LED Network Activity LEDs Power Fail LED Power status LED System Information LED
Expansion Slots
PCI-Express (PCIe) Configuration	Default4 PCIe 5.0 x16 (in x16) LP slots 2 PCIe 5.0 x8 (in x8) LP slots 4 PCIe 5.0 x16 (in x16) LP slots 2 PCIe 5.0 x8 (in x8) LP slots
Drive Bays / Storage
Drive Bays Configuration	Default: Total 18 bays12 front hot-swap 3.5″ SAS/SATA drive bays 4 internal hot-swap 3.5″ SAS/SATA drive bays 2 rear hot-swap 2.5″ SATA drive bays 12 front hot-swap 3.5″ SAS/SATA drive bays 4 internal hot-swap 3.5″ SAS/SATA drive bays 2 rear hot-swap 2.5″ SATA drive bays Option A: Total 6 bays6 front hot-swap 3.5″ PCIe 5.0 x4 NVMe* drive bays 6 front hot-swap 3.5″ PCIe 5.0 x4 NVMe* drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110) View M.2 Options
System Cooling
Fans	Up to 4 Heavy Duty 8cm Fan(s)
Air Shroud	1 Air Shroud
Power Supply
2x 1600W 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz
+12V	Max: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
2x 1600W 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Standard Parts (Parts Included)
Optional Parts List
