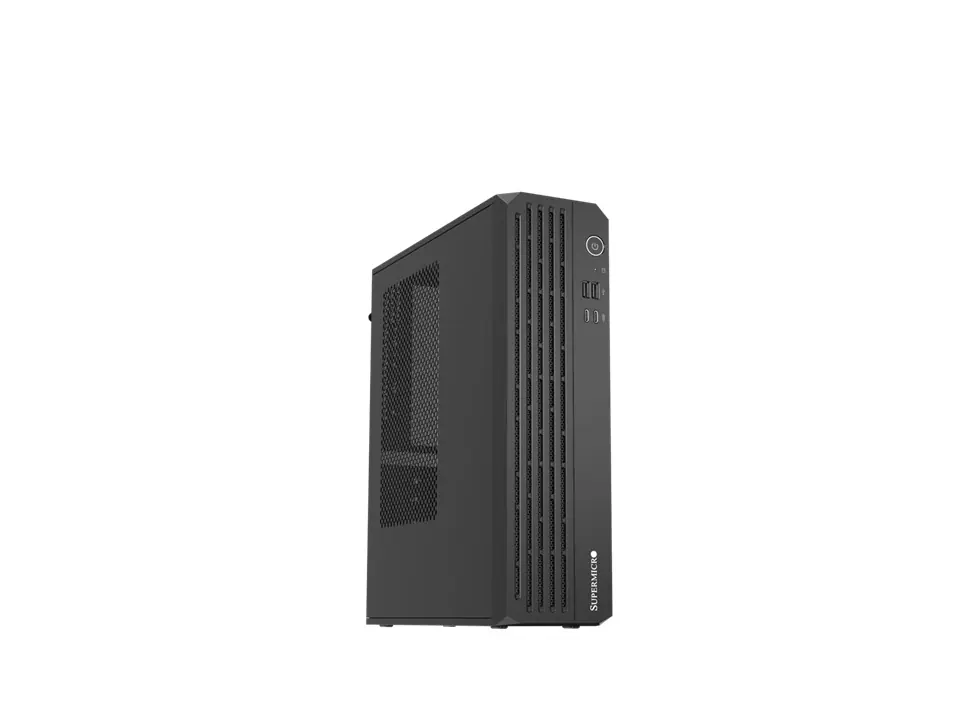

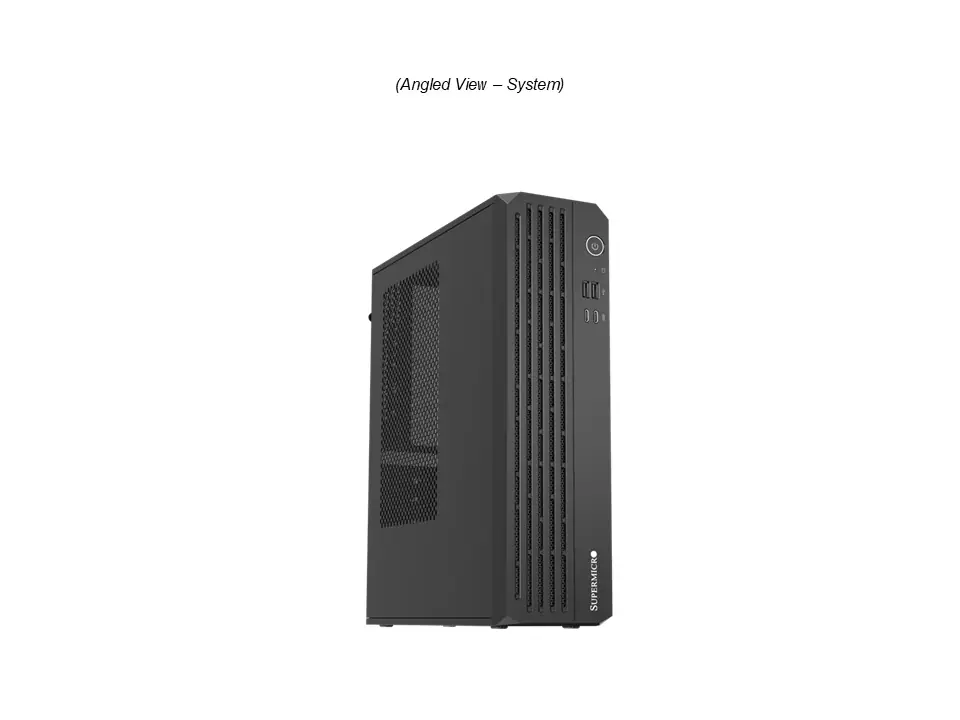

Supermicro SuperServer AS -C521D
Supermicro SuperServer AS -C521D - imagine 2
Supermicro SuperServer AS -C521D - imagine 3
, , ,

Supermicro SuperServer AS -C521D

Favorite
Compara

UP Slim Tower System

Pretul afisat contine TVA (21%).

SuperServer AS -C521D

UP Slim Tower System

Key Features

  1. Single Socket AM5 (LGA-1718) AMD EPYC™ 4005/4004 Series Processor up to 65W with air cooling
  2. Up to 2 DIMMs supporting up to 96GB DDR5-5600 in 1DPC
  3. Up to 1 PCIe 5.0 x16 Low Profile or HHHL
  4. Up to 1 internal fixed 2.5″ SATA + 1 internal fixed 3.5″ SATA drive bays
  5. 300W 80 Plus GOLD ATX Power Supply
  6. Compact Mini-Tower chassis with 11.42″ (290mm) depth

Specifications

Product SKUs
  • A+ Workstation AS -C521D

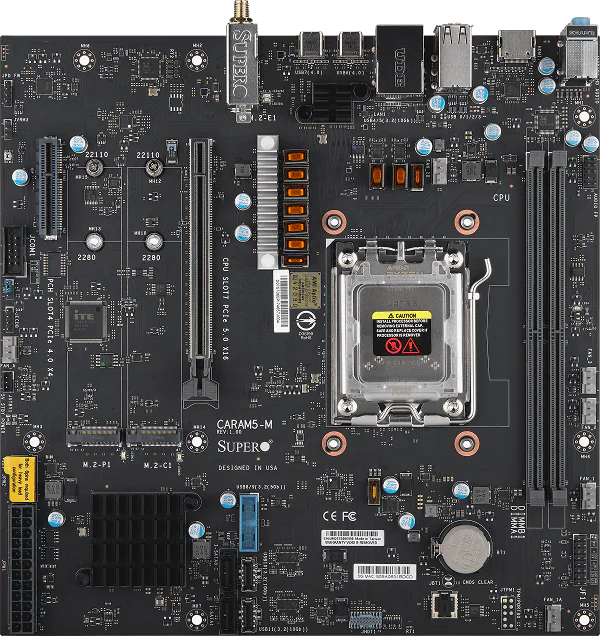

Motherboard
  • Super CARAM5-M
Processor
CPU
  • Single processor(s)
  • AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors
Core Count
  • Up to 8C/16T
Note
  • Supports up to 120W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 2 DIMM slots/2 Channels
  • Max Memory (1DPC): Up to 96GB 5600MT/s non-ECC DDR5 UDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1 support
Chipset
  • AMD B850
Input / Output
LAN
  • 1 RJ45 5 GbE LAN port (5G Realtek® Ethernet RTL8126)
USB
  • 2 USB 3.2 Gen2 Type-A ports(Rear)
  • 4 USB 2.0 Type-A ports(Rear)
  • 2 USB 4.0 Type-C ports(Rear)
  • 2 USB 3.2 Gen1 Type-A ports(Header)
  • 2 USB 3.2 Gen2 Type-C ports(Header)
Video
  • 1 HDMI 2.1 port(Rear)
  • 2 USB 4.0 (DP 2.0 Alt Mode) ports(Rear)
Audio
  • ALC 888S HD Audio
Others
  • 2 Wi-Fi 7 + Bluetooth® 5.4 Antenna(s) ports
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • USB Keyboard support
  • ACPI 6.0 or later
  • SMBIOS 3.0 or later
Management
Software
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • SuperServer Automation Assistant (SAA) New!
  • SuperO Booster
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • A+ Workstation AS -C521D
  • Super CARAM5-M
Chassis
Form Factor
  • Compact Mini-Tower
Model
  • CSE-GS2B-000NBP
Dimensions and Weight
Height
  • 13.43″ (341 mm)
Width
  • 3.62″ (92 mm)
Depth
  • 11.42″ (290 mm)
Package
  • 17.95″ (H) x 7.32″ (W) x 15.08″ (D)
Weight
  • Gross Weight: 8.38 lbs (3.8 kg)
  • Net Weight: 6.17 lbs (2.8 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off
LED
  • HDD activity
  • Power status LED
Port
  • USB Type-A Ports-USB 3.2 Gen 1X1 ports (5G)
  • USB Type-C-USB 3.2 Gen 1X2 port (10G)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default1 PCIe 5.0 x16 HHHL slot
  • 1 PCIe 5.0 x16 HHHL slot
M.2
  • 1 M.2 PCIe 5.0 x4 slot (M-key 2280/22110)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 2 bays1 internal fixed 2.5″ SATA drive bay 1 internal fixed 3.5″ SATA drive bay
  • 1 internal fixed 2.5″ SATA drive bay
  • 1 internal fixed 3.5″ SATA drive bay
M.2
  • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280(default)/22110)
  • 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280(default)/22110)
  • View M.2 Options
System Cooling
Fans
  • 1 CPU Fan(s)
Power Supply
  • 1x 300W 1x 300W Gold Level (90%) power supply Dimension (WxHxL)65 x 86 x 175 mm Input300W: 200-240Vac 300W: 100-240Vac / 50-60Hz +12VMax: 26A / Min: 0A Max: 26A / Min: 0.1A (100Vac-240Vac)Max: 26A / Min: 0.1A (200Vac-240Vac) 5V SBMax: 3A / Min: 0A Certification Gold Level
Dimension (WxHxL)
  • 65 x 86 x 175 mm
Input
  • 300W: 200-240Vac 300W: 100-240Vac / 50-60Hz
+12V
  • Max: 26A / Min: 0A Max: 26A / Min: 0.1A (100Vac-240Vac)Max: 26A / Min: 0.1A (200Vac-240Vac)
5V SB
  • Max: 3A / Min: 0A
Certification
  • Gold Level
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Environmental / Recycling
Recycle
  • Return Server-End of Life Product
  • 1x 300W 1x 300W Gold Level (90%) power supply Dimension (WxHxL)65 x 86 x 175 mm Input300W: 200-240Vac 300W: 100-240Vac / 50-60Hz +12VMax: 26A / Min: 0A Max: 26A / Min: 0.1A (100Vac-240Vac)Max: 26A / Min: 0.1A (200Vac-240Vac) 5V SBMax: 3A / Min: 0A Certification Gold Level
