UP mid-tower workstation for gaming and content creation

Pretul afisat contine TVA (21%).

SuperServer SYS-530AD-I

UP mid-tower workstation for gaming and content creation

Key Features

  1. Supports 11th Gen Intel® Core™ Processors (i3/i5/i7/i9), Pentium® and Celeron® Processors
  2. 2 PCIe 4.0 x16 slots (16/NA or 8/8) and 2 PCIe 3.0 x1
  3. 3x 12cm PWM Fans
  4. 750W 80PLUS Gold Power Supply

Specifications

Product SKUs
  • SuperWorkstation SYS-530AD-I

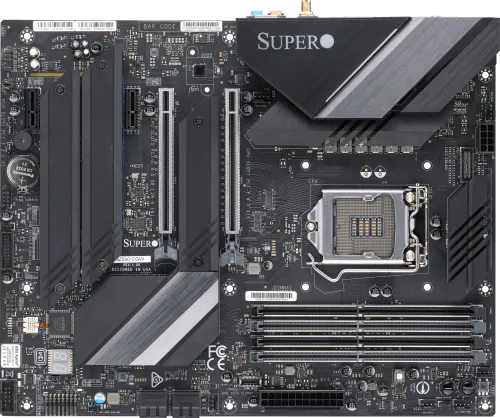

Motherboard
  • Super C9Z590-CG
Processor
CPU
  • Single Socket H5 (LGA-1200)
  • 11th Gen Intel® Core™ Processors
Core Count
  • Up to 8C/16T; Up to 16MB Cache
Note
  • Supports up to 125W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width GPU
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s non-ECC DDR4 UDIMM
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps)
Network Connectivity
  • 1 RJ45 1GbE with Intel® PHY I219-V
  • 1 RJ45 10GbE with Marvell® AQC113C

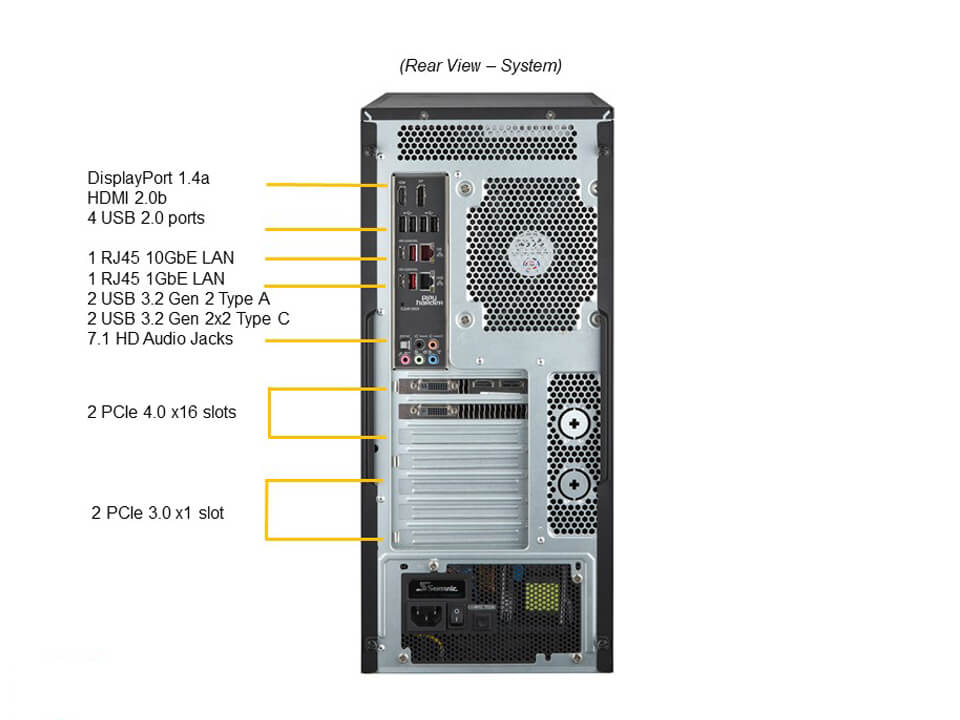

Input / Output
USB
  • 4 USB 2.0 ports(rear)
  • 2 USB 2.0 ports(header)
  • 2 ports(front)
  • 2 ports(rear)
Video
  • 1 HDMI 2.0b port
  • 1 DisplayPort 1.4 port
Audio
  • 7.1 HD Audio
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Other Features
  • 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
  • SuperWorkstation SYS-530AD-I
  • Super C9Z590-CG

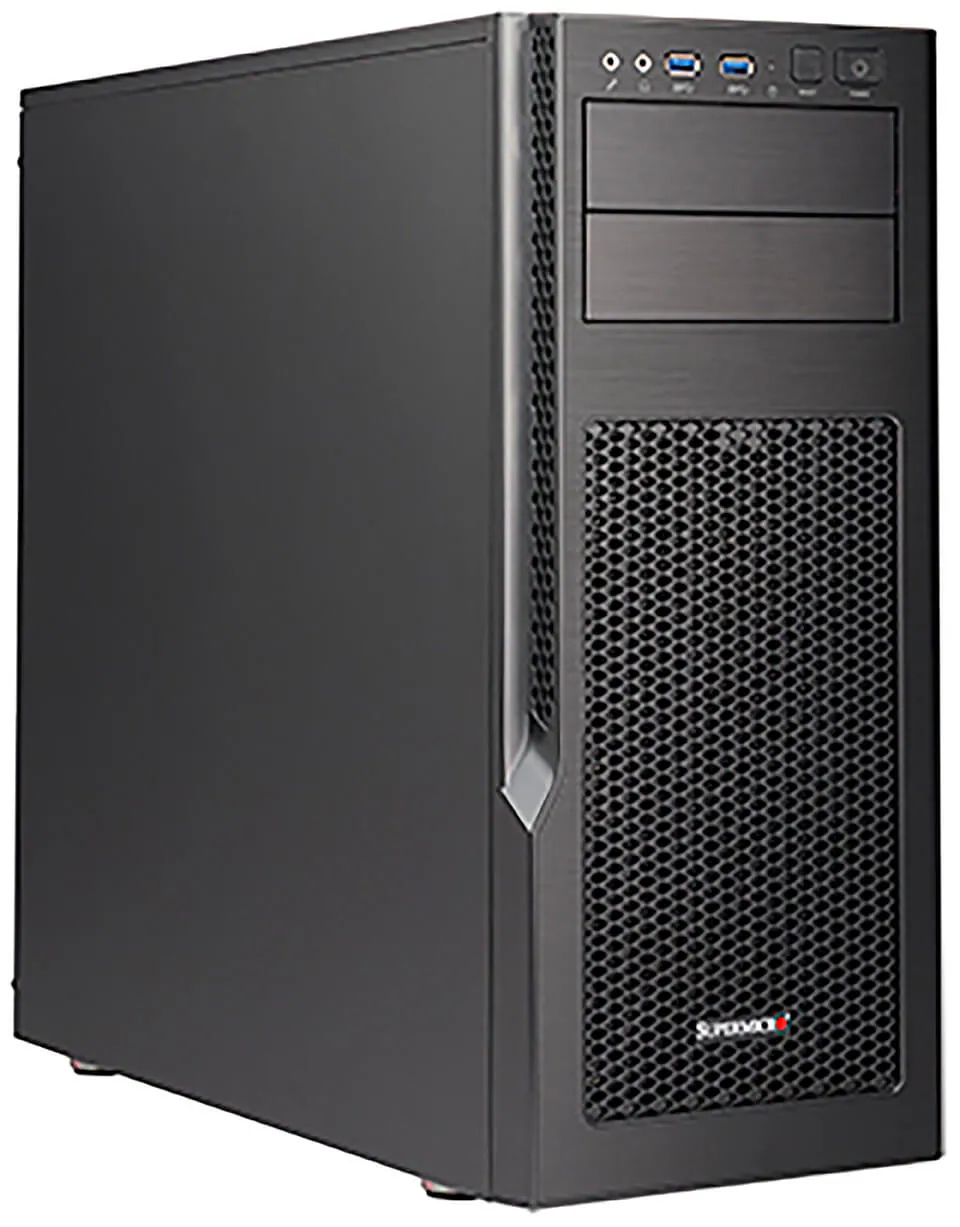

Chassis
Form Factor
  • Mid-Tower
Model
  • CSE-GS5A-754K

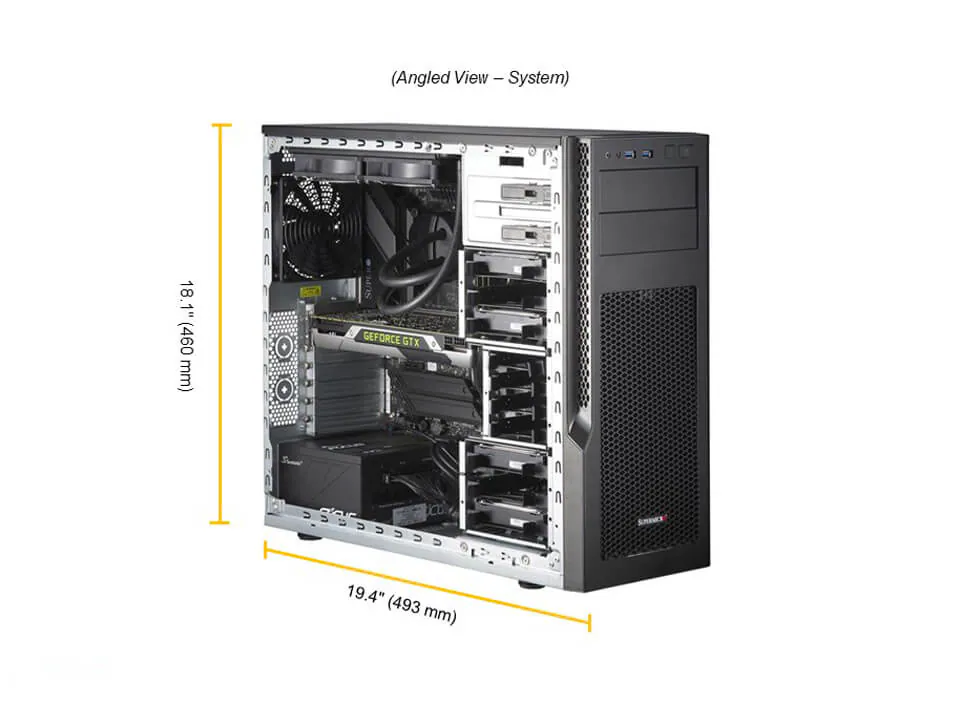

Dimensions and Weight
Height
  • 18.1″ (460 mm)
Width
  • 7.9″ (200 mm)
Depth
  • 19.4″ (493 mm)
Package
  • 24.9″ (H) x 14.2″ (W) x 24″ (D)
Weight
  • Gross Weight: 26 lbs (11.8 kg)
  • Net Weight: 20 lbs (9 kg)
Available Color
  • Black / Gray

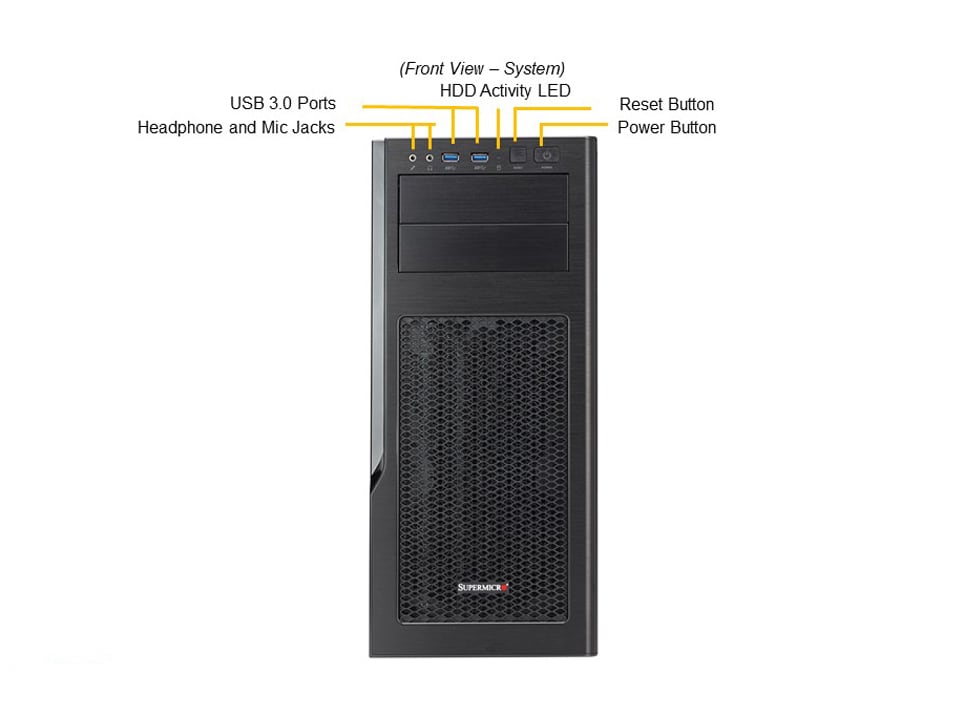

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LED
  • HDD activity LED
  • Power status LED
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x8 FHFL slots 2 PCIe 3.0 x1 FHFL slots
  • 2 PCIe 4.0 x8 FHFL slots
  • 2 PCIe 3.0 x1 FHFL slots
  • Option A1 PCIe 4.0 x16 FHFL slot 2 PCIe 3.0 x1 FHFL slots
  • 1 PCIe 4.0 x16 FHFL slot
  • 2 PCIe 3.0 x1 FHFL slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 6 bays6 internal fixed 3.5″ SATA drive bays
  • 6 internal fixed 3.5″ SATA drive bays
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)
  • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110)
  • View M.2 Options
Peripheral Bays
  • 2 5.25″ bays
System Cooling
Fans
  • Up to 3x 12cm heavy duty fans with optimal fan speed control
Power Supply
  • 1x 750W 1x 750W Gold Level power supply Dimension (WxHxL)150 x 86 x 140 mm Input100-240Vac 750W: 100-240Vac / 50-60Hz +12VMax: 62A (100Vac-240Vac)Max: 62A (100Vdc-240Vdc) 5V SBMax: 3A Output Type24pin ATX
Dimension (WxHxL)
  • 150 x 86 x 140 mm
Input
  • 100-240Vac 750W: 100-240Vac / 50-60Hz
+12V
  • Max: 62A (100Vac-240Vac)Max: 62A (100Vdc-240Vdc)
5V SB
  • Max: 3A
Output Type
  • 24pin ATX
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 750W 1x 750W Gold Level power supply Dimension (WxHxL)150 x 86 x 140 mm Input100-240Vac 750W: 100-240Vac / 50-60Hz +12VMax: 62A (100Vac-240Vac)Max: 62A (100Vdc-240Vdc) 5V SBMax: 3A Output Type24pin ATX
Optional Parts List
