UP mid-tower workstation for 3D and VR content development

Pretul afisat contine TVA (21%).

SuperServer SYS-531A-I

UP mid-tower workstation for 3D and VR content development

Key Features

  1. Socket E (LGA4677) support Intel® Xeon® W-2400 processors
  2. Intel® W790
  3. 8 DIMMs
  4. 1x 1GbBaseT, 1x 10GbBaseT
  5. 4 3.5″ SATA3 drive bays; ; 2 M.2 NVMe
  6. 1 120 mm Fan(s) ; 1 120 mm Fan(s)
  7. 1200W Power Supplies Platinum Level (92%+)

Specifications

Product SKUs
  • SuperWorkstation SYS-531A-I
Motherboard

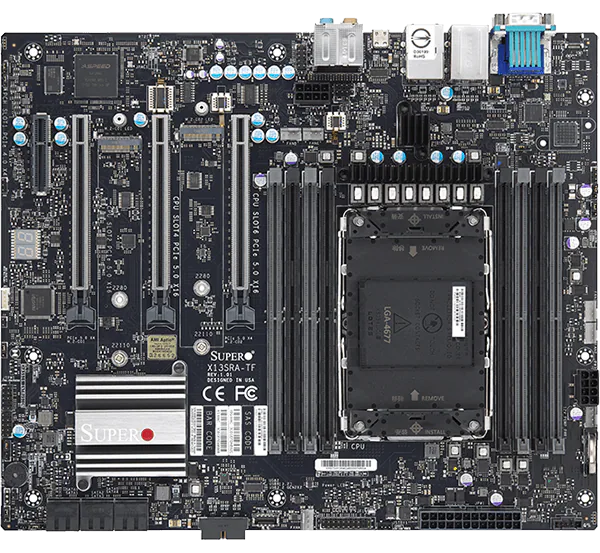

  • Super X13SRA-TF
Processor
CPU
  • Single processor(s)
  • Intel® Xeon® W-2500/W-2400 processors
Core Count
  • Up to 26C/52T; Up to 48.75MB Cache
Note
  • Supports up to 250W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width GPUs
Supported GPU
  • NVIDIA PCIe: A1000, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 2000 Ada, RTX 4000 Ada Generation, RTX 4500 Ada, RTX 5000 Ada, RTX 6000 Ada Generation, RTX A4500, RTX A5500, RTX A6000
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (2DPC): Up to 1TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Network Connectivity
  • 1 RJ45 10GbE with Marvell® AQC113
  • 1 RJ45 1GbE with Intel® I210-AT
Input / Output
USB
  • 2 USB 3.2 Gen1 Type-A ports(front)
  • 4 USB 3.2 Gen2 Type-A ports(Rear)
  • 1 USB 3.2 Gen2 Type-C port(Rear)
  • 1 USB 3.2 Gen2 Type-C port(Front)
Video
  • 1 VGA port
Serial
  • 1 COM port(rear)
Audio
  • 7.1 HD Audio
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
  • SuperWorkstation SYS-531A-I
  • Super X13SRA-TF
Chassis
Form Factor
  • Mid-Tower
Model
  • CSE-735D4-1K26B

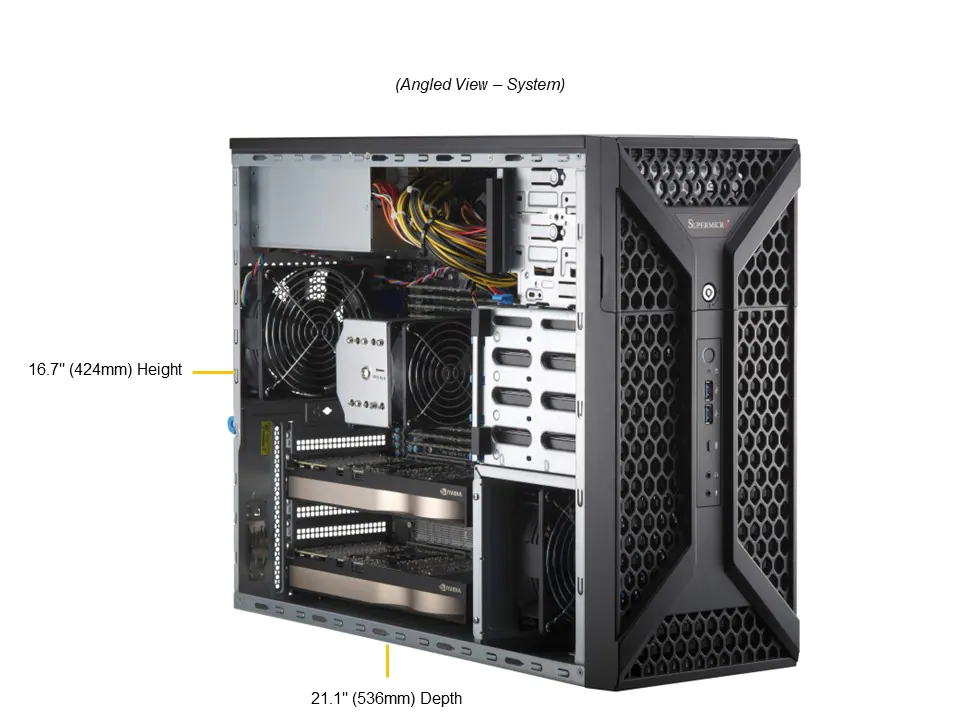

Dimensions and Weight
Height
  • 16.7″ (424 mm)
Width
  • 7.6″ (193 mm)
Depth
  • 20.68″ (525.3 mm)
Package
  • 21.38″ (H) x 11.97″ (W) x 25.28″ (D)
Weight
  • Gross Weight: 30 lbs (13.61 kg)
  • Net Weight: 27 lbs (12.25 kg)
Available Color
  • black

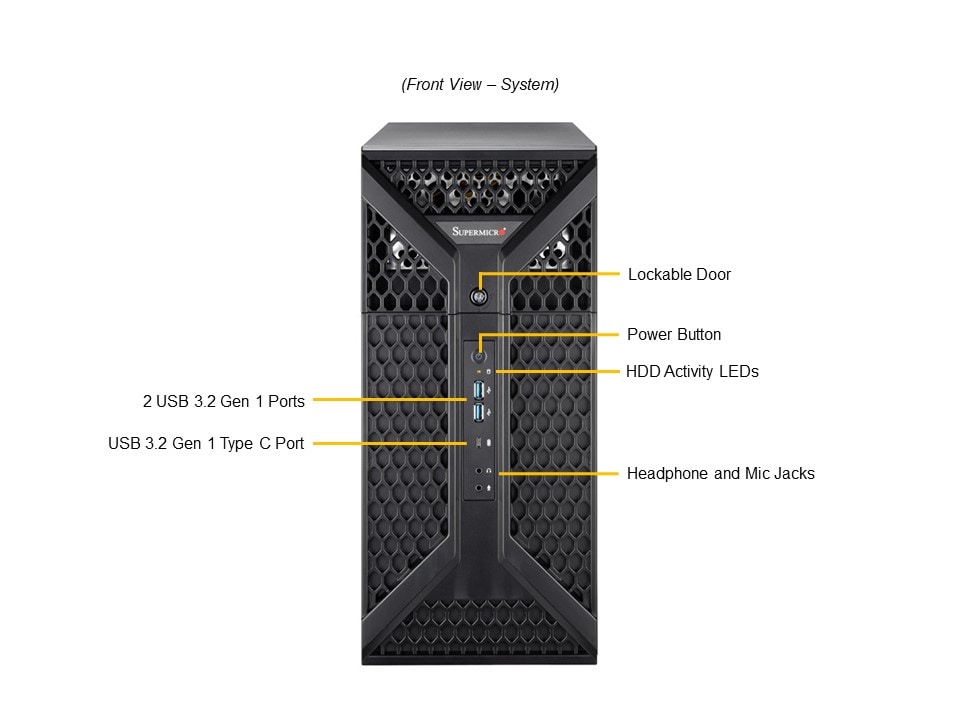

Front Panel
Buttons
  • Power On/Off button
LED
  • HDD activity LED

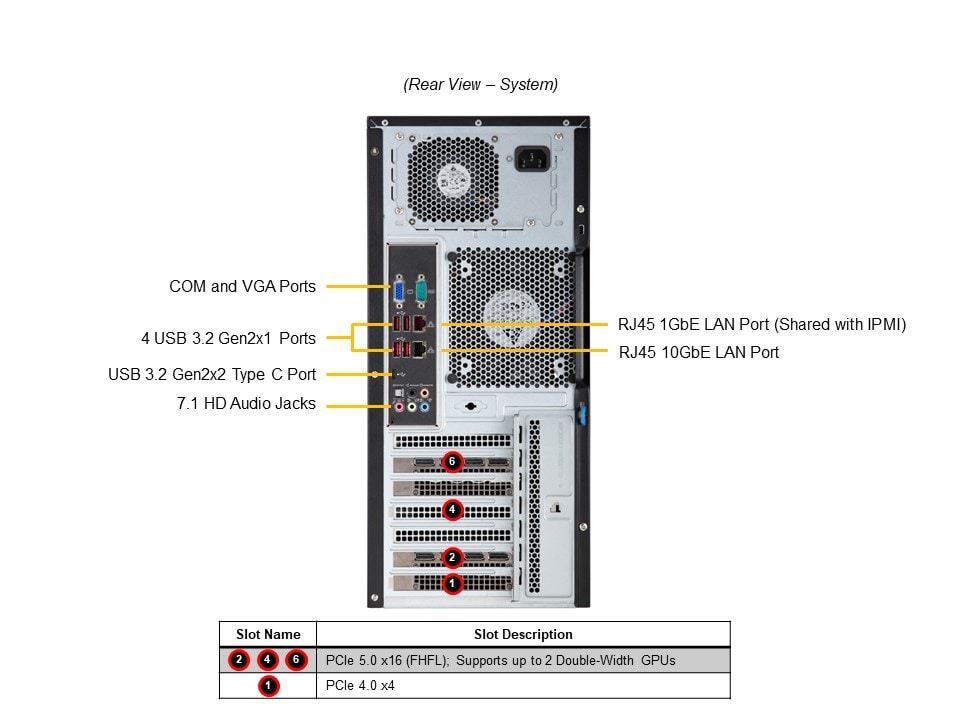

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default1 PCIe 4.0 x4 FHFL slot 3 PCIe 5.0 x16 FHFL slots
  • 1 PCIe 4.0 x4 FHFL slot
  • 3 PCIe 5.0 x16 FHFL slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays4 internal fixed 3.5″ SATA drive bays
  • 4 internal fixed 3.5″ SATA drive bays
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)
  • View M.2 Options
Peripheral Bays
  • 2 5.25″ bays
System Cooling
Fans
  • Up to 1x 120mm Fan(s)
  • Up to 1x 120mm Fan(s)
Power Supply
  • 1x 1200W 1x 1200W Platinum Level (94%) power supply Dimension (WxHxL)150 x 86 x 185 mm Input100-240Vac 1000W: 100-120Vac / 50-60Hz 1200W: 120-240Vac / 50-60Hz +12VMax: 83A / Min: 1A (100Vac-120Vac)Max: 99A / Min: 1A (120Vac-240Vac) 5V SBMax: 3A / Min: 0A Output Type24pin ATX Certification Platinum Level
Dimension (WxHxL)
  • 150 x 86 x 185 mm
Input
  • 100-240Vac 1000W: 100-120Vac / 50-60Hz 1200W: 120-240Vac / 50-60Hz
+12V
  • Max: 83A / Min: 1A (100Vac-120Vac)Max: 99A / Min: 1A (120Vac-240Vac)
5V SB
  • Max: 3A / Min: 0A
Output Type
  • 24pin ATX
Certification
  • Platinum Level
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 1200W 1x 1200W Platinum Level (94%) power supply Dimension (WxHxL)150 x 86 x 185 mm Input100-240Vac 1000W: 100-120Vac / 50-60Hz 1200W: 120-240Vac / 50-60Hz +12VMax: 83A / Min: 1A (100Vac-120Vac)Max: 99A / Min: 1A (120Vac-240Vac) 5V SBMax: 3A / Min: 0A Output Type24pin ATX Certification Platinum Level
