UP mid tower with 4 internal 3.5″ SATA drive bays and PCIe 5.0

Pretul afisat contine TVA (21%).

SuperServer SYS-531R-I

UP mid tower with 4 internal 3.5″ SATA drive bays and PCIe 5.0

Key Features

  1. Supports Intel® Intel® Xeon® 6300-series/E-2400 Series Processor
  2. PCIe 5.0 Support
  3. Dual LAN ports, GbE and dedicated IPMI LAN port
  4. 9cm PWM quiet exhaust fan and optional front intake fan
  5. 400W 80PLUS Gold Power Supply

Specifications

Product SKUs
  • SuperWorkstation SYS-531R-I

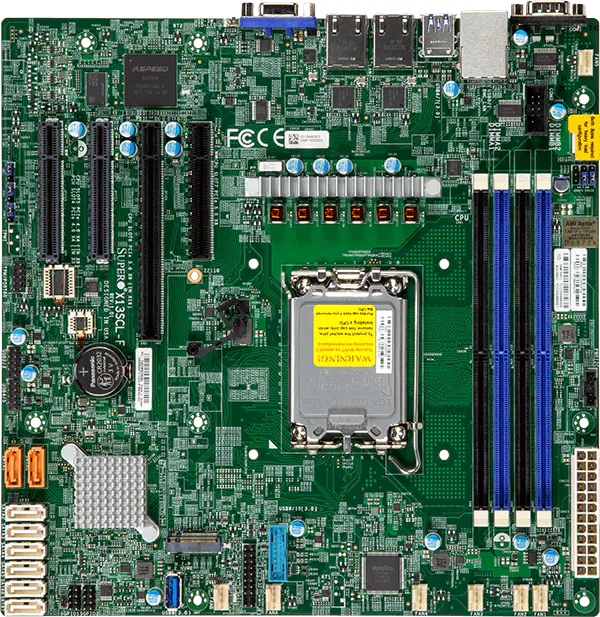

Motherboard
  • Super X13SCL-F
Processor
CPU
  • Single Socket V0 (LGA-1700)
  • Intel® Xeon ® 6300-series/E-2400 Series Processors
Core Count
  • Up to 8C/16T
Note
  • Supports up to 95W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 1 single-width GPU

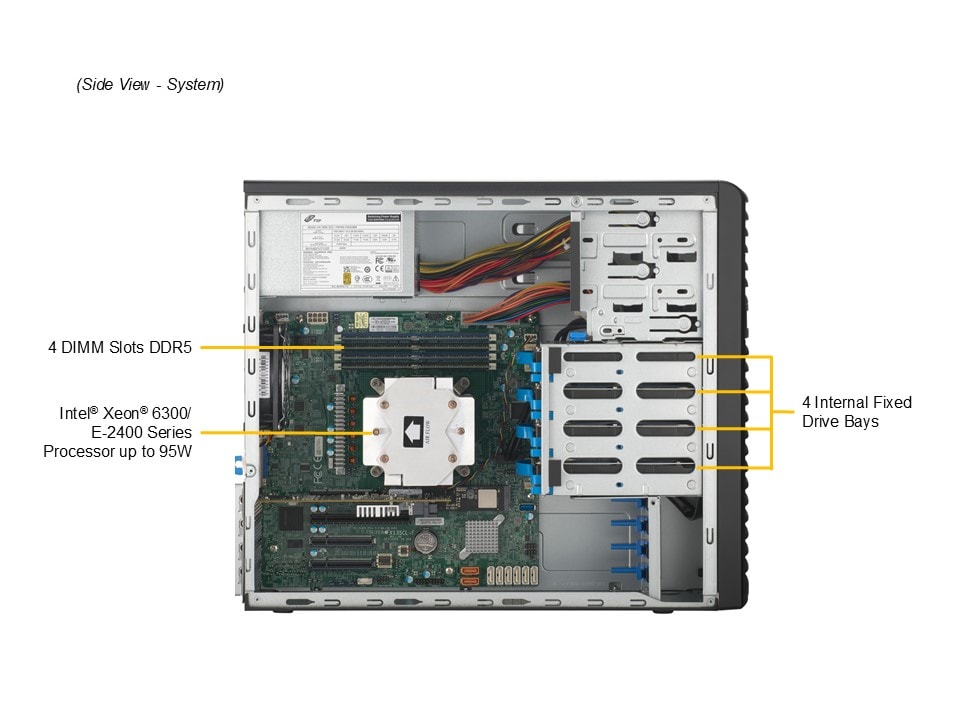

System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Network Connectivity
  • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
  • 2 RJ45 1GbE with Intel® I210

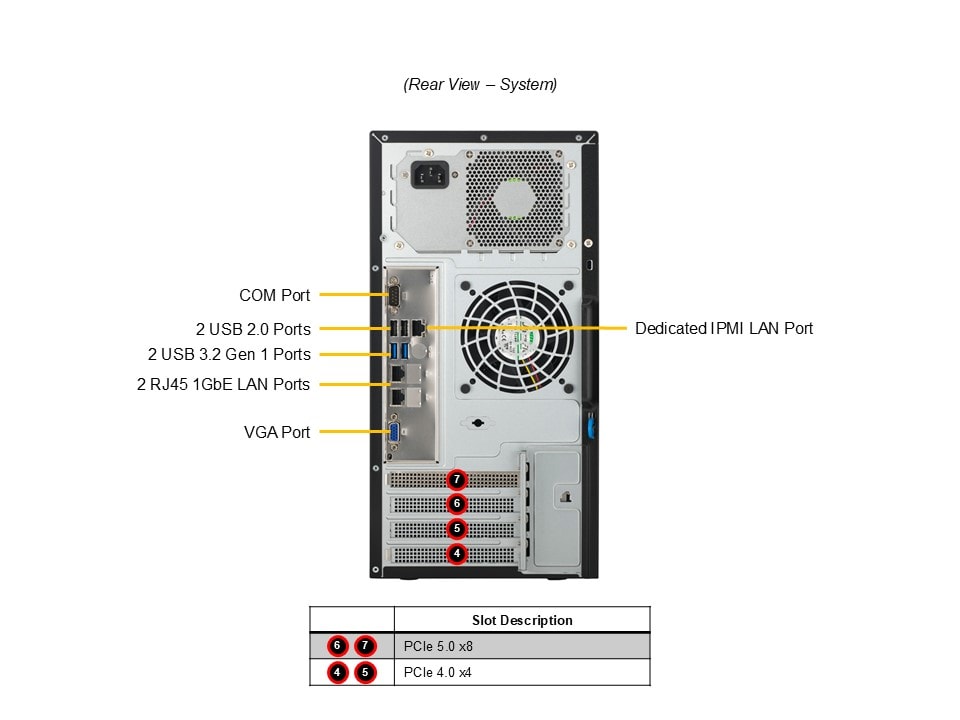

Input / Output
USB
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 Type-A ports(front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
PC Health Monitoring
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
  • SuperWorkstation SYS-531R-I
  • Super X13SCL-F
Chassis
Form Factor
  • mini-tower
Model
  • CSE-731I-404B

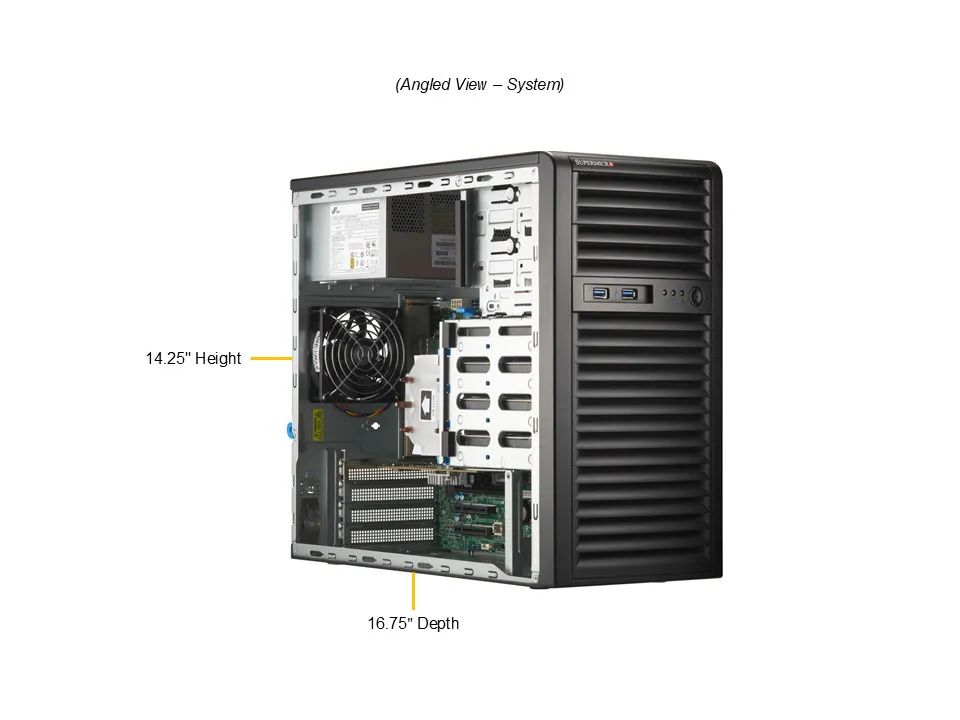

Dimensions and Weight
Height
  • 14.25″ (362 mm)
Width
  • 7.25″ (184 mm)
Depth
  • 16.75″ (425 mm)
Package
  • 20″ (H) x 11″ (W) x 21″ (D)
Weight
  • Gross Weight: 20 lbs (9.07 kg)
  • Net Weight: 16 lbs (7.26 kg)
Available Color
  • Black

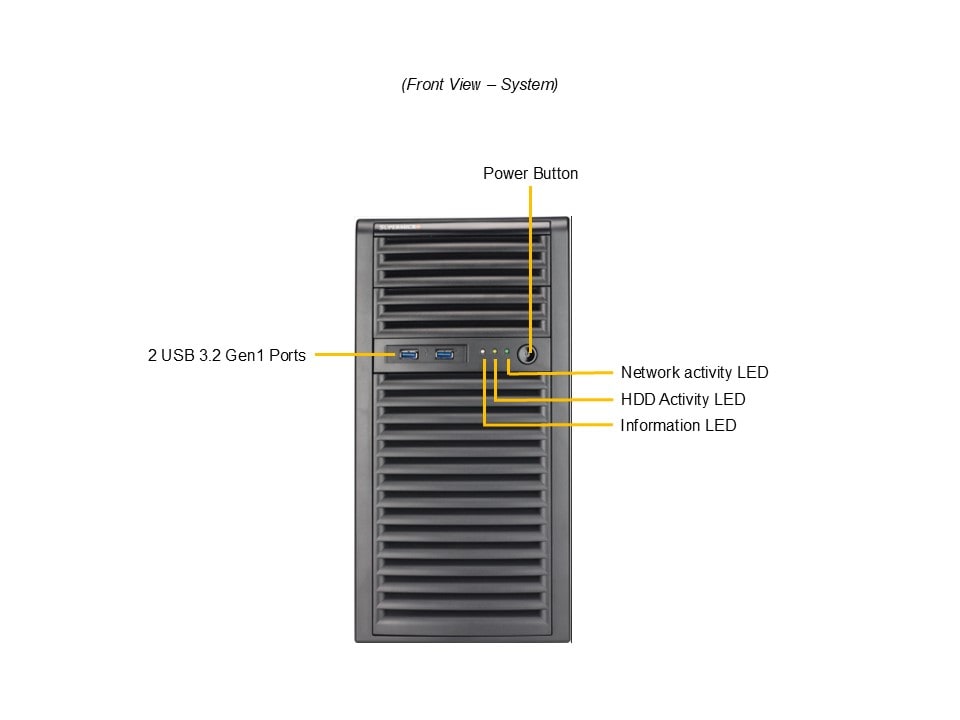

Front Panel
Buttons
  • Power On/Off button
LED
  • HDD activity LED
  • Network activity LEDs
  • Power LED
  • System Overheat LED
Port
  • USB 3.0 Port(s)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x8 FHFL slots 1 PCIe 4.0 x4 FHFL slot 1 PCIe 4.0 x4 FHHL slot
  • 2 PCIe 5.0 x8 FHFL slots
  • 1 PCIe 4.0 x4 FHFL slot
  • 1 PCIe 4.0 x4 FHHL slot
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays4 internal fixed 3.5″ SATA drive bays
  • 4 internal fixed 3.5″ SATA drive bays
M.2
  • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110)
  • View M.2 Options
Peripheral Bays
  • 2 5.25″ bays
System Cooling
Fans
  • Up to 1x 90mm Fan(s)
Power Supply
  • 1x 400W 1x 400W Gold Level (90%) power supply Dimension (WxHxL)150 x 86 x 140 mm Input100-240Vac 400W: 100-240Vac / 50-60Hz +12VMax: 12.62A / Min: 0A (100Vac-240Vac)Max: 12.62A / Min: 0.05A (100Vac-240Vac) 5V SBMax: 2.23A / Min: 0A Output Type24pin ATX Certification Gold Level
Dimension (WxHxL)
  • 150 x 86 x 140 mm
Input
  • 100-240Vac 400W: 100-240Vac / 50-60Hz
+12V
  • Max: 12.62A / Min: 0A (100Vac-240Vac)Max: 12.62A / Min: 0.05A (100Vac-240Vac)
5V SB
  • Max: 2.23A / Min: 0A
Output Type
  • 24pin ATX
Certification
  • Gold Level
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 400W 1x 400W Gold Level (90%) power supply Dimension (WxHxL)150 x 86 x 140 mm Input100-240Vac 400W: 100-240Vac / 50-60Hz +12VMax: 12.62A / Min: 0A (100Vac-240Vac)Max: 12.62A / Min: 0.05A (100Vac-240Vac) 5V SBMax: 2.23A / Min: 0A Output Type24pin ATX Certification Gold Level
Optional Parts List
