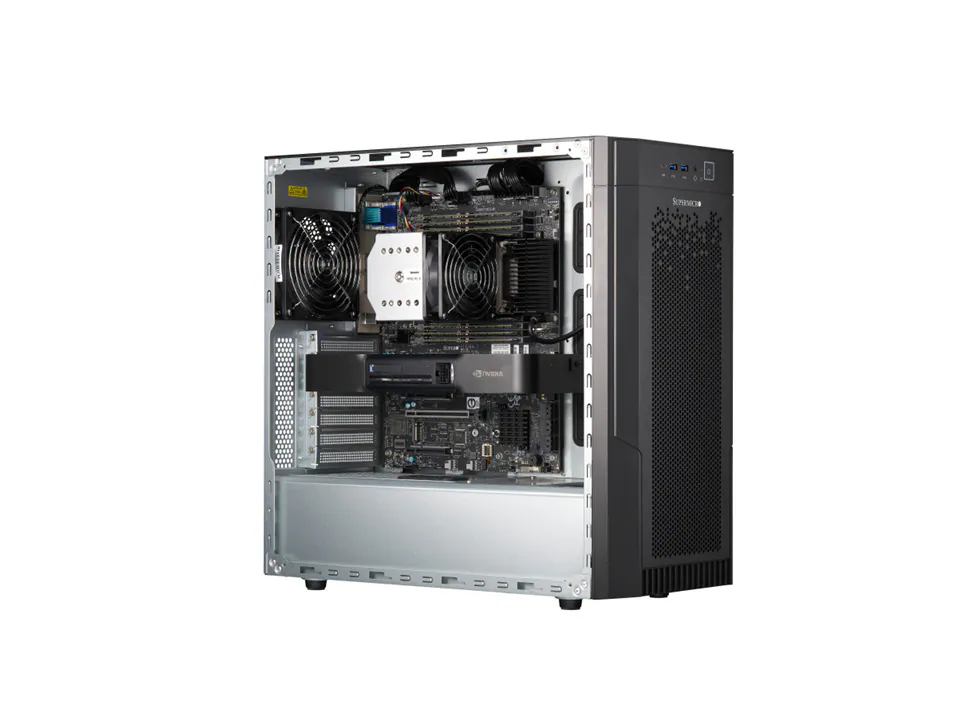

High-performance mid-tower UP workstation for AI and 3D/simulation workloads

Pretul afisat contine TVA (21%).

SuperServer SYS-532AW-TC

High-performance mid-tower UP workstation for AI and 3D/simulation workloads

Key Features

  1. Single Intel® Xeon® 600 Series processor (LGA 4710-2/Socket E2), with up to 86 cores/350W TDP. Supports optional CPU closed-loop liquid cooling heatsink
  2. 8 DIMM slots support DDR5 ECC RDIMM
  3. Support for up to 2 double-width PCIe GPU cards
  4. Fast connection: 1 RJ45 10GbE + 1 RJ45 1GbE
  5. Fast storage: 2 PCIe 5.0 M.2 slots + MCIO connector for optional 2x NVMe SSD connection
  6. 1000W, 1300W and 2000W Power Supply Options
  7. 2 PCIe 5.0 x16 slots + 2 PCIe 5.0 x8 slots

Specifications

Product SKUs
  • SuperWorkstation SYS-532AW-TC

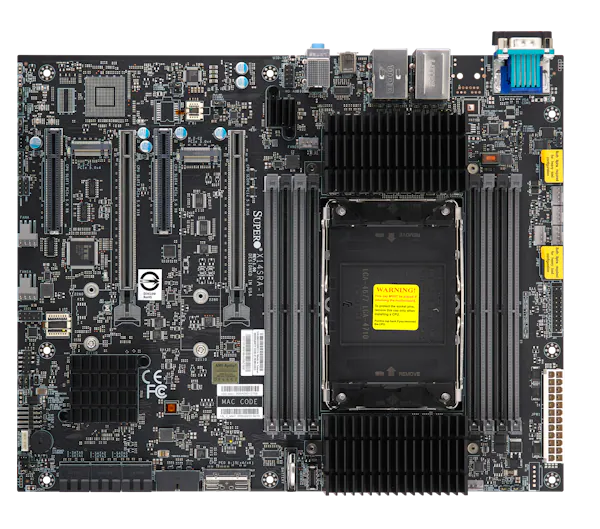

Motherboard
  • Super X14SRA-T
Processor
CPU
  • Single E2 (LGA 4710-2)
  • Intel® Xeon® 600 Processor for Workstation
Core Count
  • Up to 86C/172T; Up to 336MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width GPUs
Supported GPU
  • NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (2DPC): Up to 1TB 5200MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) via Intel® W890; RAID 0/1/5/10 support
Chipset
  • intel® W890
Network Connectivity
  • 1 RJ45 10GbE with Marvell® AQC113
  • 1 RJ45 1GbE with Intel® I219-LM

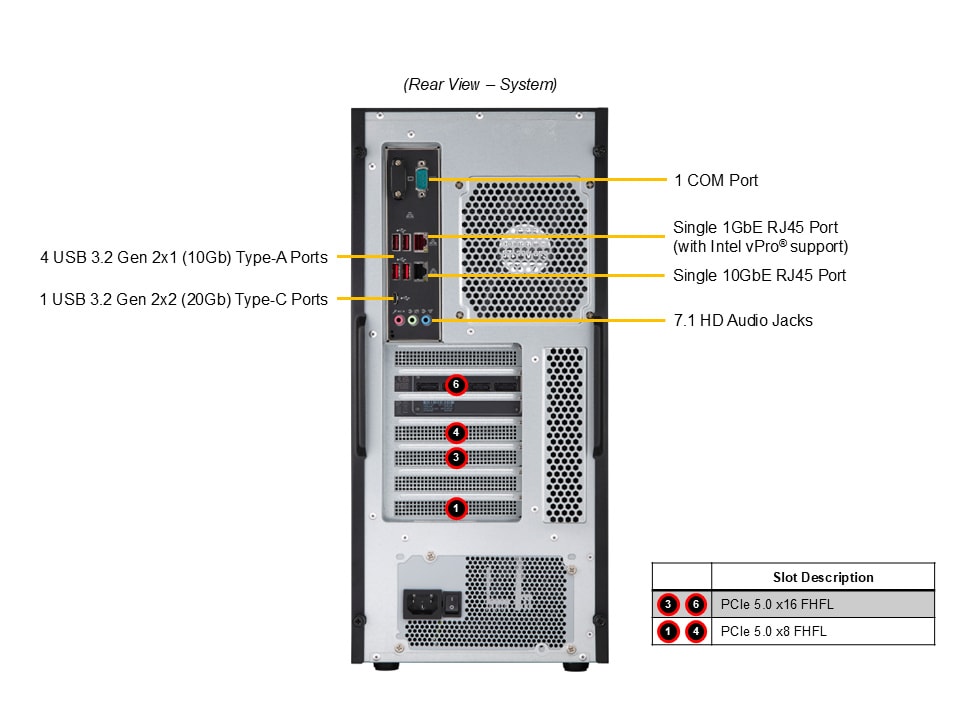

Input / Output
USB
  • 2 USB 3.2 Gen1 Type-A ports(front)
  • 4 USB 3.2 Gen2 Type-A ports(Rear)
  • 1 USB 3.2 Gen2 Type-C port(Rear)
  • 1 USB 3.2 Gen2 Type-C port(Front)
Serial
  • 1 COM port(rear)
Audio
  • 5.1 HD Audio
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Wake-on-LAN
  • ACPI 6.5 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
Features
  • Automatic Firmware Recovery
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
PC Health Monitoring
Voltage
  • Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
  • SuperWorkstation SYS-532AW-TC
  • Super X14SRA-T
Chassis
Form Factor
  • Mid-Tower
Model
  • CSE-GS3A-000NBP
Dimensions and Weight
Height
  • 17.72″ (450 mm)
Width
  • 8.07″ (205 mm)
Depth
  • 18.5″ (470 mm)
Package
  • 24.29″ (H) x 12.8″ (W) x 23.23″ (D)
Weight
  • Gross Weight: 19.2 lbs (8.7 kg)
  • Net Weight: 14.1 lbs (6.4 kg)
Available Color
  • Black

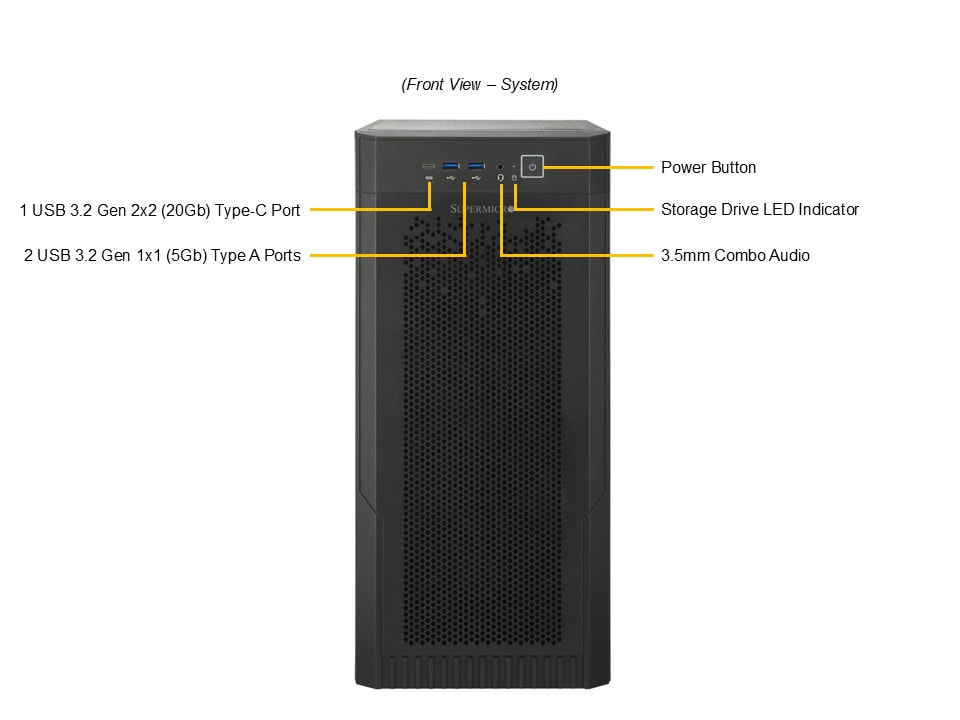

Front Panel
Buttons
  • Power On/Off
LED
  • HDD activity
  • Power status LED
Port
  • Audio Jack-Combo microphone input / audio output port
  • USB Type-A Ports-USB 3.2 Gen 1X1 ports (5G)
  • USB Type-C-USB 3.2 Gen 2X2 port (20G)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x8 (in x8) FHFL slots 2 PCIe 5.0 x16 (in x16) FHFL slots
  • 2 PCIe 5.0 x8 (in x8) FHFL slots
  • 2 PCIe 5.0 x16 (in x16) FHFL slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays2 internal fixed 3.5″/2.5″ SATA drive bays 6 internal fixed 2.5″ SATA drive bays
  • 2 internal fixed 3.5″/2.5″ SATA drive bays
  • 6 internal fixed 2.5″ SATA drive bays
  • Option A: Total 8 bays2 internal fixed 3.5″ SATA* drive bays 4 internal fixed 2.5″ SATA* drive bays 2 internal fixed 2.5″ PCIe 4.0 NVMe* drive bays
  • 2 internal fixed 3.5″ SATA* drive bays
  • 4 internal fixed 2.5″ SATA* drive bays
  • 2 internal fixed 2.5″ PCIe 4.0 NVMe* drive bays
  • (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default)/2280; VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • Up to 4x 120mm Fan(s)
  • Up to 1x 120mm Fan(s)
  • Up to 1x 120mm Fan(s)
Power Supply
  • 1x 1300W 1x 2000W 1x 1000W 1x 1300W 1x 1300W Platinum Level (92%) power supply Dimension (WxHxL)86 x 160 x 150 mm Input1300W: 100-240Vac / 50-60Hz +12VMax: 108.33A / Min: 0A (100Vac-240Vac) 5V SBMax: 3A / Min: 0A Output TypeBackplanes (connector) Certification Platinum Level 1x 2000W 1x 2000W Platinum Level (92%) power supply Dimension (WxHxL)150 x 86 x 200 mm Input100-240Vac 1200W: 100-115Vac / 50-60Hz 1500W: 115-200Vac / 50-60Hz 2000W: 200-264Vac / 50-60Hz +12VMax: 100A / Min: 0.1A (100Vac-115Vac)Max: 100A / Min: 0.1A (100Vdc-240Vdc) ((100-115Vac))Max: 125A / Min: 0.1A (100Vdc-240Vdc) ((115-120Vac))Max: 125A / Min: 0.1A (115Vac-120Vac)Max: 166.6A / Min: 0.1A (100Vdc-240Vdc) ((200-264Vac))Max: 166.6A / Min: 0.1A (200Vac-264Vac) 5V SBMax: 4A / Min: 0A Output Type24pin ATX 1x 1000W 1x 1000W Gold Level (90%) power supply Dimension (WxHxL)150 x 86 x 140 mm Input1000W: 100-240Vac / 47-63Hz +12VMax: 83.3A / Min: 0A (100Vac-240Vac) 5V SBMax: 3A / Min: 0A Output Type24pin ATX Certification Gold Level
Dimension (WxHxL)
  • 86 x 160 x 150 mm
Input
  • 1300W: 100-240Vac / 50-60Hz
+12V
  • Max: 108.33A / Min: 0A (100Vac-240Vac)
5V SB
  • Max: 3A / Min: 0A
Output Type
  • Backplanes (connector)
Certification
  • Platinum Level
Dimension (WxHxL)
  • 150 x 86 x 200 mm
Input
  • 100-240Vac 1200W: 100-115Vac / 50-60Hz 1500W: 115-200Vac / 50-60Hz 2000W: 200-264Vac / 50-60Hz
+12V
  • Max: 100A / Min: 0.1A (100Vac-115Vac)Max: 100A / Min: 0.1A (100Vdc-240Vdc) ((100-115Vac))Max: 125A / Min: 0.1A (100Vdc-240Vdc) ((115-120Vac))Max: 125A / Min: 0.1A (115Vac-120Vac)Max: 166.6A / Min: 0.1A (100Vdc-240Vdc) ((200-264Vac))Max: 166.6A / Min: 0.1A (200Vac-264Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • 24pin ATX
Dimension (WxHxL)
  • 150 x 86 x 140 mm
Input
  • 1000W: 100-240Vac / 47-63Hz
+12V
  • Max: 83.3A / Min: 0A (100Vac-240Vac)
Certification
  • Gold Level
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 1300W 1x 2000W 1x 1000W 1x 1300W 1x 1300W Platinum Level (92%) power supply Dimension (WxHxL)86 x 160 x 150 mm Input1300W: 100-240Vac / 50-60Hz +12VMax: 108.33A / Min: 0A (100Vac-240Vac) 5V SBMax: 3A / Min: 0A Output TypeBackplanes (connector) Certification Platinum Level 1x 2000W 1x 2000W Platinum Level (92%) power supply Dimension (WxHxL)150 x 86 x 200 mm Input100-240Vac 1200W: 100-115Vac / 50-60Hz 1500W: 115-200Vac / 50-60Hz 2000W: 200-264Vac / 50-60Hz +12VMax: 100A / Min: 0.1A (100Vac-115Vac)Max: 100A / Min: 0.1A (100Vdc-240Vdc) ((100-115Vac))Max: 125A / Min: 0.1A (100Vdc-240Vdc) ((115-120Vac))Max: 125A / Min: 0.1A (115Vac-120Vac)Max: 166.6A / Min: 0.1A (100Vdc-240Vdc) ((200-264Vac))Max: 166.6A / Min: 0.1A (200Vac-264Vac) 5V SBMax: 4A / Min: 0A Output Type24pin ATX 1x 1000W 1x 1000W Gold Level (90%) power supply Dimension (WxHxL)150 x 86 x 140 mm Input1000W: 100-240Vac / 47-63Hz +12VMax: 83.3A / Min: 0A (100Vac-240Vac) 5V SBMax: 3A / Min: 0A Output Type24pin ATX Certification Gold Level
Optional Parts List
