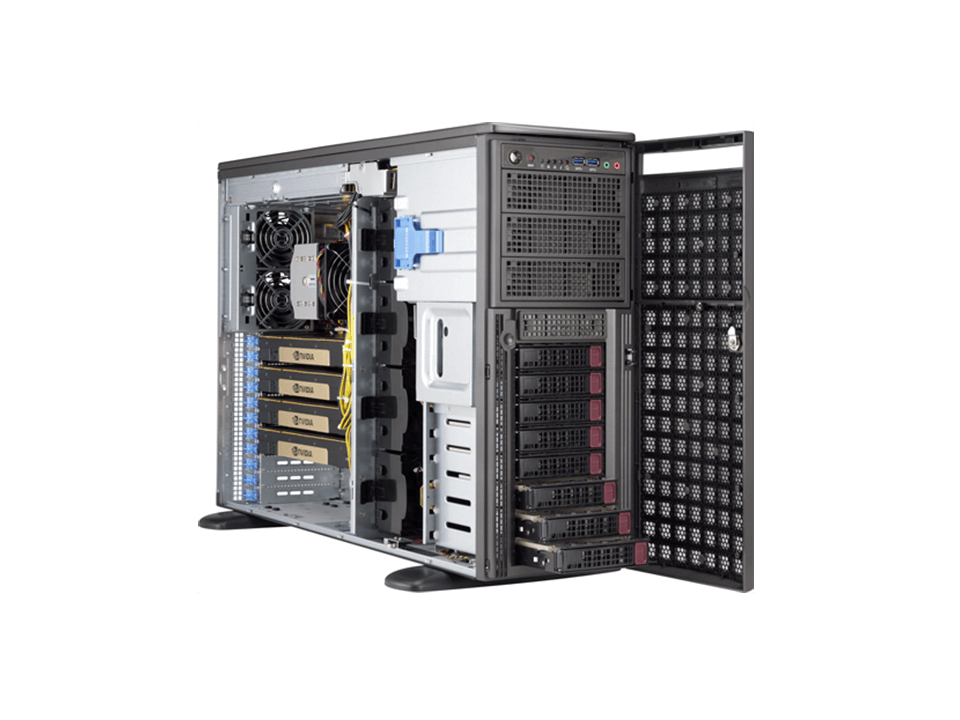

Supermicro SuperServer SYS-540A-TR
Supermicro SuperServer SYS-540A-TR - imagine 2
Supermicro SuperServer SYS-540A-TR - imagine 3
Supermicro SuperServer SYS-540A-TR - imagine 4
Supermicro SuperServer SYS-540A-TR - imagine 5
Supermicro SuperServer SYS-540A-TR - imagine 6
, , ,

Supermicro SuperServer SYS-540A-TR

Favorite
Compara

UP full-tower workstation for AI/DL/ML development

Pretul afisat contine TVA (21%).

SuperServer SYS-540A-TR

UP full-tower workstation for AI/DL/ML development

Key Features

  1. Supports 3rd Gen Intel® Xeon® Scalable or Xeon® W-3300 Processors with TDP up to 270W
  2. 7 PCIe 4.0 Slots
  3. 1x 10GBase-T, 1x 1GbE, and 1x dedicated IPMI LAN ports

Specifications

Product SKUs
  • SuperWorkstation SYS-540A-TR

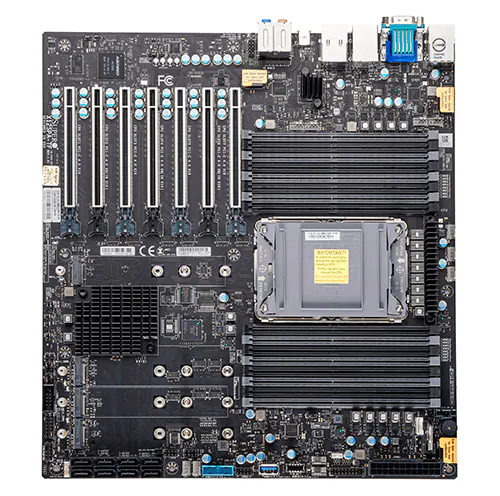

Motherboard
  • Super X12SPA-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width or 4 single-width GPUs
Supported GPU
  • NVIDIA PCIe: RTX A4000, RTX A5000, RTX A6000
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps)
Network Connectivity
  • 1 RJ45 1GbE with Intel® I210-AT
  • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
  • 1 RJ45 10GbE with Marvell® AQC113

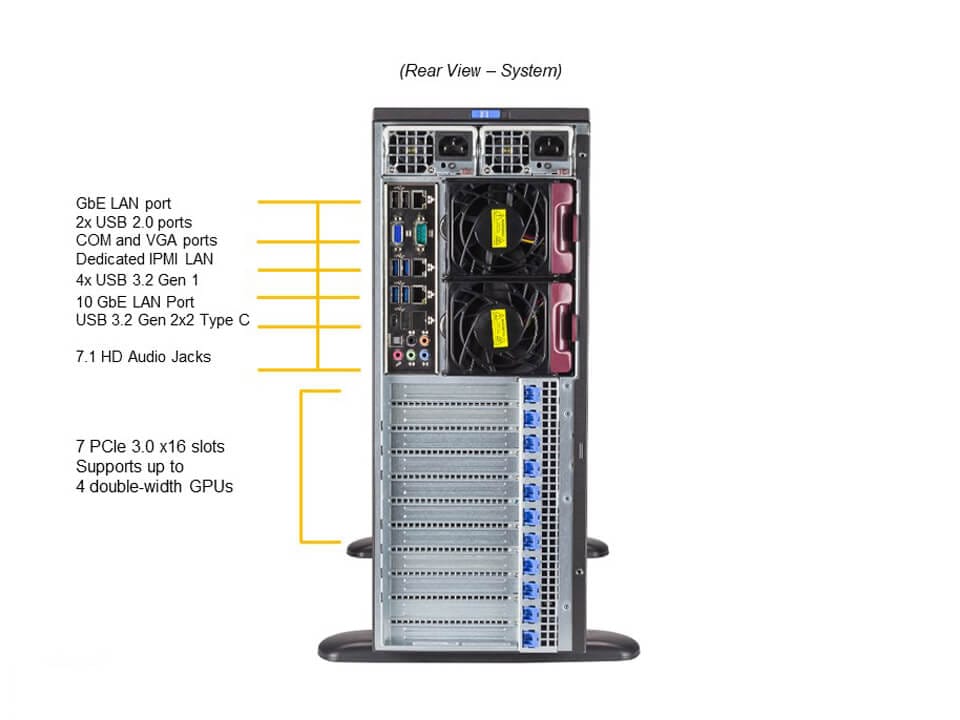

Input / Output
USB
  • 2 USB 2.0 ports(header)
  • 2 USB 2.0 ports(rear)
  • 2 ports(header)
  • 4 ports(rear)
Video
  • 1 VGA port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
  • SuperWorkstation SYS-540A-TR
  • Super X12SPA-TF
Chassis
Form Factor
  • Full-Tower Rackmount
Model
  • CSE-747BTS-R2K20BP

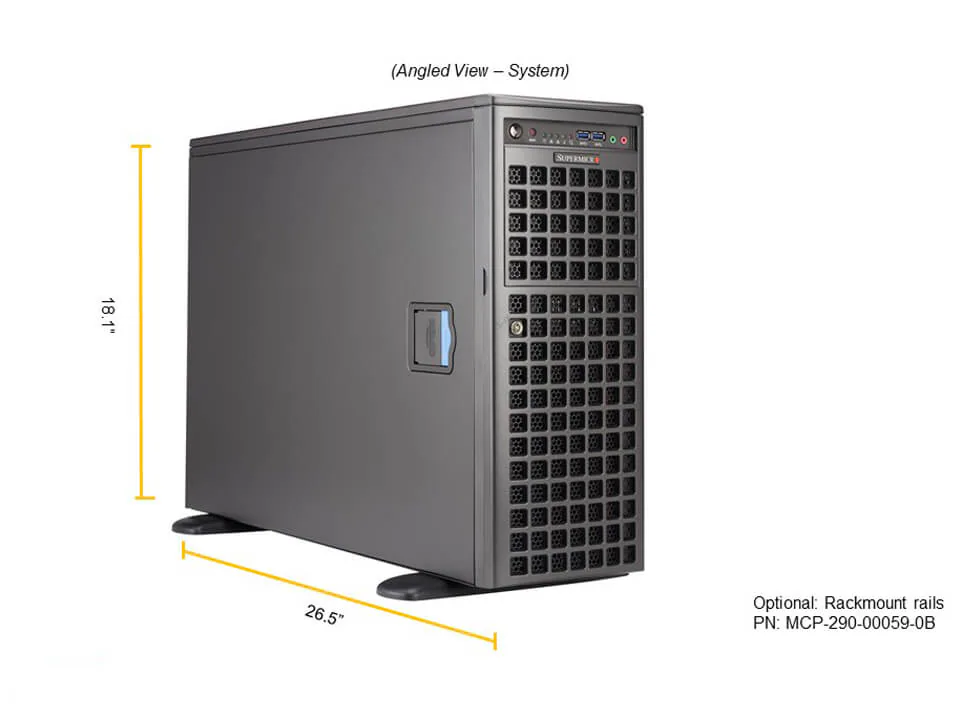

Dimensions and Weight
Height
  • 18.32″ (465.4 mm)
Width
  • 6.96″ (177 mm)
Depth
  • 26.71″ (678.5 mm)
Package
  • 12.95″ (H) x 27.12″ (W) x 38.22″ (D)
Weight
  • Gross Weight: 57 lbs (25.85 kg)
  • Net Weight: 52.9 lbs (24 kg)
Available Color
  • black

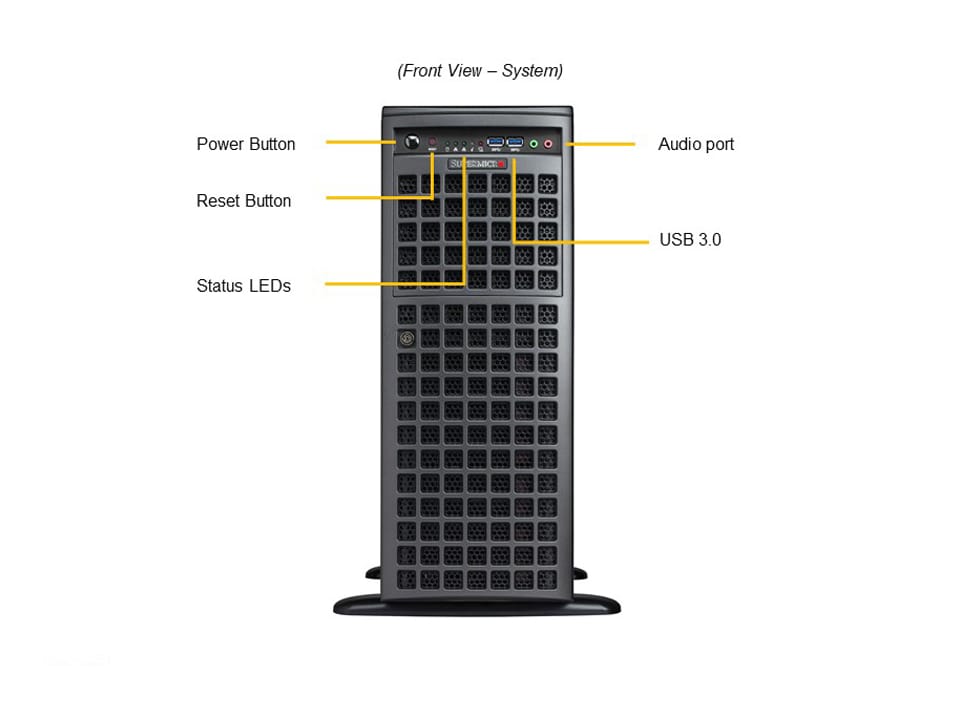

Front Panel
Buttons
  • Power On/Off
  • System Reset
LED
  • HDD activity
  • Network activity
  • Power On
  • System Overheat / Fan Fail LED
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default7 PCIe 4.0 x16 FHFL slots
  • 7 PCIe 4.0 x16 FHFL slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap 3.5″ SATA drive bays
  • 8 front hot-swap 3.5″ SATA drive bays
M.2
  • 4 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)
  • View M.2 Options
Peripheral Bays
  • 3 5.25″ bays

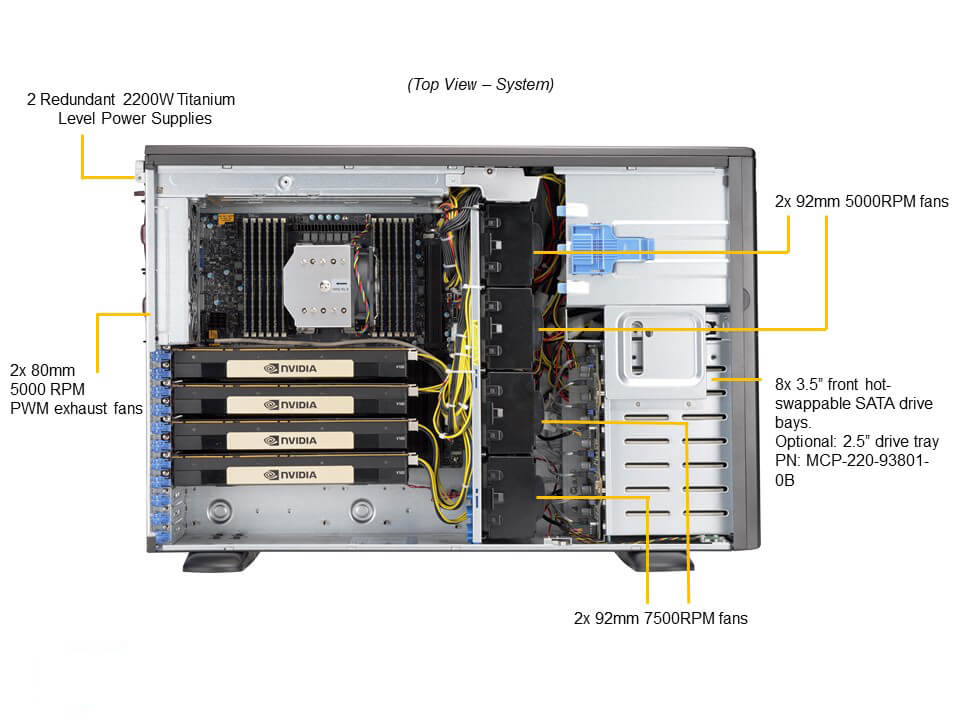

System Cooling
Fans
  • Up to 4x 92mm Fan(s)
  • Up to 2x 80mm Fan(s)
Power Supply
  • 1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Total Output Power(for UL/cUL use only)(for CCC only) Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Total Output Power
  • (for UL/cUL use only)(for CCC only)
Input
  • 1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc)
5V SB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Total Output Power(for UL/cUL use only)(for CCC only) Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)
