DP mid-tower workstation for rendering, CAD and content creation

Pretul afisat contine TVA (21%).

SuperServer SYS-730A-I

DP mid-tower workstation for rendering, CAD and content creation

Key Features

3rd Gen Intel® Xeon® Scalable processor support
Intel® C621A Chipset
5 PCIe 4.0 x16, 1 PCIe 4.0 x8, 2 NVMe M.2 slots
4x internal 3.5″ SATA rotating drive bays for easy access2x 5.25″ peripheral drive baysup to 4x NVMe SSD support with opitonal cables and converter trays
Compact and quiet operationNew front bezel with keylock for added security

Specifications

SuperWorkstation SYS-730A-I
Motherboard

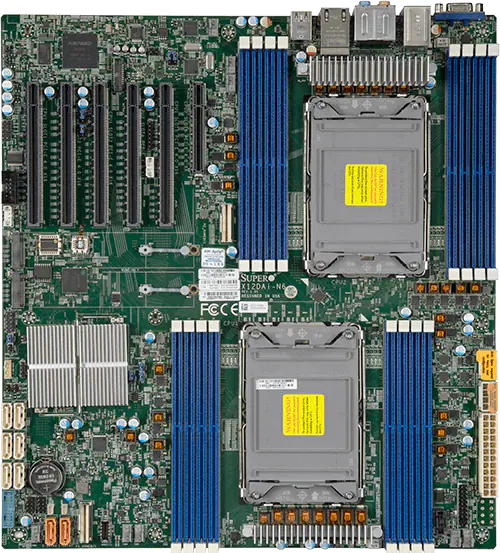

Super X12DAI-N6
Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 2 double-width or 2 single-width GPUs
Supported GPU	NVIDIA PCIe: RTX 5000, RTX A4000, RTX A5000, RTX A6000
CPU-GPU Interconnect	PCIe 4.0 x16 Switch Single-Root
System Memory

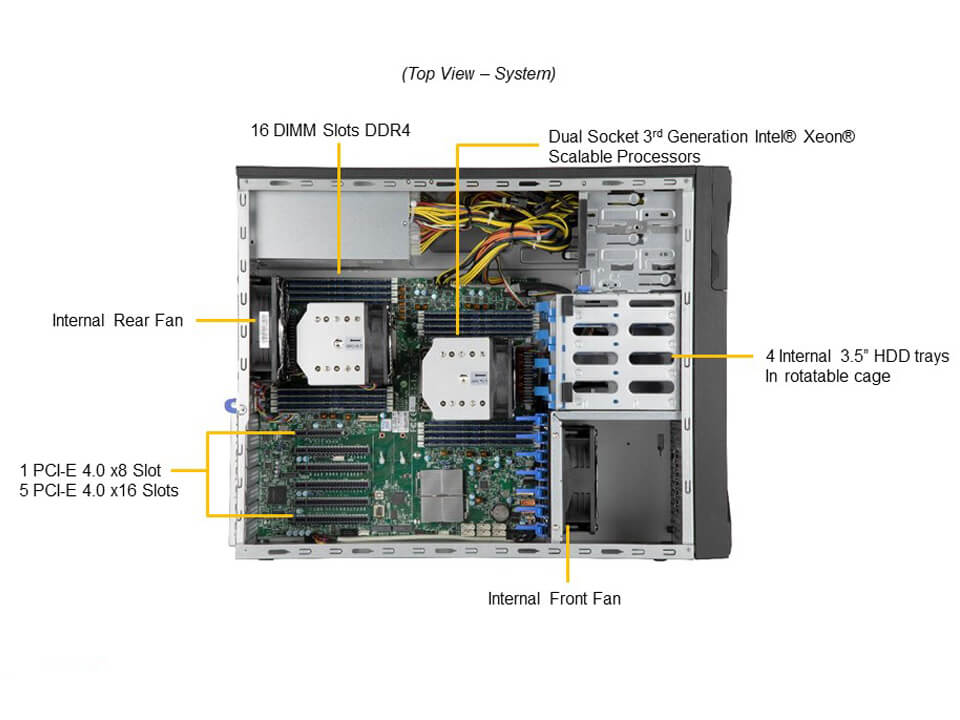

Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series
Memory Voltage	1.2V
On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
Network Connectivity	2 RJ45 1GbE
Input / Output

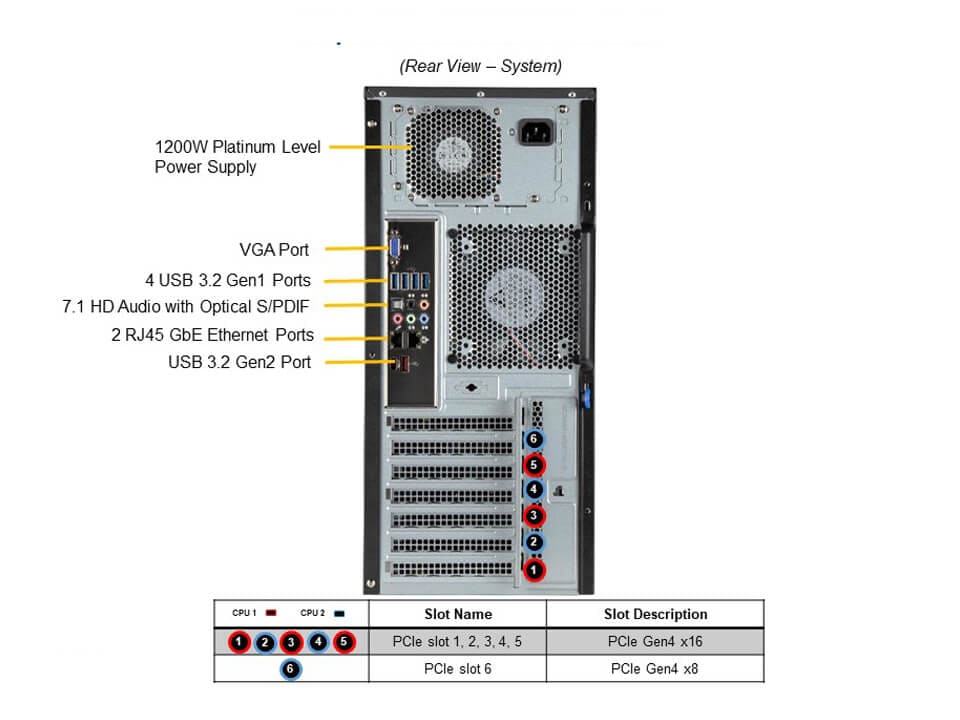

LAN	2 RJ45 1 GbE LAN ports (IPMI shared on LAN port 1)
USB	4 USB 3.2 Gen1 ports(rear) 2 USB 3.2 Gen1 ports(front) 1 USB 3.2 Gen2 port(front)
Video	1 VGA port
DOM	2 SATA DOM (Disk on Module) ports
Audio	7.1 HD Audio Rear Audio Mic in
System BIOS
BIOS Type	AMI 32MB SPI FLASH ROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory.
FAN	Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
SuperWorkstation SYS-730A-I
Super X12DAI-N6
Chassis
Form Factor	Mid-Tower
Model	CSE-735D4-1K26B
Dimensions and Weight

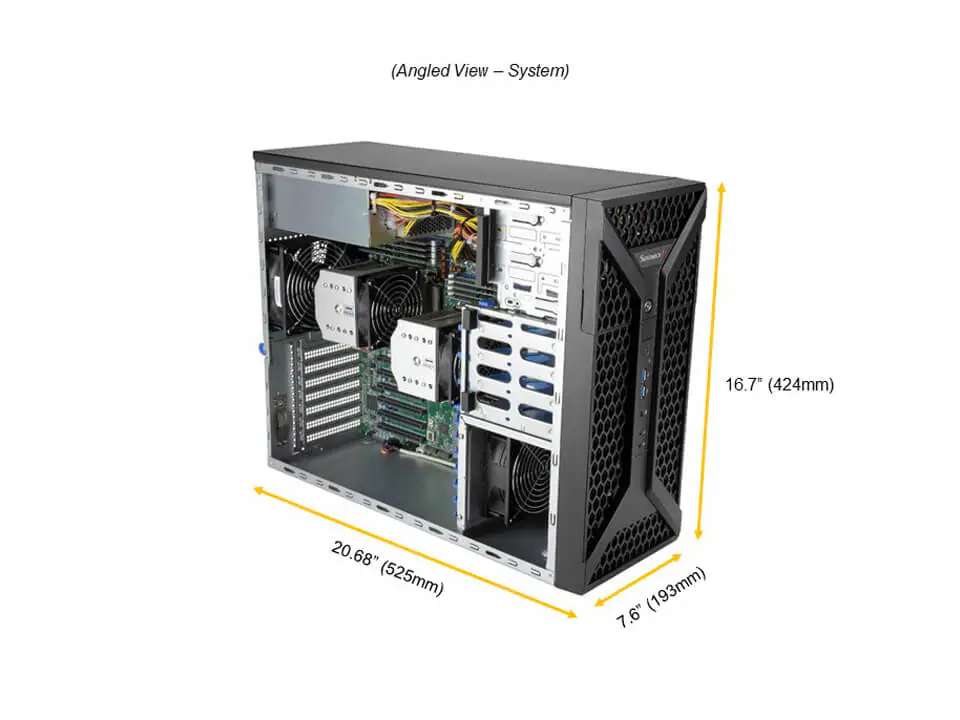

Height	16.7″ (424 mm)
Width	7.6″ (193 mm)
Depth	20.68″ (525.3 mm)
Package	21.38″ (H) x 11.97″ (W) x 25.28″ (D)
Weight	Gross Weight: 30 lbs (13.61 kg) Net Weight: 27 lbs (12.25 kg)
Available Color	black

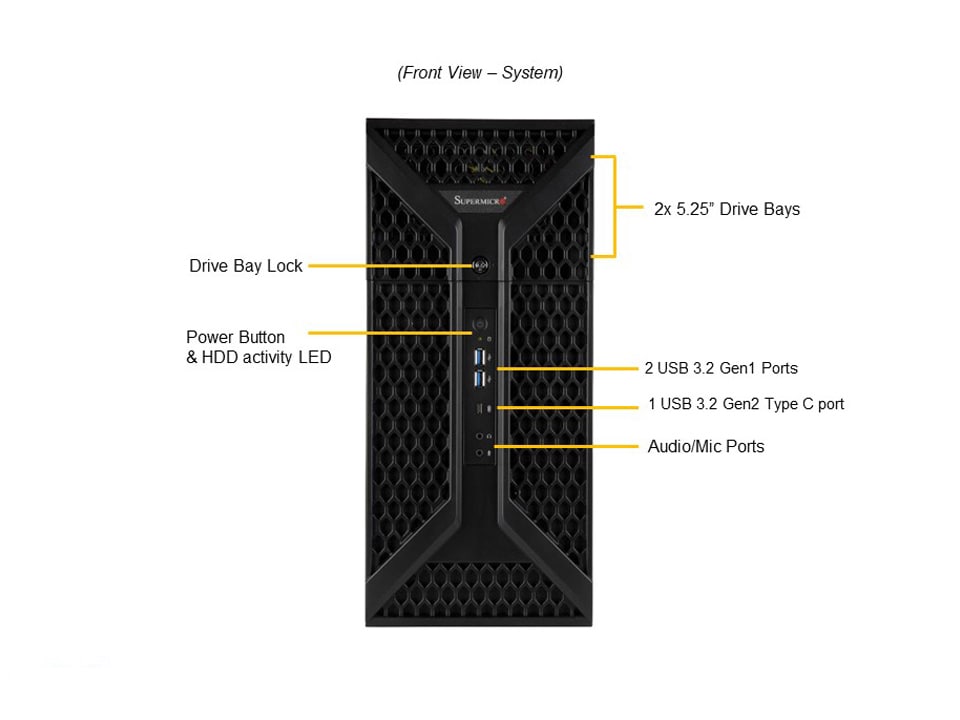

Front Panel
Buttons	Power On/Off button
LED	HDD activity LED
Expansion Slots
PCI-Express (PCIe) Configuration	Default5 PCIe 4.0 x16 FHFL slots 1 PCIe 4.0 x8 FHHL slot 5 PCIe 4.0 x16 FHFL slots 1 PCIe 4.0 x8 FHHL slot
Drive Bays / Storage
Drive Bays Configuration	Default: Total 4 bays4 internal fixed 3.5″ NVMe/SATA drive bays 4 internal fixed 3.5″ NVMe/SATA drive bays (*NVMe support may require additional storage controller and/or cables)
M.2	2 M.2 NVMe slots (M-key) View M.2 Options
Peripheral Bays	2 5.25″ peripheral bays (optional)
System Cooling
Fans	Up to 2x 12cm Fan(s)
Power Supply
1x 1200W 1x 1200W Platinum Level (94%) power supply Dimension (WxHxL)150 x 86 x 185 mm Input100-240Vac 1000W: 100-120Vac / 50-60Hz 1200W: 120-240Vac / 50-60Hz +12VMax: 83A / Min: 1A (100Vac-120Vac)Max: 99A / Min: 1A (120Vac-240Vac) 5V SBMax: 3A / Min: 0A Output Type24pin ATX Certification Platinum Level
Dimension (WxHxL)	150 x 86 x 185 mm
Input	100-240Vac 1000W: 100-120Vac / 50-60Hz 1200W: 120-240Vac / 50-60Hz
+12V	Max: 83A / Min: 1A (100Vac-120Vac)Max: 99A / Min: 1A (120Vac-240Vac)
5V SB	Max: 3A / Min: 0A
Output Type	24pin ATX
Certification	Platinum Level
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
1x 1200W 1x 1200W Platinum Level (94%) power supply Dimension (WxHxL)150 x 86 x 185 mm Input100-240Vac 1000W: 100-120Vac / 50-60Hz 1200W: 120-240Vac / 50-60Hz +12VMax: 83A / Min: 1A (100Vac-120Vac)Max: 99A / Min: 1A (120Vac-240Vac) 5V SBMax: 3A / Min: 0A Output Type24pin ATX Certification Platinum Level
Optional Parts List
