Supermicro SuperServer SYS-740P-TRT

Favorite
Compara

4U tower server with 10G LAN for office and enterprise applications

Pretul afisat contine TVA (21%).

SuperServer SYS-740P-TRT

4U tower server with 10G LAN for office and enterprise applications

Key Features

  1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors;CPU TDP supports Up to 270W TDP;3 UPI up to 11.2 GT/s
  2. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz ;- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)
  3. 4 PCIe 4.0 x16 Full Height (FH);2 PCIe 4.0 x8 Full Height (FH)
  4. 4 PCIe 4.0 x16 Full Height (FH);
  5. 2 PCIe 4.0 x8 Full Height (FH)
  6. Dual 10GBase-T LAN with Intel® X550 Ethernet Controller
  7. Three 80mm high-performance 9.4K RPM Hot-swappable Middle Cooling Fans;Two 80mm 9.4K RPM Rear Exhaust Fans;1 air shroud
  8. 1200W Redundant Power Supplies Titanium level 100-240Vac and 200-240 Vdc, Whisper-Quiet

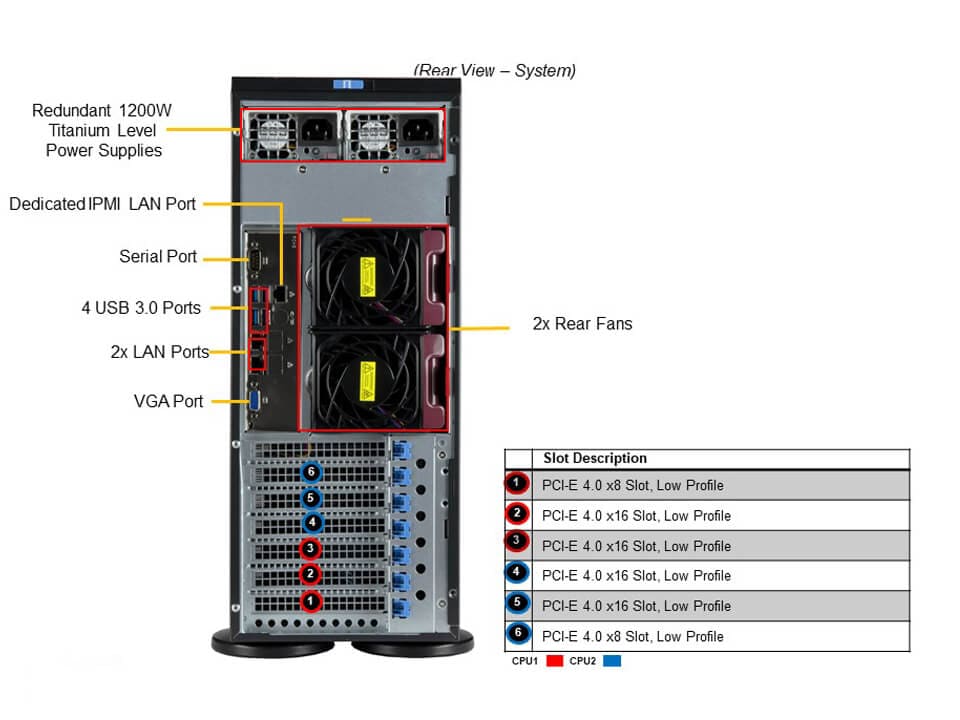

  9. 1 rear VGA, 1 Type A port, 1 COM Port (rear) and 6 USB ports (2 front USB 3.0 and 4 rear USB 3.0)

Specifications

Product SKUs
  • SuperServer SYS-740P-TRT
Motherboard

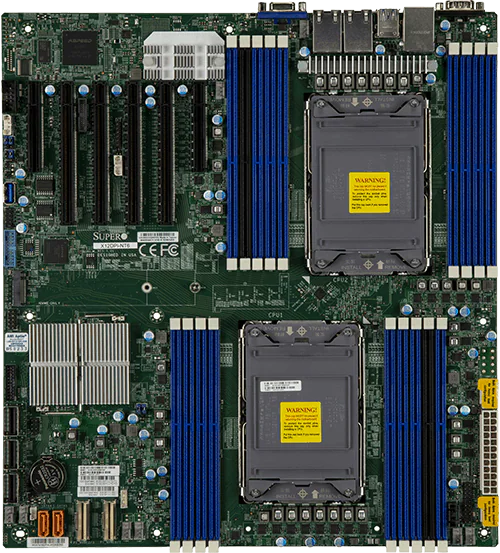

  • Super X12DPi-NT6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory

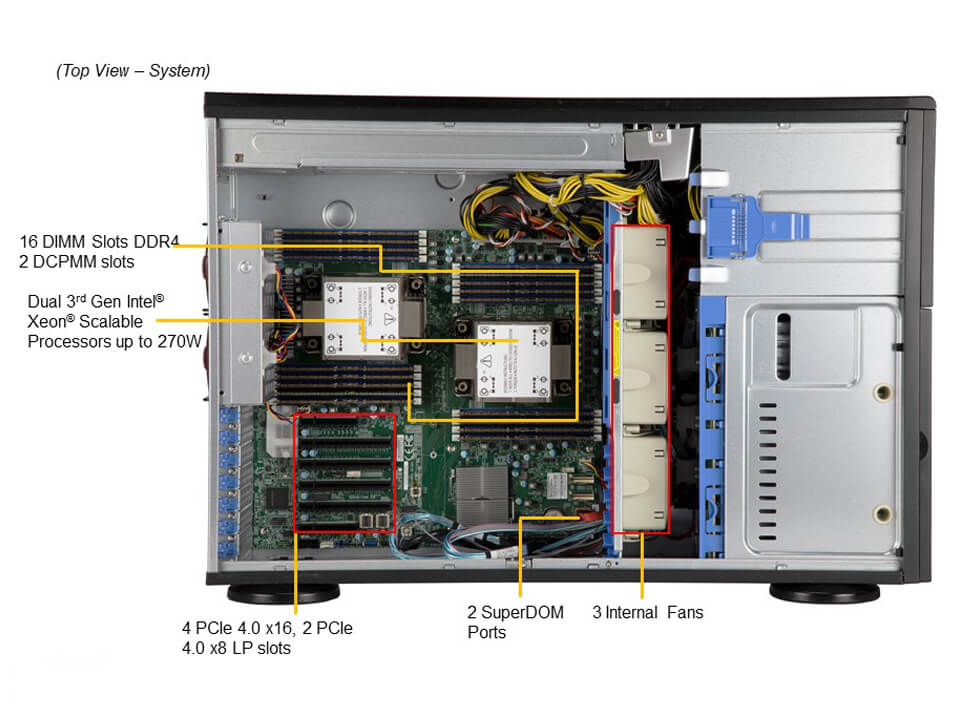

  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • 2 RJ45 10GbE
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 2.0 ports(front)
  • 4 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-740P-TRT
  • Super X12DPi-NT6
Chassis
Form Factor
  • Tower/4U Rackmount
Model
  • CSE-745BTS-R1K23BP
Dimensions and Weight
Height
  • 17.8″ (452 mm)
Width
  • 7″ (178 mm)
Depth
  • 25.5″ (647 mm)
Package
  • 24.6″ (H) x 14″ (W) x 31.3″ (D)
Weight
  • Gross Weight: 73.5 lbs (33.9 kg)
  • Net Weight: 56 lbs (25.9 kg)
Available Color
  • Black

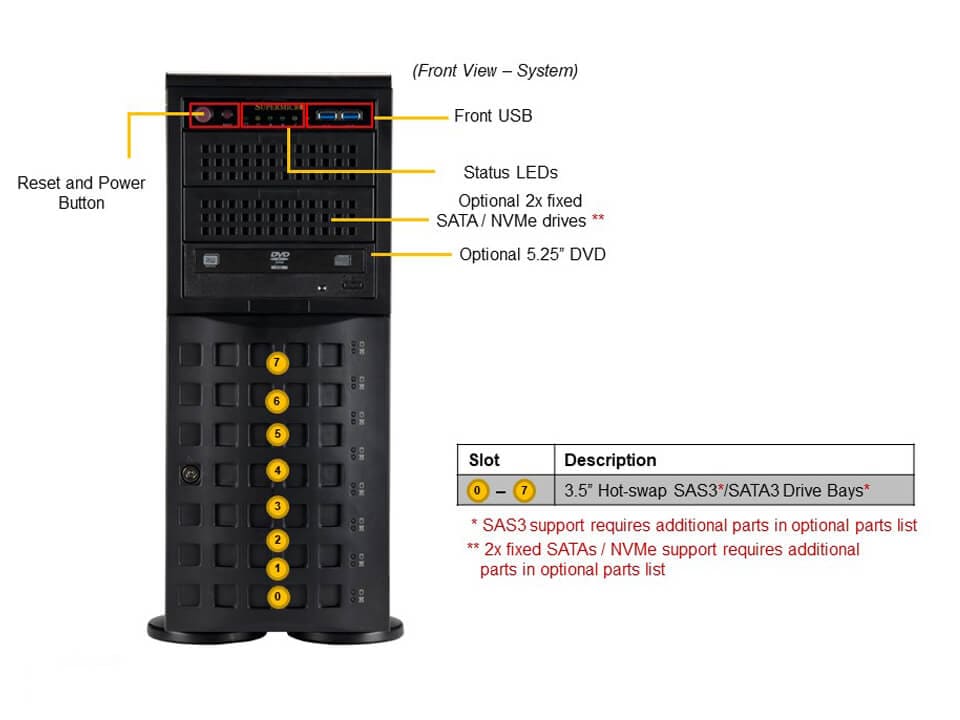

Front Panel
Buttons
  • Power On/Off
  • System Reset
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default4 PCIe 4.0 x16 LP slots 2 PCIe 4.0 x8 LP slots
  • 4 PCIe 4.0 x16 LP slots
  • 2 PCIe 4.0 x8 LP slots
Drive Bays / Storage
Drive Bays Configuration

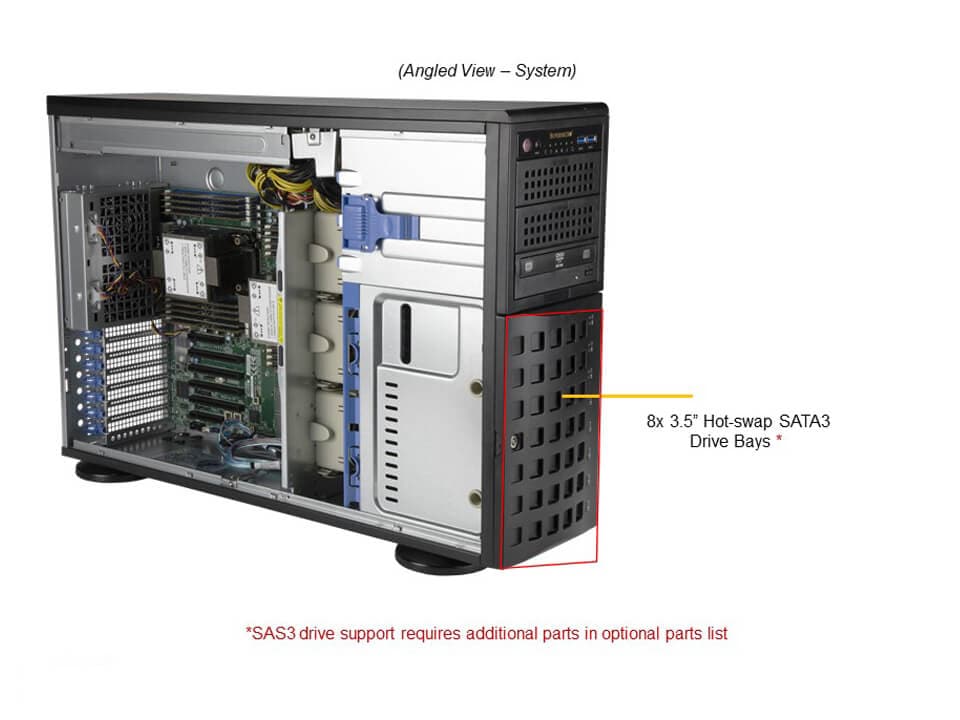

  • Default: Total 8 bays8 front hot-swap 3.5″ SAS*/SATA drive bays
  • 8 front hot-swap 3.5″ SAS*/SATA drive bays
  • Option A: Total 10 bays8 front hot-swap 3.5″ SAS*/SATA drive bays 2 front fixed 3.5″ NVMe*/SATA* drive bays
  • 8 front hot-swap 3.5″ SAS*/SATA drive bays
  • 2 front fixed 3.5″ NVMe*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 1 M.2 NVMe slot (M-key)
  • View M.2 Options
Peripheral Bays
  • 1 5.25″ DVD bay (optional)
System Cooling
Fans
  • Up to 3 middle Fan(s)
  • Up to 2 rear Fan(s)
Power Supply
  • 1x 1200W 1x 1200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 1x 1200W 1x 1200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
