Supermicro SuperServer AS -2115GT-HNTF

Favorite

Compara

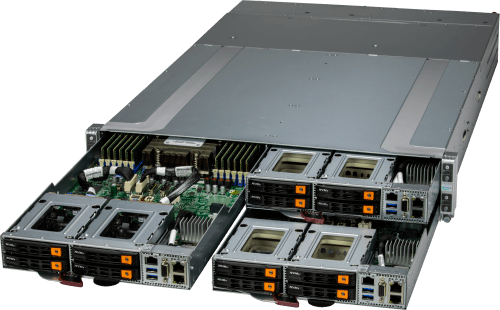

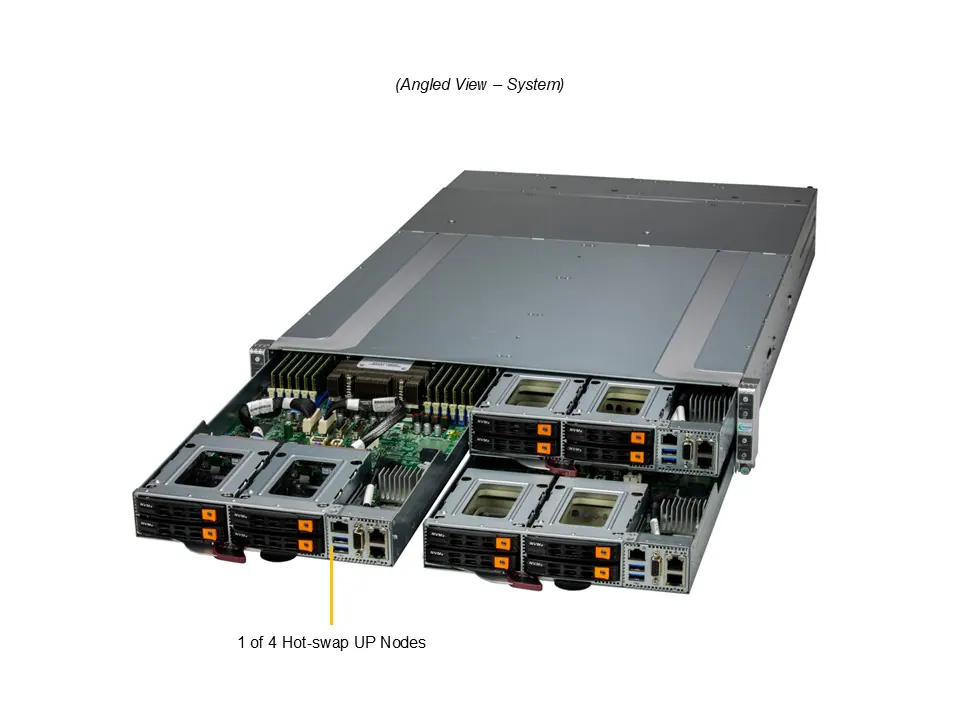

2U 4-Node GrandTwin with up to 4 hot-swap 2.5″ NVMe/SATA drives per node and front I/O

Pretul afisat contine TVA (21%).

SuperServer AS -2115GT-HNTF

2U 4-Node GrandTwin with up to 4 hot-swap 2.5″ NVMe/SATA drives per node and front I/O

Key Features

Single AMD EPYC™ 9004/9005* Series Processors(*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
Single AMD EPYC™ 9004/9005* Series Processors
(*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
Supports up to DDR5 12 DIMM slots (1DPC), speed up to 6400 MT/s(Please check System Memory Section for detail)
Supports up to DDR5 12 DIMM slots (1DPC), speed up to 6400 MT/s
(Please check System Memory Section for detail)
Flexible bays for either Storage or AIOM / OCP 3.0 slots

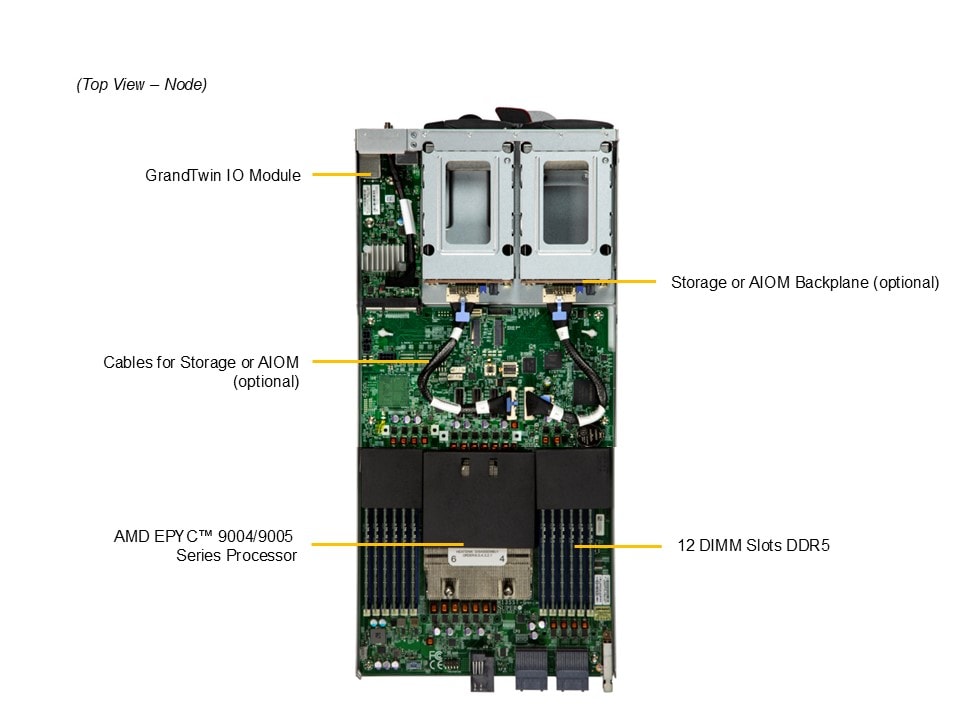

Integrated GrandTwin I/O module with BMC, 2 USB, VGA and dual 10GbE or 25GbE
Up to 4 Hot-swap 2.5″ NVMe/SATA drives

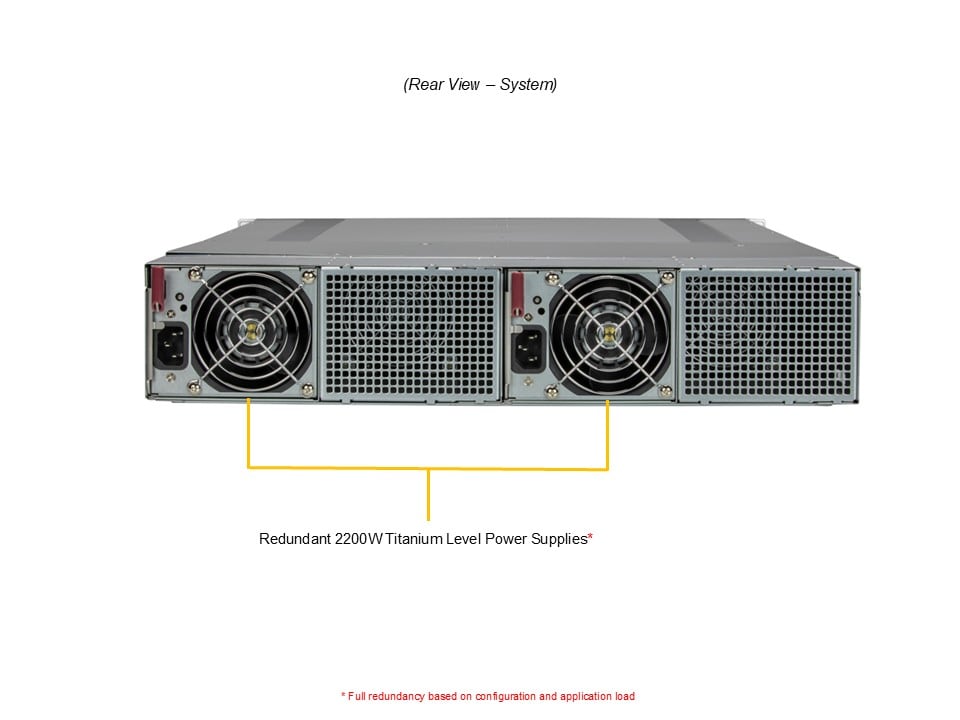

Dual 2200W (1+1) Redundant Titanium Level power supplies(Power supply full redundancy based on configuration and application load)
Dual 2200W (1+1) Redundant Titanium Level power supplies
(Power supply full redundancy based on configuration and application load)

Specifications

Product SKUs
A+ Server AS -2115GT-HNTF
Motherboard

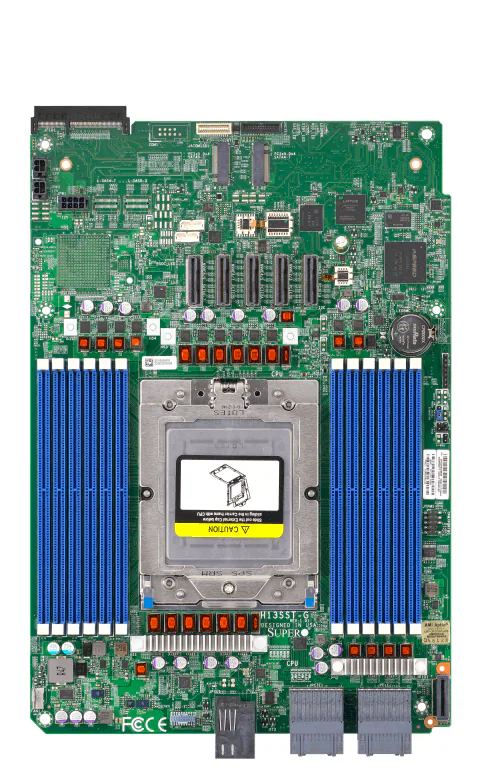

Super H13SST-G
Processor (per Node)
CPU	Single processor(s) AMD EPYC™ 9004/9005 Series Processors(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Core Count	Up to 160C/320T
Note	Supports up to 400W TDP CPUs * *Air Cooled CPUs with TDP over 300W only supported under specific conditions. Contact a Supermicro representative for details.
System Memory (per Node)
Memory	Slot Count: 12 DIMM slots Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01) Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0) Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
Memory Voltage	1.1V
On-Board Devices (per Node)
Network Connectivity	Via IO Module
Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports
Video	1 VGA port
System BIOS
BIOS Type	AMI 32MB Flash ROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment
Voltage	Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
A+ Server AS -2115GT-HNTF
Super H13SST-G
Chassis
Form Factor	2U Rackmount
Model	CSE-GT214BF-R2K21BP
Dimensions and Weight
Height	3.46″ (88 mm)
Width	17.67″ (449 mm)
Depth	28″ (711.2 mm)
Package	9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight	Gross Weight: 88 lbs (39.9 kg) Net Weight: 68 lbs (30.8 kg)
Available Color	Silver
Front Panel

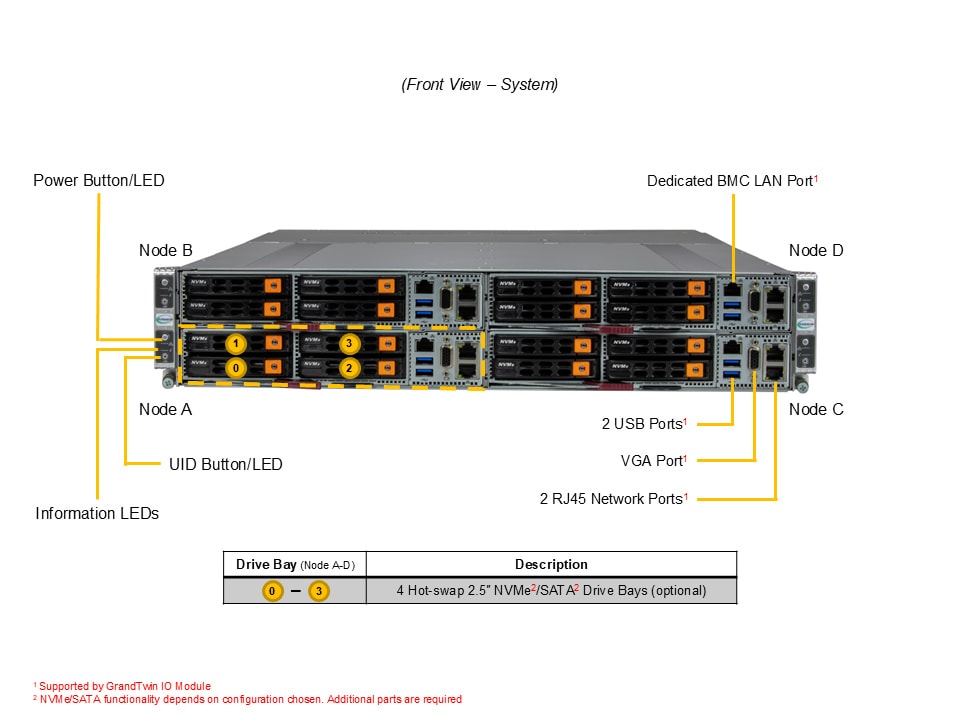

Buttons	Power On/Off button UID button
LED	HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Option A1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x16 LP slot Option B1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) (Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Drive Bays / Storage (per Node)
Drive Bays Configuration	Default: Total 4 bays4 front hot-swap 2.5″ NVMe/SATA drive bays 4 front hot-swap 2.5″ NVMe/SATA drive bays
M.2	2 M.2 NVMe/SATA slots (M-key) View M.2 Options
System Cooling
Fans	Up to 2x 17.6K RPM Heavy Duty 8cm Fan(s)
Air Shroud	1 per node Air Shroud
Power Supply
2x 2200W 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 84 x 245.3 mm Input200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only) 12V SBMax: 2A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	106.5 x 84 x 245.3 mm
Input	200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
+12V	Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)
12V SB	Max: 2A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
Environmental / Recycling
Recycle	Return Server-End of Life Product
2x 2200W 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 84 x 245.3 mm Input200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only) 12V SBMax: 2A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
