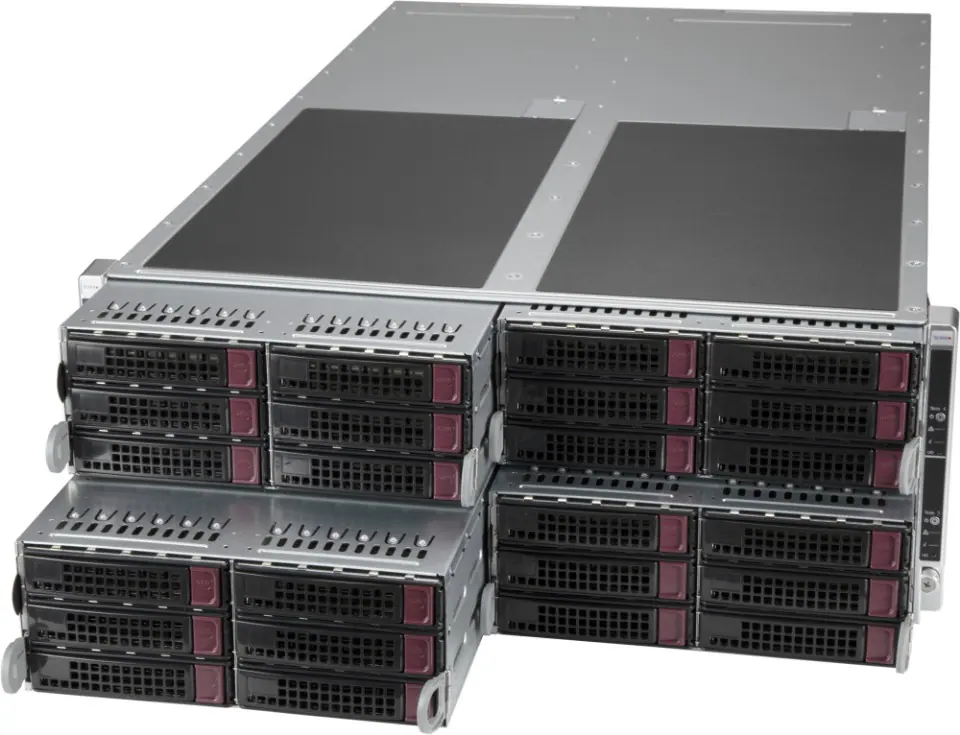

Supermicro SuperServer AS -F2014S-RNTR

Favorite

Compara

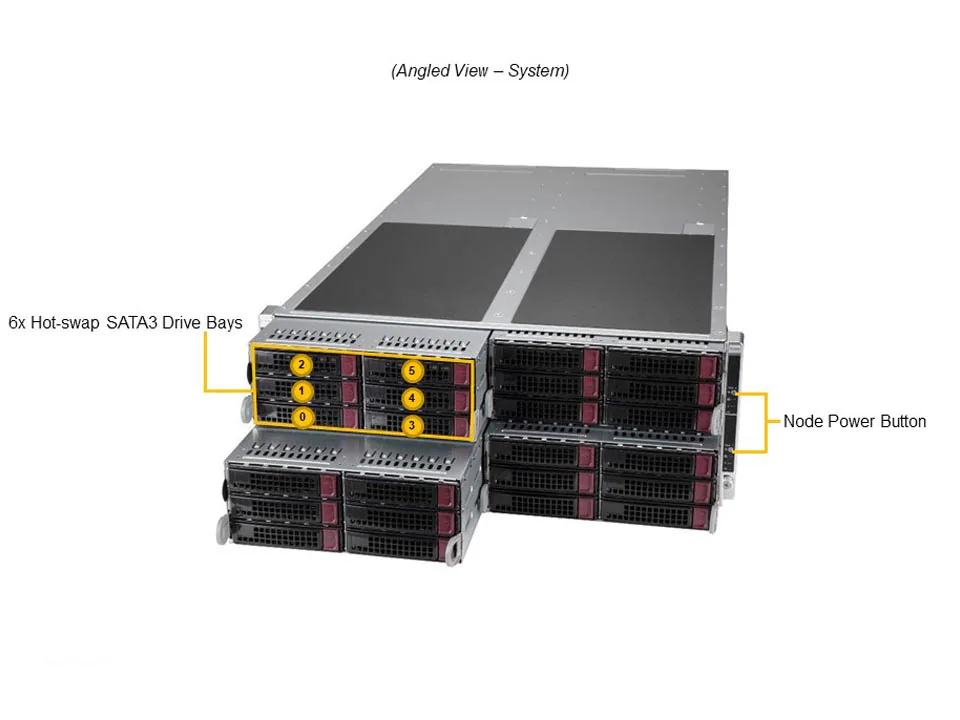

4U 4-node FatTwin with 8 3.5″ SATA (optional NVMe) per node

Pretul afisat contine TVA (21%).

SuperServer AS -F2014S-RNTR

4U 4-node FatTwin with 8 3.5″ SATA (optional NVMe) per node

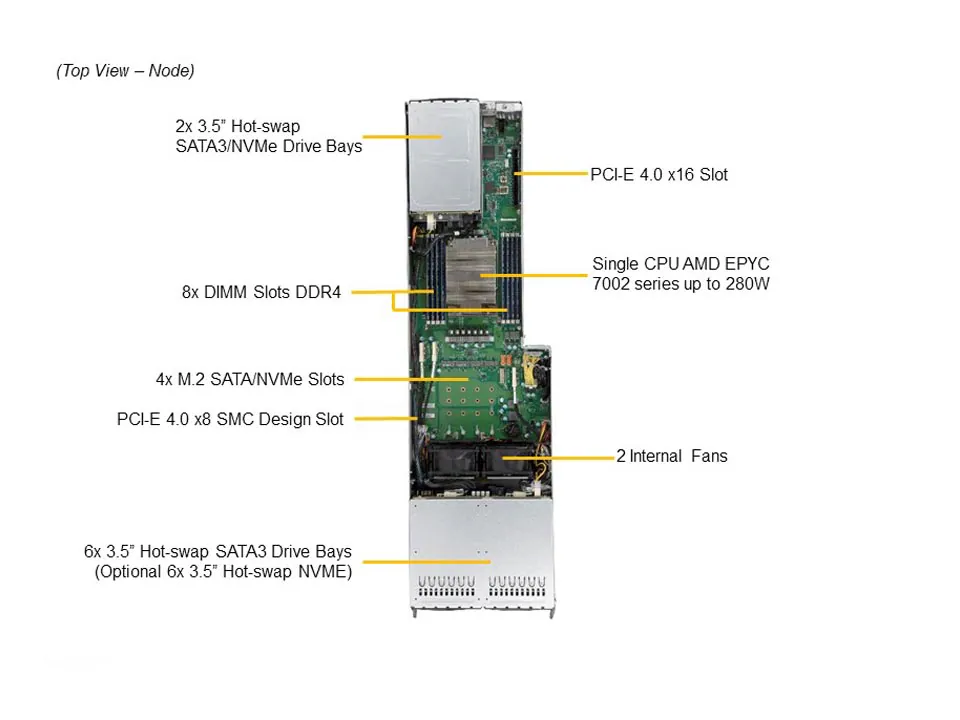

Key Features

Single AMD EPYC™ 7003/7002 Series Processor(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
Single AMD EPYC™ 7003/7002 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
Up to 2TB ECC 3DS LRDIMMup to DDR4-3200MHz; 8 DIMM slots
Up to 2TB ECC 3DS LRDIMM
up to DDR4-3200MHz; 8 DIMM slots
Expansion slots: 1 PCIe 4.0 x16 LP1 PCIe 4.0 x8 (for Internal RAID AOC)
Expansion slots: 1 PCIe 4.0 x16 LP
1 PCIe 4.0 x8 (for Internal RAID AOC)
AIOM Network card1 dedicated IPMI LAN port
AIOM Network card
1 dedicated IPMI LAN port
8 Hot-swap 3.5″ drive baysFront 6 SATA (Optional NVMe support), Rear 2 SATA/NVMeM.2 Interface: 4 SATA/PCIe 4.0 x4M.2 Form Factor: 2242, 2260, 2280, 22110M.2 Key: M-key
8 Hot-swap 3.5″ drive bays
Front 6 SATA (Optional NVMe support), Rear 2 SATA/NVMe
M.2 Interface: 4 SATA/PCIe 4.0 x4
M.2 Form Factor: 2242, 2260, 2280, 22110
M.2 Key: M-key

Specifications

Product SKUs
A+ Server AS -F2014S-RNTR
Motherboard

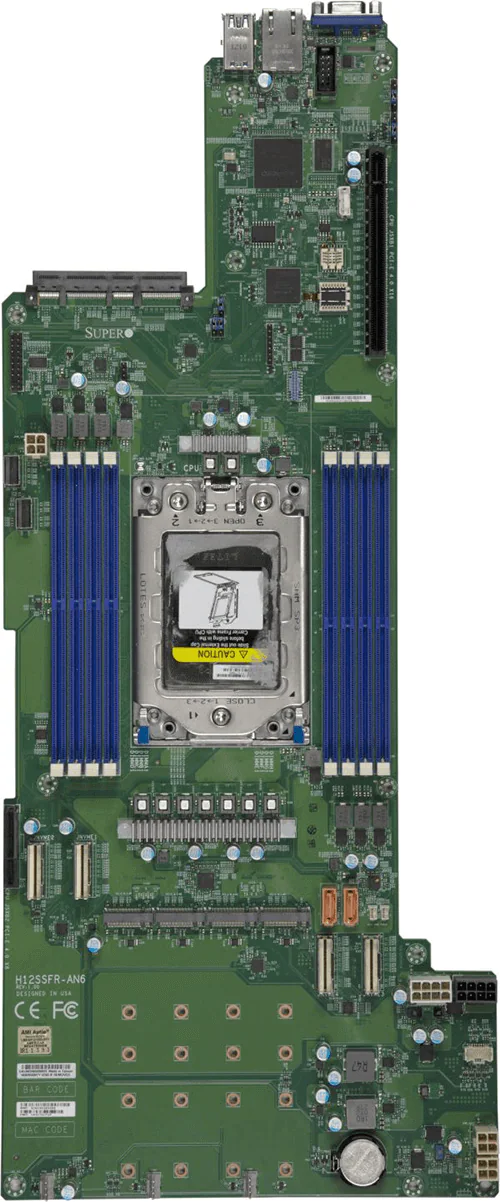

Super H12SSFR-AN6
Processor (per Node)
CPU	Single Socket SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory	Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage	1.2V
On-Board Devices (per Node)
Network Connectivity	Ethernet
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)

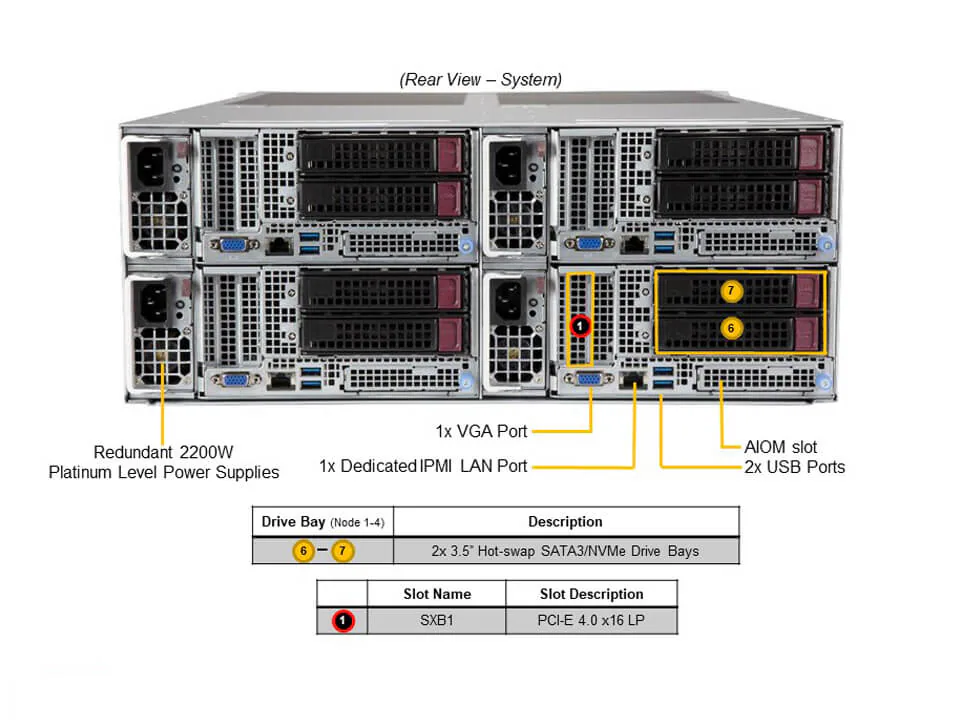

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear)
Video	1 VGA port
TPM	1 TPM header
System BIOS
BIOS Type	AMI 256MB SPI Flash EEPROM
Management
Software	Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) KVM with dedicated LAN IPMI 2.0 Watch Dog
Power configurations	ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
A+ Server AS -F2014S-RNTR
Super H12SSFR-AN6
Chassis
Form Factor	4U Rackmount
Model	CSE-F418BC3-R2K20B
Dimensions and Weight
Height	6.96″ (177 mm)
Width	17.63″ (448 mm)
Depth	29″ (737 mm)
Package	15″ (H) x 28.3″ (W) x 42.4″ (D)
Weight	Gross Weight: 200 lbs (90.71 kg) Net Weight: 150 lbs (68.04 kg)
Available Color	Silver
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x8 INTERNAL slot 1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x8 INTERNAL slot
Drive Bays / Storage (per Node)

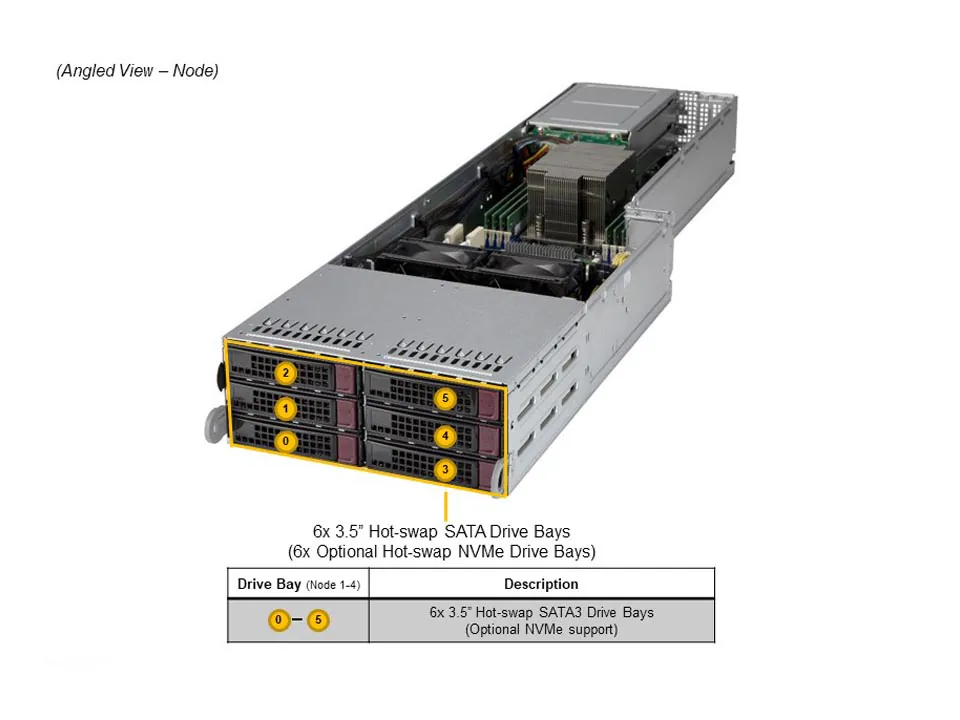

Drive Bays Configuration	Default: Total 8 bays2 rear hot-swap 3.5″/2.5″ NVMe/SATA drive bays 6 front hot-swap 3.5″ SATA drive bays 2 rear hot-swap 3.5″/2.5″ NVMe/SATA drive bays 6 front hot-swap 3.5″ SATA drive bays Option A: Total 8 bays6 front hot-swap 3.5″/2.5″ NVMe* drive bays 2 rear hot-swap 2.5″ NVMe/SATA drive bays 6 front hot-swap 3.5″/2.5″ NVMe* drive bays 2 rear hot-swap 2.5″ NVMe/SATA drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	4 M.2 PCIe 4.0 x4 SATA slots (M-key 2242/2260/2280/22110) View M.2 Options
System Cooling
Fans	Up to 2x 13.5K RPM middle 8cm Fan(s)
Power Supply
4x 2200W 4x 2200W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Total Output Power(for UL/cUL use only)(for CCC only) Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	76 x 40 x 336 mm
Total Output Power	(for UL/cUL use only)(for CCC only)
Input	1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
+12V	Max: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc)
5V SB	Max: 1A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
4x 2200W 4x 2200W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Total Output Power(for UL/cUL use only)(for CCC only) Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)
Standard Parts (Parts Included)

SKU: as-f2014s-rntr Categorii: BRAND, Server&Storage, SUPERMICRO, twin

Product SKUs
A+ Server AS -F2014S-RNTR
Motherboard
Super H12SSFR-AN6
Processor (per Node)
CPU	Single Socket SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory	Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage	1.2V
On-Board Devices (per Node)
Network Connectivity	Ethernet
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear)
Video	1 VGA port
TPM	1 TPM header
System BIOS
BIOS Type	AMI 256MB SPI Flash EEPROM
Management
Software	Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) KVM with dedicated LAN IPMI 2.0 Watch Dog
Power configurations	ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
A+ Server AS -F2014S-RNTR
Super H12SSFR-AN6
Chassis
Form Factor	4U Rackmount
Model	CSE-F418BC3-R2K20B
Dimensions and Weight
Height	6.96″ (177 mm)
Width	17.63″ (448 mm)
Depth	29″ (737 mm)
Package	15″ (H) x 28.3″ (W) x 42.4″ (D)
Weight	Gross Weight: 200 lbs (90.71 kg) Net Weight: 150 lbs (68.04 kg)
Available Color	Silver
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x8 INTERNAL slot 1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x8 INTERNAL slot
Drive Bays / Storage (per Node)
Drive Bays Configuration	Default: Total 8 bays2 rear hot-swap 3.5″/2.5″ NVMe/SATA drive bays 6 front hot-swap 3.5″ SATA drive bays 2 rear hot-swap 3.5″/2.5″ NVMe/SATA drive bays 6 front hot-swap 3.5″ SATA drive bays Option A: Total 8 bays6 front hot-swap 3.5″/2.5″ NVMe* drive bays 2 rear hot-swap 2.5″ NVMe/SATA drive bays 6 front hot-swap 3.5″/2.5″ NVMe* drive bays 2 rear hot-swap 2.5″ NVMe/SATA drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	4 M.2 PCIe 4.0 x4 SATA slots (M-key 2242/2260/2280/22110) View M.2 Options
System Cooling
Fans	Up to 2x 13.5K RPM middle 8cm Fan(s)
Power Supply
4x 2200W 4x 2200W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Total Output Power(for UL/cUL use only)(for CCC only) Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	76 x 40 x 336 mm
Total Output Power	(for UL/cUL use only)(for CCC only)
Input	1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
+12V	Max: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc)
5V SB	Max: 1A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
4x 2200W 4x 2200W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Total Output Power(for UL/cUL use only)(for CCC only) Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)
Standard Parts (Parts Included)
