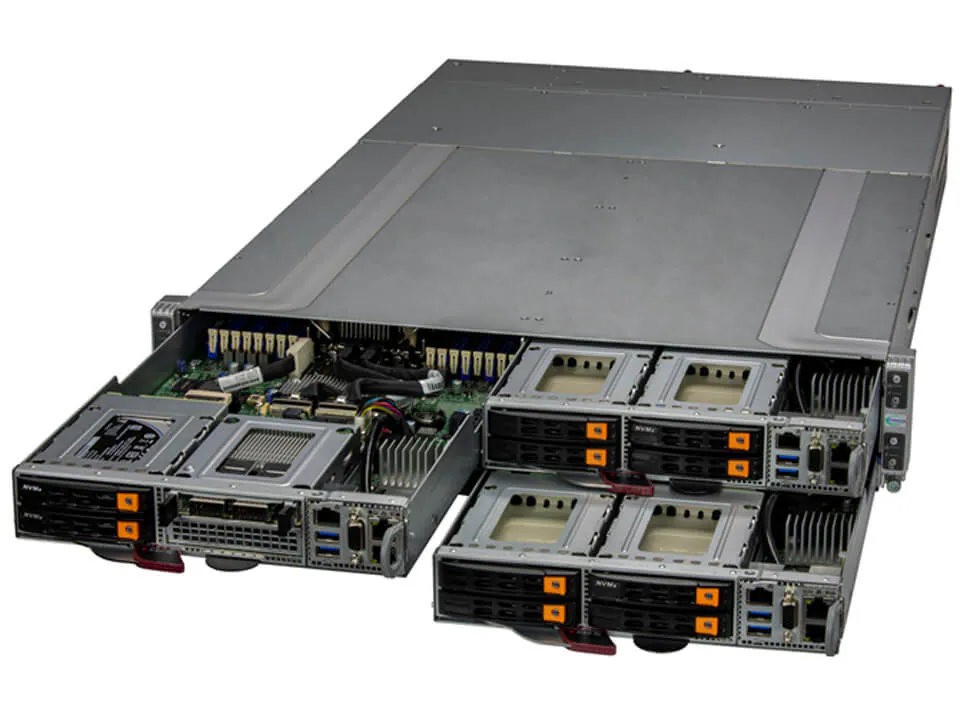

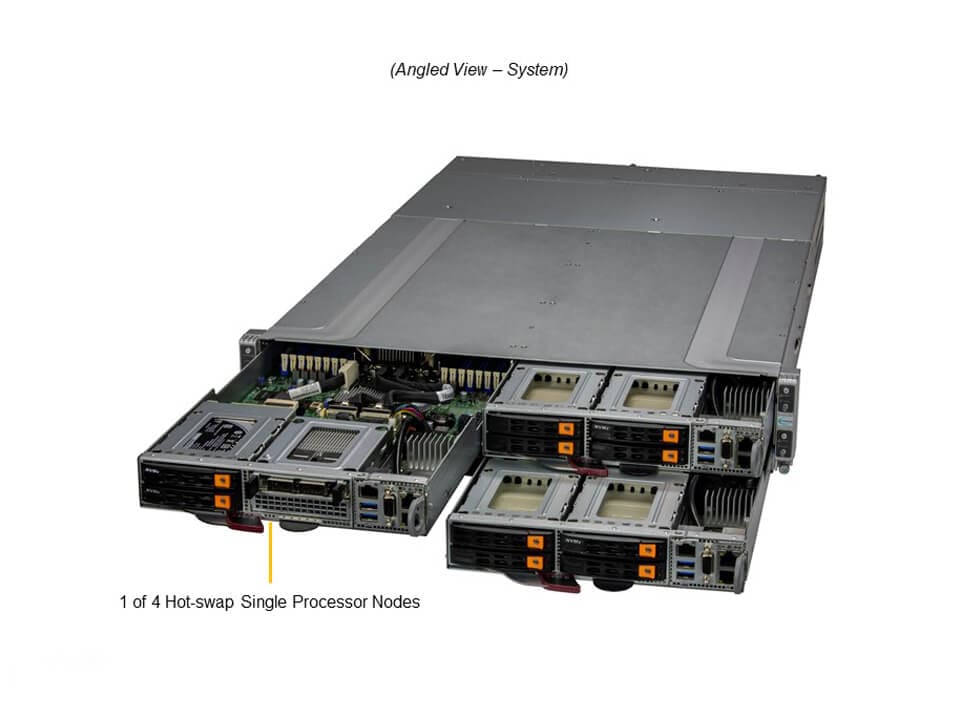

2U 4-node UP GrandTwin with 4 2.5″ NVMe/SATA drives per node

Pretul afisat contine TVA (21%).

SuperServer SYS-210GT-HNTF

2U 4-node UP GrandTwin with 4 2.5″ NVMe/SATA drives per node

Key Features

  1. Single-Socket, 3rd Gen Intel® Xeon® Scalable processors up to 270W TDP
  2. Intel® C621A
  3. 16 DIMM Slots up to 4TB
  4. Optional: AIOM PCIe 4.0 x16 LP (OCP 3.0 compliant)
  5. Two optional storage modules. Each module supports 2x NVMe or SATA drive bays
  6. 2x cooling fans per 2U enclosure, 16.5K RPM Heavy Duty; Shared Cooling Design

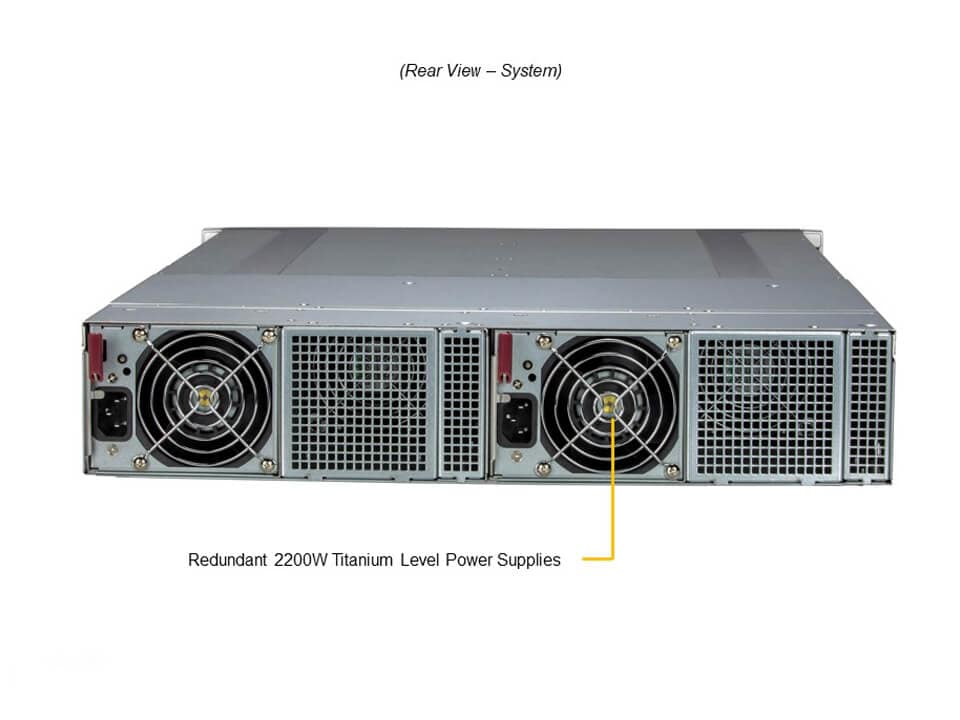

  7. 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design

Specifications

Product SKUs
  • SuperServer SYS-210GT-HNTF
Motherboard

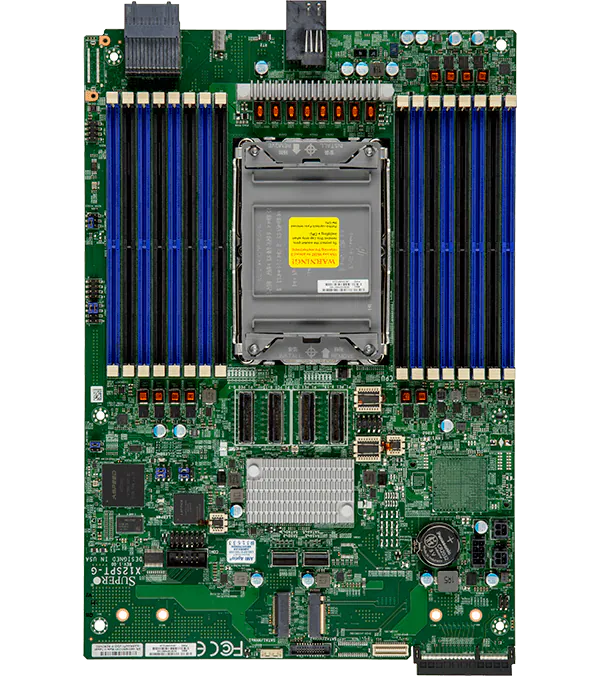

  • Super X12SPT-G
Processor (per Node)
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM
  • Max Memory (2DPC): Up to 4TB 2666MT/s ECC DDR4 RDIMM
Memory Voltage
  • 1.2V
On-Board Devices (per Node)
Network Connectivity
  • Via IO Module
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB Flash ROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • SuperServer SYS-210GT-HNTF
  • Super X12SPT-G
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-GT214BF-R2K21BP
Dimensions and Weight
Height
  • 3.46″ (88 mm)
Width
  • 17.67″ (449 mm)
Depth
  • 28″ (711.2 mm)
Package
  • 9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight
  • Gross Weight: 88 lbs (39.9 kg)
  • Net Weight: 68 lbs (30.8 kg)
Available Color
  • Silver

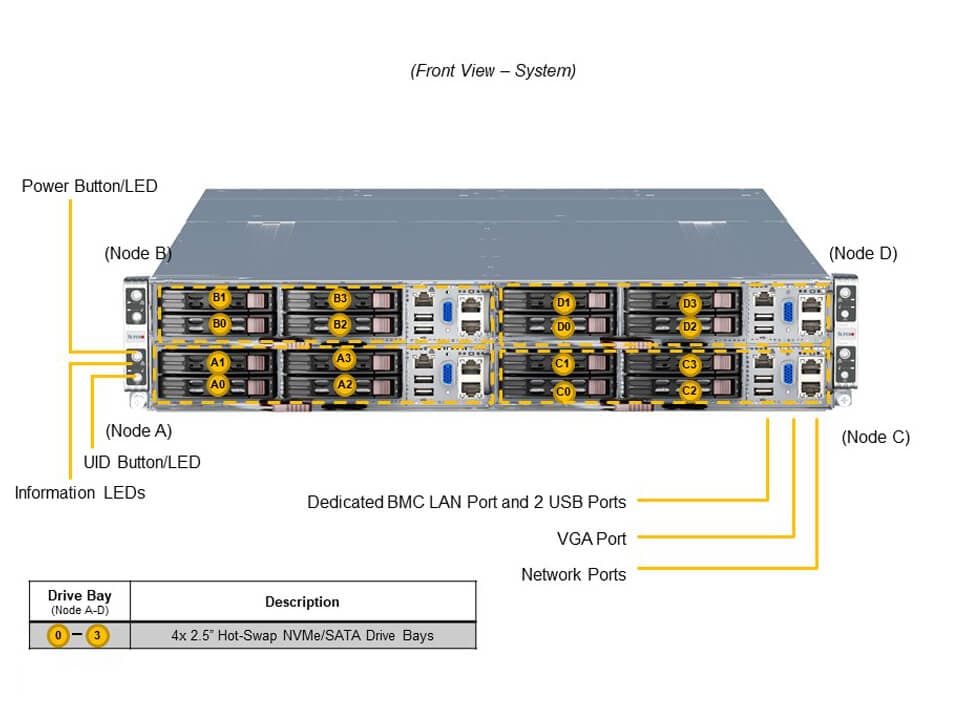

Front Panel
Buttons
  • Power On/Off button
  • UID button
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default1 PCIe 4.0 x16 LP slot
  • 1 PCIe 4.0 x16 LP slot
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 4 bays4 front hot-swap 2.5″ NVMe/SATA drive bays
  • 4 front hot-swap 2.5″ NVMe/SATA drive bays
M.2
  • 2 M.2 NVMe/SATA slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 2x 16.5K RPM Heavy Duty 8cm Fan(s)
Power Supply
  • 1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)106.5 x 84 x 245.3 mm Input200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only) 12V SBMax: 2A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 106.5 x 84 x 245.3 mm
Input
  • 200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)
12V SB
  • Max: 2A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 5°C to 40°C (41°F to 104°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
  • 1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)106.5 x 84 x 245.3 mm Input200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only) 12V SBMax: 2A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
SKU: sys-210gt-hntf Categorii: , , ,
Product SKUs
  • SuperServer SYS-210GT-HNTF
Motherboard
  • Super X12SPT-G
Processor (per Node)
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM
  • Max Memory (2DPC): Up to 4TB 2666MT/s ECC DDR4 RDIMM
Memory Voltage
  • 1.2V
On-Board Devices (per Node)
Network Connectivity
  • Via IO Module
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB Flash ROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • SuperServer SYS-210GT-HNTF
  • Super X12SPT-G
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-GT214BF-R2K21BP
Dimensions and Weight
Height
  • 3.46″ (88 mm)
Width
  • 17.67″ (449 mm)
Depth
  • 28″ (711.2 mm)
Package
  • 9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight
  • Gross Weight: 88 lbs (39.9 kg)
  • Net Weight: 68 lbs (30.8 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off button
  • UID button
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default1 PCIe 4.0 x16 LP slot
  • 1 PCIe 4.0 x16 LP slot
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 4 bays4 front hot-swap 2.5″ NVMe/SATA drive bays
  • 4 front hot-swap 2.5″ NVMe/SATA drive bays
M.2
  • 2 M.2 NVMe/SATA slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 2x 16.5K RPM Heavy Duty 8cm Fan(s)
Power Supply
  • 1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)106.5 x 84 x 245.3 mm Input200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only) 12V SBMax: 2A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 106.5 x 84 x 245.3 mm
Input
  • 200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)
12V SB
  • Max: 2A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 5°C to 40°C (41°F to 104°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
  • 1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)106.5 x 84 x 245.3 mm Input200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only) 12V SBMax: 2A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
