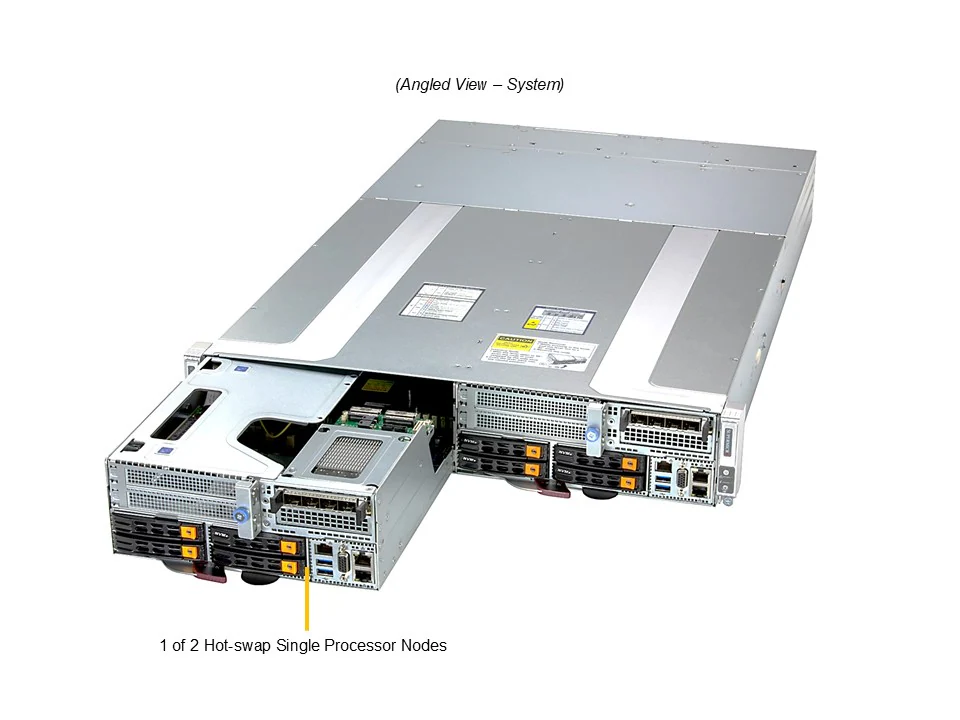

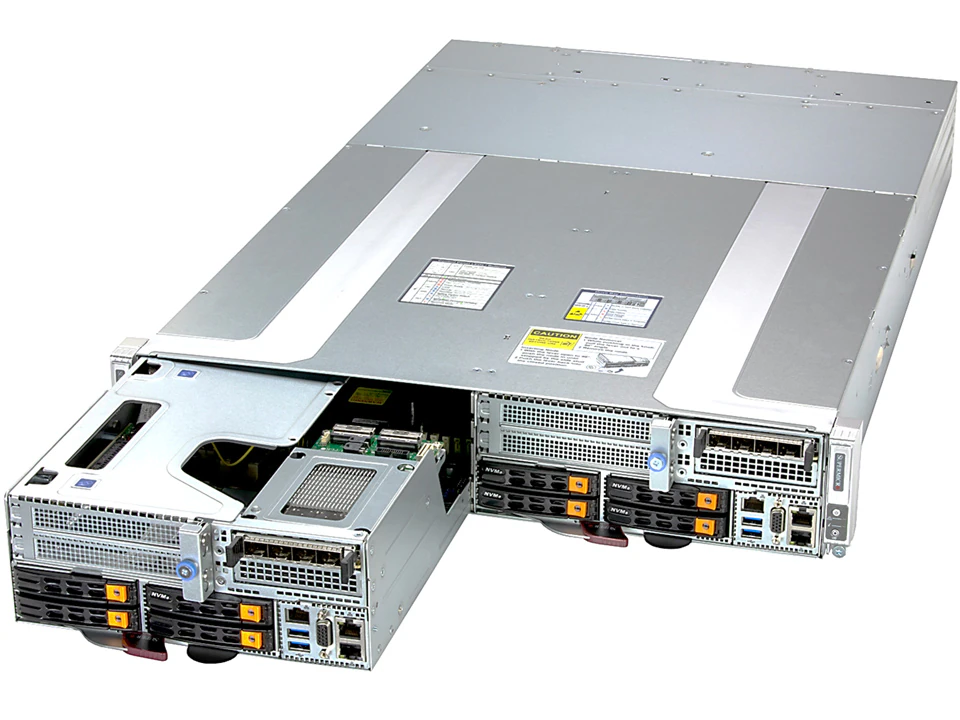

2U 2-Node GrandTwin with front I/O and double-width GPU support

Pretul afisat contine TVA (21%).

SuperServer SYS-212GT-DNAF

2U 2-Node GrandTwin with front I/O and double-width GPU support

Key Features

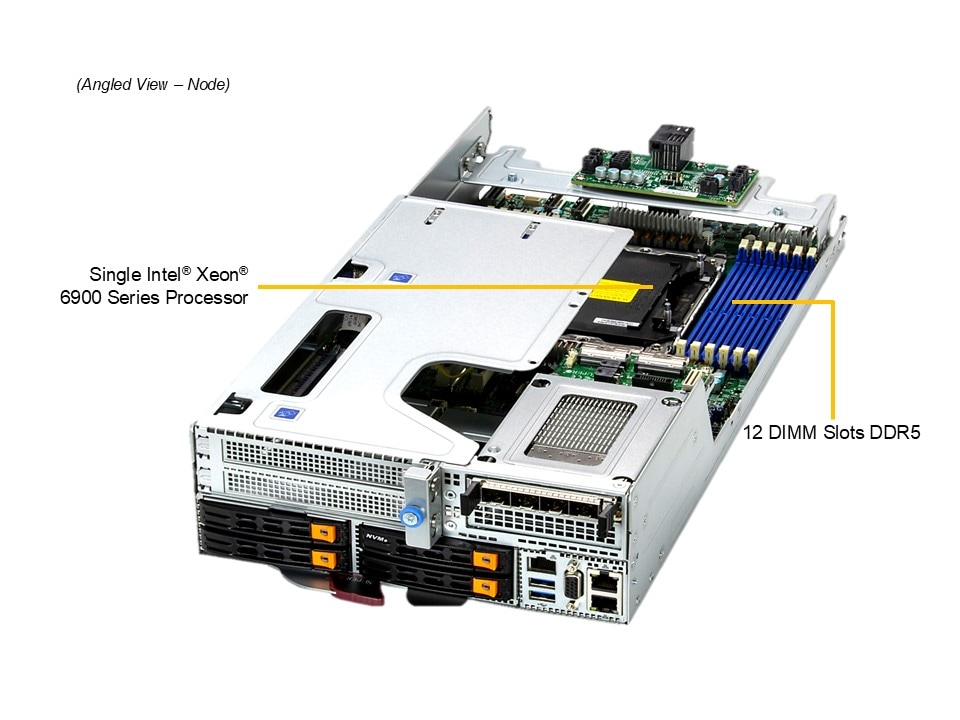

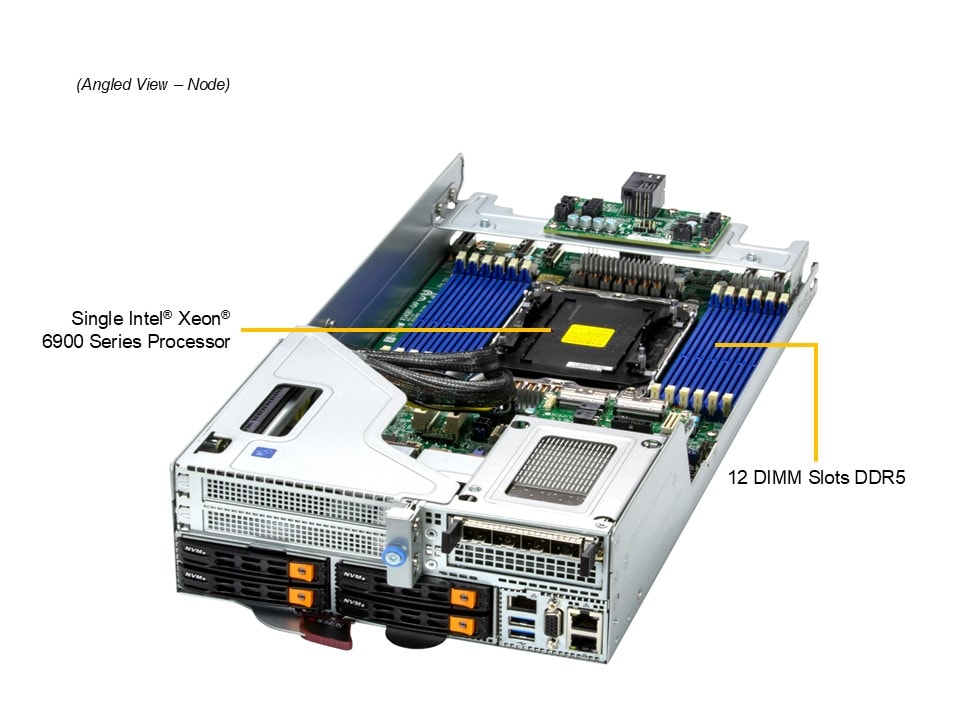

  1. Single Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores up to 500W with air cooling
  2. Up to 12 DIMMs supporting up to 3TB MRDIMM 8800 in 1DPC
  3. Flexible networking with up to 2 PCIe 5.0 x16 FH AOC + 1 optional AIOM slot
  4. Up to 2 PCIe 5.0 x16 FH10.5″L slots (1x double-width GPU or 2x single-width AOCs)
  5. GrandTwin front IO module offers additional value for networking expansion(10G/25G/200G).

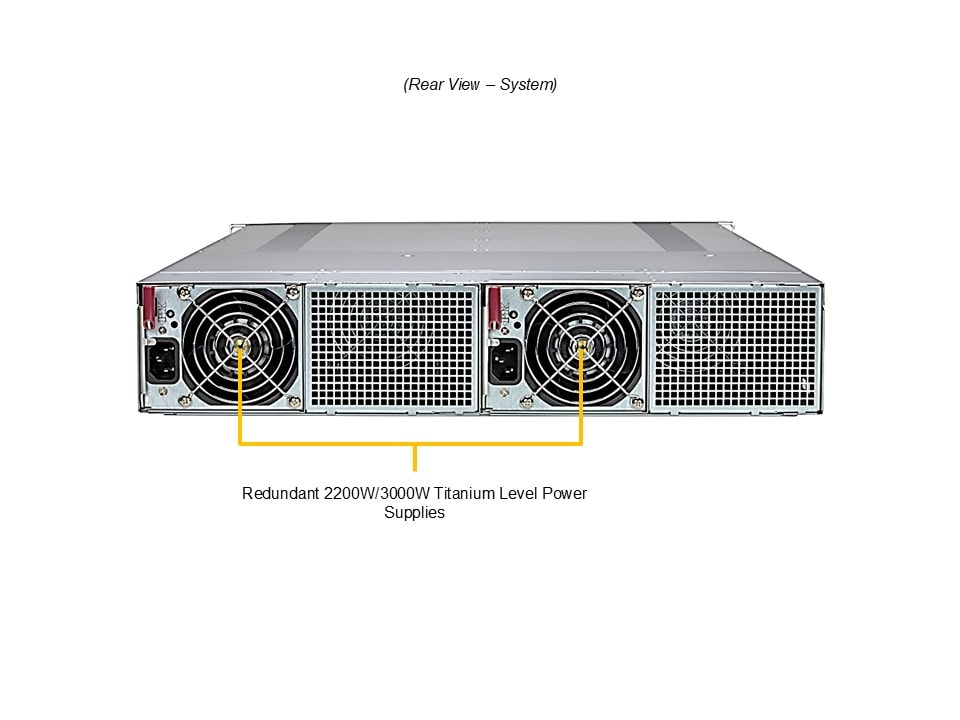

  6. 2 Redundant 2200W Titanium (certification pending) Level power supplies

Specifications

Product SKUs
  • SuperServer SYS-212GT-DNAF
Motherboard

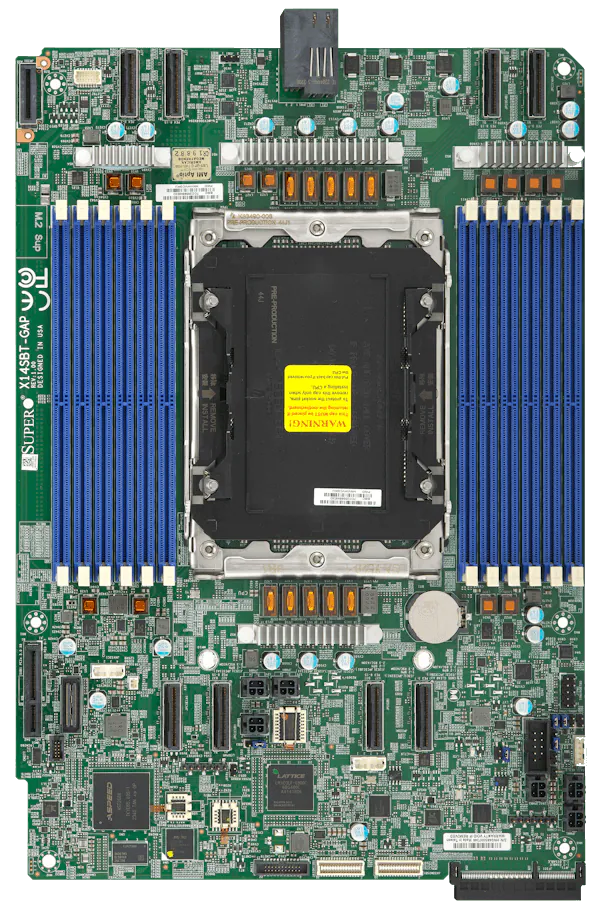

  • Super X14SBT-GAP
Processor (per Node)
CPU
  • Single Socket BR (LGA-7529)
  • Intel® Xeon® 6900 series processors with P-cores
Core Count
  • Up to 128C/256T; Up to 504MB Cache
Note
  • Supports up to 500W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count
  • Up to 1 double-width or 2 single-width GPUs
Supported GPU
  • NVIDIA PCIe: H100
System Memory (per Node)
Memory
  • Slot Count: 12 DIMM slots/1 Channels
  • Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM
  • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices (per Node)
NVMe
  • NVMe; RAID 0/1/5/10 support(VROC HW key required)
Input / Output (per Node)
USB
  • 2 USB 3.0 ports
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 64MB Flash ROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • SuperServer SYS-212GT-DNAF
  • Super X14SBT-GAP
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-GT222BG-R2K21BP
Dimensions and Weight
Height
  • 3.46″ (88 mm)
Width
  • 17.67″ (449 mm)
Depth
  • 28″ (711.2 mm)
Package
  • 9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight
  • Gross Weight: 77.3 lbs (35.1 kg)
  • Net Weight: 57.3 lbs (26 kg)
Available Color
  • Silver

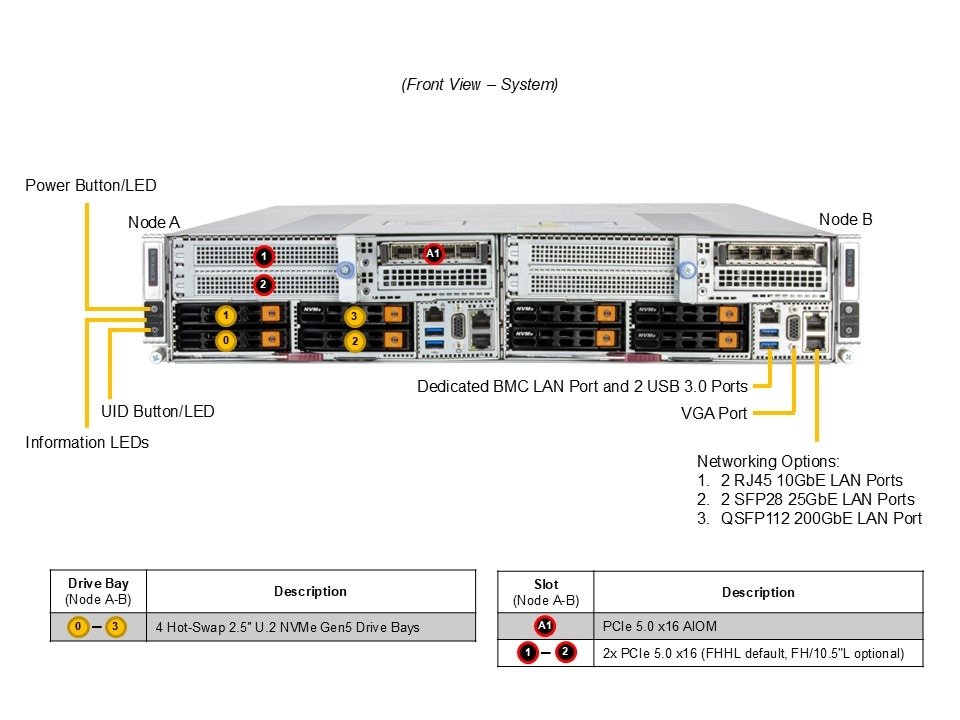

Front Panel
Buttons
  • Power On/Off button
  • UID button
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x16 (in x16) FH/10.5″L slots
  • 2 PCIe 5.0 x16 (in x16) FH/10.5″L slots
CXL Support
  • Up to 64 internal CXL 2.0 x16 Type 1/Type 2/Type 3 devices
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default); VROC required for RAID)
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 4 bays4 front hot-swap 2.5″ PCIe 5.0 x4 NVMe drive bays
  • 4 front hot-swap 2.5″ PCIe 5.0 x4 NVMe drive bays
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default)/2280; VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • Up to 2x 16K RPM Heavy Duty 8cm Fan(s)
Power Supply
  • 2x 2200W 2x 3000W 2x 2200W 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 84 x 245.3 mm Input200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only) 12V SBMax: 2A / Min: 0A Output TypeBackplanes (gold finger) 2x 3000W 2x 3000W Redundant (1 + 1) Titanium (certification pending) Level (96%) power supplies Dimension (WxHxL)106.5 x 84 x 245.3 mm Input2880W: 240-240Vdc / 50-60Hz (for CQC only)3000W: 200-240Vac / 50-60Hz +12VMax: 240A / Min: 0A (240Vdc-240Vdc) (for CQC safety rating only)Max: 250A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 106.5 x 84 x 245.3 mm
Input
  • 200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)
12V SB
  • Max: 2A / Min: 0A
Output Type
  • Backplanes (gold finger)
Input
  • 2880W: 240-240Vdc / 50-60Hz (for CQC only)3000W: 200-240Vac / 50-60Hz
+12V
  • Max: 240A / Min: 0A (240Vdc-240Vdc) (for CQC safety rating only)Max: 250A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3A / Min: 0A
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 5°C to 40°C (41°F to 104°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
  • 2x 2200W 2x 3000W 2x 2200W 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 84 x 245.3 mm Input200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only) 12V SBMax: 2A / Min: 0A Output TypeBackplanes (gold finger) 2x 3000W 2x 3000W Redundant (1 + 1) Titanium (certification pending) Level (96%) power supplies Dimension (WxHxL)106.5 x 84 x 245.3 mm Input2880W: 240-240Vdc / 50-60Hz (for CQC only)3000W: 200-240Vac / 50-60Hz +12VMax: 240A / Min: 0A (240Vdc-240Vdc) (for CQC safety rating only)Max: 250A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
