Supermicro SuperServer SYS-220TP-HC8TR

Favorite
Compara

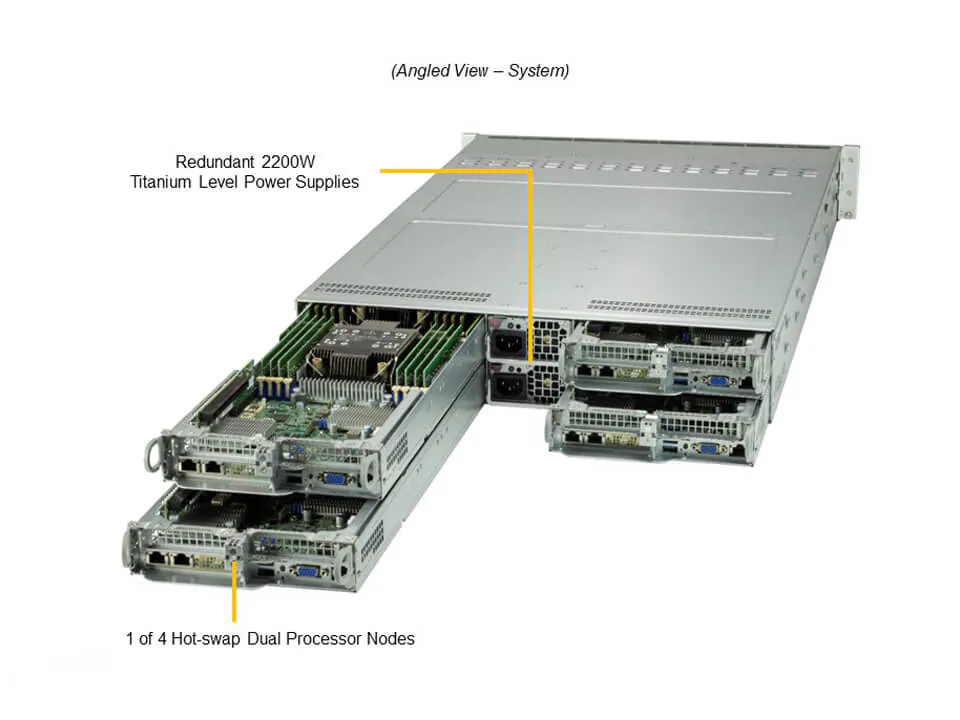

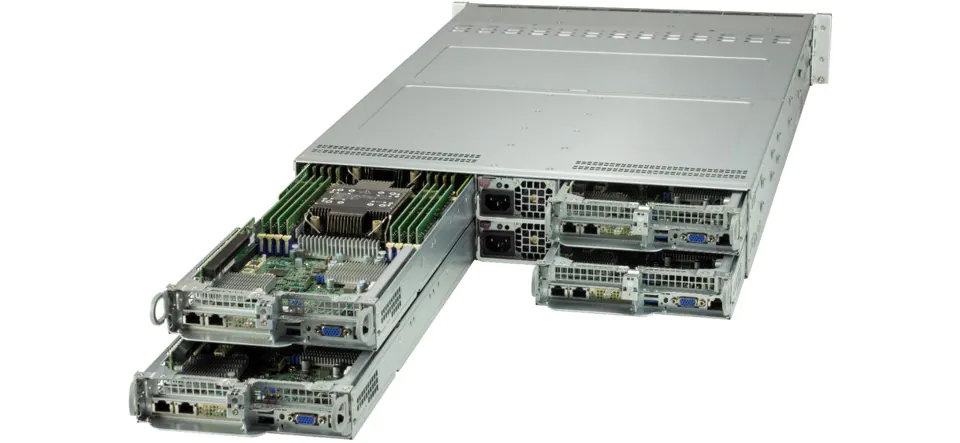

2U 4-node TwinPro with 6 2.5″ SAS/SATA drives per node and dual 10GbE

Pretul afisat contine TVA (21%).

SuperServer SYS-220TP-HC8TR

2U 4-node TwinPro with 6 2.5″ SAS/SATA drives per node and dual 10GbE

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
  4. 1 PCIe 4.0 x16 (LP), 1 PCIe 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22×80 mm)
  5. Intel® X710 Dual port 10GBase-T LAN onboard
  6. 6x 2.5″ hot-swap SATA/SAS drive bays
  7. 4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)
  8. Two 2200W redundant power supplies with PMBus
  9. Broadcom® 3808 SAS (12Gbps); 6 slots per node; HBA only, no RAID support.ASPEED AST2600 BMC, 2 USB, VGA. RoT
  10. Broadcom® 3808 SAS (12Gbps); 6 slots per node; HBA only, no RAID support.
  11. ASPEED AST2600 BMC, 2 USB, VGA. RoT

Specifications

Product SKUs
  • SuperServer SYS-220TP-HC8TR
Motherboard

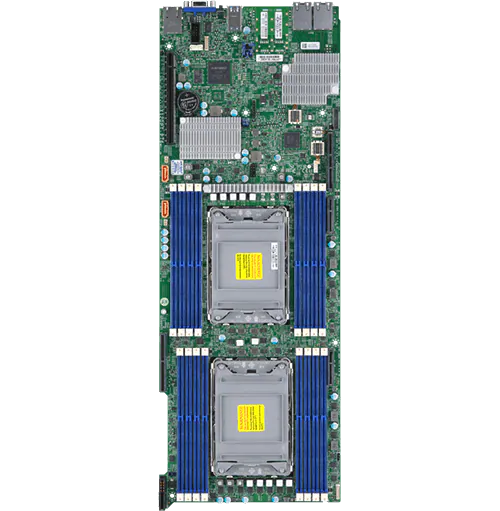

  • Super X12DPT-PT6

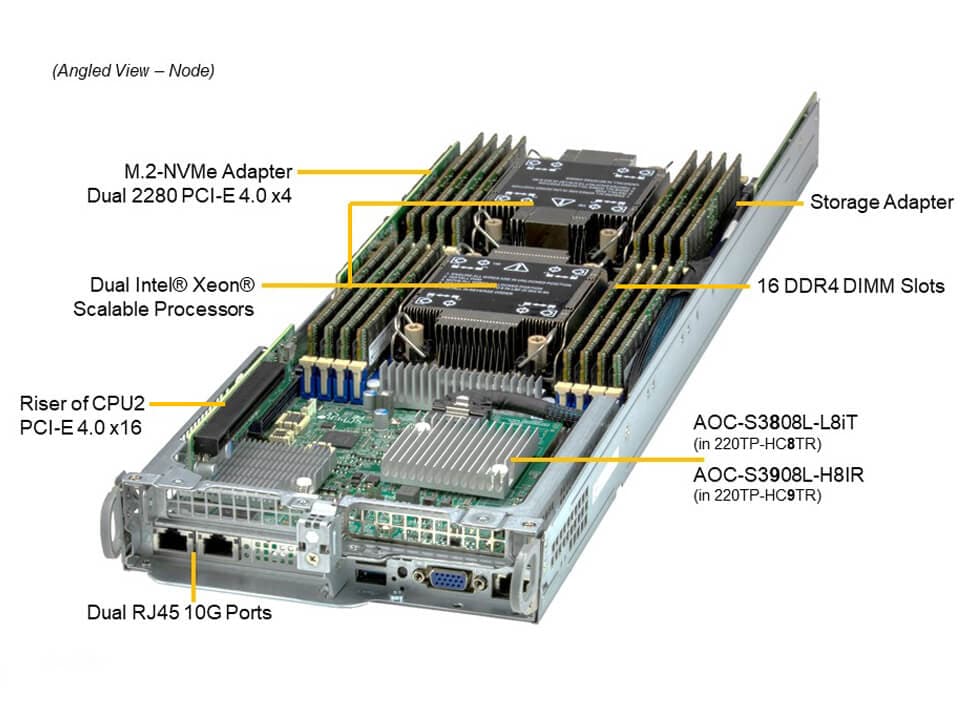

Processor (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 32C/64T; Up to 48MB Cache per CPU
Note
  • Supports up to 185W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
Memory Voltage
  • 1.2V
On-Board Devices (per Node)
Network Connectivity
  • 2 RJ45 10GBASE-T with Intel® X710-AT2

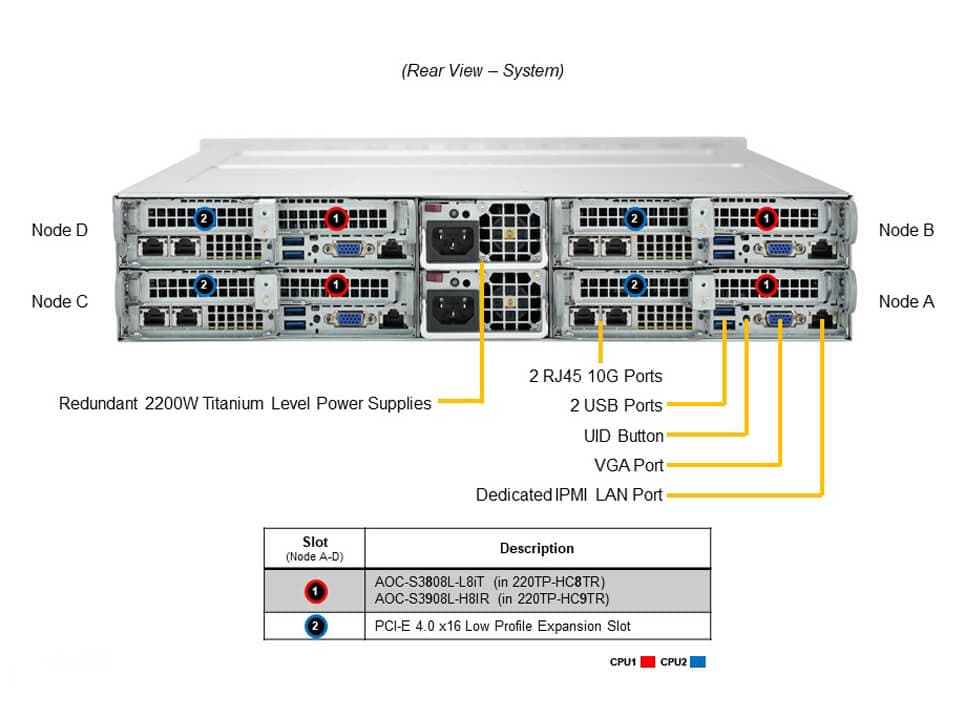

Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 5 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-220TP-HC8TR
  • Super X12DPT-PT6
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSV-217HQ+-R2K20BP4
Dimensions and Weight
Height
  • 3.47″ (88 mm)
Width
  • 17.25″ (438 mm)
Depth
  • 28.75″ (730 mm)
Package
  • 10″ (H) x 24.5″ (W) x 45″ (D)
Weight
  • Gross Weight: 90 lbs (40.9 kg)
  • Net Weight: 72 lbs (32.7 kg)
Available Color
  • Black front & silver body

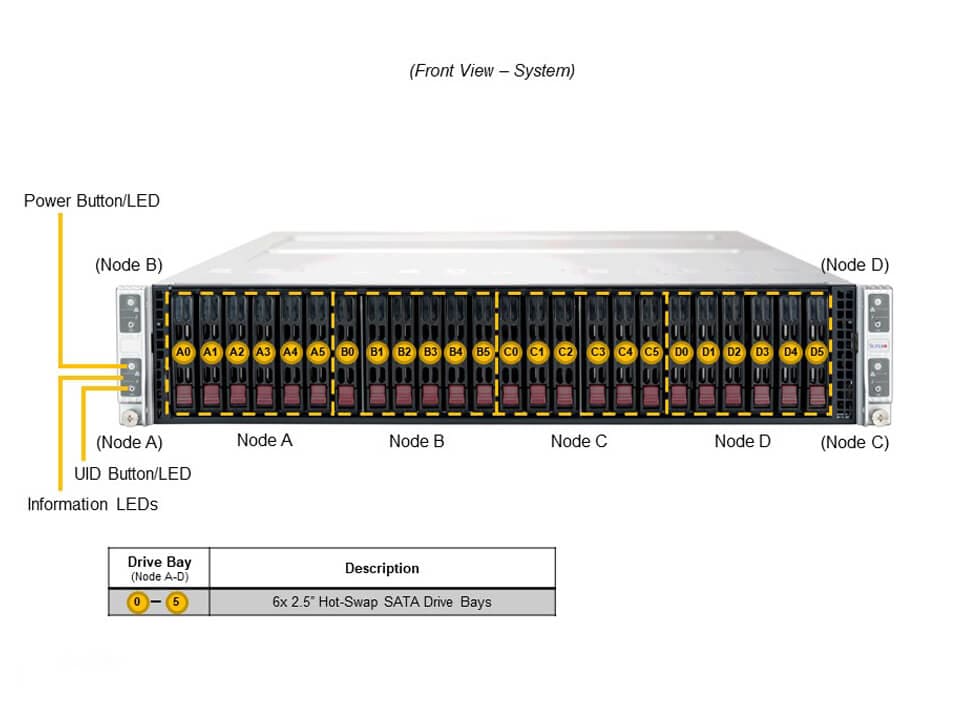

Front Panel
Buttons
  • Power On/Off button
  • UID button
LED
  • Network activity LED
  • Power status LED
  • System information (overheat/UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default1 PCIe 4.0 x16 (in x16) LP slot
  • 1 PCIe 4.0 x16 (in x16) LP slot
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 6 bays6 front hot-swap 2.5″ SAS/SATA drive bays
  • 6 front hot-swap 2.5″ SAS/SATA drive bays
System Cooling
Fans
  • Up to 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 4 Air Shrouds
Power Supply
  • 1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Total Output Power(for UL/cUL use only)(for CCC only) Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Total Output Power
  • (for UL/cUL use only)(for CCC only)
Input
  • 1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc)
5V SB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Total Output Power(for UL/cUL use only)(for CCC only) Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)
Standard Parts (Parts Included)
Optional Parts List
SKU: sys-220tp-hc8tr Categorii: , , ,
